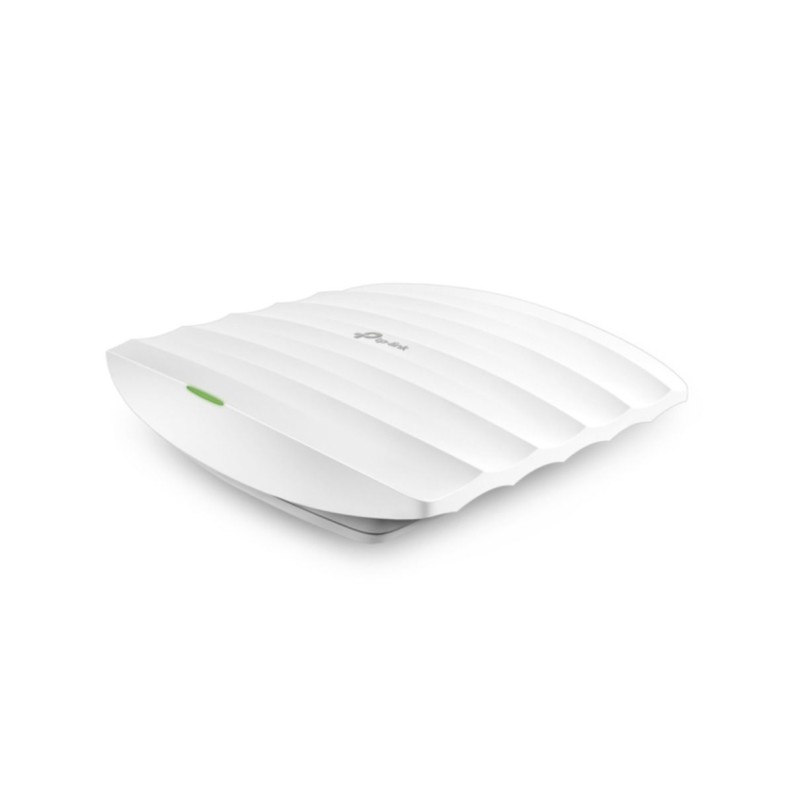

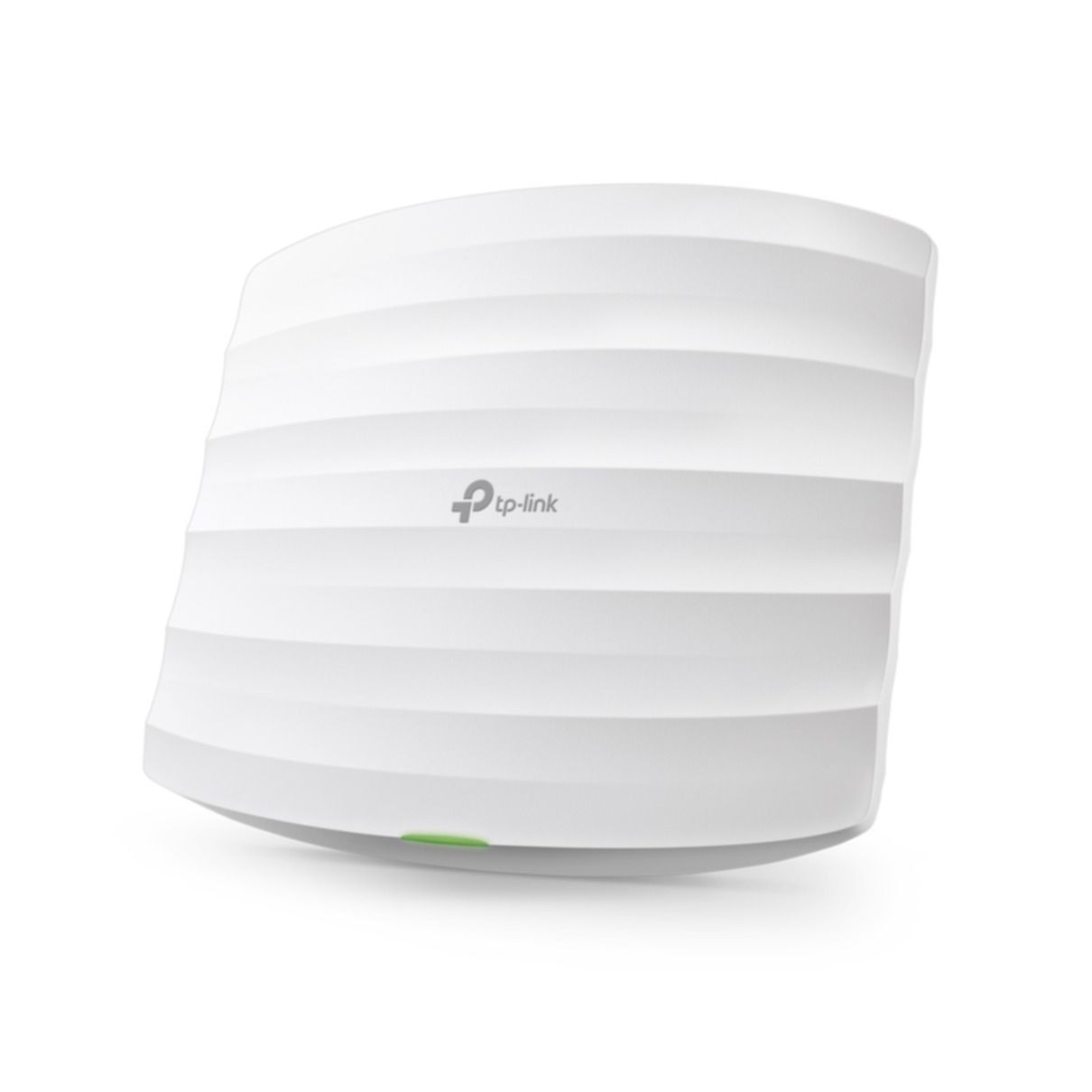

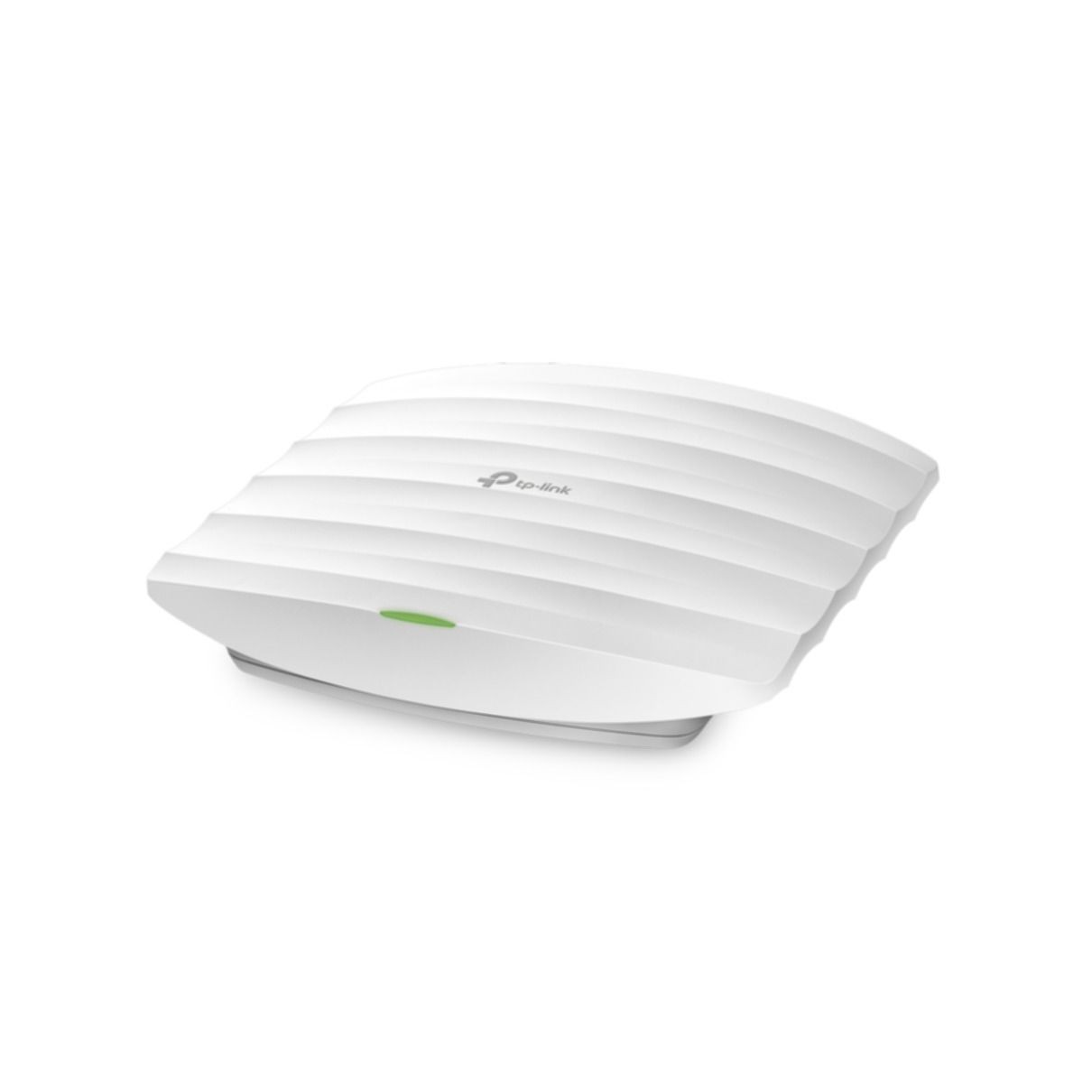

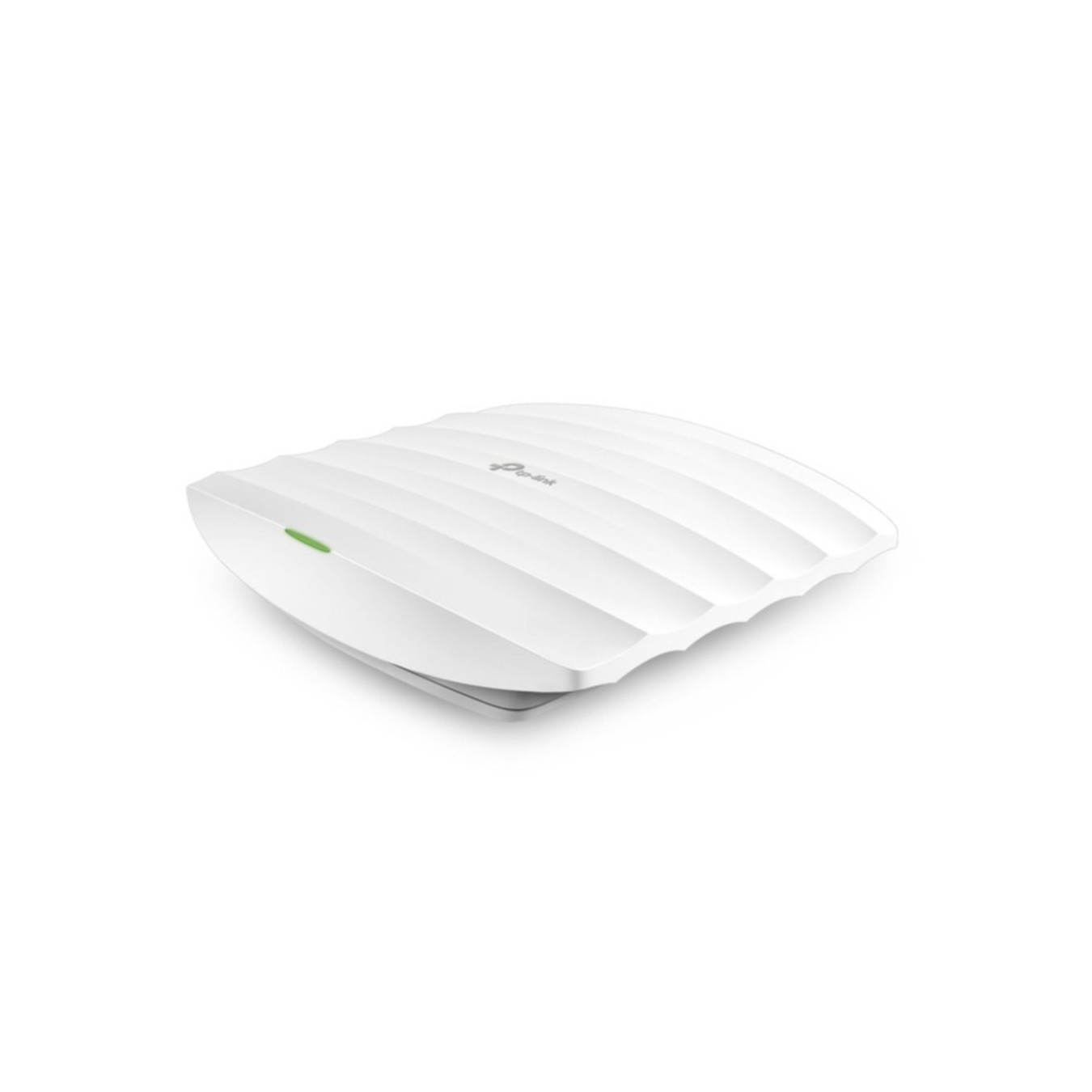

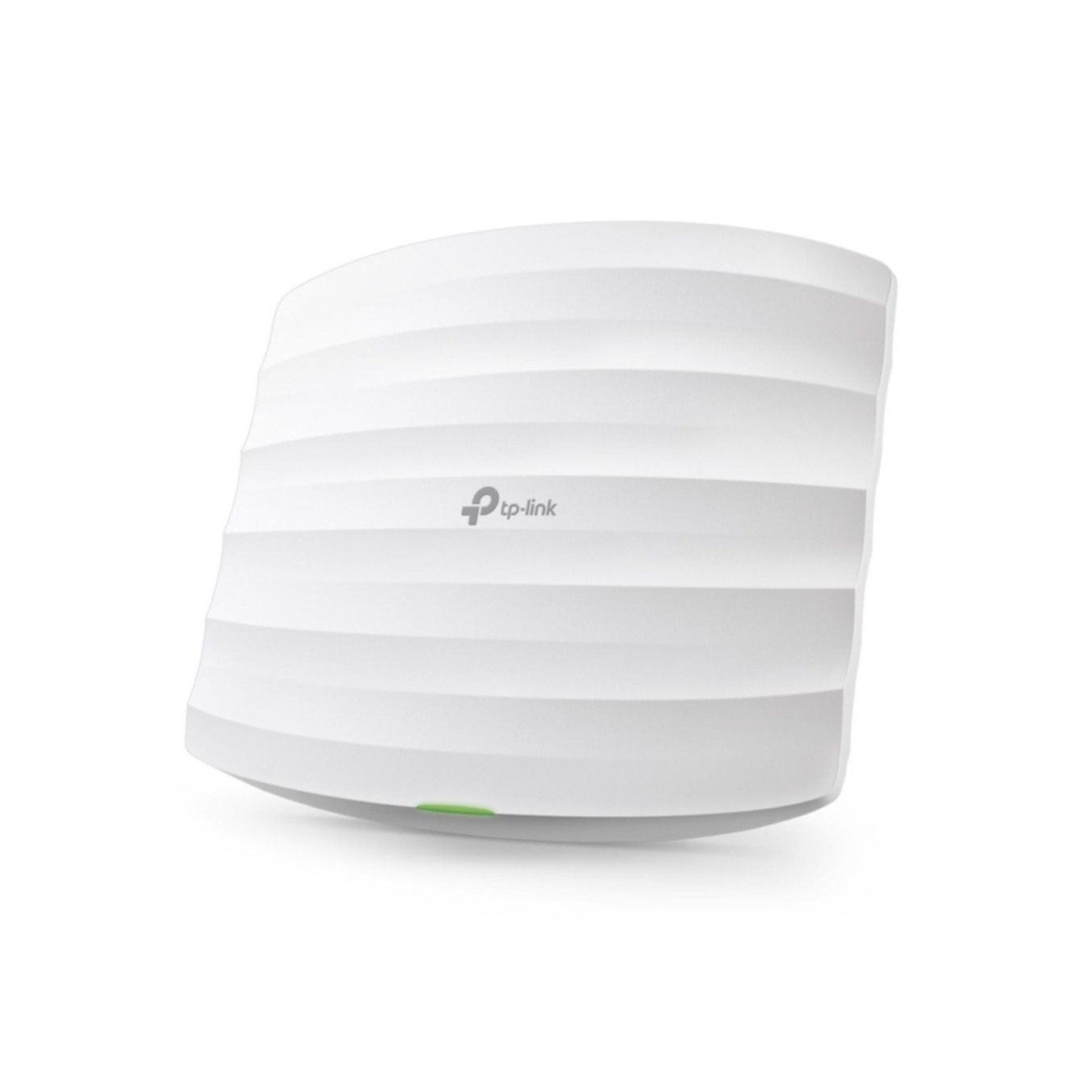

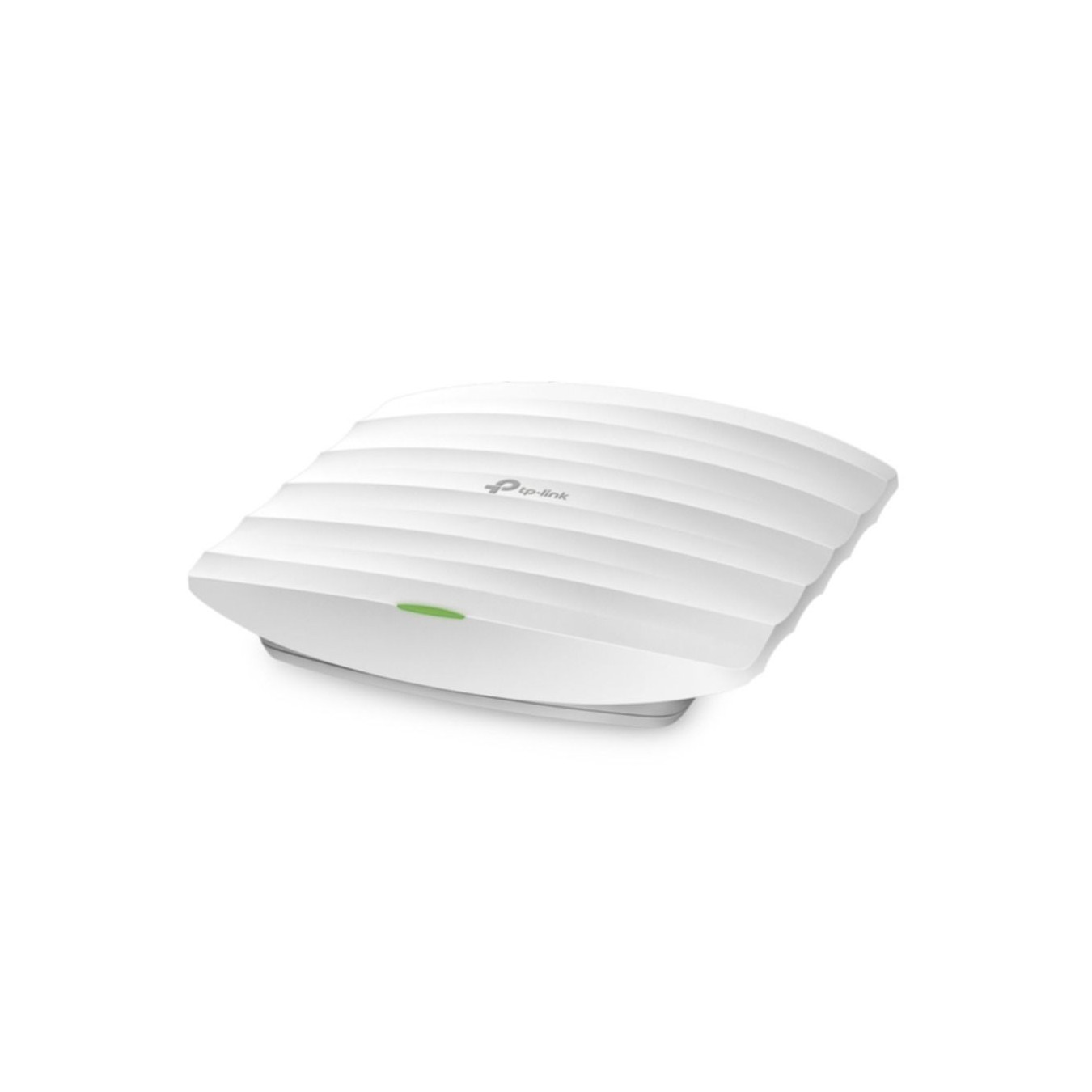

TP-Link Wireless Access Point - EAP115 - 300Mbps Wireless N, Ceiling Mount, PoE, White, Omada Cloud-Managed
Affordable 300Mbps Wireless N ceiling-mount AP with PoE, Omada cloud management or controller support, captive portal with Facebook/SMS guest authentication for small businesses.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Management | Cloud-managed |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | None |
An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Timesaving and Flexible Deployment

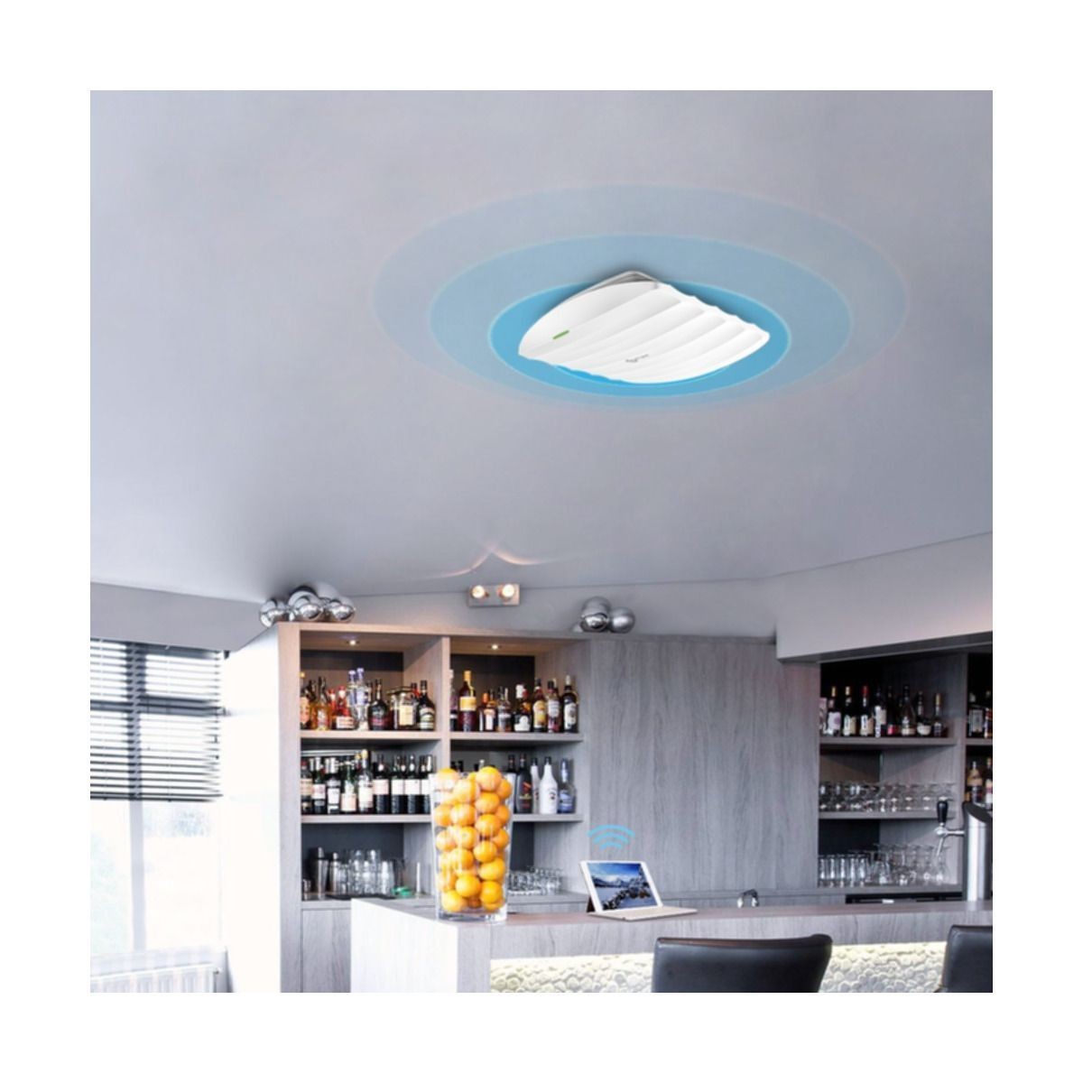

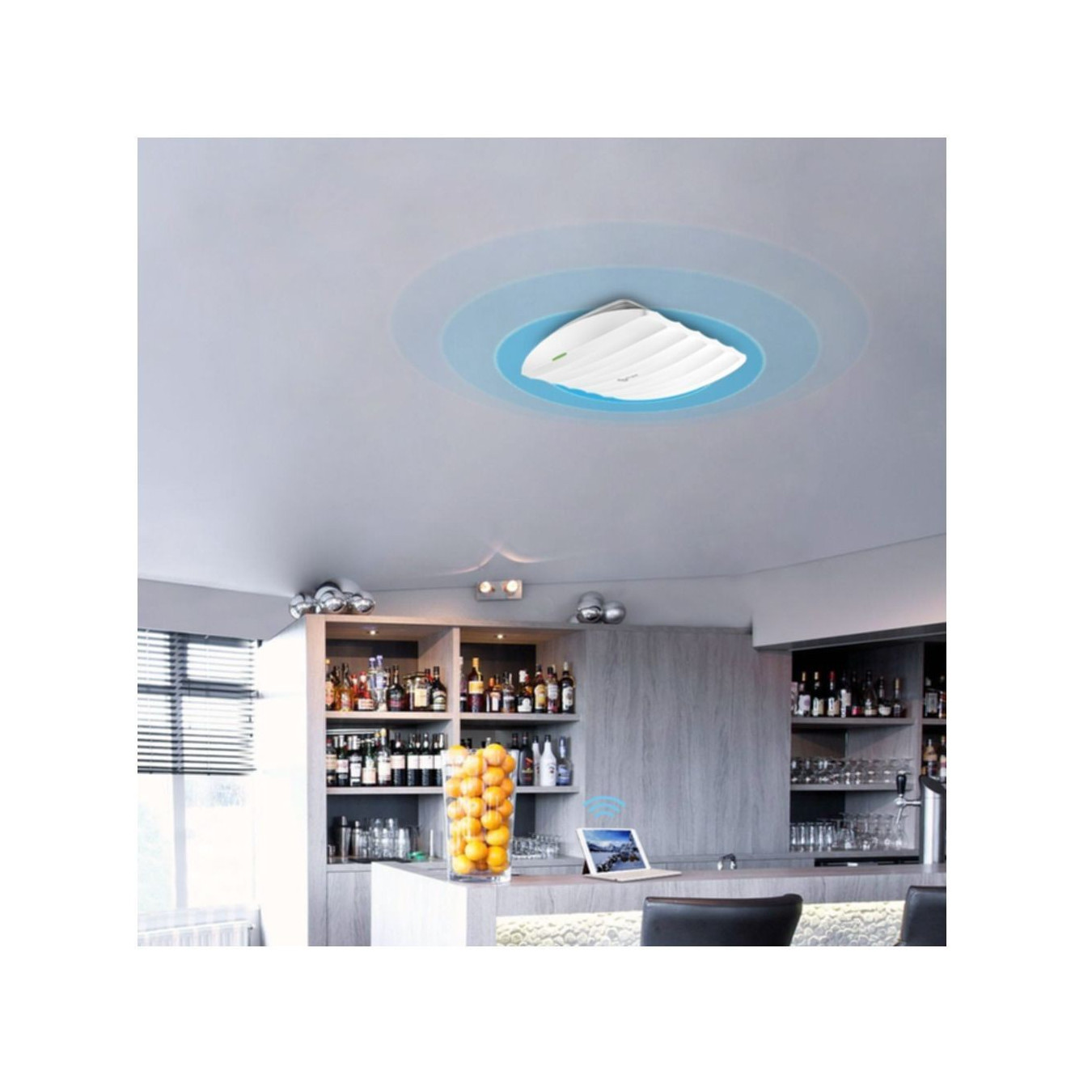

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Omada Hardware Controller
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID |
| Number of SSID supported | 8 |
| System status alarm | Yes |
| Access Control List (ACL) | Yes |
| Web-based management | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45), Wi-Fi |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (typical) | 2.8 W |
| Placement | Ceiling, Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Certification | CE, FCC, RoHS |
| Width | 172.3 mm |
| Depth | 189.4 mm |
| Height | 29.5 mm |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Harmonized System (HS) code | 85176990 |
