Ubiquiti UniFi UMA-D Antenna - UMA-D - White, Dual‑Band 2.4/5 GHz, Directional, 15 dBi
Directional dual‑band antenna for UniFi UAP‑AC‑M. 2.4–2.5 & 5.1–5.9 GHz, 10 dBi (2.4 GHz) / 15 dBi (5 GHz), RP‑SMA, wall or pole mount, indoor/outdoor.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
Versatile Mounting

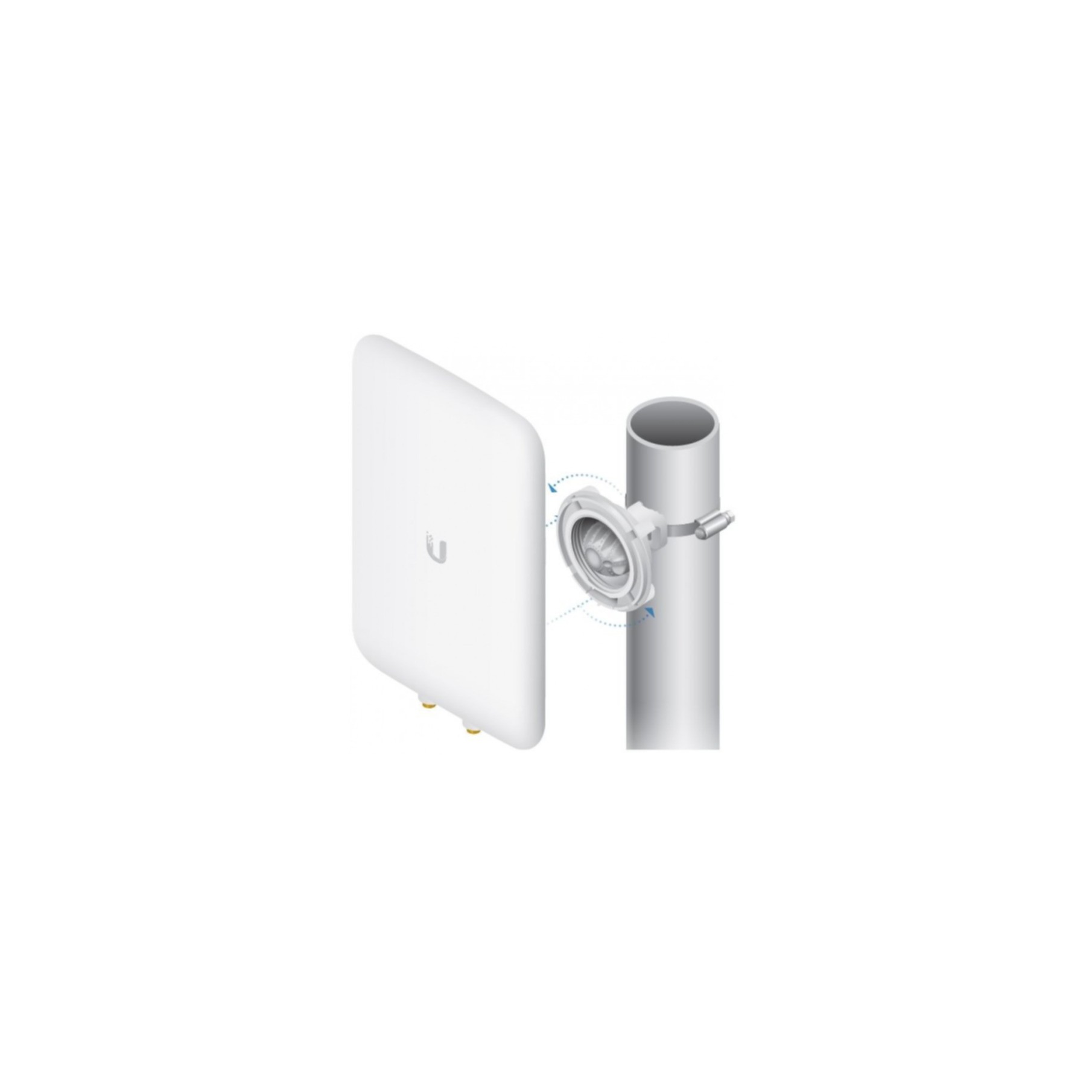

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
| Frequency band | 2.4 - 2.5, 5.1 - 5.9 GHz |
| Networking standards | IEEE 802.11ac |
| Antenna gain (2.4 GHz) | 10 dBi |
| Antenna gain (5 GHz) | 15 dBi |
| Horizontal beam width (2.4 GHz) | 90° |
| Vertical beam width (2.4 GHz) | 90° |
| Horizontal beam width (5 GHz) | 45° |
| Vertical beam width (5 GHz) | 45° |
| Antenna gain level (max) | 15 dBi |
| Antenna type | Directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Product colour | White |
| Housing material | Plastic |
| Mounting | Wall/Pole |
| Purpose | Indoor & outdoor |
| Compatible products | UAP-AC-M |
| Width | 128 mm |
| Depth | 32.5 mm |
| Height | 201.3 mm |
| Weight | 480 g |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Harmonized System (HS) code | 85177100 |
