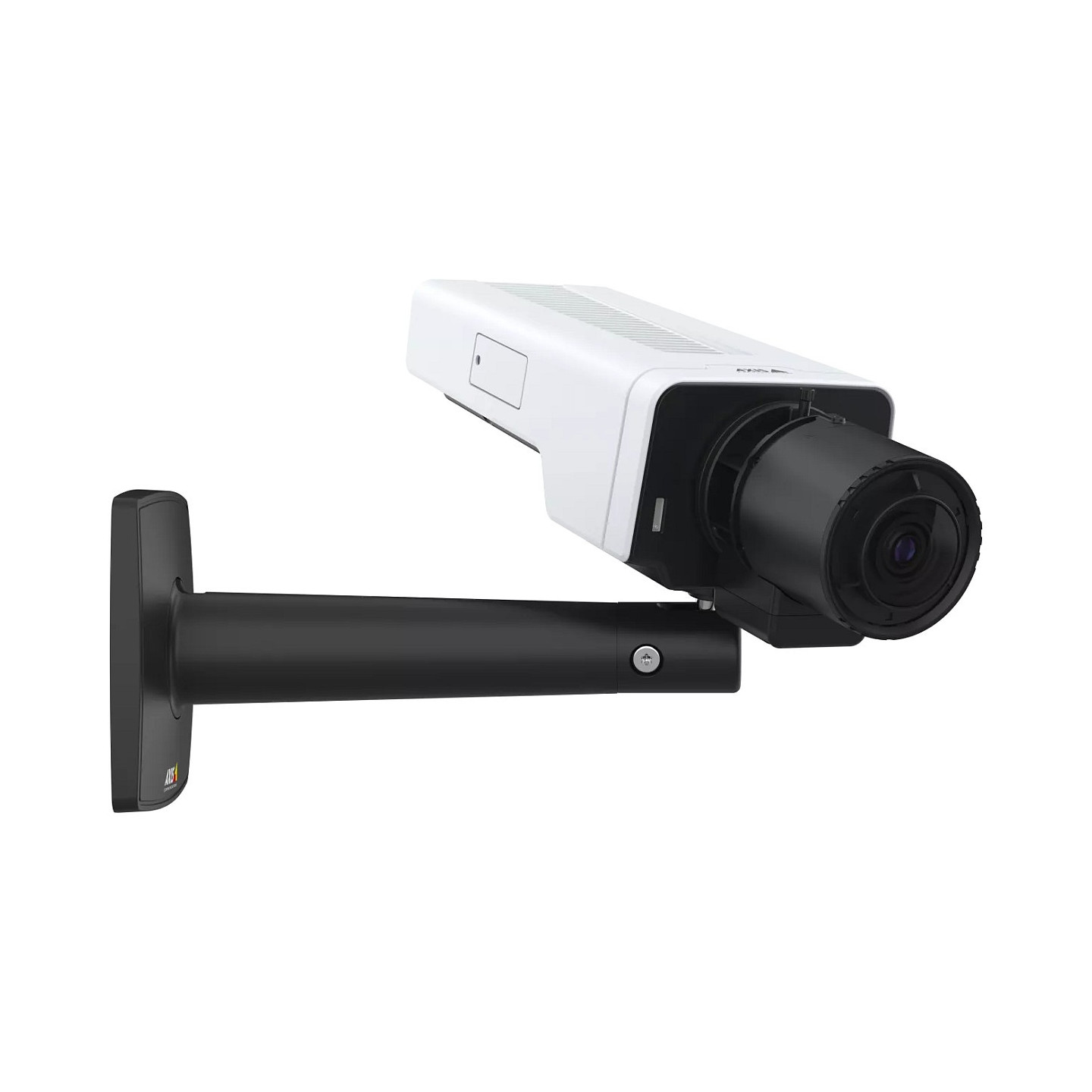

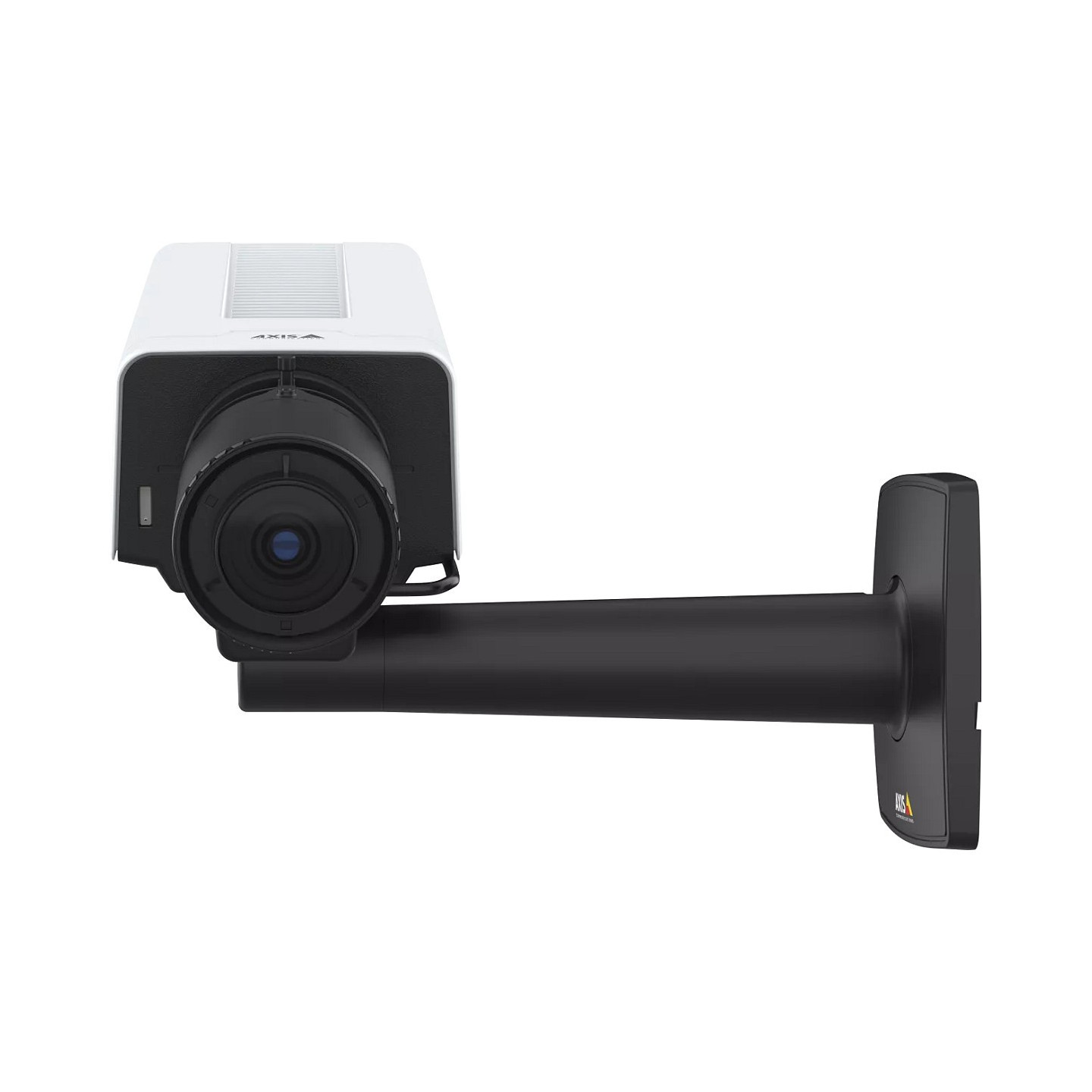

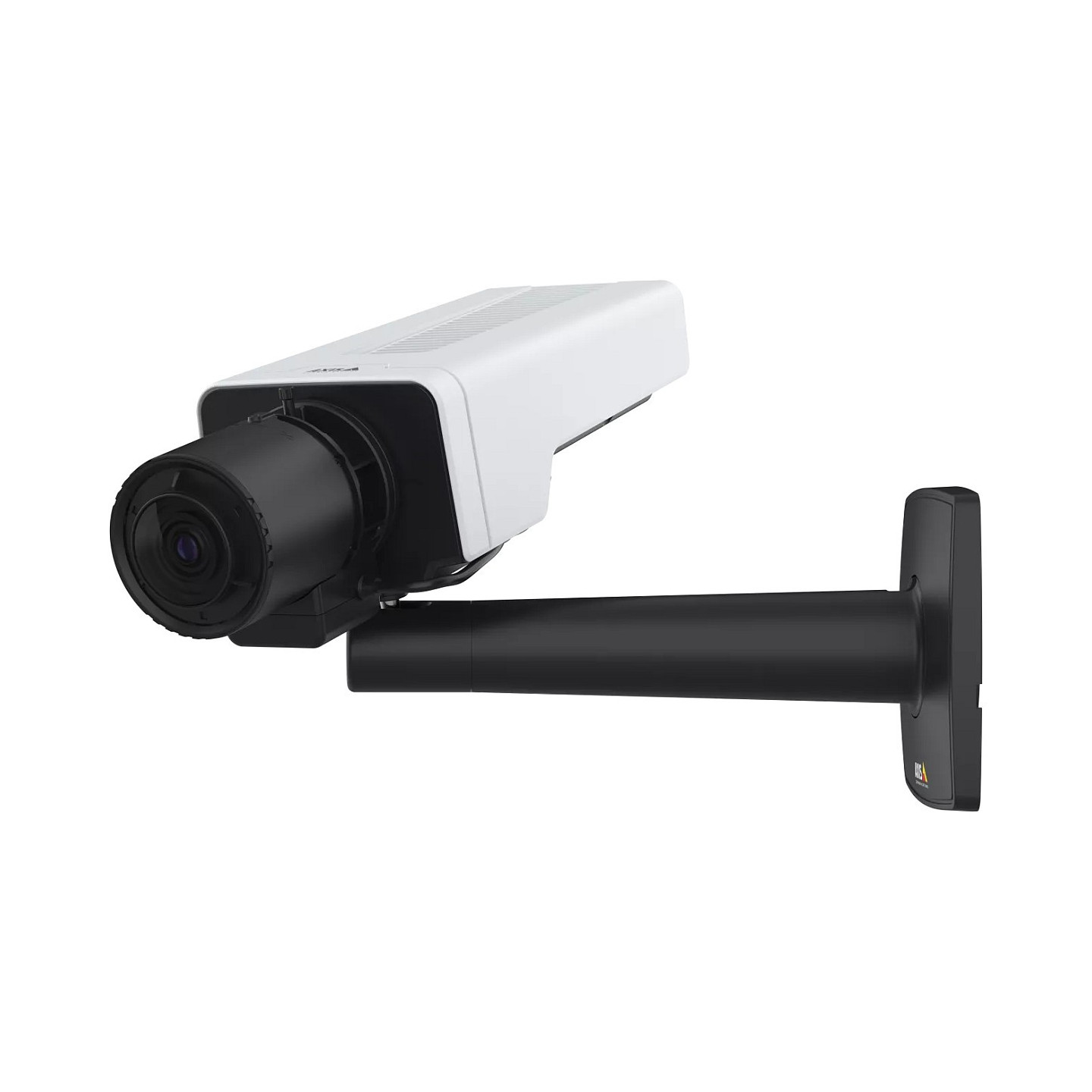

Axis Netzwerkkamera Box-Typ P1387 5 MP
Axis P1387. IP-Sicherheitskamera. Drinnen. Kabelgebunden. ARTPEC-8. Multi. 120 dB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis P1387. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Drinnen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand. Produktfarbe: Weiß. Formfaktor: Box. Mindestbeleuchtung: 0.008 Lux. Betrachtungswinkel (horizontal): 24 - 112°. Betrachtungswinkel (vertikal): 18 - 80°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 2.7 mm (1 / 2.7"). Brennweitenbereich: 2.8 - 13 mm. Abstandsfeststellung (wide): 56.2 m. Abstandsfeststellung (tele): 244.2 m
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Drinnen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Klemmleiste enthalten |
| Prozessor | ARTPEC-8 |
| Unterstützte Sprachen | Multi |
| Dynamischer Bereich | 120 dB |
| Formfaktor | Box |
| Befestigungstyp | Wand |
| Produktfarbe | Weiß |
| Gehäusematerial | Aluminium |
| Mindestbeleuchtung | 0.008 Lux |
| Betrachtungswinkel (horizontal) | 24 - 112° |
| Betrachtungswinkel (vertikal) | 18 - 80° |
| Pixelgröße Kamera | 2 µm |
| Kamera Verschlusszeit | 1/66500 - 2 s |
| Größe des Bildsensors | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor-Typ | CMOS |
| Anzahl der Linsen | 1 |
| Brennweitenbereich | 2.8 - 13 mm |
| Minimale Blendenzahl | 1.4 |
| Abstandsfeststellung (wide) | 56.2 m |
| Abstandsfeststellung (tele) | 244.2 m |
| Abstandsbeobachtung (wide) | 22.3 m |
| Abstandsbeobachtung (tele) | 96.9 m |
| Abstandserkennung (wide) | 11.2 m |
| Abstandserkennung (tele) | 48.8 m |
| Abstandsermittlung (wide) | 5.6 m |
| Abstandsermittlung (tele) | 24.4 m |
| Maximale Auflösung | 2592 x 1944 Pixel |
| Megapixel insgesamt | 5 MP |
| Videokompressionsformate | H.264. H.265. M-JPEG. MPEG4 |
| Unterstützte Grafik-Auflösungen | 160 x 120. 160 x 90. 2592 x 1944 |
| Bis zu 30 Frames pro Sekunde | 60 fps |
| Geräuschunterdrückungstechnologie | 2D-Rauschunterdrückung. 3D-Rauschunterdrückung |
| Verstärkungssteuerungstyp | Auto |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Schärfe |
| Bitratenkontrolle | Variable Bitrate (VBR) |
| Audio-System | 2-Wege |
| Unterstützte Audioformate | G.711. G.726. LPCM. OPUS |
| Rauschverhältnis (SNR) | 55 dB |
| Ethernet Schnittstellen Typ | Schnelles Ethernet. Gigabit Ethernet |
| Netzstandard | IEEE 802.1x. IEEE 802.3af. IEEE 802.3at |
| Streaming-Verfahren | Multicasting |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Flash-Speicher | 8192 MB |
| Speicherkapazität | 2048 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| RS-422-Anschlüsse | 1 |
| RS-485-Anschlüsse | 1 |
| Alarm-Eingangskanäle | 2 |
| Alarm-Ausgangskanäle | 2 |
| Intelligent Video Surveillance-(IVS)-System-Eigenschaften | Gesichtserkennung. Erkennung von Menschen. Erkennung Leitungskreuzungen. Szenenwechsel. Fahrzeugerkennung |
| Energiequelle | Gleichstrom. PoE |
| Stromverbrauch (Standardbetrieb) | 4.26 W |
| Stromverbrauch (max.) | 10.57 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 11.73 W |
| DC-Ausgang Volt | 10. 28 |
| Betriebstemperatur | -10 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 85% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 80 mm |
| Tiefe | 225 mm |
| Höhe | 63.5 mm |
| Gewicht | 480 g |
| Gewicht (inklusive Standfuß) | 775 g |
| Konformitätsbescheinigungen | CE. EAC. KC. RCM. REACH. RoHS. UKCA. UL. VCCI. cUL |
| Anzahl der Kameras | 1 |
| Enthält nicht | BFR |
