750W FSP VITA-750BD-B ATX 3.1 80+ Bronze PSU (Bulk)
FSP VITA-750BD-B 750W ATX 3.1 PSU. 80 PLUS Bronze certified. PCIe 12V-2x6 for modern GPUs. Active 120mm fan. Full protections: OVP/UVP/OCP/OPP/OTP/SCP. Non-modular black cables. 200-240V input.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

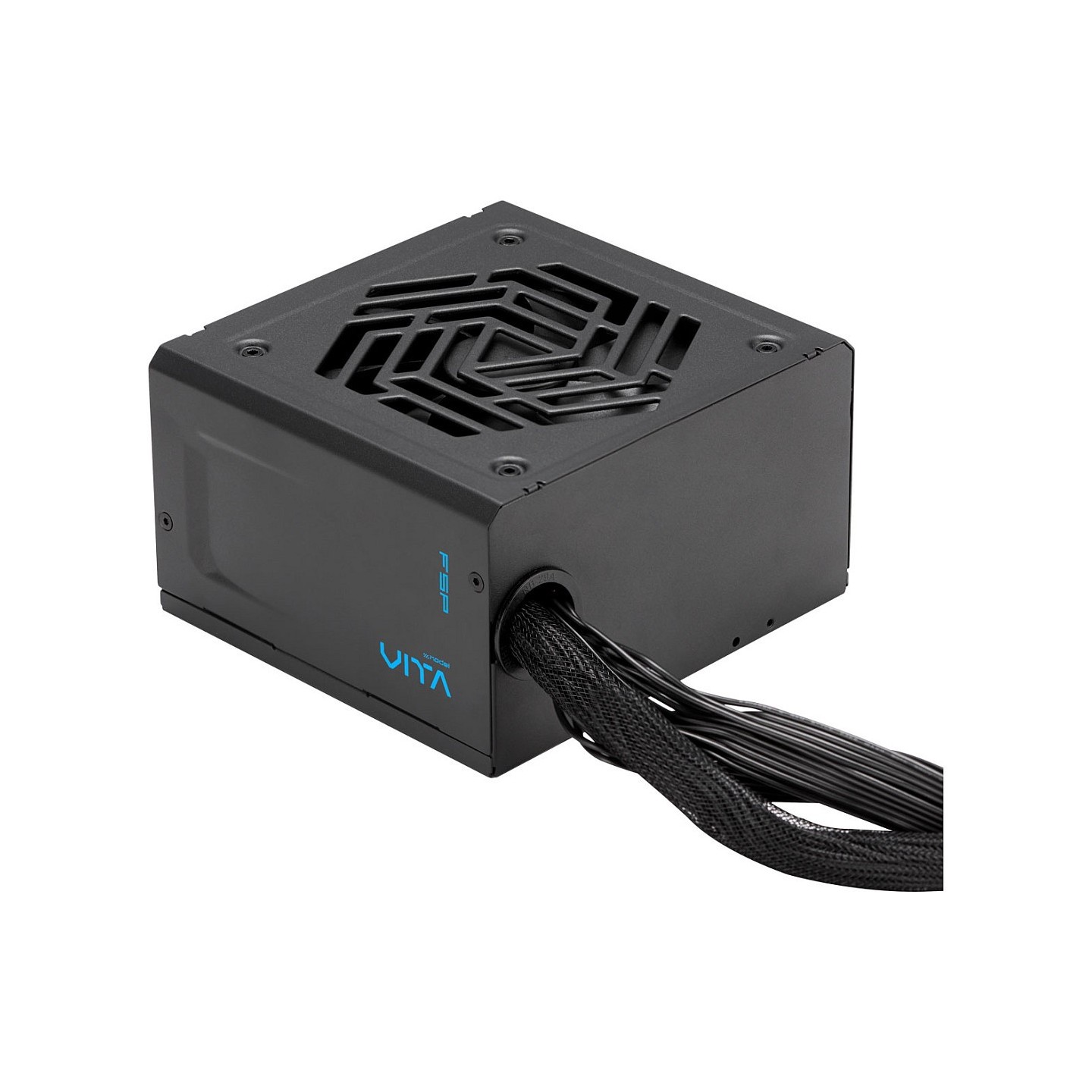

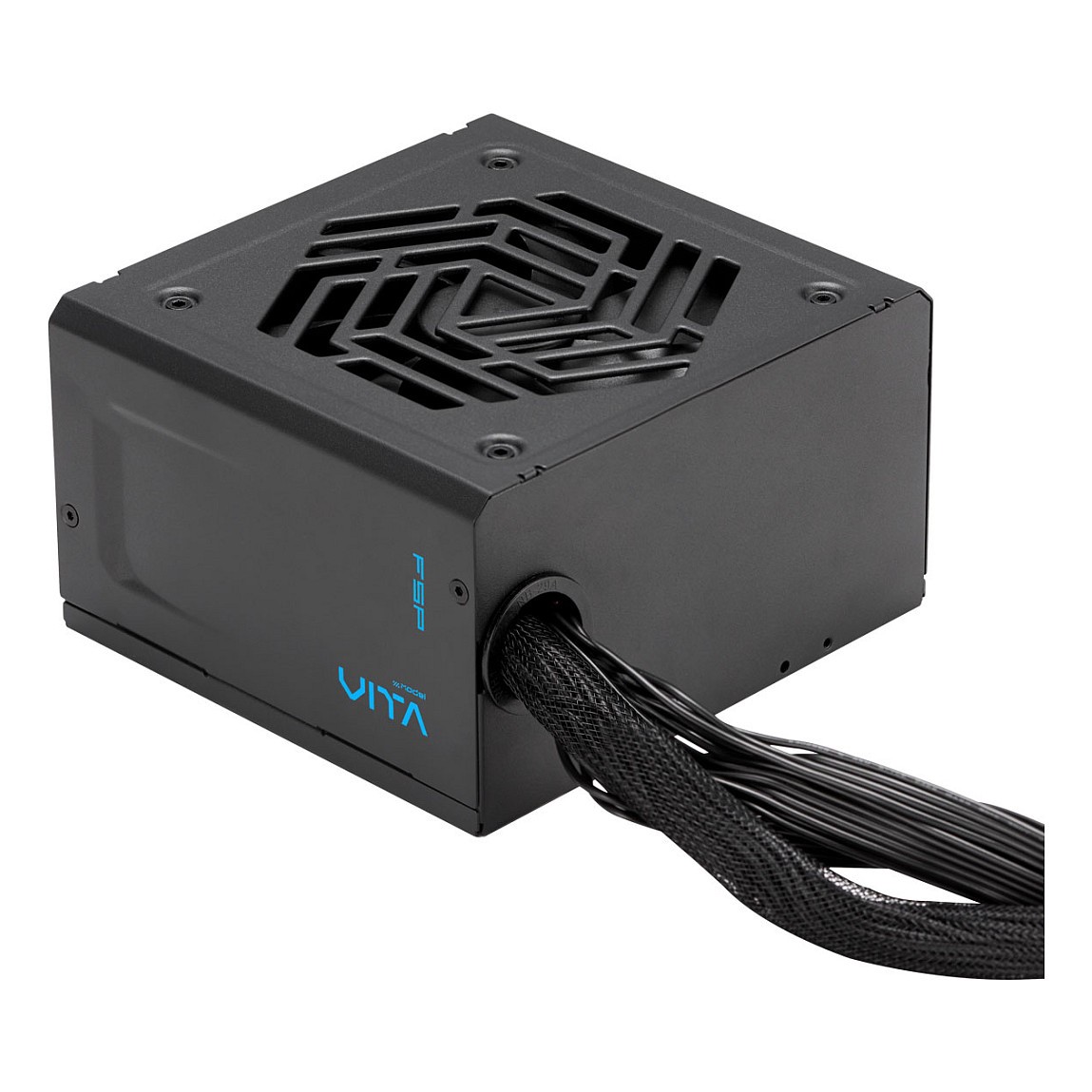

The FSP VITA-750BD-B is a reliable 750W power supply unit compliant with ATX 3.1 standards, featuring PCIe 12V-2x6 connectors for next-gen GPUs. It holds 80 PLUS Bronze certification (230V EU), delivering over 88% efficiency at typical loads to minimize energy waste and heat.
Equipped with a 120mm sleeve bearing fan for active cooling and quiet operation, it includes comprehensive protections: OVP, UVP, OCP, OPP, OTP, SCP. Dimensions are compact at 140 x 150 x 86 mm, suitable for most PC cases. Non-modular design with all-black cables simplifies installation while providing essential connectors: 20+4 pin ATX, 4+4 pin EPS, multiple SATA, Molex, and PCIe.
- ATX 3.1 & PCIe 5.1 ready with 12V-2x6 connector
- DC-DC design on +5V/+3.3V rails
- Hold-up time ≥12ms at full load
- Active PFC ≥0.9
- Supports up to 40°C operation
| Rated Output Power | 750W |
| Form Factor | ATX 3.1 |
| 80 PLUS Certification | 80 PLUS Bronze 230V EU |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PFC | Active ≥0.9 |
| Efficiency | ≥88% at typical load |
| Fan Type | Sleeve Bearing, 120mm |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Operation Temperature | 40°C |
| Protections | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Max +3.3V | 20A |
| Max +5V | 20A |
| Max +12V | 62.5A |
| Max -12V | 0.3A |
| Max +5Vsb | 2.5A |
| Combined +3.3V/+5V | 100W |
| Combined +12V | 750W |
| Kabeltyp | Non-modular |
| PCIe Connectors | 1x 12V-2x6, multiple 6+2-pin |
| Motherboard Connector | 20+4 pin ATX |
| CPU Connector | 4+4 pin EPS |
