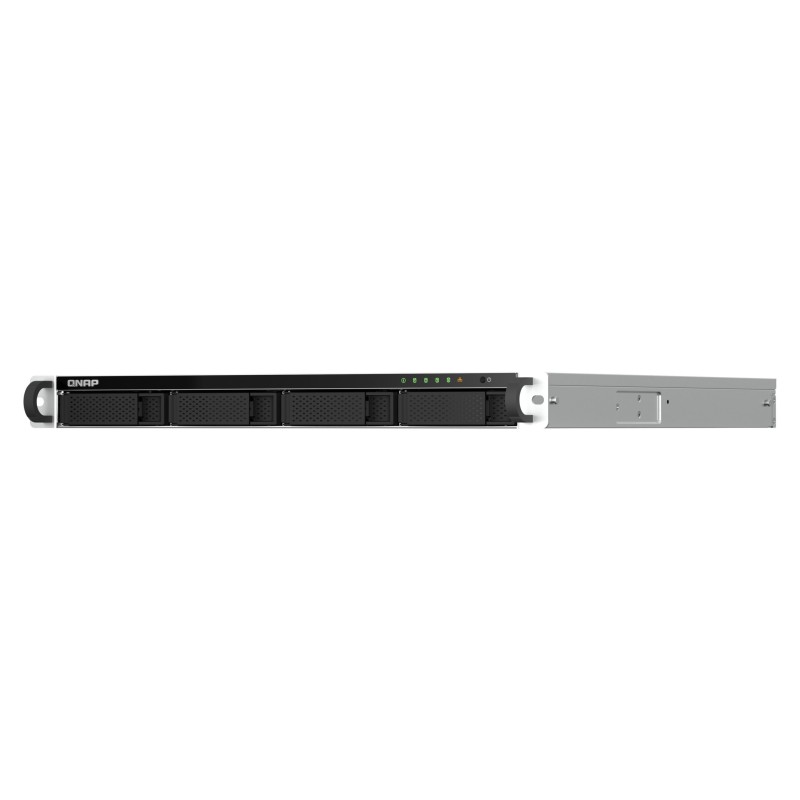

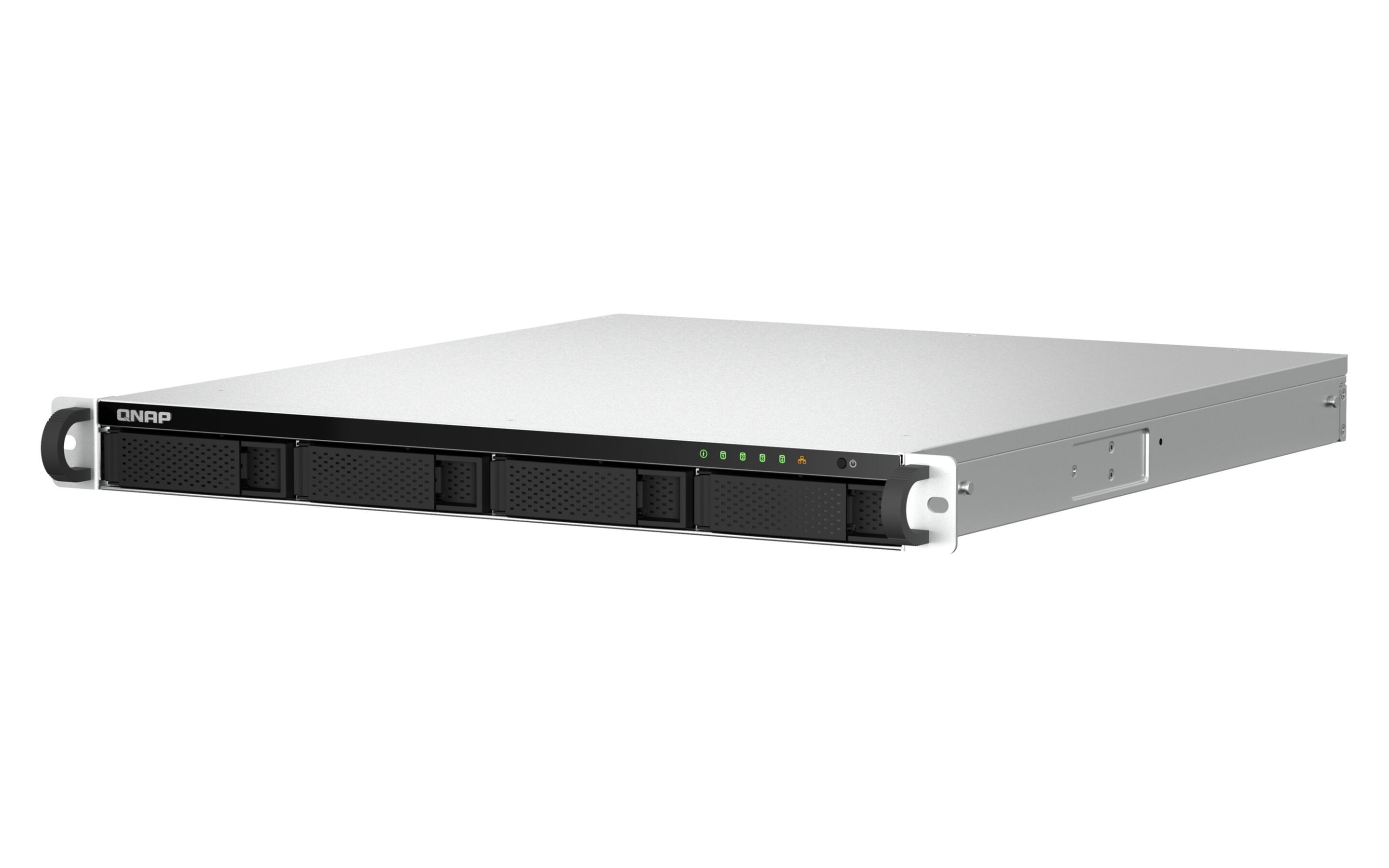

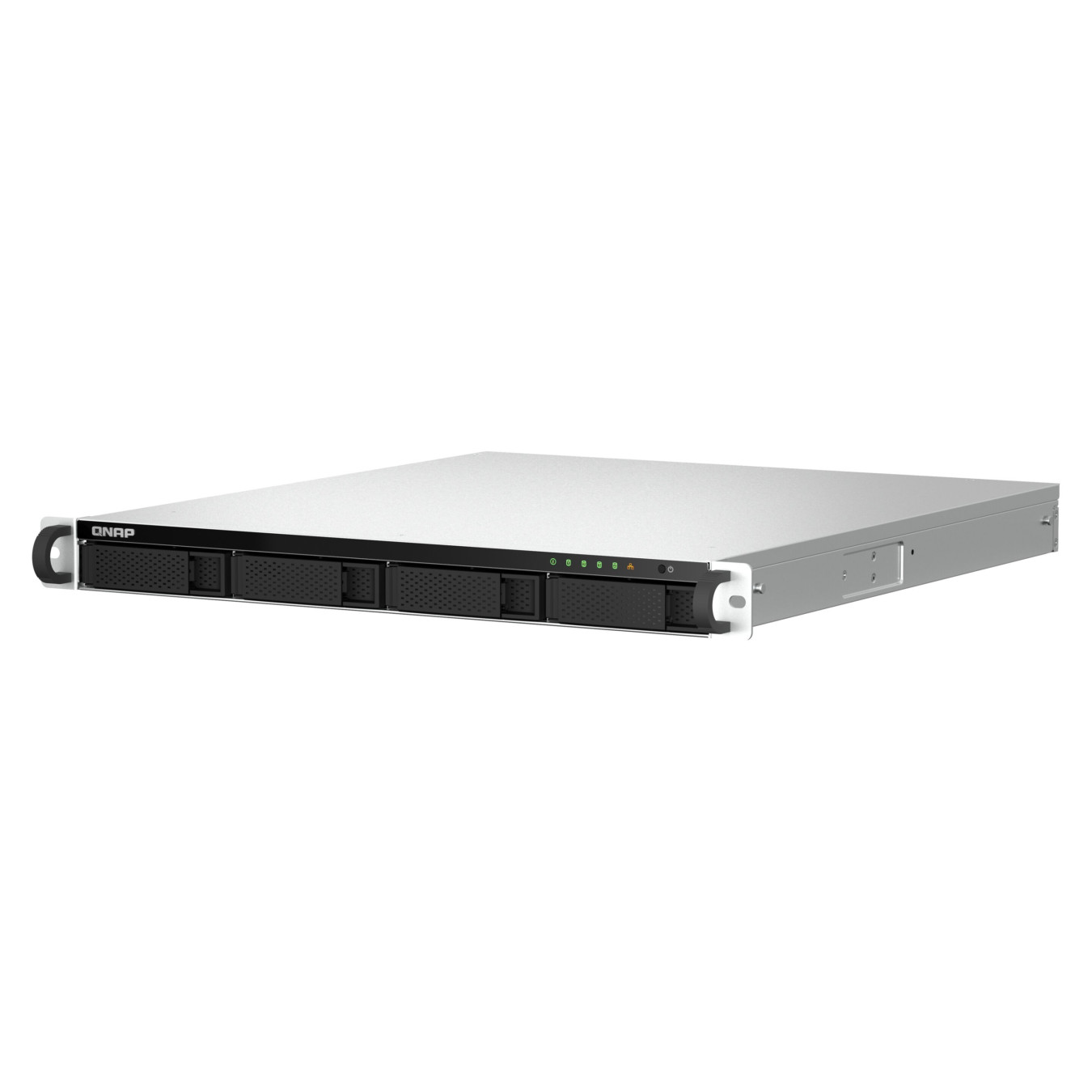

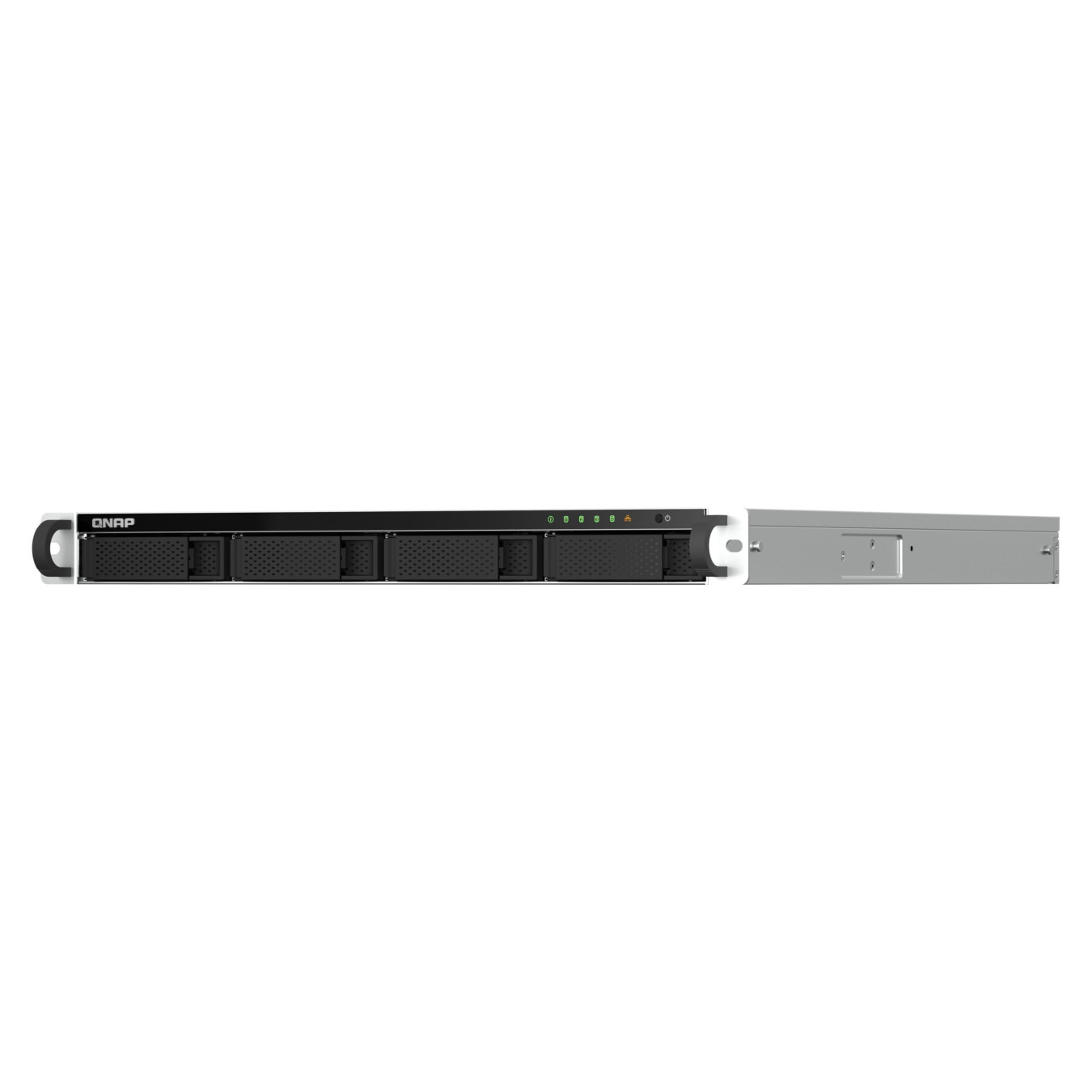

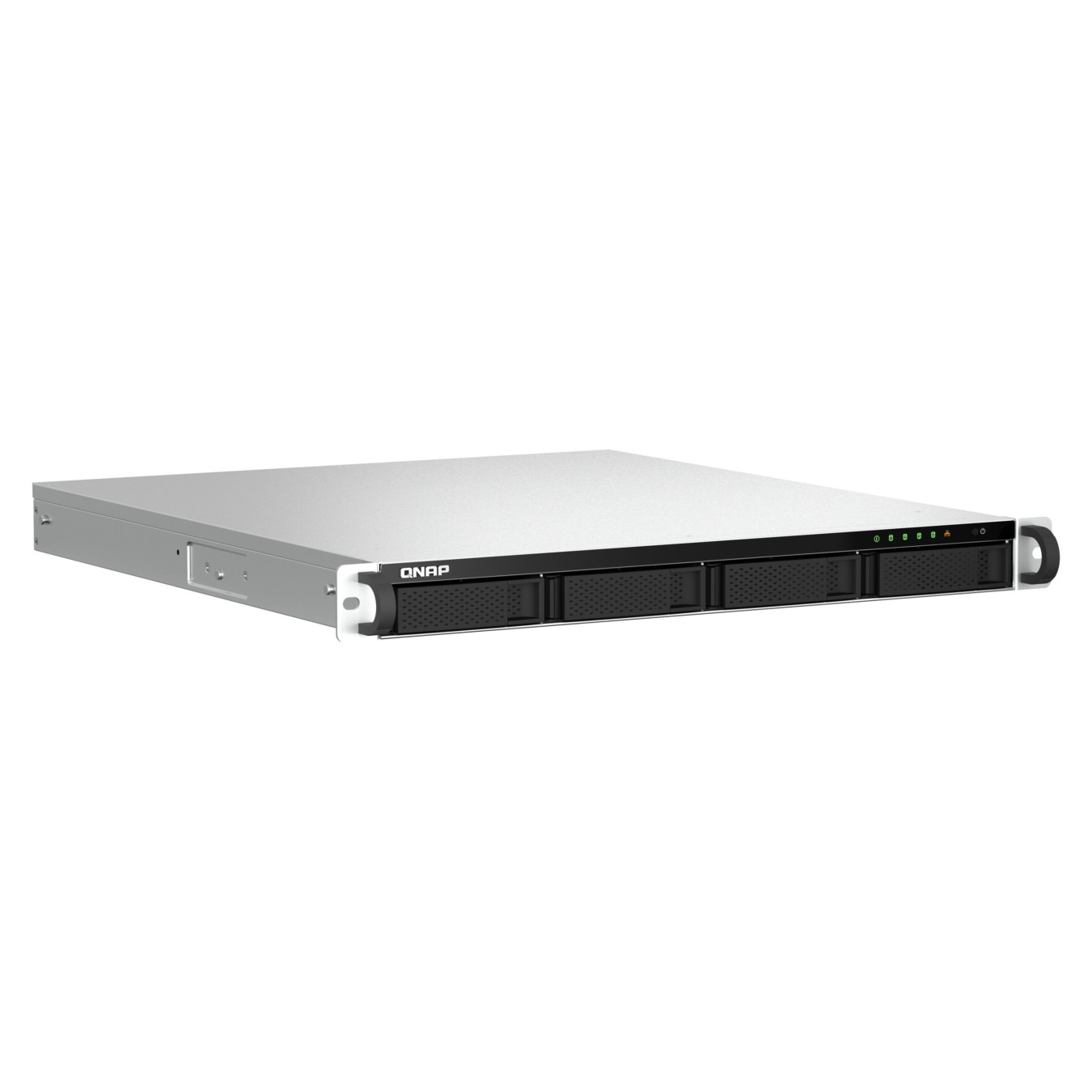

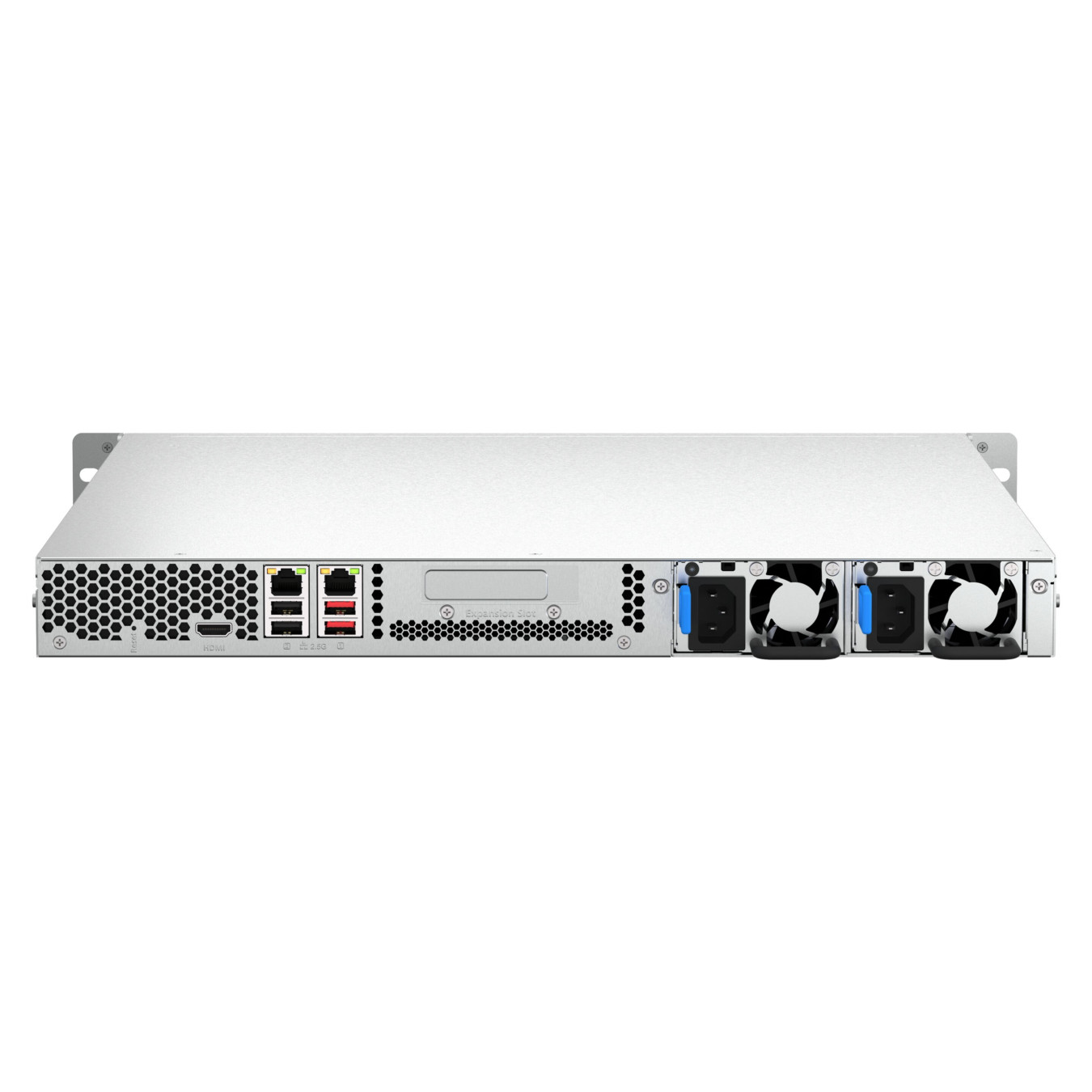

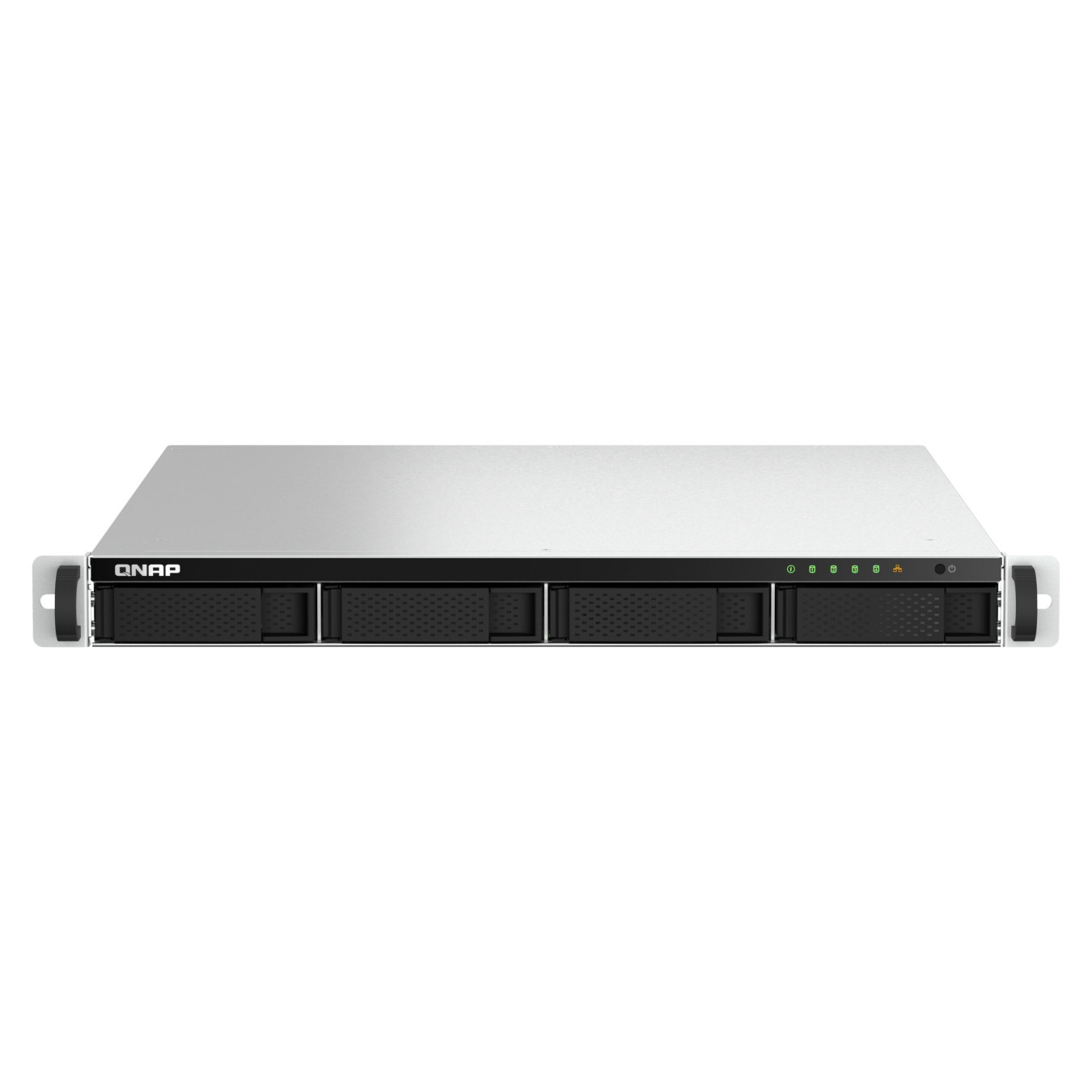

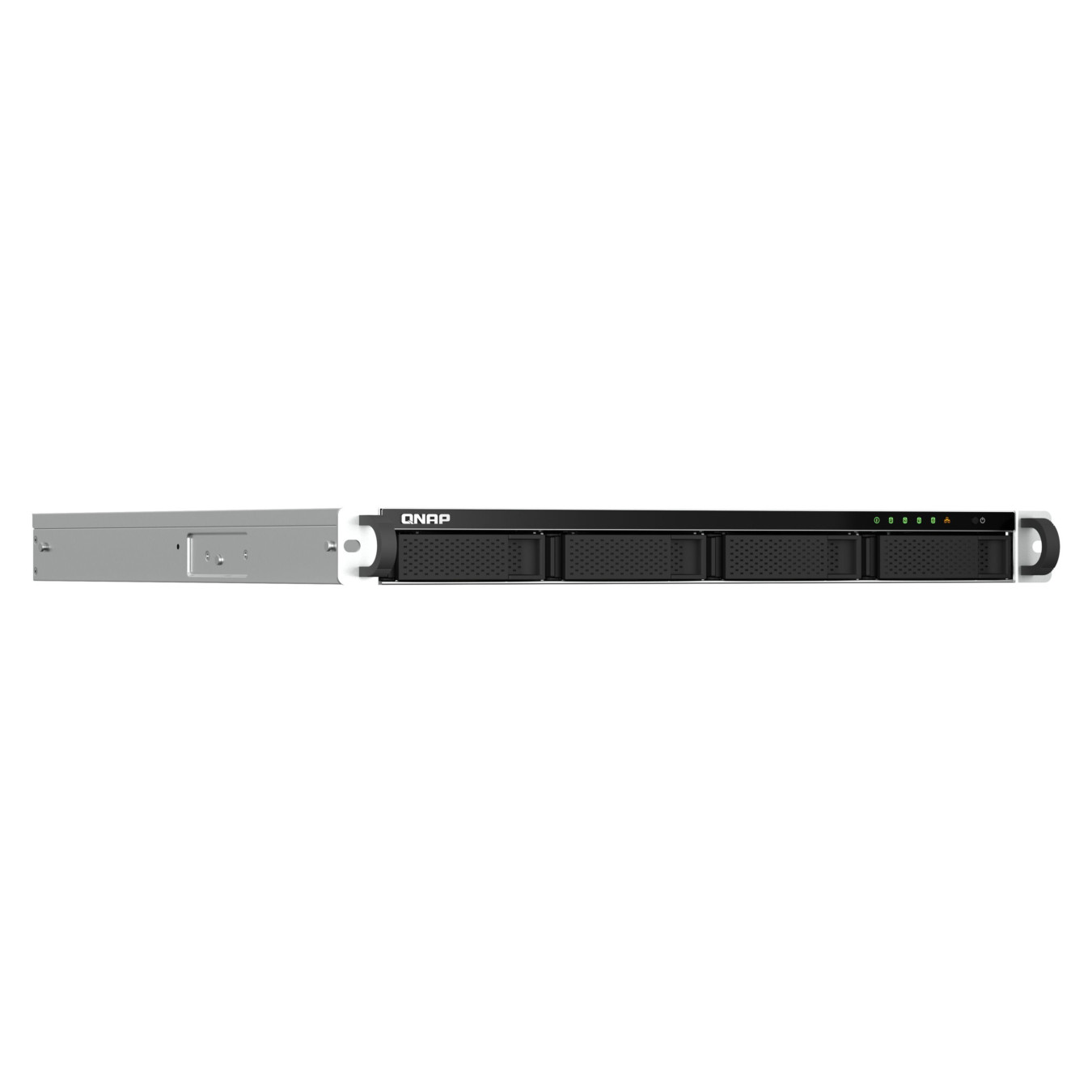

QNAP TS-464U-RP - 1U 4-Bay Rack NAS, Intel N5095 2.0/2.9GHz, 8GB DDR4, 2x2.5GbE, Redundant PSU, Black/Aluminium
1U 4-bay rack NAS with Intel N5095 quad-core (2.0–2.9GHz), 8GB DDR4 (up to 16GB), 2x2.5GbE, hot-swappable bays, dual PSUs, hardware encryption, QTS 5.0.1.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - LAN | 2x2.5GbE |
|---|---|
| NAS (Network Attached Storage) - USB | USB 3.0 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
QNAP TS-464U-RP. Type: NAS. Chassis type: Rack (1U). Device class: Small & Medium Business. Processor family: Intel® Celeron®. Processor model: N5095. Processor frequency: 2 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QNAP Turbo System
| Supported storage drive interfaces | Serial ATA II. Serial ATA III |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Intel VT-x with Extended Page Tables (EPT) |
| RAID levels | 0. 6. 1. JBOD. 5. 10 |
| Supported file systems | FAT32. exFAT. HFS+. NTFS. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 4 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N5095 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| CPU configuration (max) | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 4000 MB |
| Ethernet LAN data rates | 10.1000.2500.100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T. 2500BASE-T |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| Ethernet LAN (RJ-45) ports | 2 |
| Concurrent connections | 1500 |
| PCI Express x2 (Gen 3.x) slots | 1 |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Aluminium. Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | HDD. Status. Power. LAN |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Management protocols | SNMP V2. V3 |
| Security algorithms | 256-bit AES. FIPS 140-2. HTTPS. SNMPv2. SNMPv3. SSH |
| Browser supported | Apple Safari. Google Chrome. Microsoft Edge. Mozilla Firefox |
| Share folder | CIFS/SMB |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.1 |
| Windows operating systems supported | Windows 10. Windows 8. Windows 7. Windows 11 |
| Linux operating systems supported | Ubuntu 14.04 |
| Server operating systems supported | Windows Server 2019. Windows Server 2012 R2. Windows Server 2008 R2. Windows Server 2016. Windows Server 2012 |
| Other operating systems supported | Solaris 10 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 2 |
| Power consumption (typical) | 51.404 W |
| Power consumption (sleep) | 37.469 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Width | 430 mm |
| Depth | 479 mm |
| Height | 43.3 mm |
| Weight | 8.12 kg |
| Package weight | 10.1 kg |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 2 |
| Number of screws | 84 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
