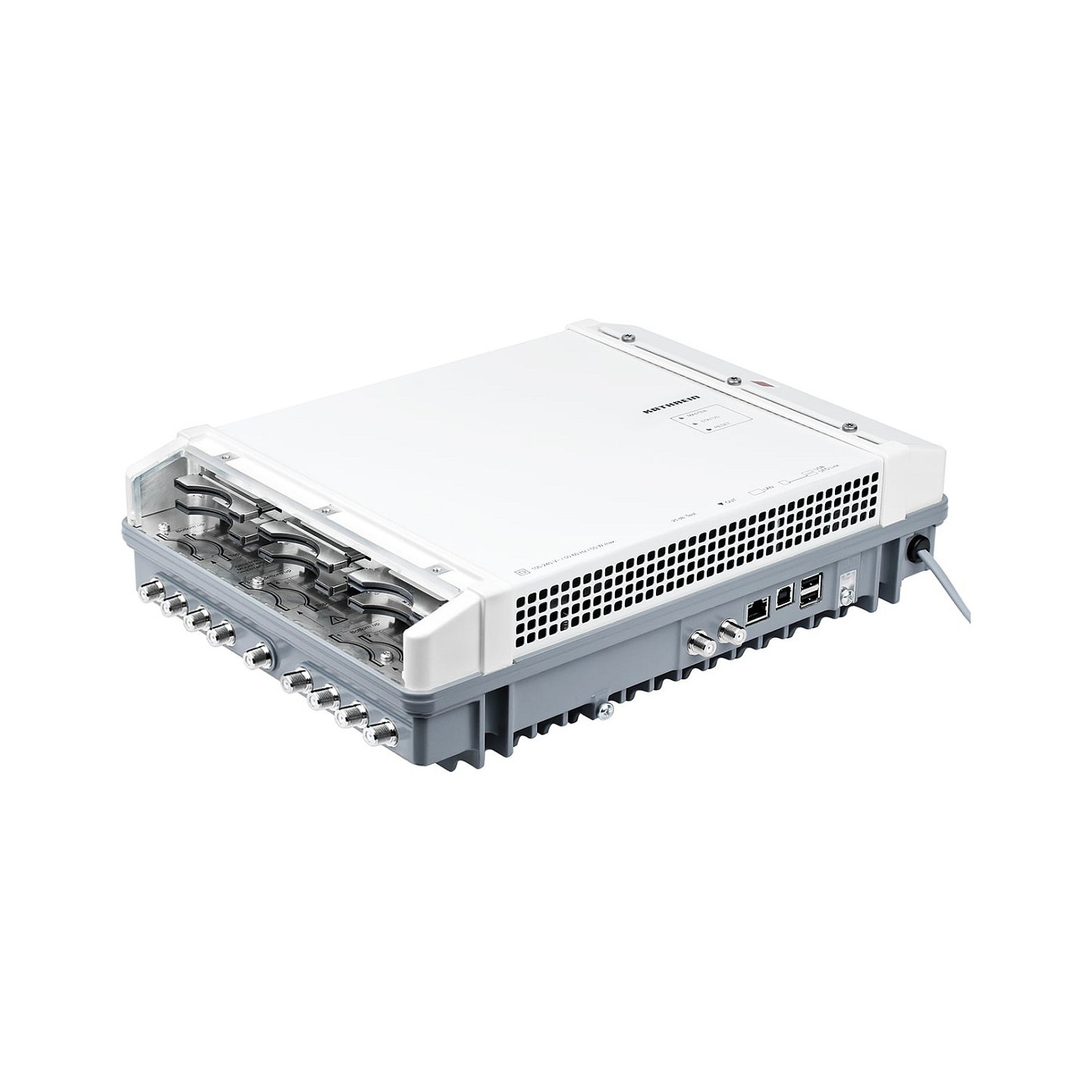

Kathrein UFO 87-18 CI UFO mini Kopfstelle 16fach DVB-S2 2fach Multi DVB-S2 T2 C
Kathrein UFO 87-18/CI. 950 − 2150. 60 - 100 dBμV. 1 − 45. 75 Ohm. 107 dBμV. 16-QAM. 64-QAM. QPSK
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Kathrein UFO 87-18/CI. Eingangsfrequenzbereich: 950 − 2150. Eingangsspannungsbereich: 60 - 100 dBμV. Eingangssymbolrate: 1 − 45. RF Verbindungstyp: F. Gerätetyp: Digitale Kopfstelle. Produktfarbe: Weiß. Energiequelle: AC. Eingangsspannung: 100 - 240 V. Stromverbrauch (max.): 39 W. Breite: 350 mm. Tiefe: 244 mm. Höhe: 97 mm
| Eingangsfrequenzbereich | 950 − 2150 |
| Eingangsspannungsbereich | 60 - 100 dBμV |
| Eingangssymbolrate | 1 − 45 |
| Synchronisations-Eingangsimpedanz | 75 Ohm |
| Ausgangsspannung | 107 dBμV |
| Modulation | 16-QAM. 64-QAM. QPSK |
| Vorwärtsgerichtete Fehlerkorrektur (FEC) Code-Rate | 1/2. 2/3. 3/4. 5/6. 7/8 |
| RF-Eingang | 8 |
| RF-Ausgang | 1 |
| RF Verbindungstyp | F |
| Gerätetyp | Digitale Kopfstelle |
| Produktfarbe | Weiß |
| Energiequelle | AC |
| Eingangsspannung | 100 - 240 V |
| Stromverbrauch (max.) | 39 W |
| Betriebstemperatur | 0 - 45 °C |
| Breite | 350 mm |
| Tiefe | 244 mm |
| Höhe | 97 mm |
| Gewicht | 4.5 kg |
