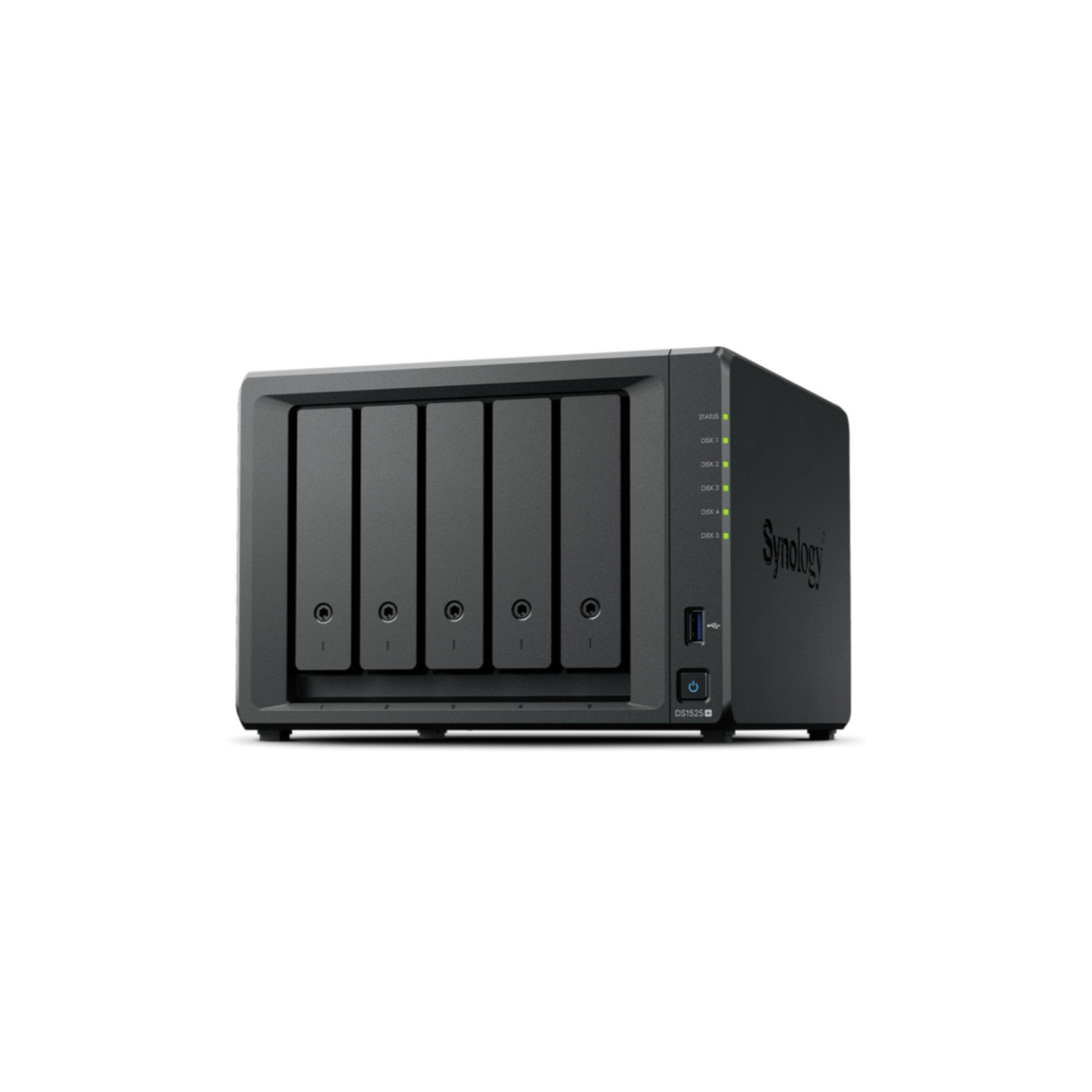

Synology DiskStation DS1525+ - 5-Bay NAS, AMD V1500B 2.2GHz, 2x2.5GbE, 2x M.2
5-bay scalable NAS with AMD Ryzen V1500B 2.2GHz, dual 2.5GbE, 2 M.2 slots, hot-swappable bays and expandable up to 300 TB raw storage.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - Bays | 5 |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - LAN | 2x2.5GbE |
| NAS (Network Attached Storage) - M.2 Slots | 2 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
A storage solution that can adapt with your evolving needs
5-bay with expansion
Up to 300 TB of raw storage with expansion unit1,2
High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write3, and 10GbE option4
Versatile applications
Back up multiple endpoints, manage 40 IP cameras5, or safely sync and share files across sites
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | M.2, Serial ATA |
| Storage drive sizes supported | 3.5, M.2, 2.5 |
| Maximum supported storage capacity | 300 TB |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 15 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.2 cm |
| Fan diameter 2 | 9.2 cm |
| Drive bay locking | Yes |
| LED indicators | Yes |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Number of users | 1024 user(s) |
| Noise level | 22.6 dB |
| Snapshot | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| On/off switch | Yes |
| Browser supported | Chrome,Firefox,Edge,Safari |
| System log | Yes |
| Power supply location | External |
| Power supply unit (PSU) capacity | 120 W |
| Power consumption (typical) | 44.56 W |
| Power consumption (HDD standby) | 13.63 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 230 mm |
| Depth | 223 mm |
| Height | 166 mm |
| Weight | 2.67 kg |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
