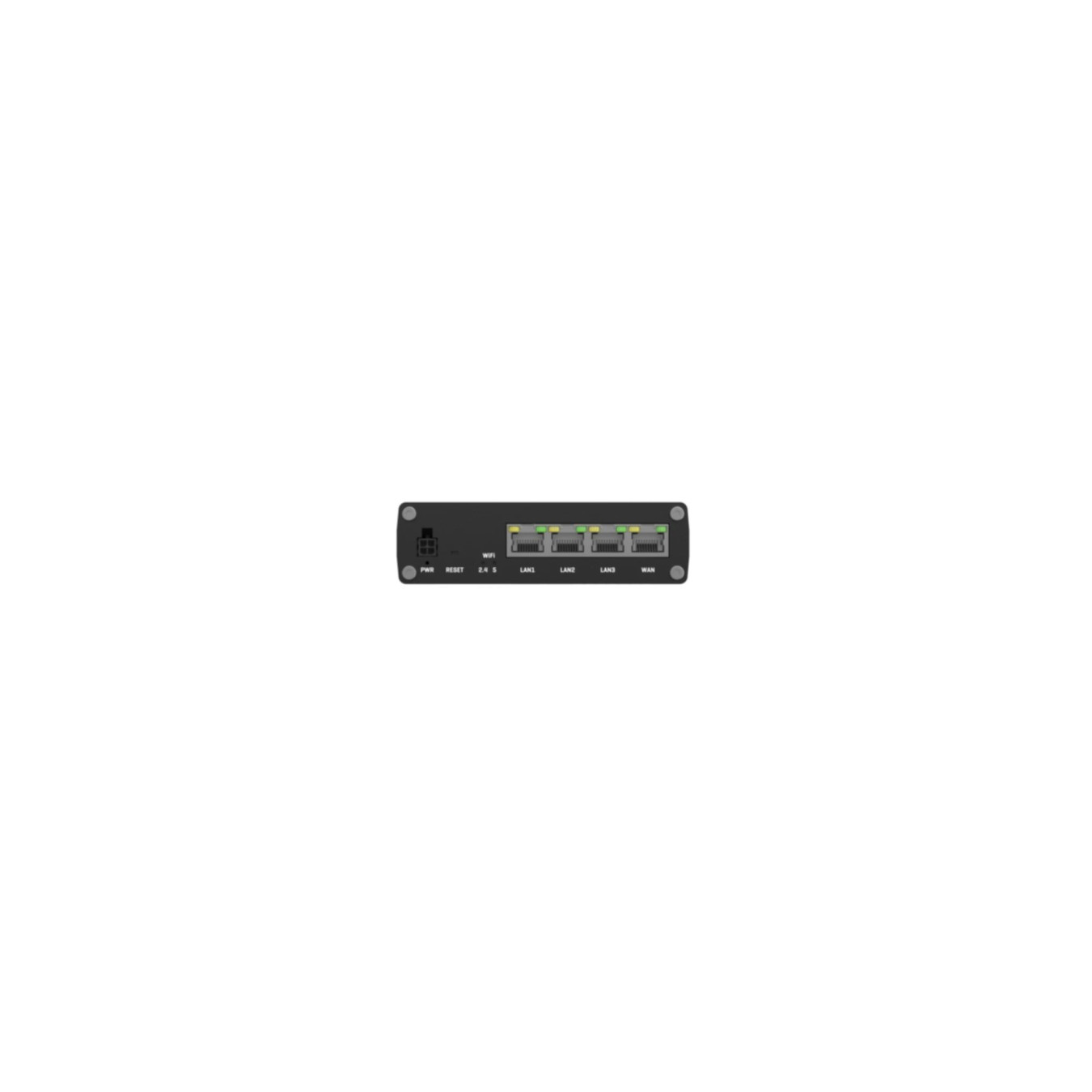

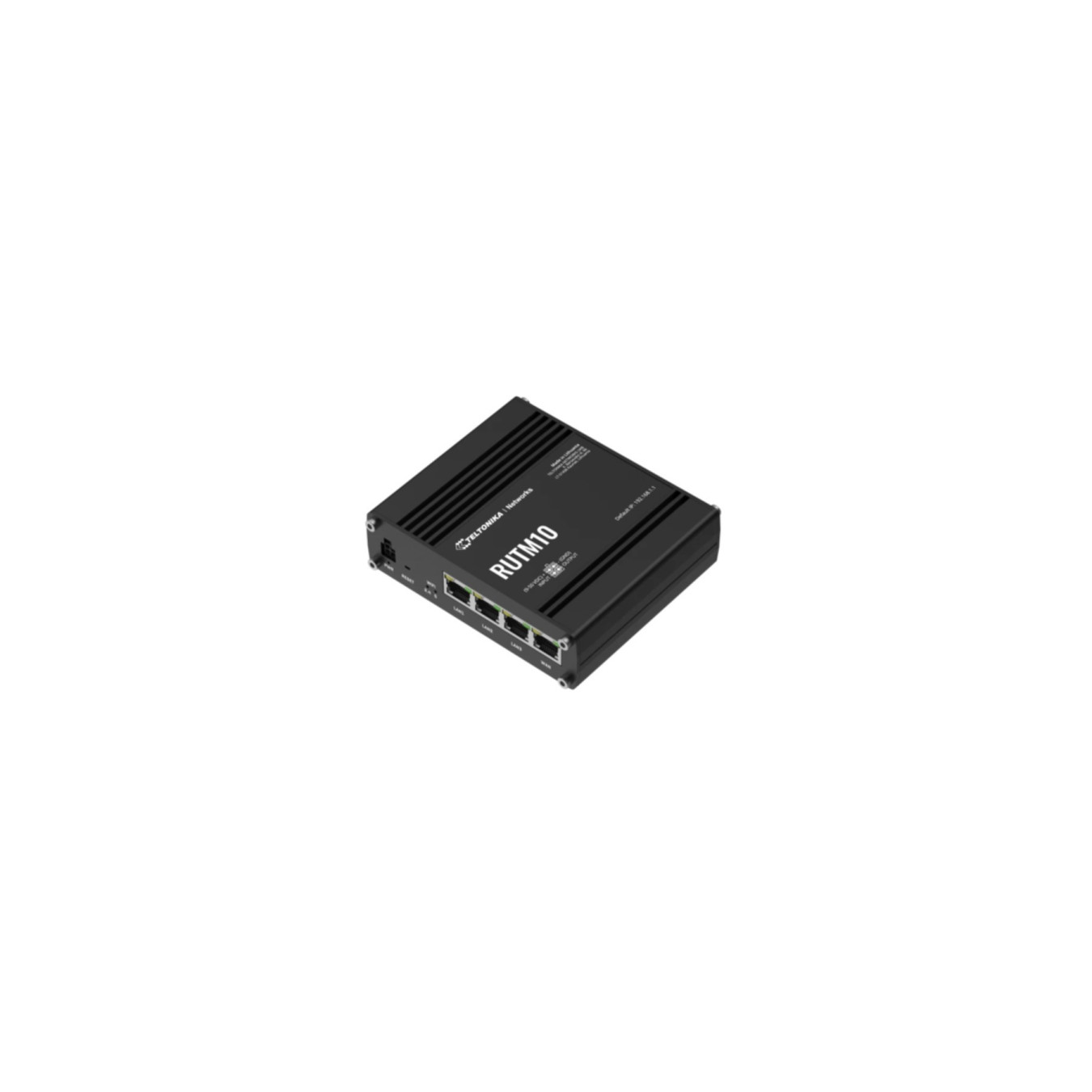

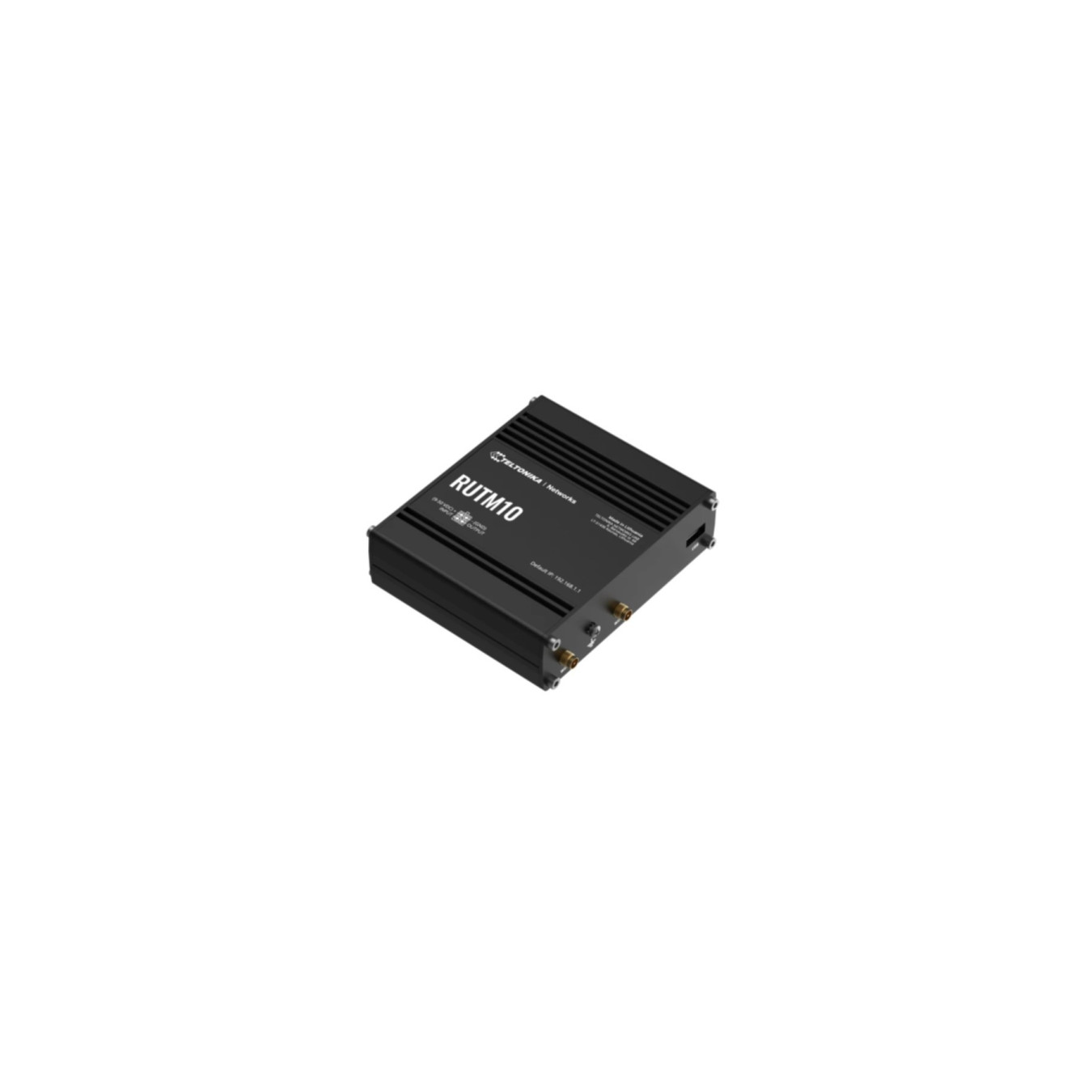

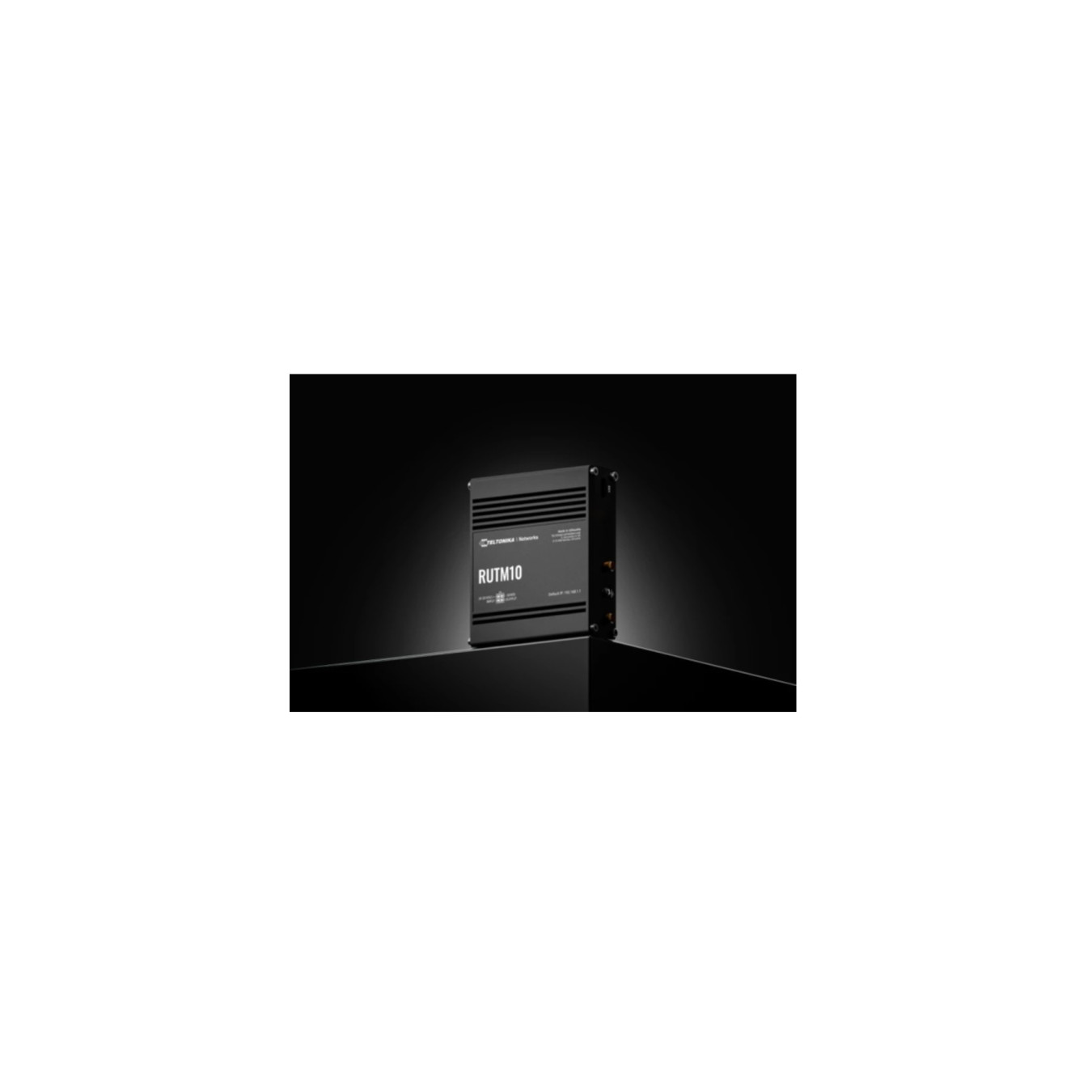

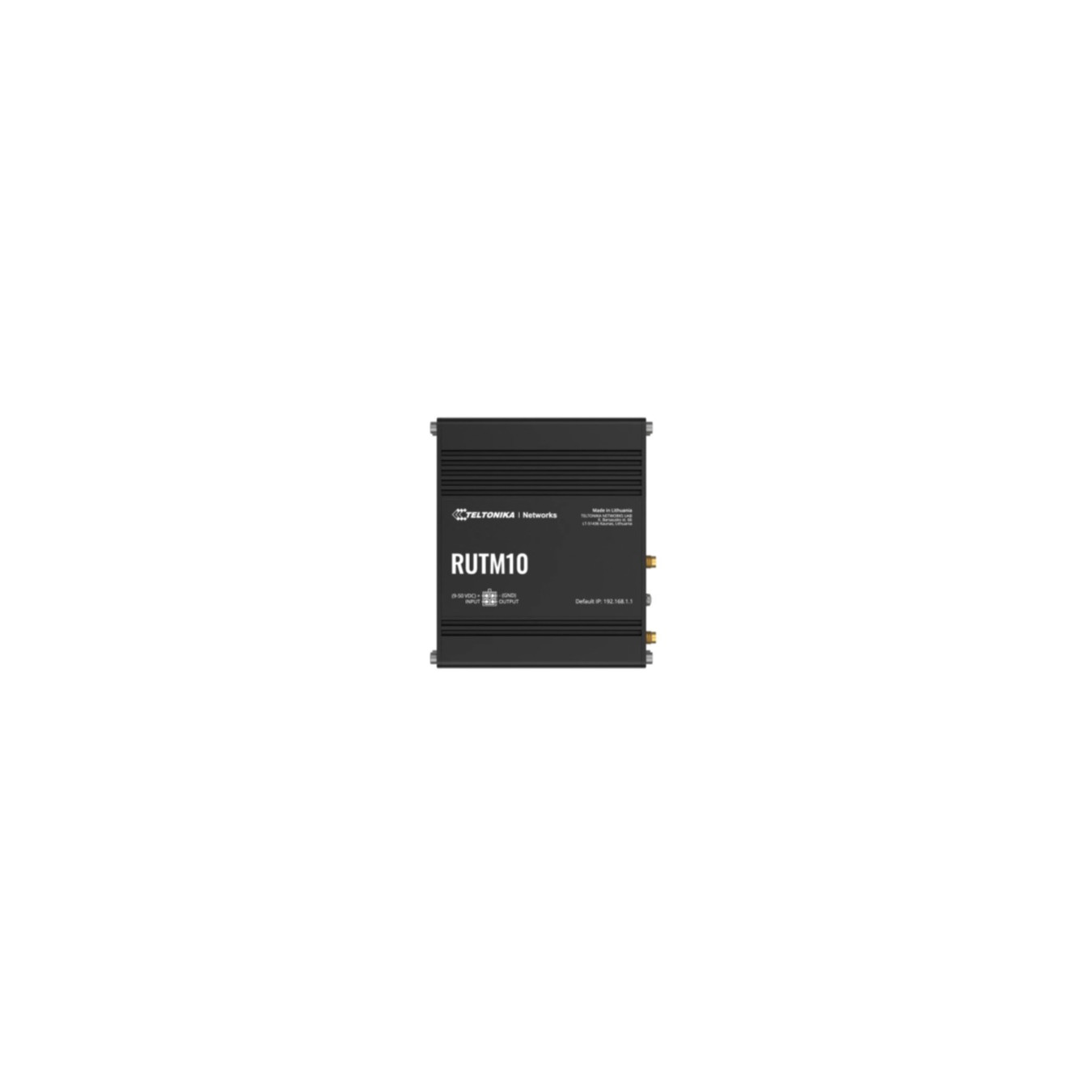

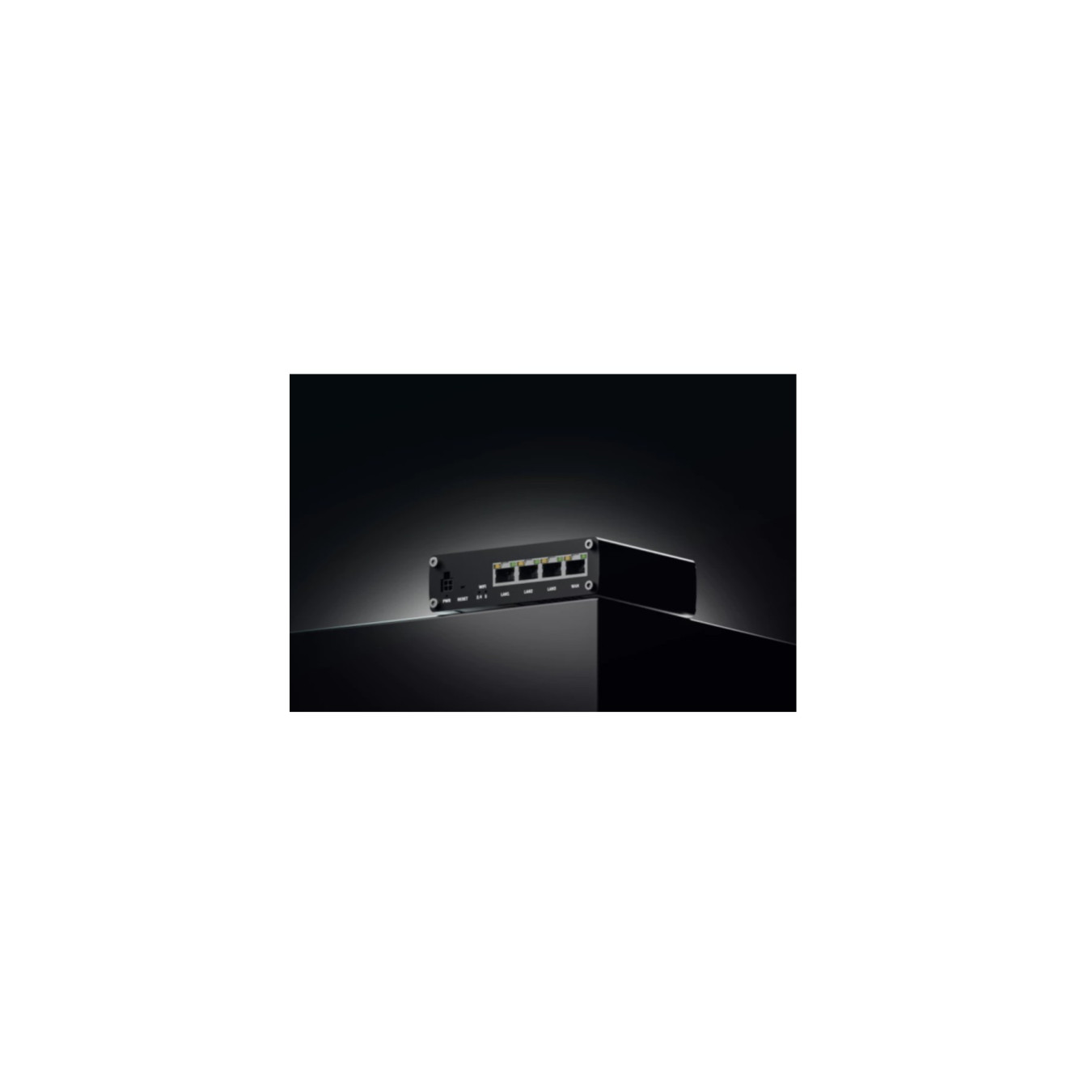

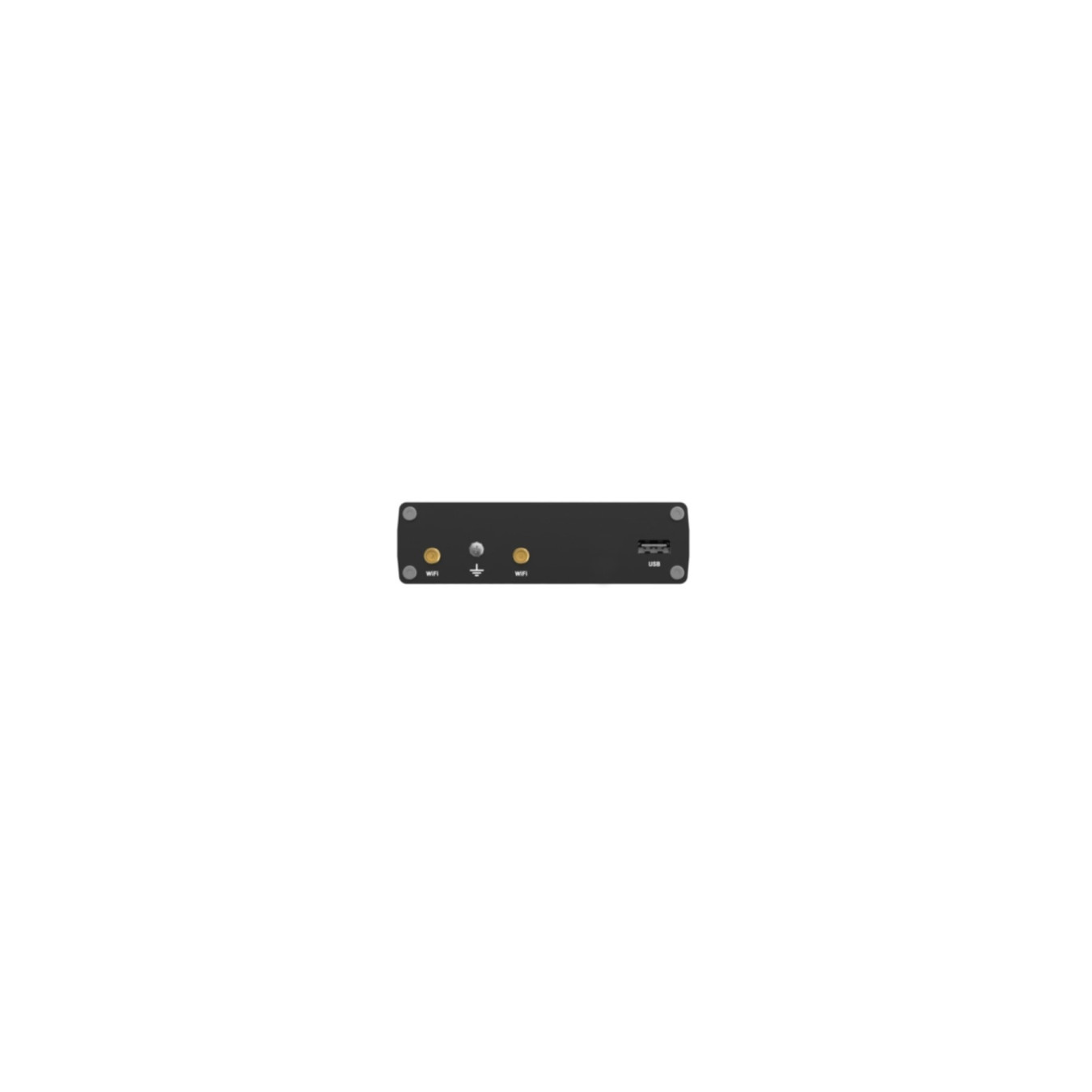

Teltonika RUTM10 - Industrial Wired Router, 4x Gigabit RJ45, Dual-band Wi-Fi 5, VPN & Mesh
Industrial wired router with 4x Gigabit RJ45, Dual-band Wi‑Fi 5 (up to 867 Mbps), mesh-capable and multi-protocol VPN (OpenVPN, IPsec, WireGuard, Tailscale).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Bands | Dual-band (2.4+5 GHz) |
|---|
RUTM10
WIRED WI-FI ROUTER
The RUTM10 is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The RUTM10 can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.
- INTERFACES
4 x Gigabit RJ45 ports with up to 128 tag/port-based VLANs supported
- WI-FI 5
Dual-band Wi-Fi with mesh and fast-roaming functionalities
- VPN
Numerous VPN Protocols supported, including OpenVPN, IPsec, and Tailscale
- M2M PROTOCOLS
Multiple industrial protocols supported, including MQTT, Modbus, DNP3, DLMS
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Port forwarding | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Policy-based routing | Yes |
| SSID-based VLAN assignment | Yes |
| Static route | Yes |
| Support Samba (storage) | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| Security algorithms | AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE |
| Authentication method | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Yes |
| Firewall security | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| DDoS protection | Yes |
| MAC address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Routing protocols | BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2 |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Product colour | Black |
| Indication light | Yes |
| Product type | Industrial router |
| Antenna design | External |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Processor architecture | MIPS |
| Processor frequency | 880 MHz |
| Processor cores | 2 |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 256 MB |
| Operating system installed | RutOS |
| Power source type | DC |
| Power consumption (typical) | 3.51 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 115 mm |
| Depth | 95.2 mm |
| Height | 32.2 mm |
| Weight | 359 g |
