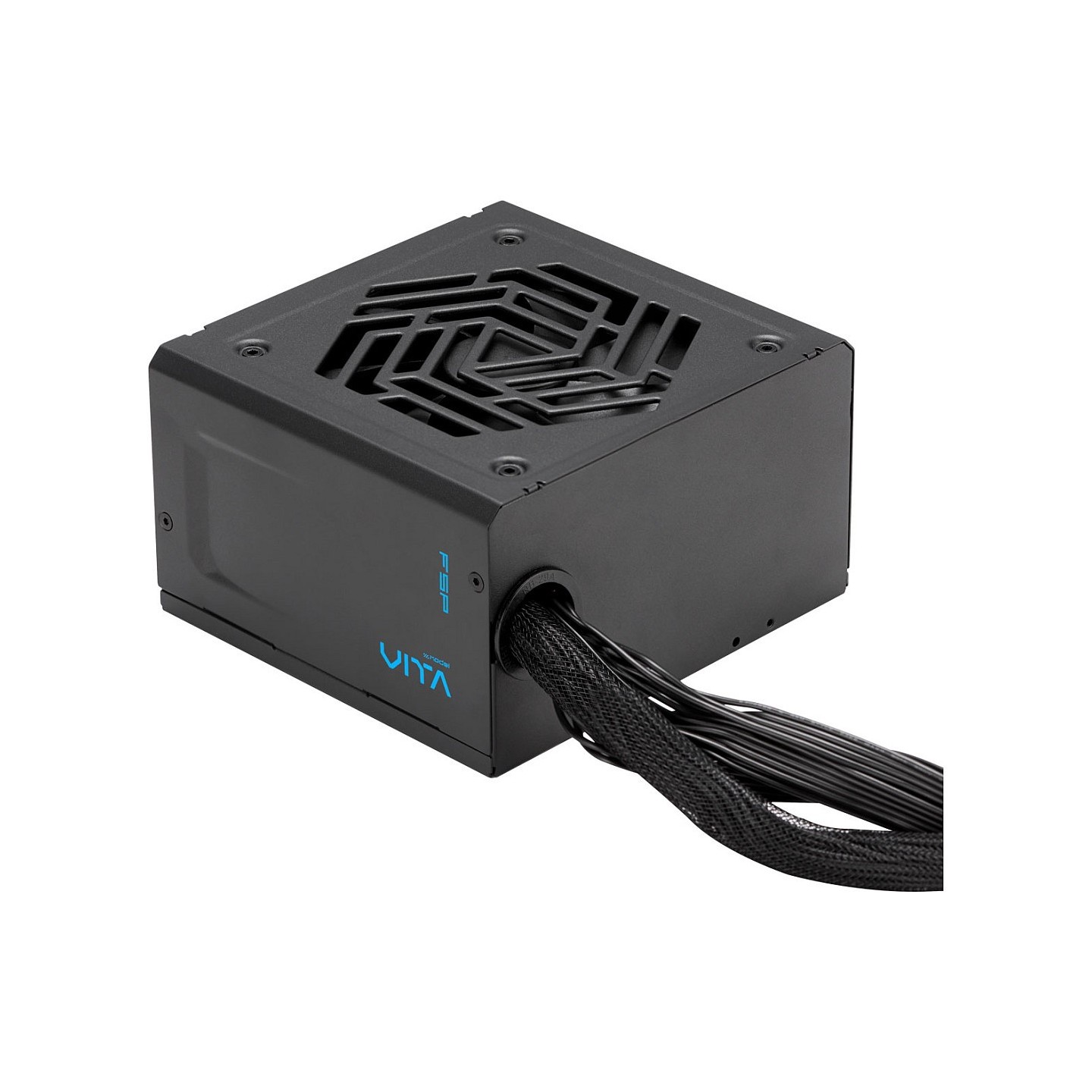

750W FSP VITA-750BD-B ATX 3.1 80+ Bronze (Boxed)
FSP VITA-750BD-B 750W ATX 3.1 PSU with 80 PLUS Bronze efficiency, 2x PCIe 12V-2x6 GPU connectors, active PFC, full protections. Compact 140x150x86mm, 120mm sleeve fan, non-modular black cables for PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The FSP VITA-750BD-B is a reliable 750W power supply unit compliant with the latest ATX 3.1 standard, designed for modern gaming PCs and high-performance systems. It features 80 PLUS Bronze certification (230V EU) with efficiency ≥88% at typical load, active PFC ≥0.9, and a hold-up time of ≥12ms at full load. The compact dimensions of 140 x 150 x 86 mm make it ideal for small form factor cases.
Equipped with 2x PCIe 12V-2x6 (16-pin) connectors for next-gen GPUs, 1x 4+4-pin EPS for CPU, 8x SATA, 4x Molex, and 20+4-pin ATX motherboard connector. It includes comprehensive protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO. The 120mm sleeve bearing fan ensures active cooling with quiet operation, and all-black cables simplify cable management despite being non-modular.
- ✅ 750W total power, single +12V rail 62.5A
- ✅ Input: 200-240V, 6A, 50-60Hz
- ✅ Outputs: +3.3V/20A, +5V/20A, +12V/62.5A, -12V/0.3A, +5VSB/2.5A
- ✅ Operating temp up to 40°C
- ✅ Black color, non-modular design
| Total Power | 750W |
| Form Factor | ATX 3.1 |
| 80 PLUS Certification | 80 PLUS Bronze 230V EU |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PFC | Active ≥0.9 |
| Efficiency | ≥88% at typical load |
| Fan Type | Sleeve Bearing, 120mm |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Max +3.3V | 20A |
| Max +5V | 20A |
| Max +12V | 62.5A |
| Max -12V | 0.3A |
| Max +5VSB | 2.5A |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 750W |
| Protections | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| PCIe Connectors | 2x 12V-2x6 (16-pin) |
| EPS Connectors | 1x 4+4 pin |
| SATA Connectors | 8 |
| Molex Connectors | 4x 4-pin |
| Modularity | Non-modular |
| Color | Black |
| Operation Temperature | 0-40°C |
