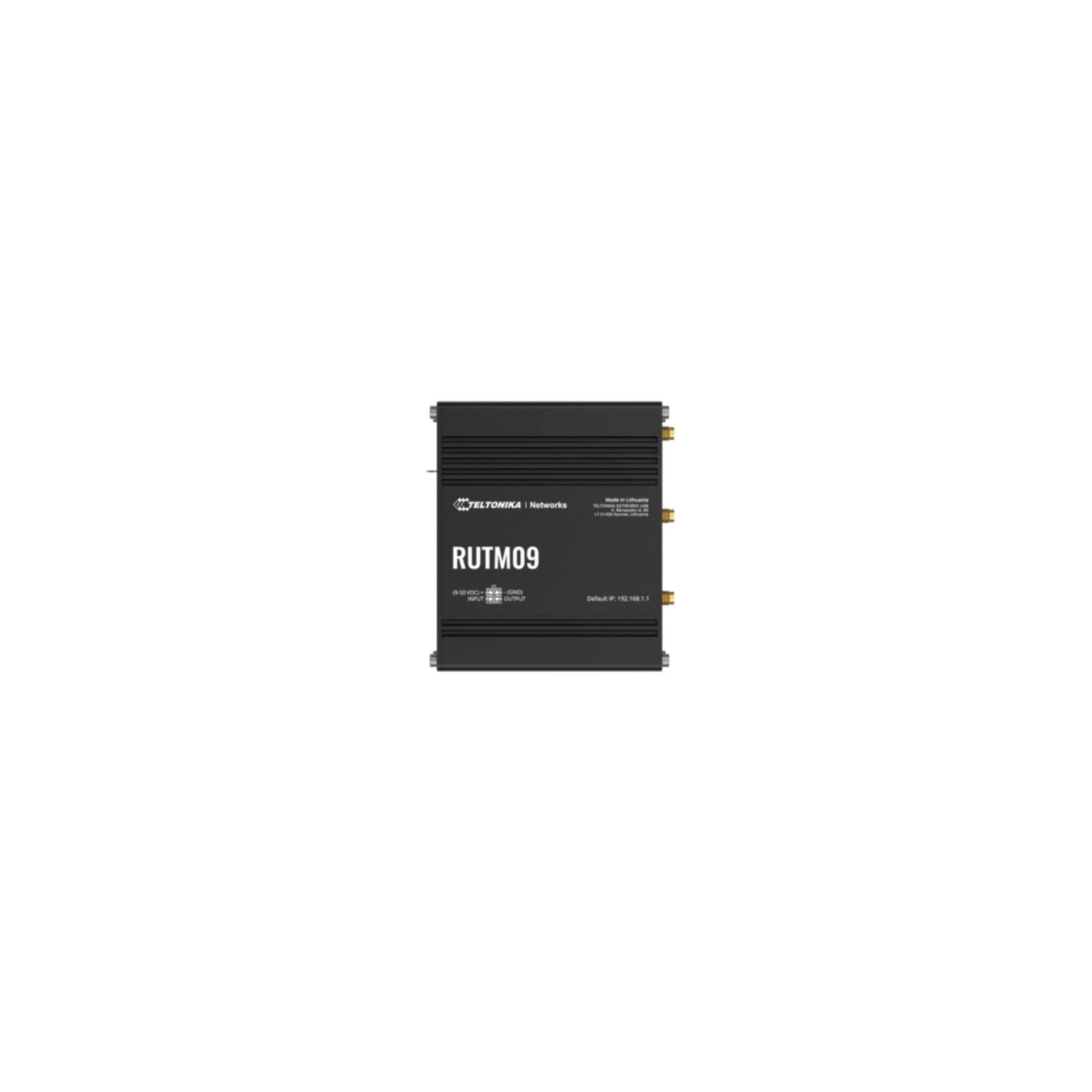

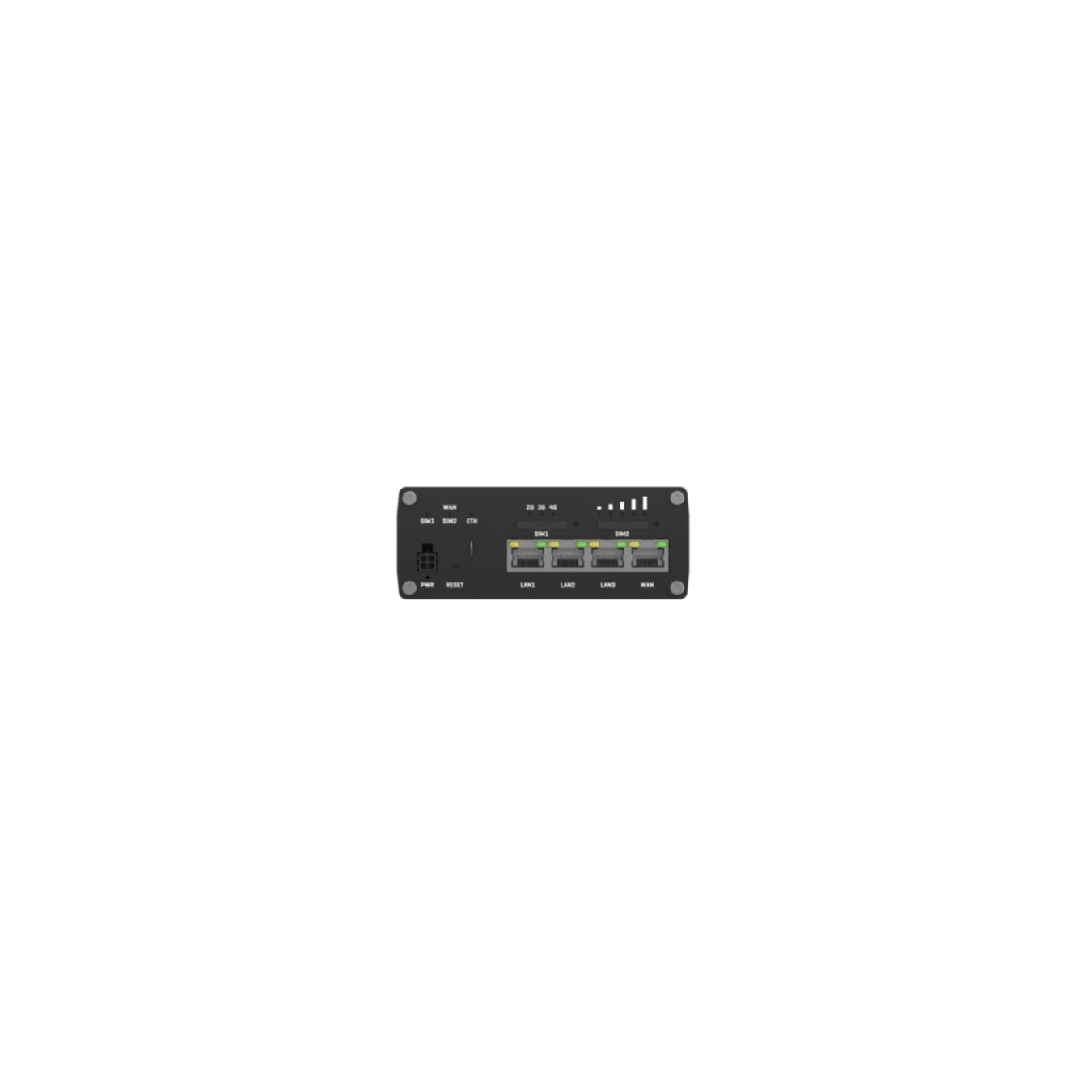

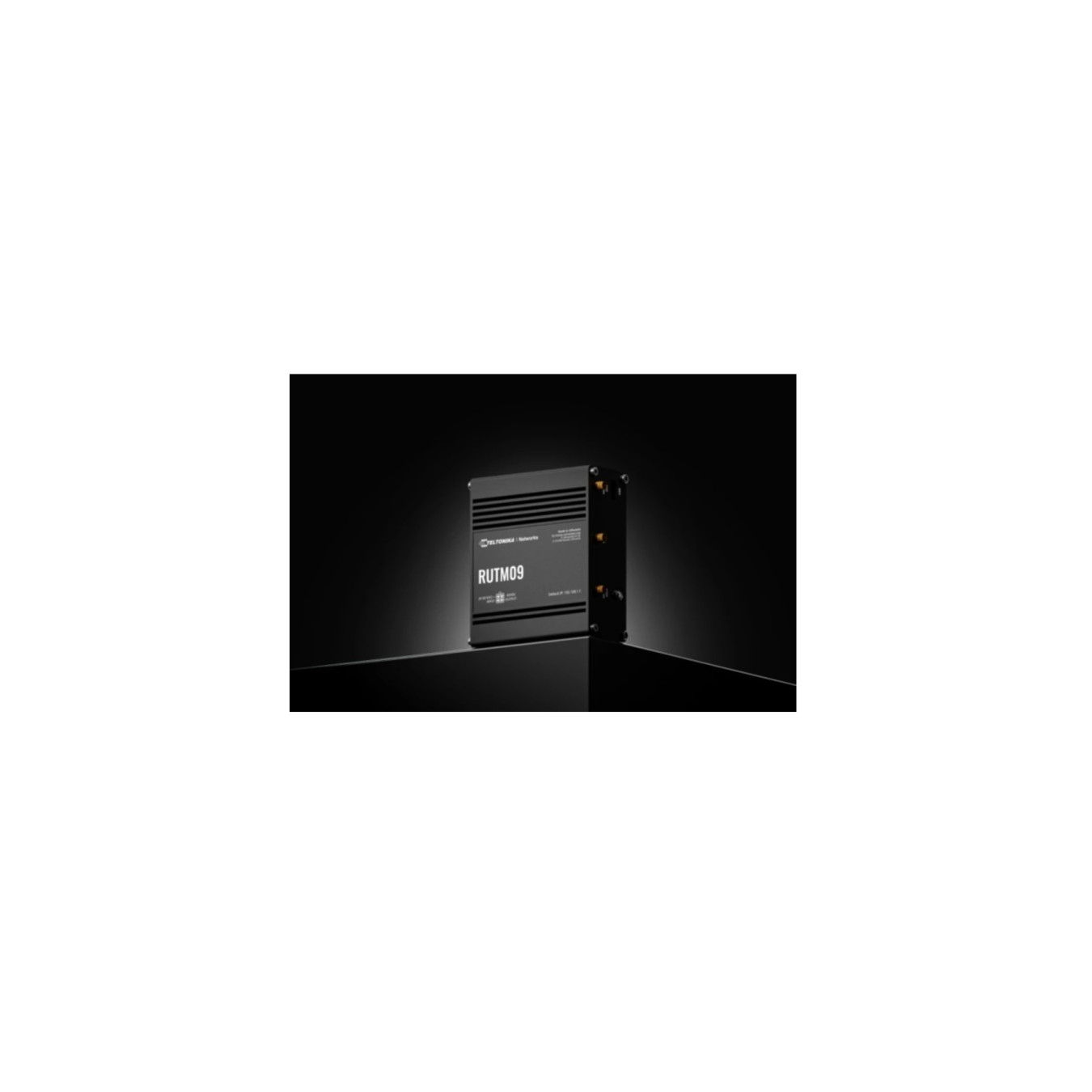

Teltonika RUTM09 - Industrial Wired 4G LTE Router - Dual-SIM, Cat6 300Mbps, 4x Gigabit, GNSS
Industrial 4G LTE Cat6 router with Dual‑SIM, carrier aggregation & failover, 4× Gigabit RJ45, GNSS for GPS — reliable mobile and mission‑critical connectivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
RUTM09
4G LTE ROUTER
The RUTM09 is a wireless 4G LTE router developed for high-cellular-speed applications. It comes with Cat 6 and dual SIM capabilities, enabling the device to support speeds of up to 300 Mbps and functions like carrier aggregation and failover. Additionally, the RUTM09 comes with four Gigabit RJ45 ports and includes GNSS, enabling GPS tracking for precise location detection. These features make the RUTM09 an exceptional choice for ensuring non-interruptible network connectivity for mobile applications or those requiring tracking.
- CONNECTIVITY
Dual SIM, 4G LTE (Cat 6) with speeds of up to 300Mbps
- PERFORMANCE-DRIVEN
Equipped with failover and carrier aggregation for uninterrupted, high-data throughput
- INTERFACES
4 x Gigabit RJ45 ports, USB, and up to 128 tag/port-based VLANs
- GNSS
Location services and time synchronisation for precise data reading
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| SFP WAN | No |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Traffic control | Yes |
| Port forwarding | Yes |
| Auto MDI/MDI-X | Yes |
| Mobile network generation | 4G |
| 4G standard | LTE |
| Short Message Service (SMS) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Wake-on-LAN ready | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| WAN/Ethernet LAN ports quantity | 3 |
| WAN ports quantity | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| DMZ support | Yes |
| Routing protocols | BGP, EIGRP, NHRP, OSPFv2, RIP-1, RIP-2 |
| VoIP protocols | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, AES, DES |
| Firewall | Yes |
| Firewall security | Port forward, traffic rules, custom rules |
| Authentication method | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & login attempts block, time-based login blocking, built-in random password generator |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| Network address translation (NAT) | Yes |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Processor model | MIPS 1004Kc |
| Processor frequency | 880 MHz |
| Storage media | Flash |
| Flash memory | 256 MB |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Operating system installed | RutOS |
| Product colour | Black |
| LED indicators | Yes |
| Power consumption (typical) | 3.9 W |
| Power consumption (max) | 12.3 W |
| Power source type | DC |
| Power plug type | Type E |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 115 mm |
| Depth | 95.1 mm |
| Height | 44.2 mm |
| Weight | 457 g |
