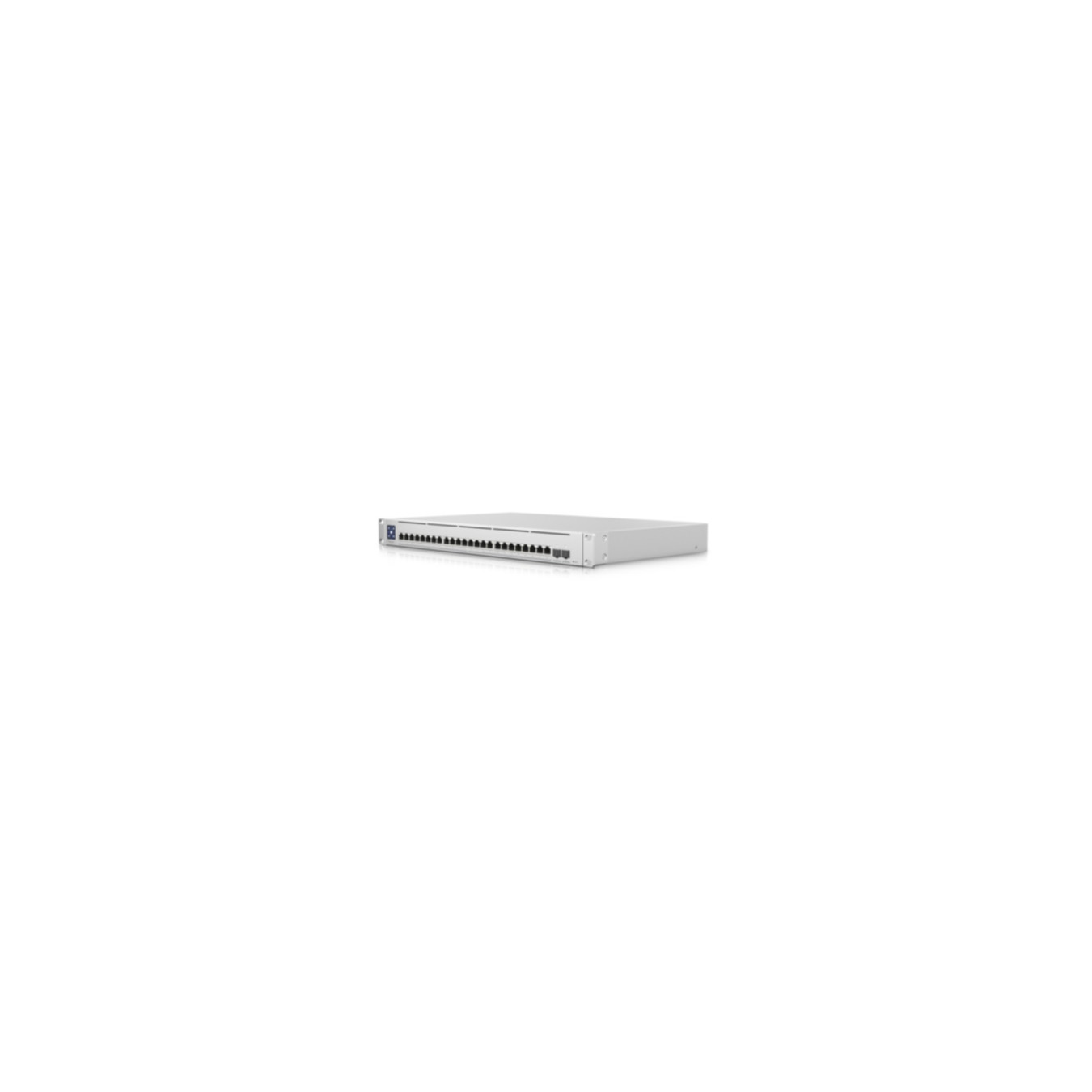

Ubiquiti UniFi Enterprise Switch - USW-ENTERPRISEXG-24 - 24-Port L3 Managed 10G, Stainless Steel
24-port L3 managed 10G switch (USW-ENTERPRISEXG-24) with 24 10G RJ-45 ports, 2 SFP28, 580 Gbps switching capacity, rack-mountable, redundant PSU support; no PSU included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP28 ports quantity | 2 |
| 10G support | Yes |
| Ethernet LAN data rates | 10,1000,2500,5000,10000 Mbit/s |
| Switching capacity | 580 Gbit/s |
| Throughput | 290 Gbit/s |
| Forwarding rate | 431.52 Mpps |
| Rack mounting | Yes |
| Product colour | Stainless steel |
| Housing material | Steel |
| Reset button | Yes |
| LED indicators | Activity, Link |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 11.5 V |
| Input current | 8.7 A |
| Power consumption (max) | 100 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Width | 442 mm |
| Depth | 285 mm |
| Height | 44 mm |
| Weight | 4.47 kg |
| Manual | Yes |
| Compliance certificates | CE |
| Harmonized System (HS) code | 85176990 |
