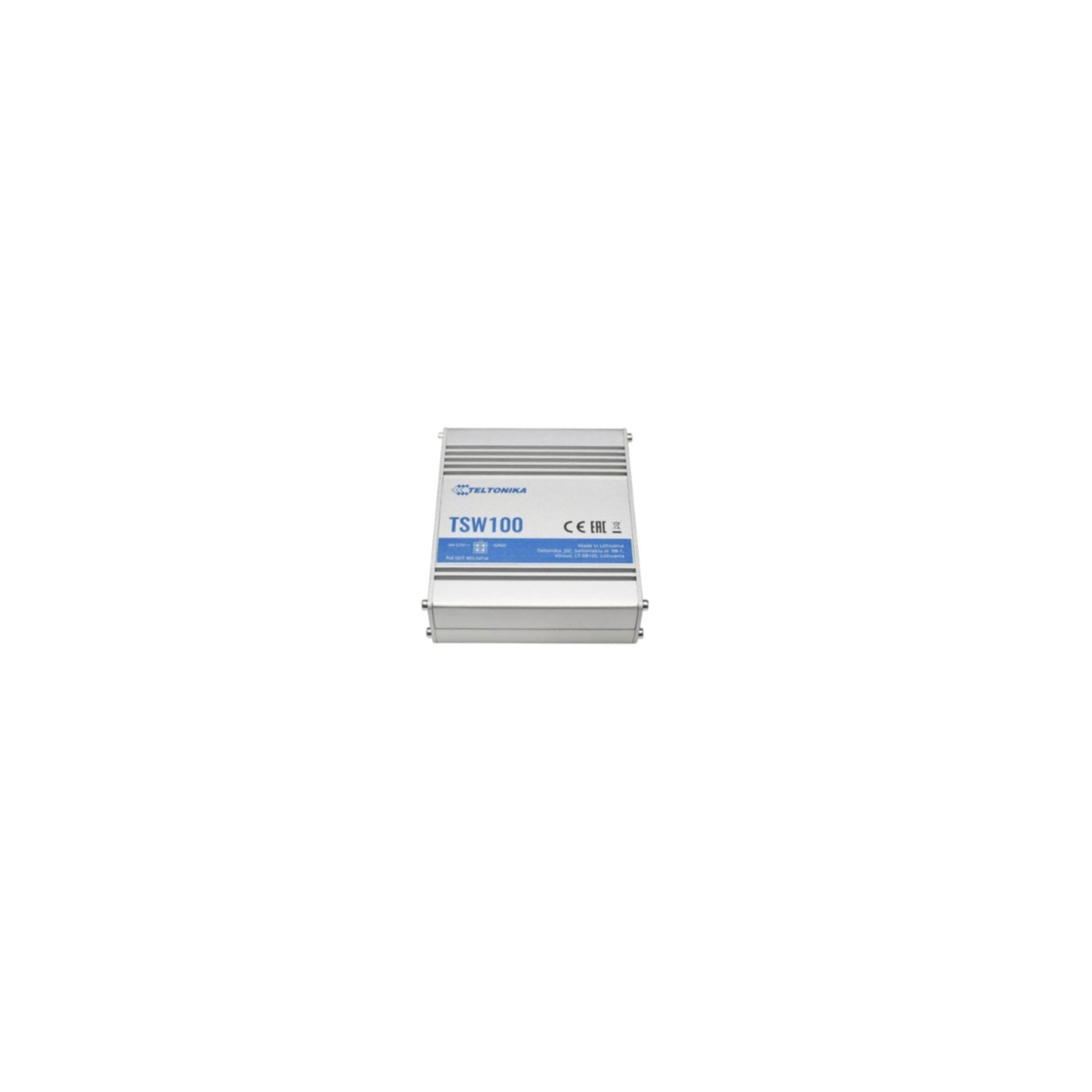

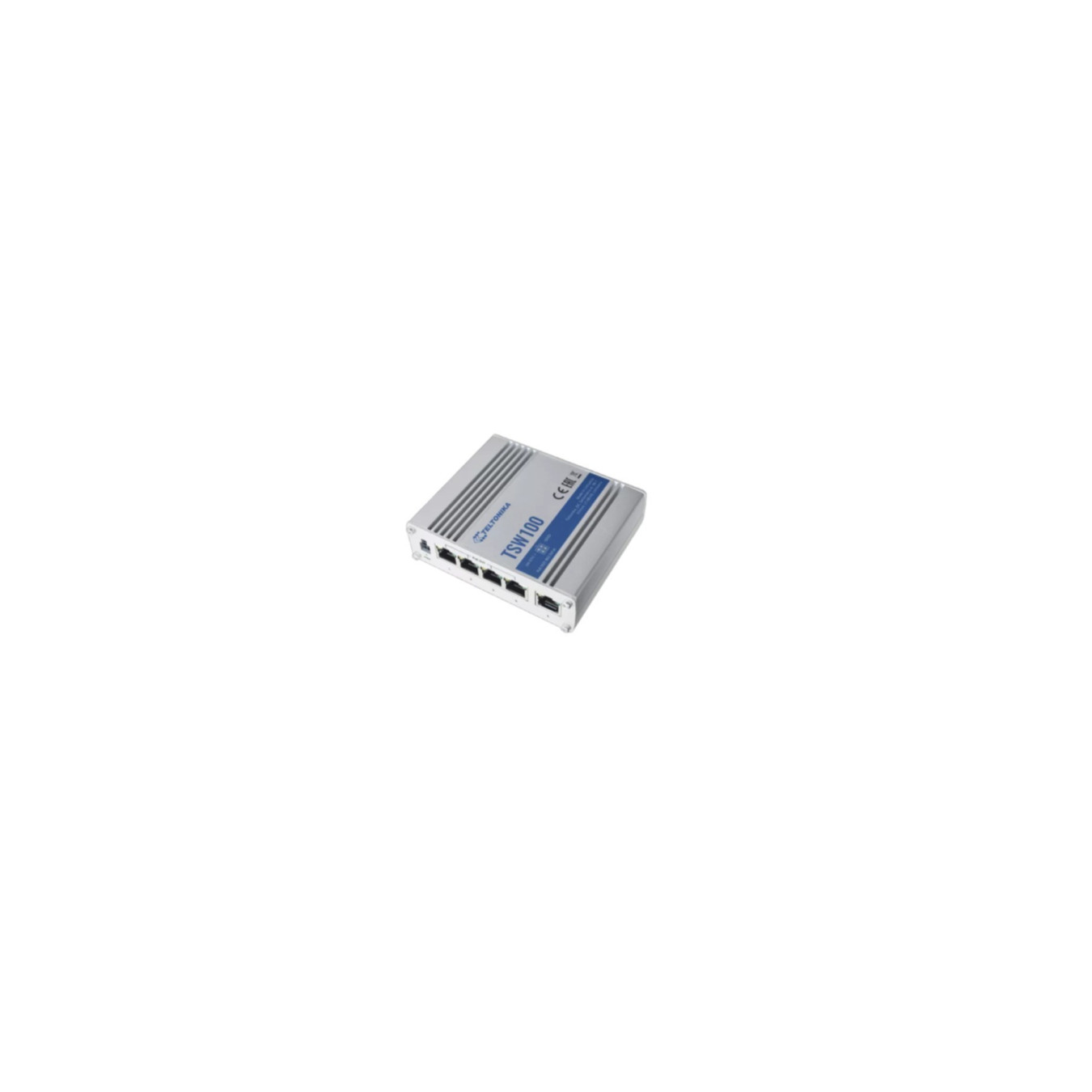

Teltonika TSW100 - 5-Port Gigabit Switch (4×PoE 30W/port, 120W Budget) - Blue Metallic, Aluminium
Compact 5×Gigabit RJ45 switch with 4 PoE ports (30W/port, 120W total), 7–58V DC input, aluminium housing, -40–75°C operation, 9216 jumbo frames, MAC table 2000.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Teltonika TSW100. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. DC input voltage: 7 - 58 V. Power over Ethernet (PoE)
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af. IEEE 802.3at. IEEE 802.3az |
| Feature | Power over Ethernet (PoE) |
| MAC address table | 2000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Product colour | Blue. Metallic |
| Housing material | Aluminium |
| LED indicators | Power. Status |
| DC input voltage | 7 - 58 V |
| Power consumption (max) | 129 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 115 mm |
| Depth | 95 mm |
| Height | 32 mm |
| Harmonized System (HS) code | 85176990 |
