Mercusys

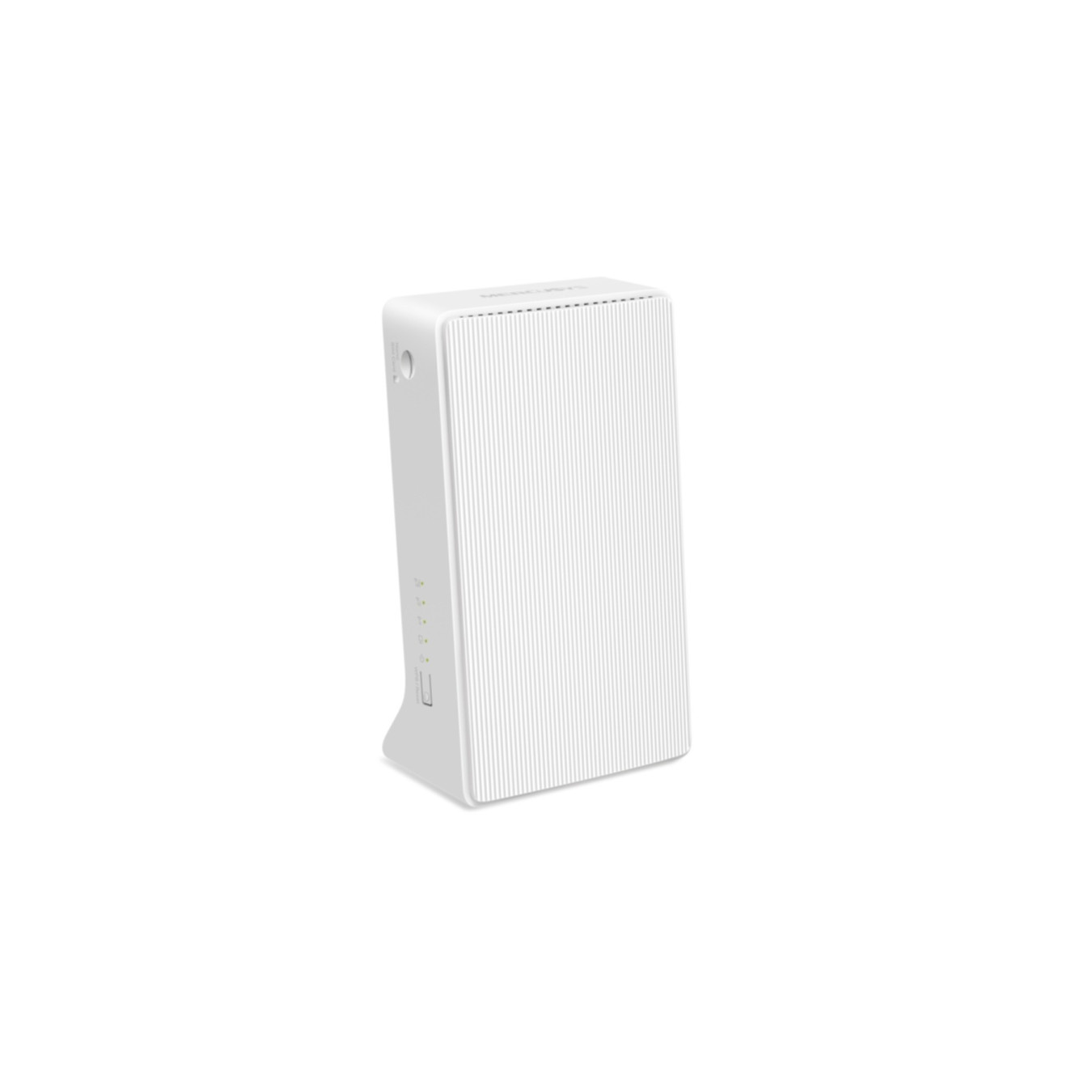

Mercusys MB130-4G - AC1200 Dual-Band Wi-Fi 5 4G LTE Router - Nano-SIM, Tabletop

SKU 7282 Brand Mercusys EAN13 6957939002121
AC1200 Dual-band Wi-Fi 5 (867 Mbps @5GHz + 300 Mbps @2.4GHz), built-in 4G LTE (up to 150/50 Mbps) with Nano-SIM support, tabletop router, up to 64 devices.
Routers - Bands Dual-band (2.4+5 GHz)

Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.

Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.

Superfast 4G LTE Speed for Reliable Wi-Fi
Working as a 4G router, the MB130-4G uses 4G LTE technology to achieve super-fast speeds up to 150 Mbps download and 50
Mbps upload. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.

Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous
connections for tablets, laptops, mobile phones, and other devices.

Full of Strong and Stable Signal

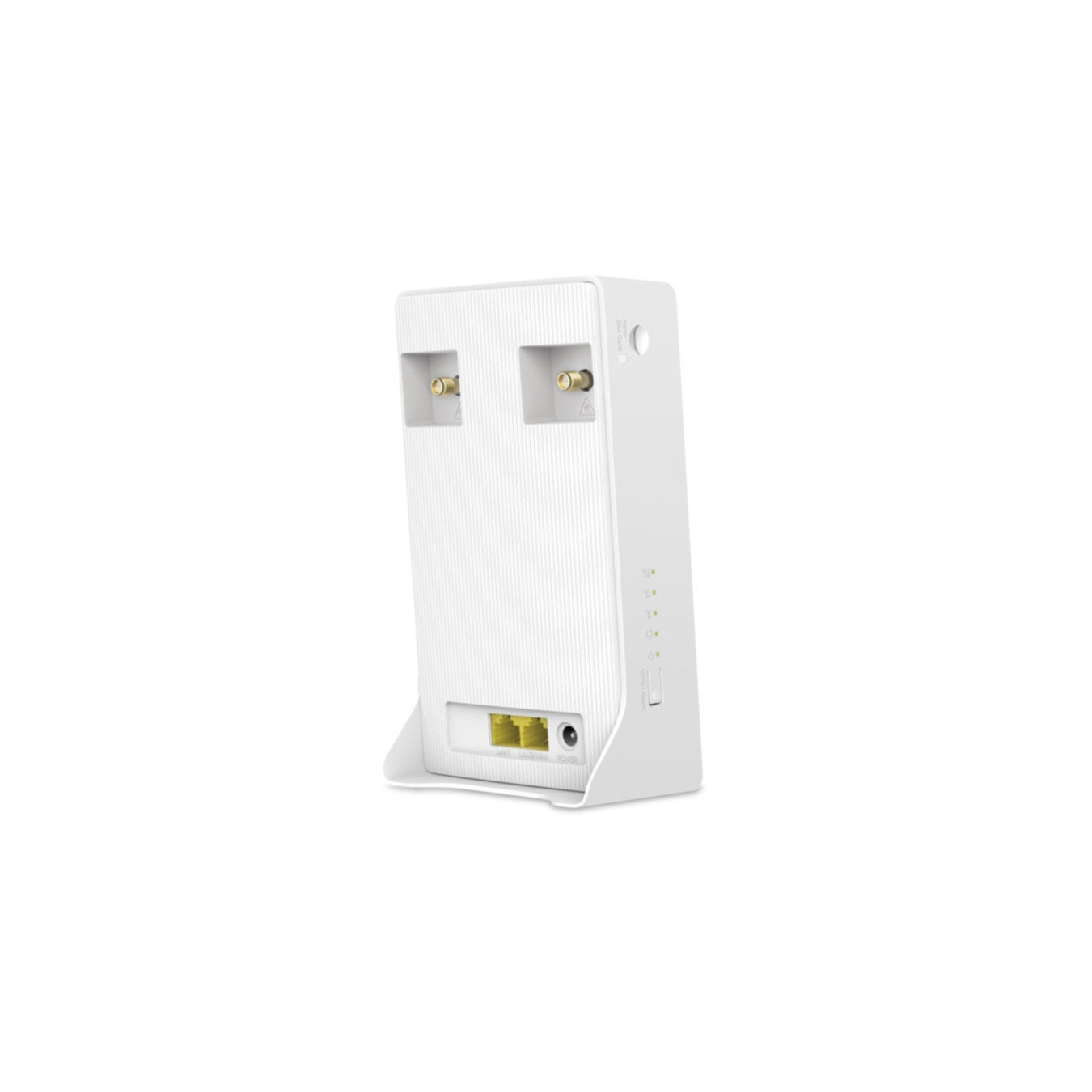

Internal high-gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router. Additionally, by connecting your extra 4G antennas to the external antenna ports, you may further strengthen the signal.

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB130-4G can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.

Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).


Ethernet WANYes
DSL WANNo
SIM card slotYes
3G/4G USB modem compatibilityYes
WAN connection typeRJ-45
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)867 Mbit/s
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN interface typeEthernet
Ethernet LAN data rates10, 100 Mbit/s
Port forwardingYes
Port triggeringYes
Dynamic DNS (DDNS)Yes
Mobile network generation4G
Dual SIM supportNo
3G standardsHSPA+, UMTS
4G standardLTE-TDD & LTE-FDD
4G bands supported700, 800, 850, 900, 1800, 2100, 2600 MHz
3G bands supported850, 900, 2100 MHz
SIM card typeNanoSIM
Ethernet LAN (RJ-45) ports2
USB portNo
DC-in jackYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Reset buttonYes
WPS push buttonYes
Security algorithmsWPA, WPA-PSK, WPA2, WPA2-PSK
FirewallYes
DMZ supportYes
DHCP clientYes
DHCP serverYes
Universal Plug and Play (UPnP)Yes
VoIP protocolsIPv4, IPv6
Product colourWhite
Indication lightYes
Product typeTabletop router
AC adapter includedYes
Antenna includedYes
Quick installation guideYes
Antenna designInternal
Antenna type2x2
Firmware upgradeableYes
Power source typeDC
Output voltage12 V
Output current1 A
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width95 mm
Depth61 mm
Height166 mm
