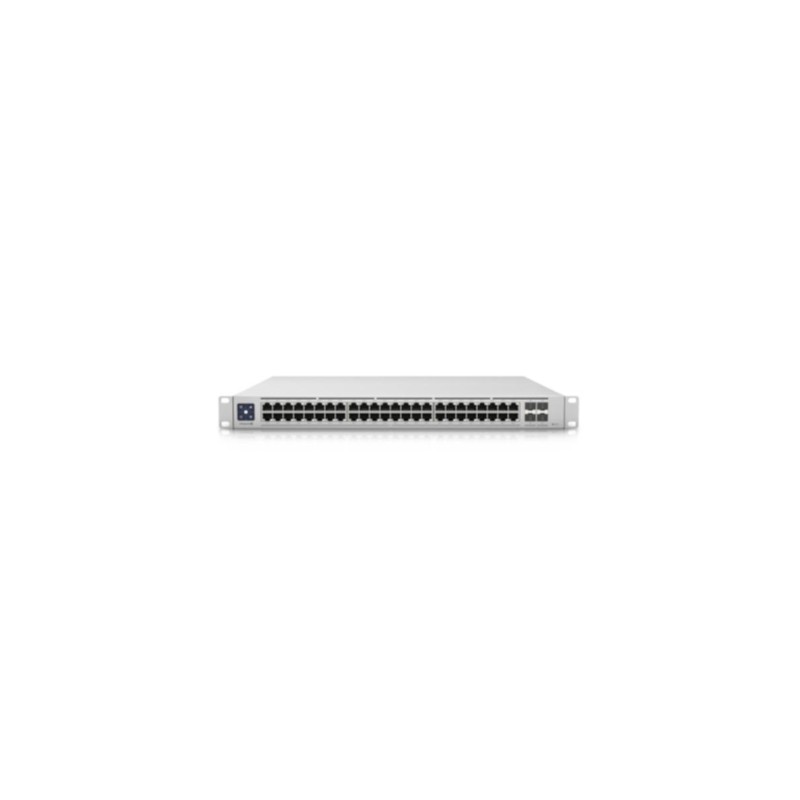

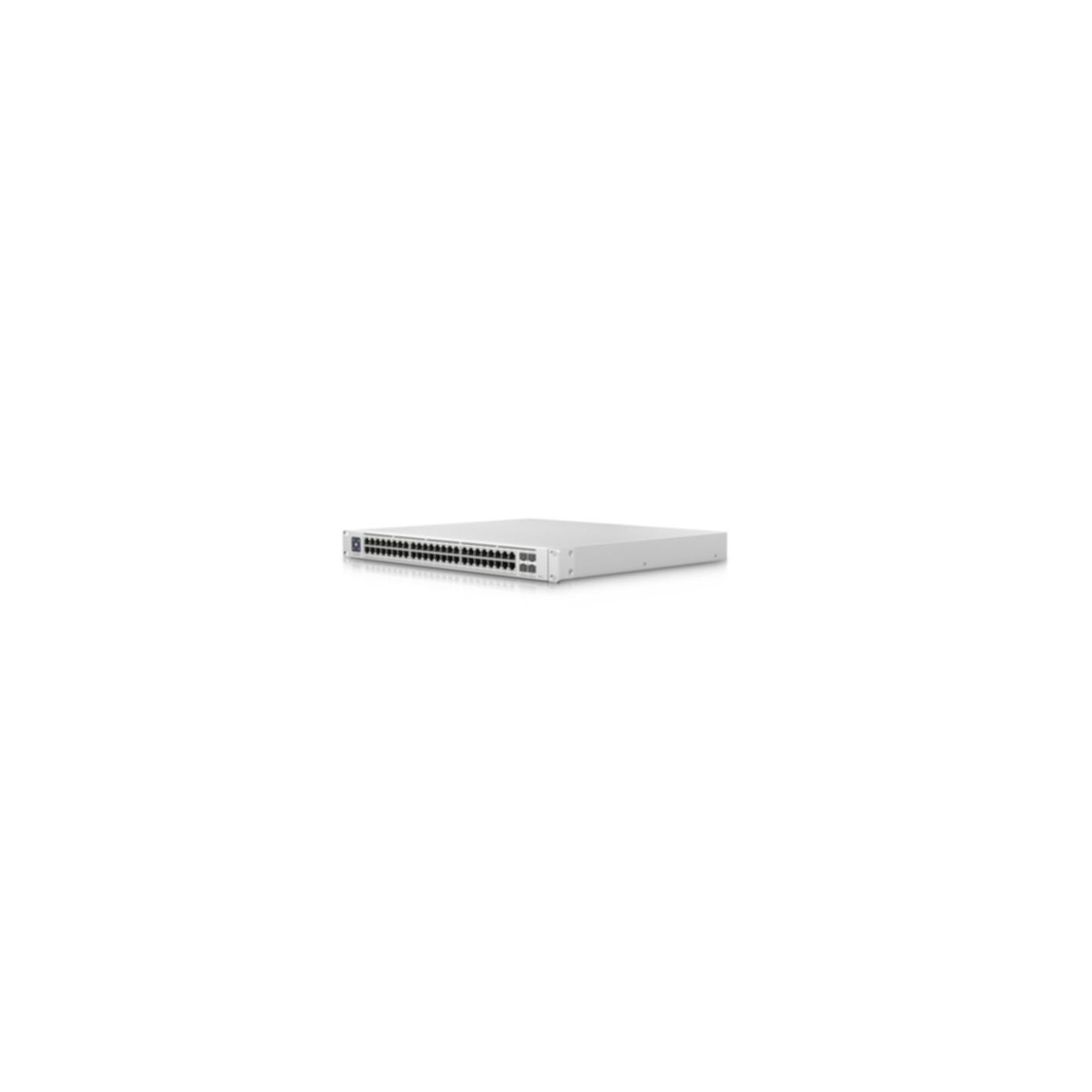

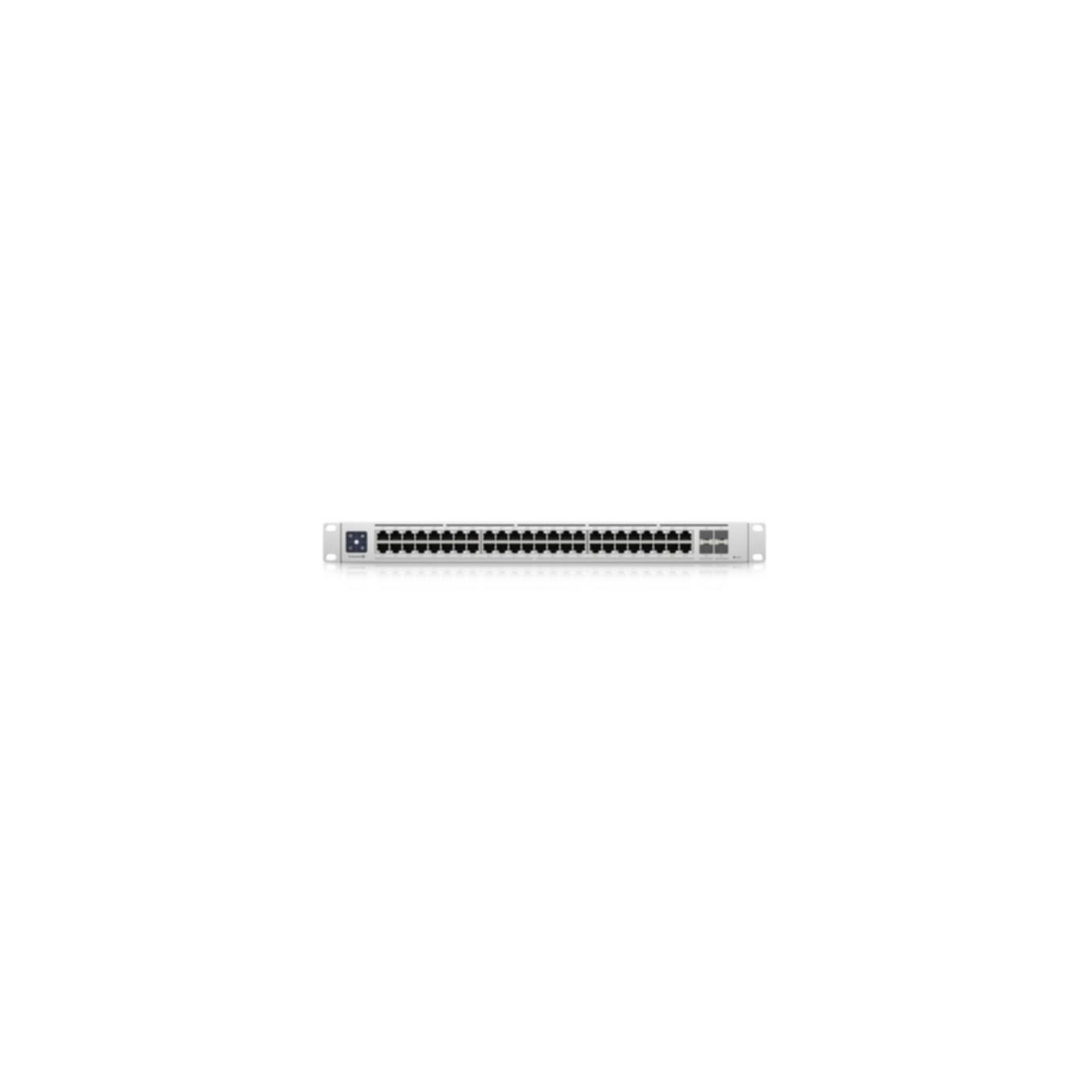

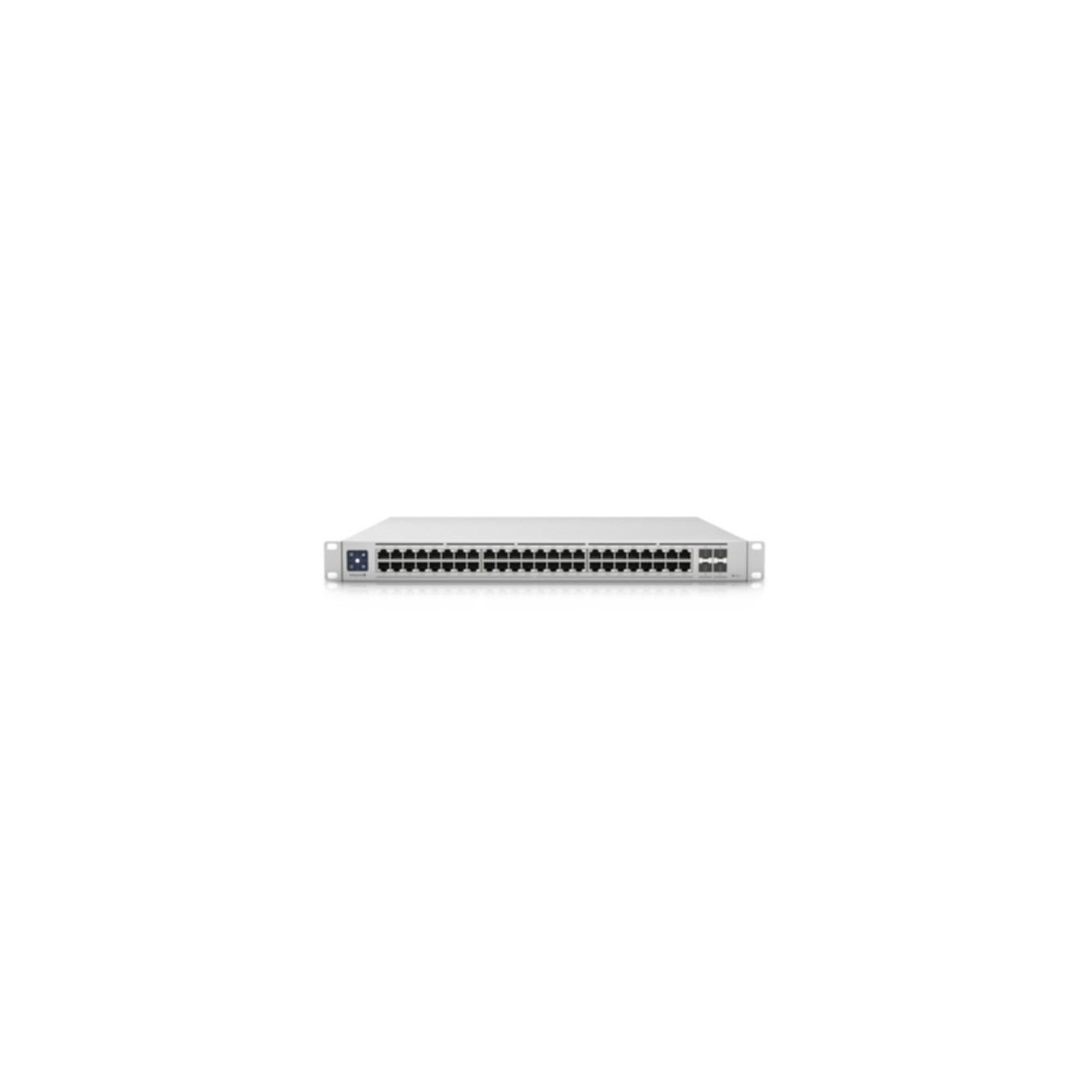

Ubiquiti UniFi USW-Enterprise-48-POE - 48-Port PoE+ Multi-Gig 2.5G, 4×10G SFP+, L3, 1U Rack (Grey)
Managed L3 48-port PoE+ switch with 48×2.5G RJ45, 4×10G SFP+, 720W PoE budget, 1U rackmount, LCM display, 4 fans, 100–240V AC input.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
Layer 3, PoE switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports and (4) 10G SFP+ ports.
The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Switch type | Managed |
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| Switching capacity | 320 Gbit/s |
| Throughput | 160 Gbit/s |
| Forwarding rate | 238.095 Mpps |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Steel |
| Reset button | Yes |
| LED indicators | Activity, Link |
| Display type | LCM |
| Backlight display | Yes |

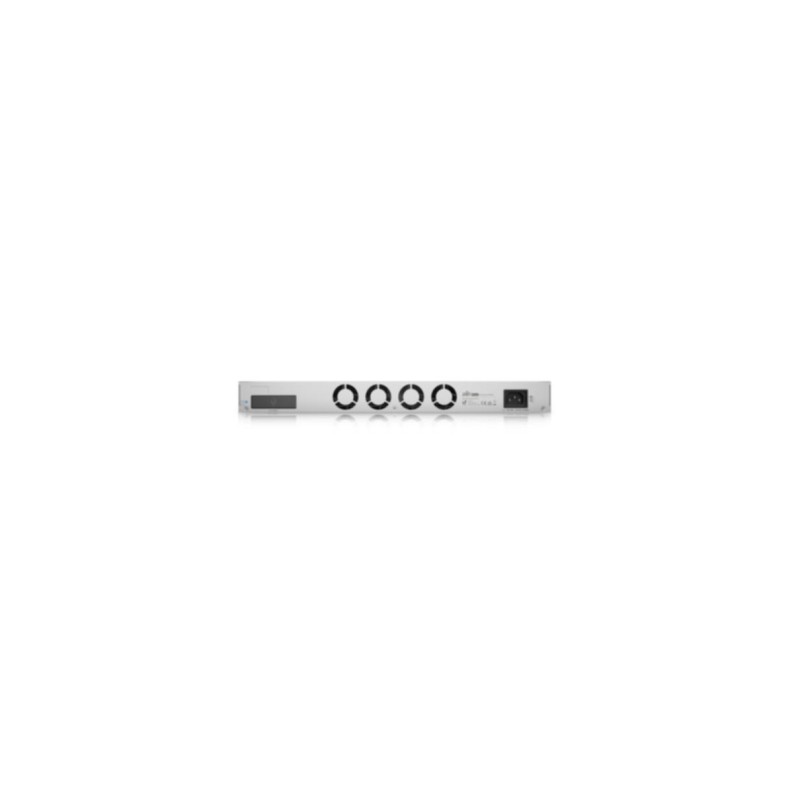

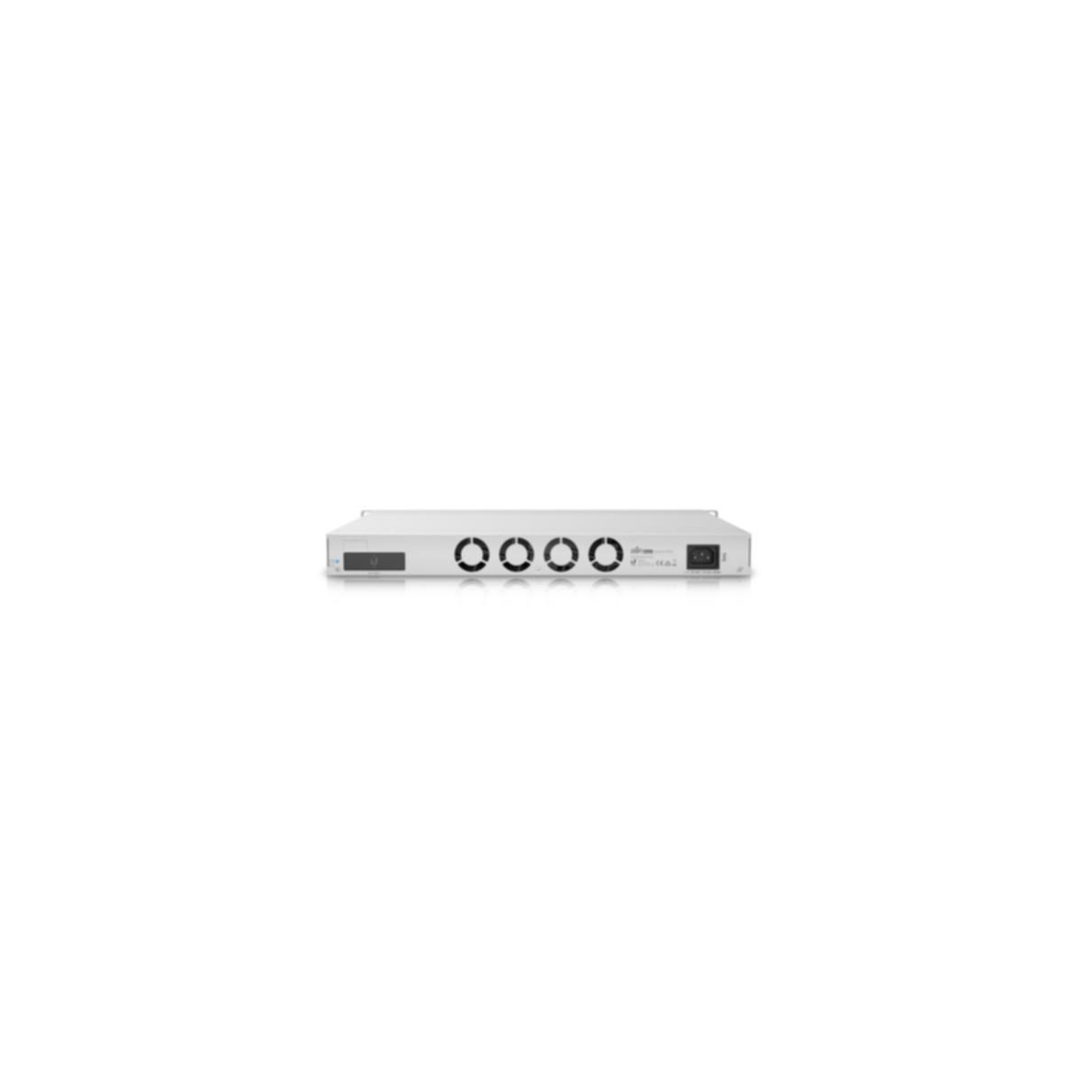

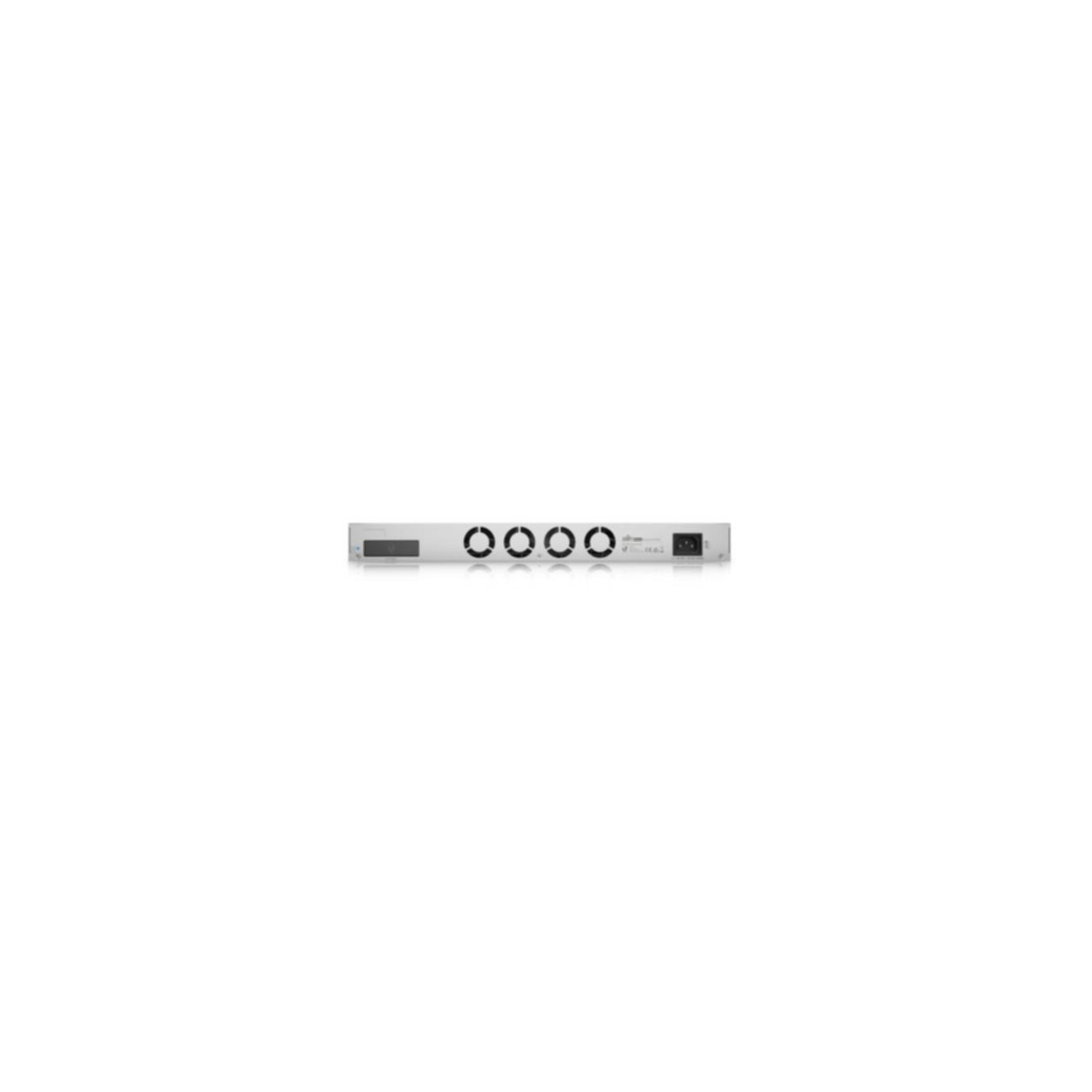

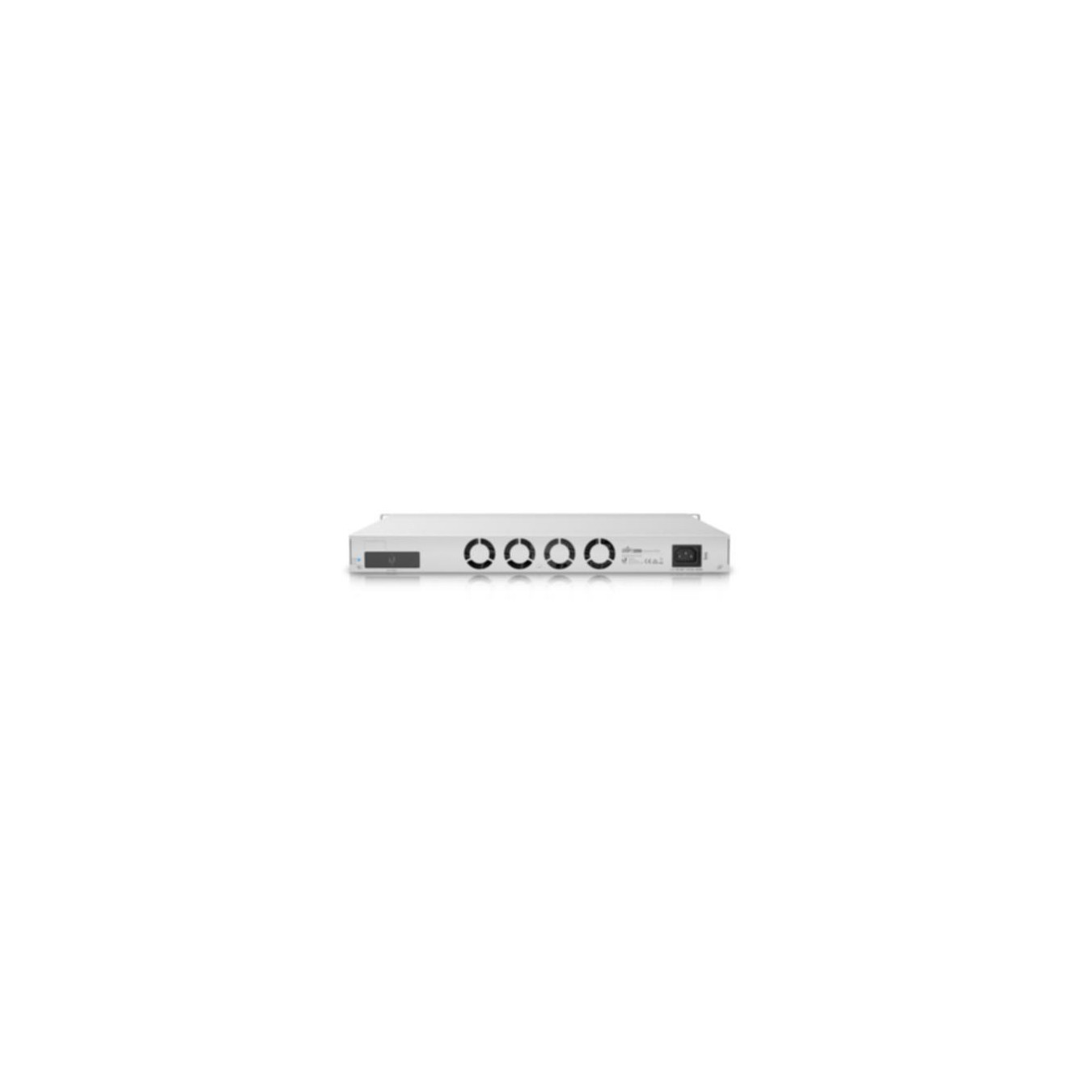

| Number of fans | 4 fan(s) |
| Firmware upgradeable | Yes |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 52 V |
| Input current | 10 A |
| Power consumption (max) | 150 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 34.2 W |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442 mm |
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6.2 kg |
| Rack mount kit | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Harmonized System (HS) code | 85176990 |
