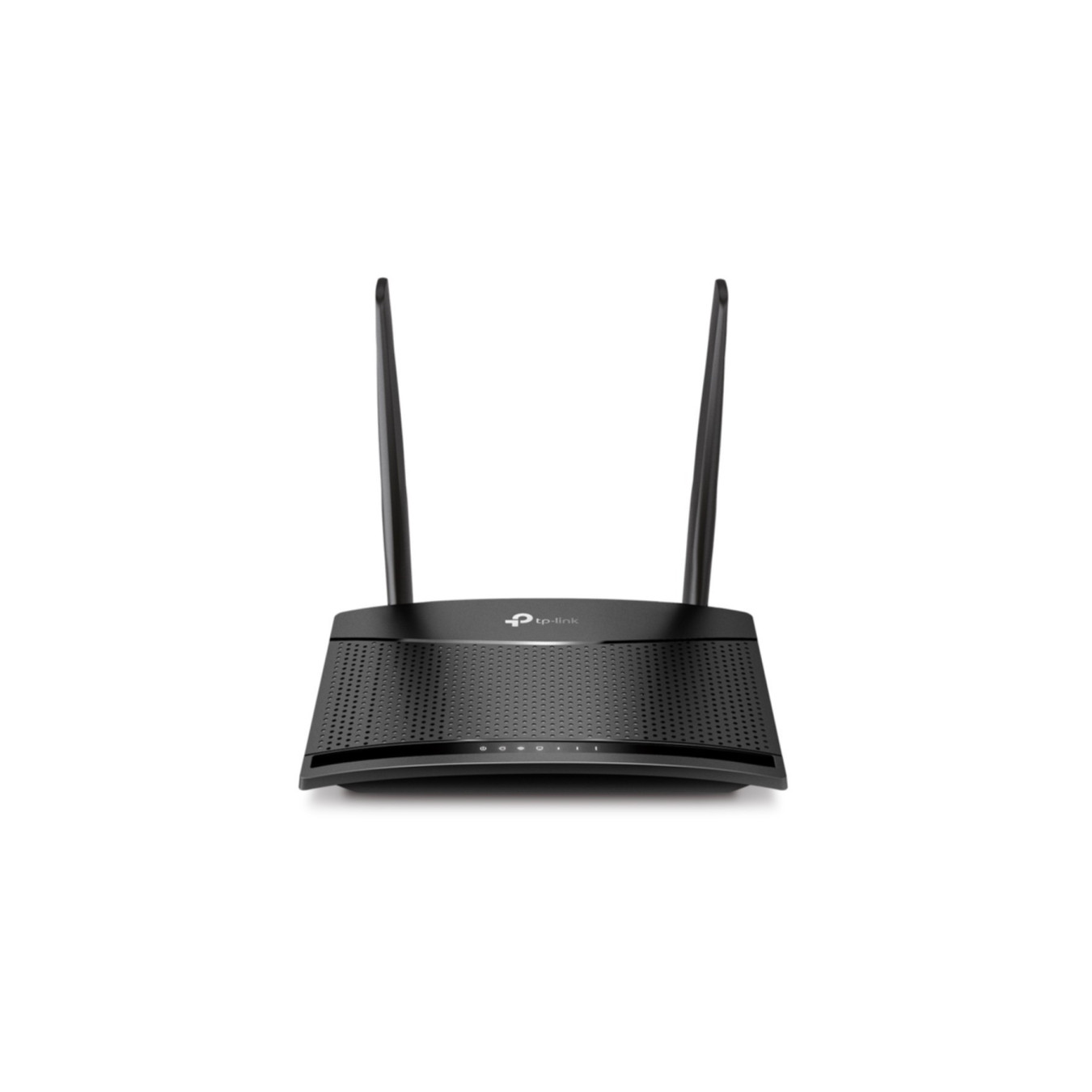

TP-Link TL-MR100 Wireless Router - Single-band 2.4 GHz, 300 Mbps, 2x External Antennas, Black
Single-band 2.4 GHz Wi‑Fi 4 (802.11n) router — up to 300 Mbps. MicroSIM slot (3G/4G), Ethernet WAN, 2x Fast Ethernet LAN ports, 2 external antennas, WPS & WPA2 security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Wi-Fi Standard | Wi-Fi 4 (802.11n) |
|---|---|
| Routers - Bands | Single-band (2.4 GHz) |
| Routers - LAN Ports | 2 |
| Routers - USB Ports | None |
| Routers - Antennas | 2x External |
TP-Link TL-MR100. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz). Top Wi-Fi standard: Wi-Fi 4 (802.11n). WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet. Ethernet LAN data rates: 10.100 Mbit/s. Cabling technology: 10/100Base-T(X). Mobile network generation: 4G. 3G standards: HSPA. UMTS. 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP. 128-bit WEP. WPA. WPA-PSK. WPA2. WPA2-PSK
| Feature | Mac operating systems supported |
| WAN connection type | RJ-45 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b. 802.11g. Wi-Fi 4 (802.11n) |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10.100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b. IEEE 802.11g. IEEE 802.11n |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Receiver sensitivity | 11g 54M: -74dBm11n HT20: -71dBm11n HT40: -67dBm |
| Mobile network generation | 4G |
| 3G standards | HSPA. UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 800.900.1800.1900.2100.2300.2500.2600 MHz |
| 3G bands supported | 850.900.2100 MHz |
| SIM card type | MicroSIM |
| Ethernet LAN (RJ-45) ports | 2 |
| Security algorithms | 64-bit WEP. 128-bit WEP. WPA. WPA-PSK. WPA2. WPA2-PSK |
| Supported network protocols | IPv4. IPv6 |
| Product colour | Black |
| Product type | Tabletop router |
| Certification | CE. RoHS |
| Cables included | LAN (RJ-45) |
| Antenna design | External |
| Antenna connector type | N-type |
| Antennas quantity | 2 |
| Power source type | DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Browser supported | Internet Explorer 11. Firefox 12.0. Chrome 20.0. Safari 4.0 |
| Windows operating systems supported | Windows 2000. Windows 7. Windows 8. Windows 8.1. Windows 98SE. Windows NT. Windows Vista. Windows XP |
| Width | 154 mm |
| Depth | 114 mm |
| Height | 36 mm |
| Weight | 150 g |
| Package width | 293 mm |
| Package depth | 161 mm |
| Package height | 66 mm |
| Package weight | 450 g |
| Harmonized System (HS) code | 85176990 |
