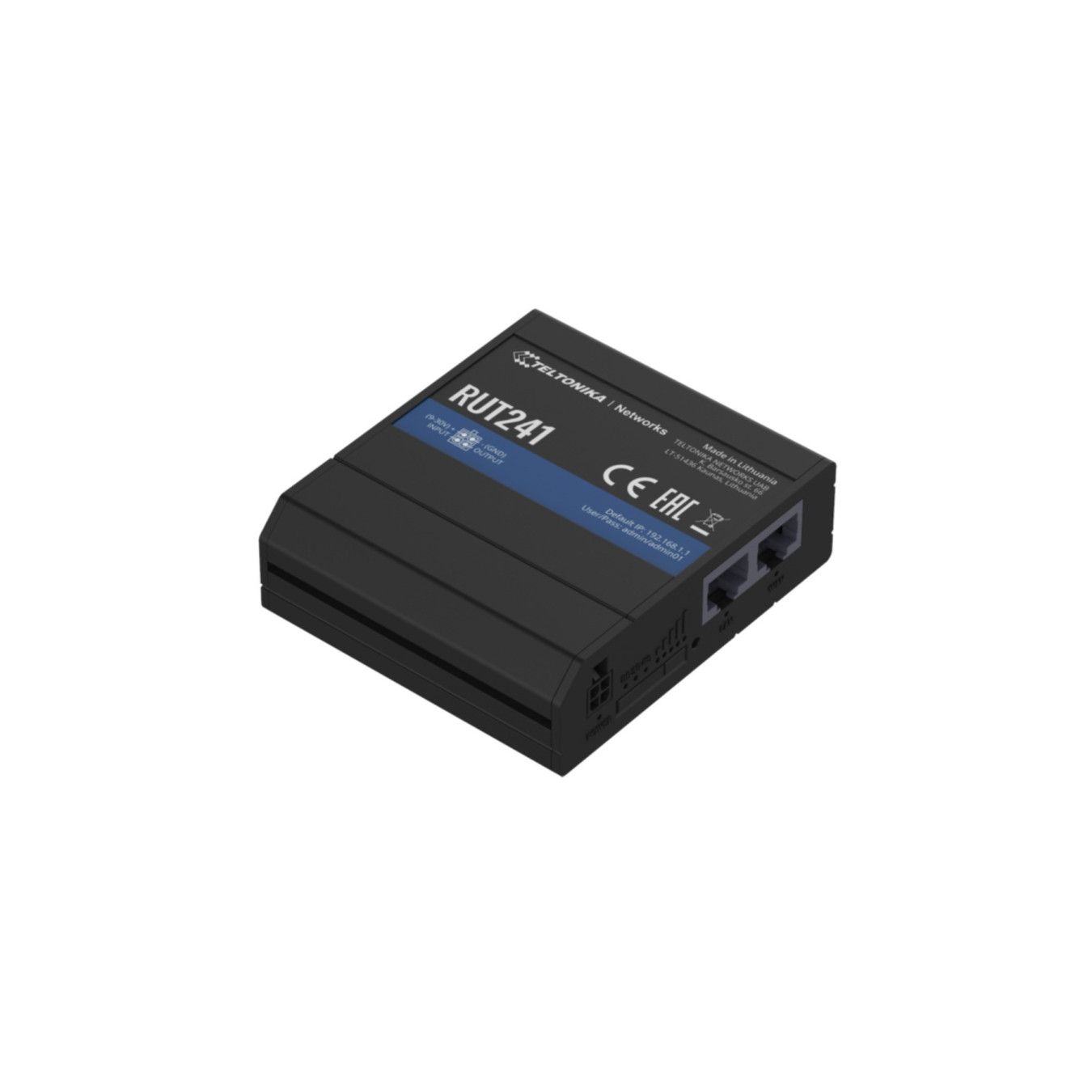

Teltonika RUT241 Industrial 4G LTE Router - 128MB RAM, 580MHz CPU, 2x Ethernet, Wi-Fi 4 (Boxed)
Industrial-grade Teltonika RUT241 4G LTE router with CAT4 modem (150 Mbps), 2x Ethernet ports, Wi-Fi 4, 128MB RAM, 580MHz CPU, DIN-rail mount, -40 to 75°C operating range.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Industrial Gateway Mobile 4G/5G Router |
|---|---|
| Routers - Special Features | Failover Support Firewall Intrusion Prevention Traffic Monitoring VLAN Support |
| Routers - LAN Ports | 2 |
| Routers - Wi-Fi Standard | Wi-Fi 4 (802.11n) |
| Routers - Bands | Single-band (2.4 GHz) |
The Teltonika RUT241 is a compact, industrial-grade cellular router engineered for reliable IoT and M2M connectivity in demanding environments. Built with a CAT4 LTE modem delivering speeds up to 150 Mbps download and 50 Mbps upload, it combines 4G/3G/2G cellular connectivity with dual Ethernet ports (1 WAN + 1 LAN at 10/100 Mbps) and Wi-Fi 4 (802.11b/g/n) at 2.4GHz. The device features 128MB DDR2 RAM, a 580MHz MediaTek MIPS processor, and operates reliably across -40 to 75°C, making it suitable for harsh industrial conditions.
Designed for professional deployment, the RUT241 includes automatic WAN failover, advanced firewall capabilities, VLAN support, intrusion prevention, and traffic monitoring. It supports up to 50 simultaneous Wi-Fi clients and includes 1 SIM card slot with optional eSIM functionality (SGP.22 architecture). The aluminum enclosure with plastic panels provides fanless, passive cooling, while DIN-rail mounting enables easy integration into industrial control systems. Power consumption is minimal at under 6.5W with 9-30VDC input, and the device comes with 3 external SMA antennas (2 for LTE, 1 for Wi-Fi).
Key features include:
- CAT4 LTE connectivity (150 Mbps down / 50 Mbps up)
- 2x Fast Ethernet ports with automatic failover
- Wi-Fi 4 (802.11n) 2.4GHz with hotspot functionality
- Industrial-grade security: WPA2-Enterprise, WPA2-PSK, firewall, NAT, VPN support
- Remote Management System (RMS) compatibility
- Operating temperature: -40 to 75°C
- Compact DIN-rail mount design (83x74x25mm, 125g)
| Device Type | Industrial cellular network router |
| Product Colour | Black |
| Housing Material | Aluminum with plastic panels |
| Mounting | DIN-rail |
| Market Positioning | Industrial |
| Ethernet LAN Interface Type | Fast Ethernet (10/100 Mbps) |
| Ethernet LAN Ports | 2 (1x WAN + 1x LAN) |
| Networking Standards | IEEE 802.3, IEEE 802.3u |
| Wi-Fi Standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi Bands | Single-band 2.4 GHz |
| Wi-Fi Security | WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WEP, AES-CCMP, TKIP |
| Data Network Support | 2G, 3G, 4G (LTE) |
| 4G Standard | LTE CAT4 |
| 4G LTE Speeds | 150 Mbps download, 50 Mbps upload |
| 3G Speeds | Up to 42 Mbps |
| 2G Speeds | Up to 236.8 kbps |
| 2G Bands Supported | 900 MHz, 1800 MHz |
| 3G Bands Supported | 850 MHz, 900 MHz, 2100 MHz |
| 4G Bands Supported | 2300 MHz, 2500 MHz, 2600 MHz |
| SIM Card Slots | 1 (with optional eSIM support - SGP.22 architecture) |
| Processor | MediaTek 580 MHz MIPS 24KEc |
| RAM | 128 MB DDR2 |
| Digital Input | 1x (0-6V logic low, 8-30V logic high) |
| Digital Output | 1x open collector (max 30V, 300mA) |
| Antenna Type | External SMA connectors |
| Antenna Quantity | 3 (2x SMA for LTE, 1x RP-SMA for Wi-Fi) |
| Antenna Specifications | Wi-Fi: 2400-2500 MHz, 50Ω, VSWR<2.5, 5 dBi gain, omnidirectional |
| Power Input | 9-30 VDC via 4-pin terminal block |
| Power Consumption | < 6.5 W |
| Power Adapter | Input: 0.4A @ 100-240 VAC, Output: 9VDC 1A with 4-pin plug |
| Operating Temperature | -40 to 75°C |
| Operating Humidity | 10-90% (non-condensing) |
| Dimensions (Device Only) | 83 x 74 x 25 mm (W x D x H) |
| Weight (Device Only) | 125 g |
| Enclosure | Aluminum with plastic panels, fanless cooling |
| LED Indicators | Connection type status, signal strength, LAN status, power |
| Firewall Features | Pre-configured rules, unlimited CLI configuration, DMZ, NAT, NAT-T, attack prevention (SYN-RST, X-mas, NULL, FIN scan) |
| VLAN Support | Port and tag-based VLAN separation |
| Web Filter | Blacklist/Whitelist, flexible TCP/UDP/ICMP access control, MAC address filter |
| Mobile Quota Control | Custom data limits per SIM card |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL) |
| Authentication Methods | Pre-shared key, digital certificates, X.509 certificates |
| Event Notifications | SMS, Email, RMS |
| I/O Juggler | Set I/O conditions to initiate events |
| Remote Management | Full compatibility with Teltonika Remote Management System (RMS) |
| Automatic WAN Failover | Yes, with link backup and ICMP detection |
| Wi-Fi Features | Hotspot functionality, supports up to 50 simultaneous clients, fast roaming (802.11r), Relayd |
| Regulatory Compliance | CE/RED, UKCA, CB, UL/CSA 62368-1 |
| Harmonized System Code | 85176990 |
