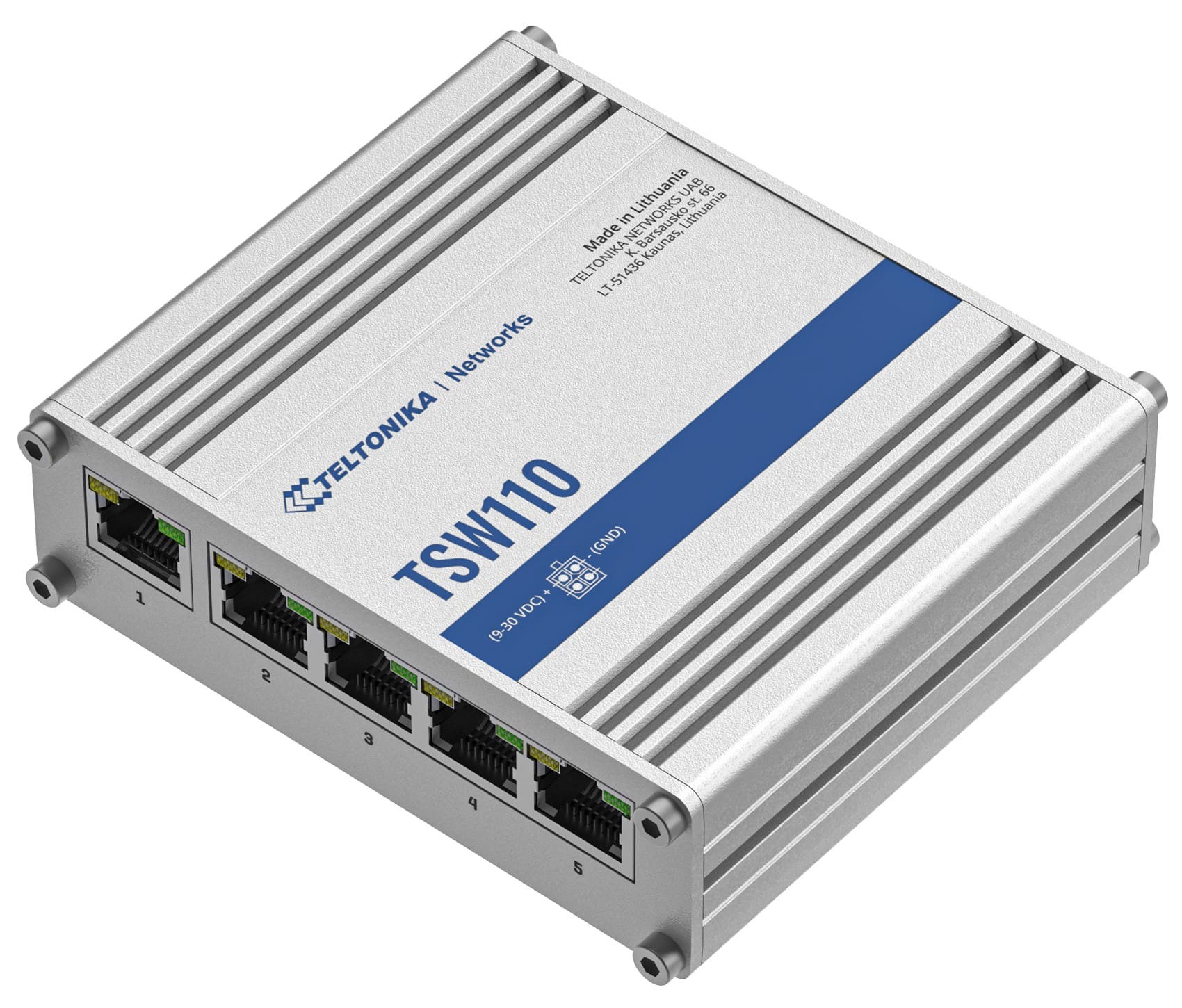

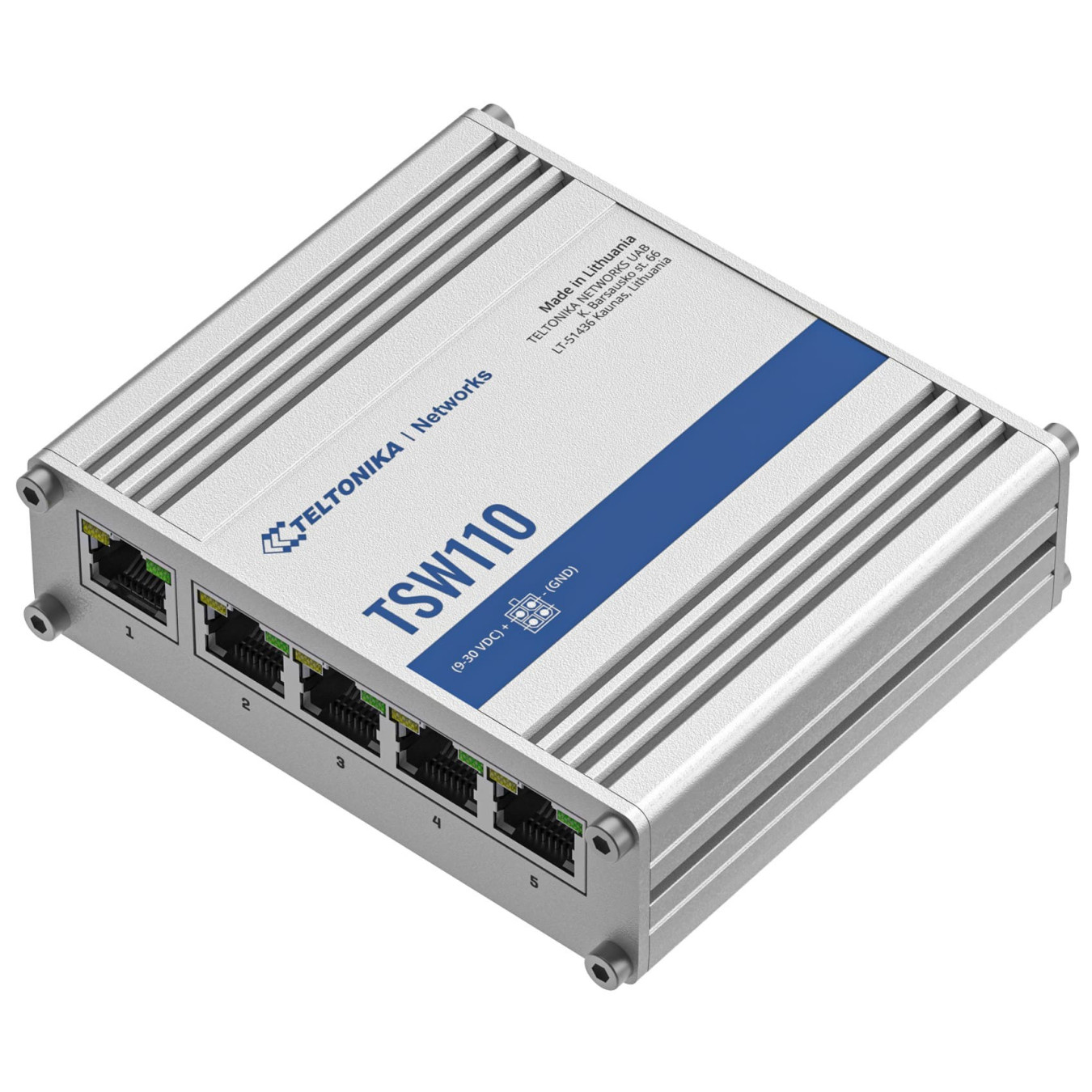

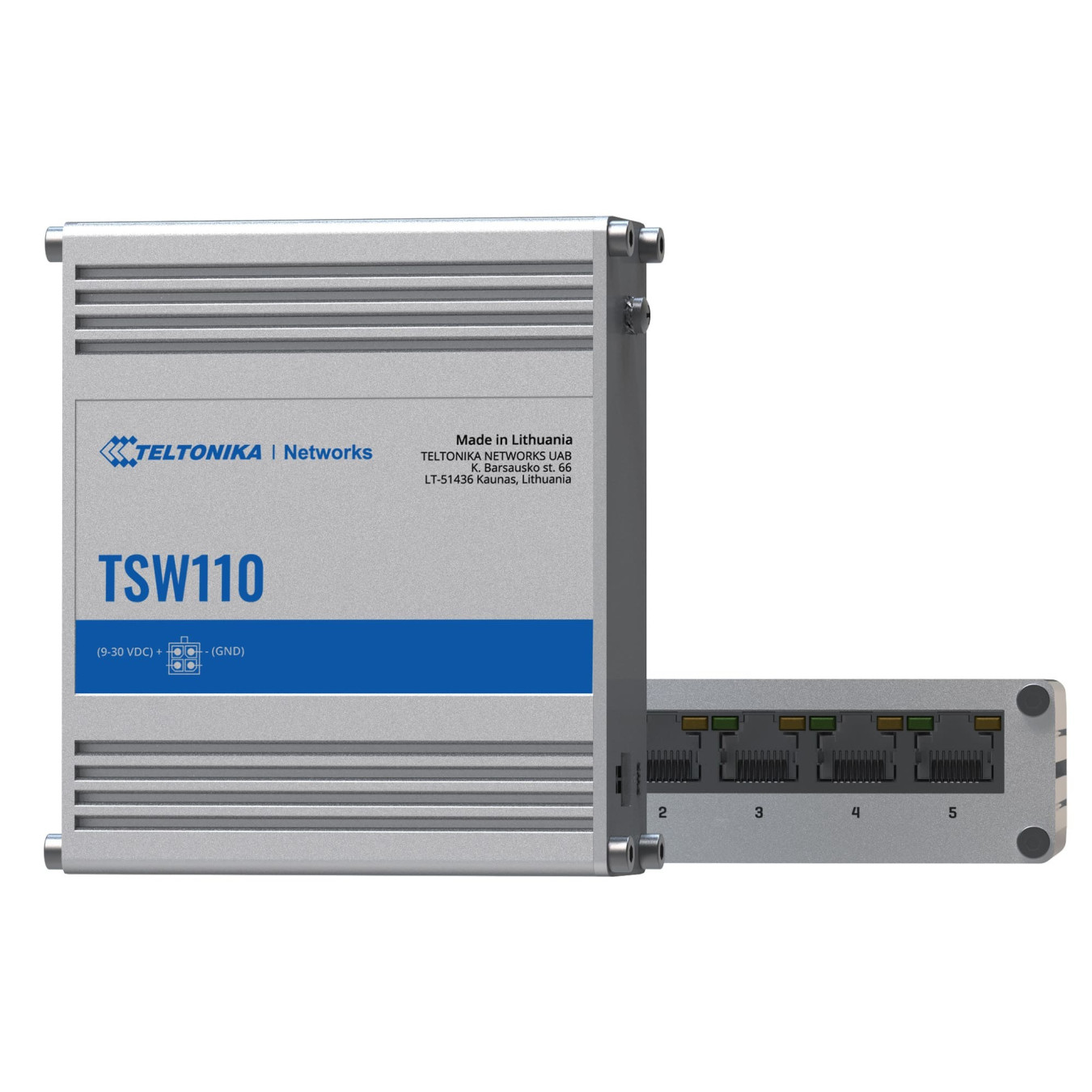

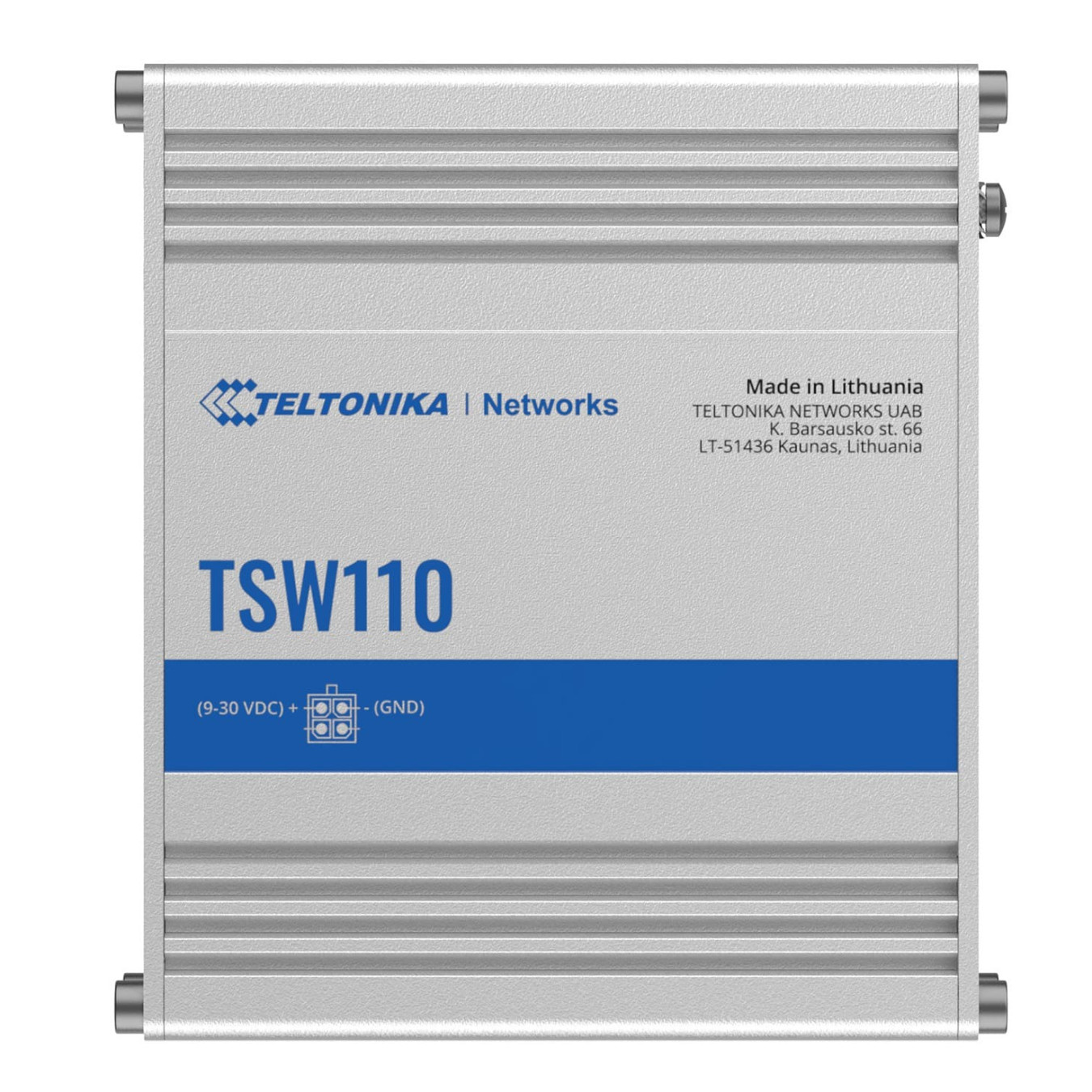

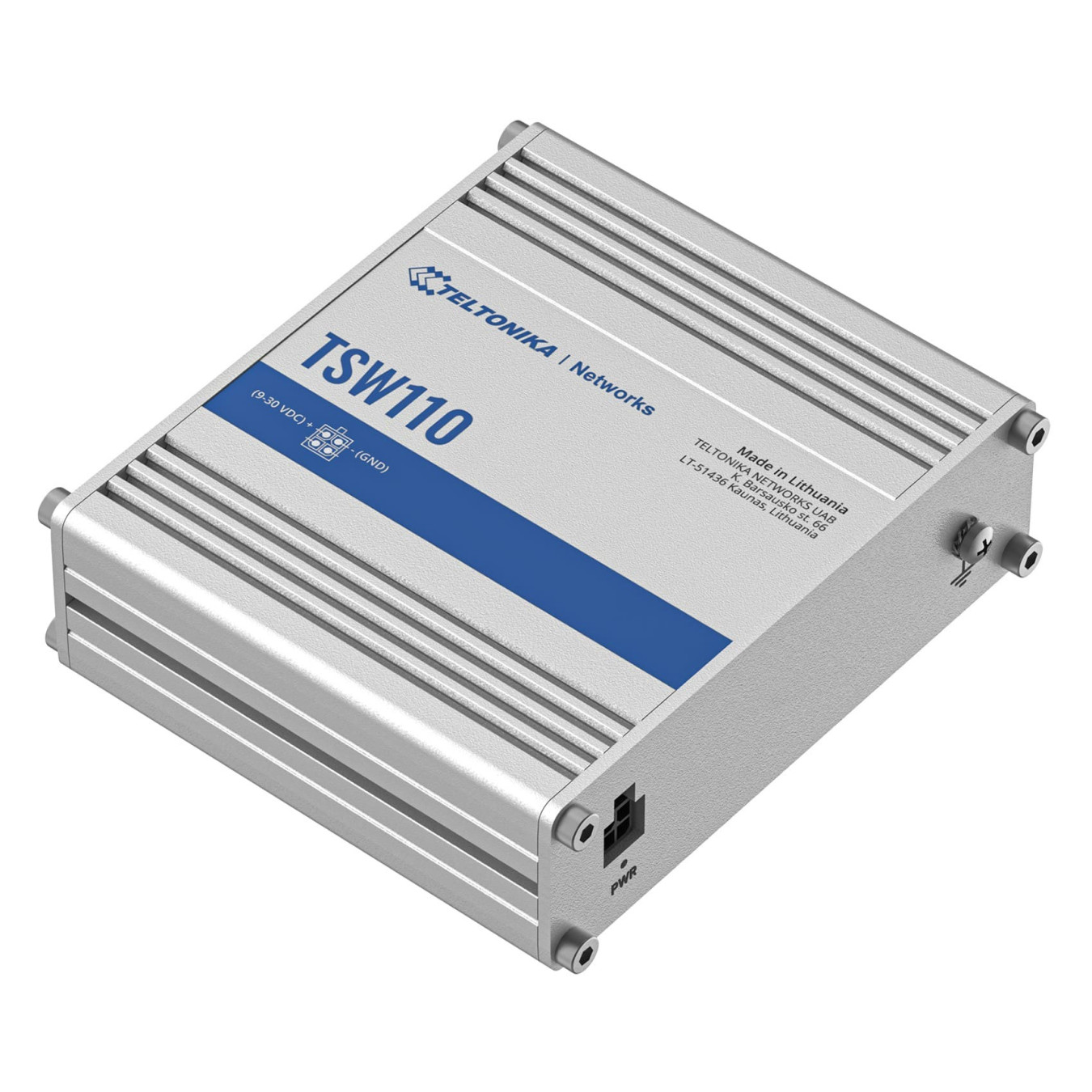

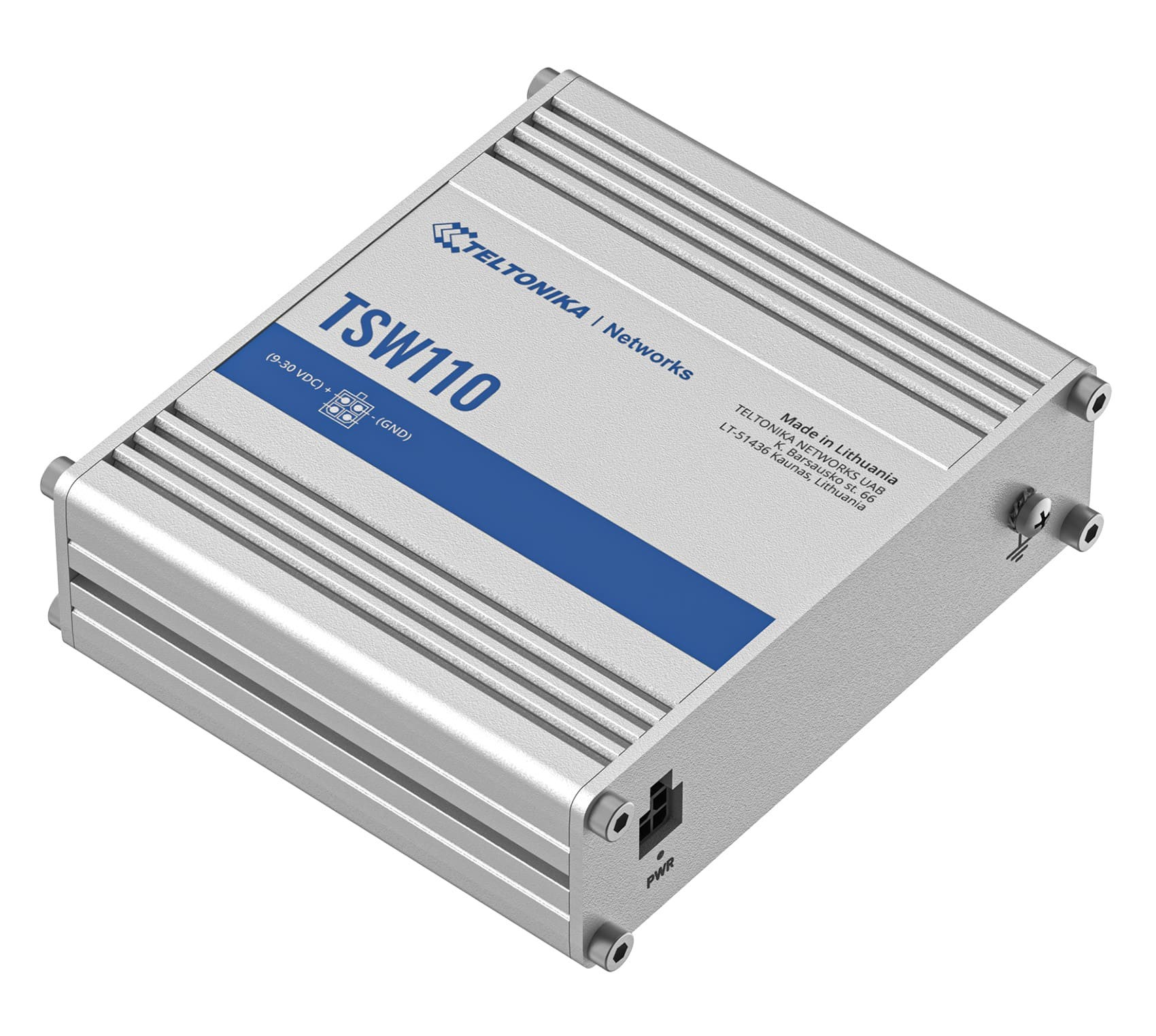

Teltonika TSW110 - 5-Port Gigabit Unmanaged Switch, DIN-rail, Blue/Grey, Aluminium Housing
Unmanaged 5-port Gigabit (10/100/1000) Ethernet switch, 10 Gbit/s switching capacity, rugged aluminium housing, DIN-rail/surface mount, wide input 9–30 V / 100–240 V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLUG-N-PLAY
No additional configuration needed
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
STATUS LEDS
1 x Power, 10 x Ethernet

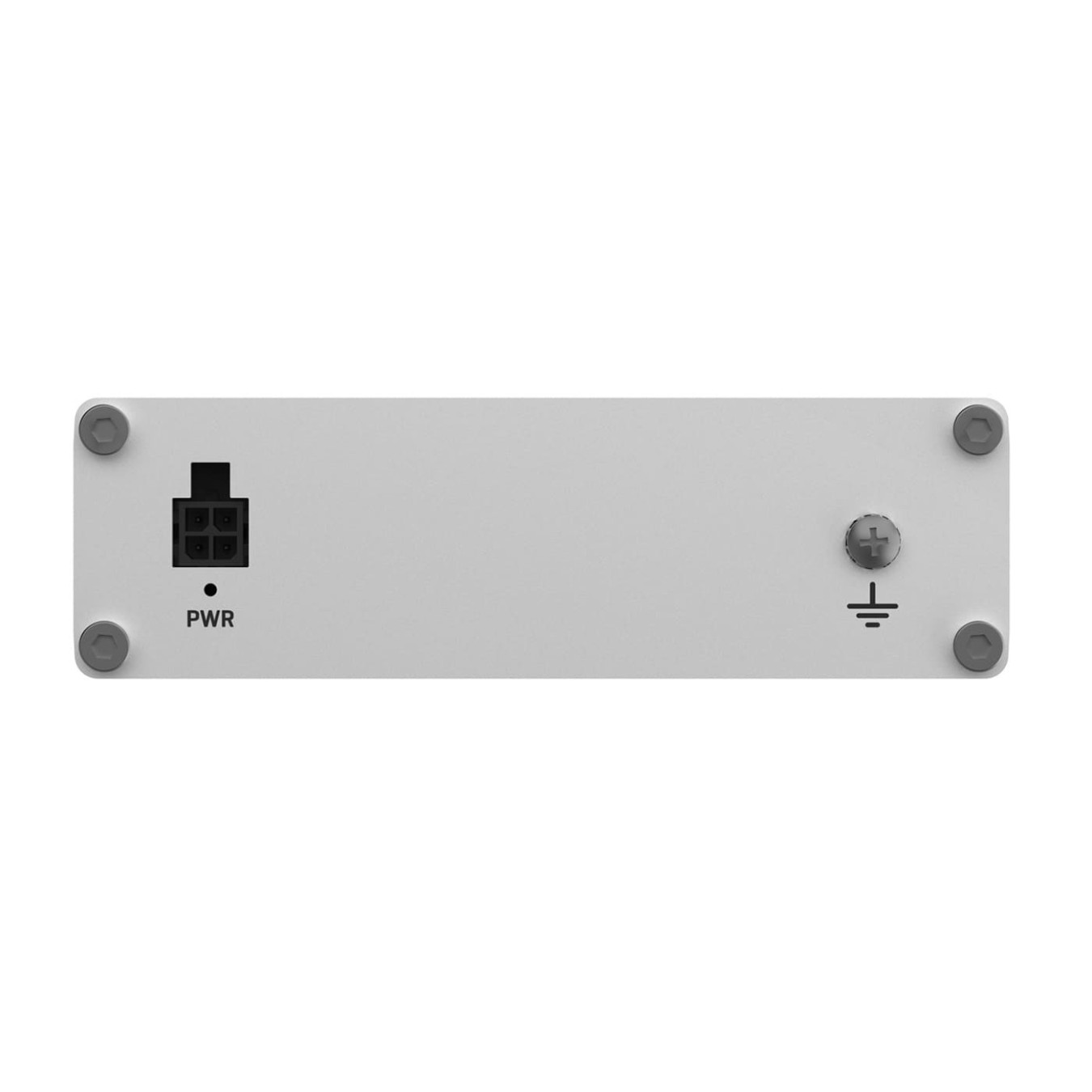

9-30 V
Wide range of supported power supply voltages
GIGABIT ETH

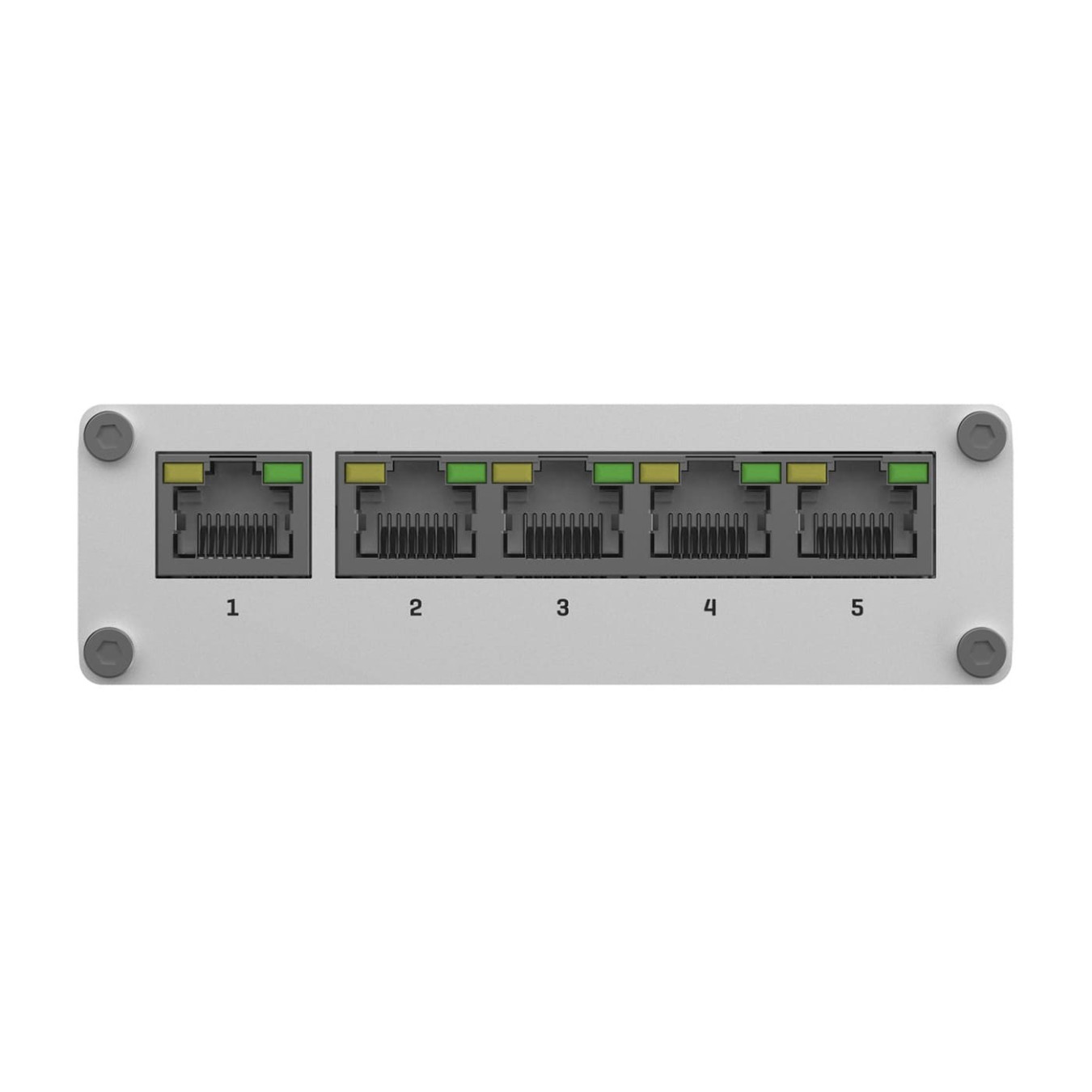

5 x Gigabit Ethernet with speeds up to 1000 Mbps
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Product colour | Blue, Grey |
| Housing material | Aluminium |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| DC input voltage | 30 V |
| Power consumption (typical) | 1.8 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 100 mm |
| Depth | 85 mm |
| Height | 30 mm |
| Weight | 227 g |
| Quick start guide | Yes |
| Package type | Box |
