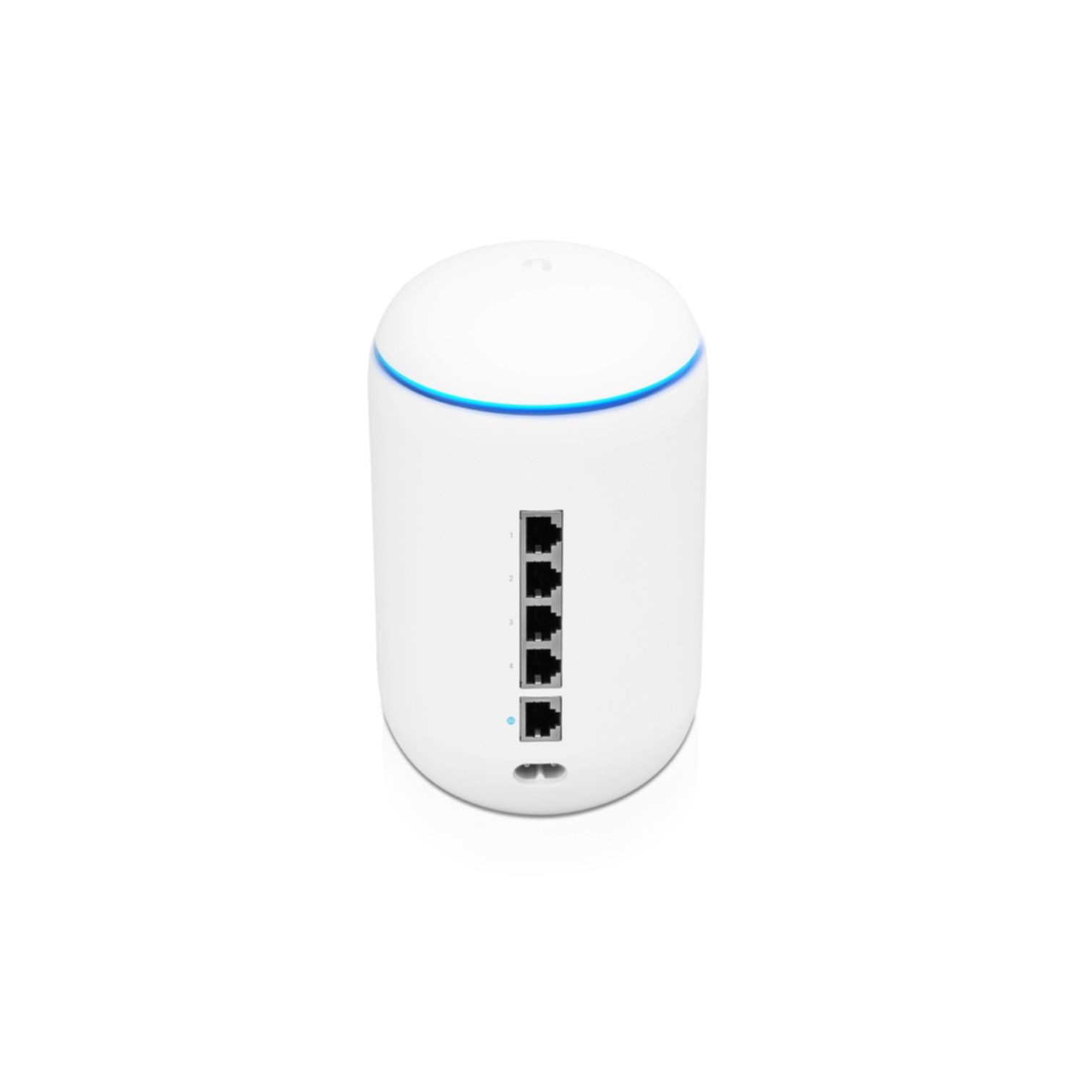

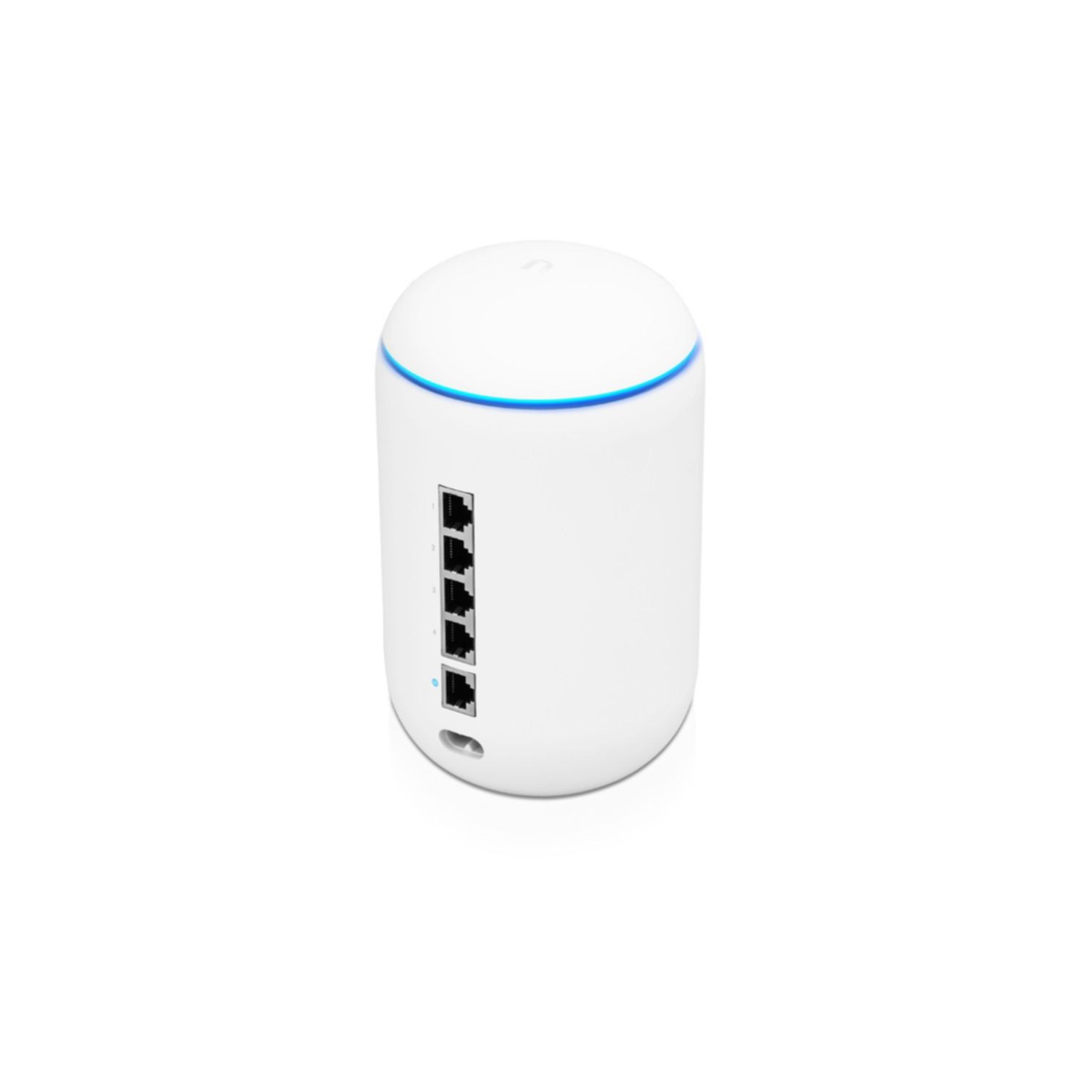

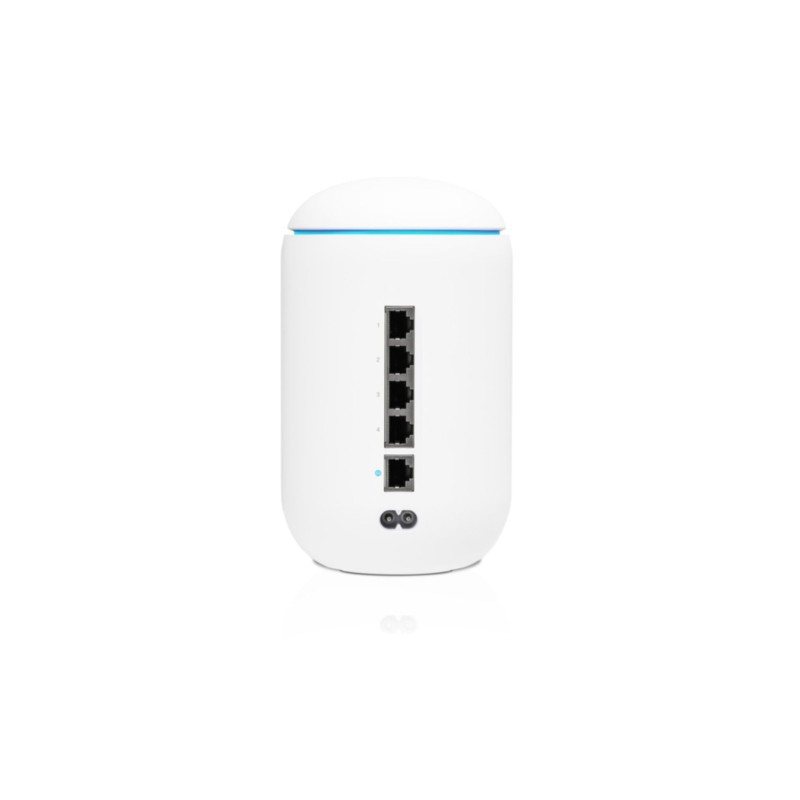

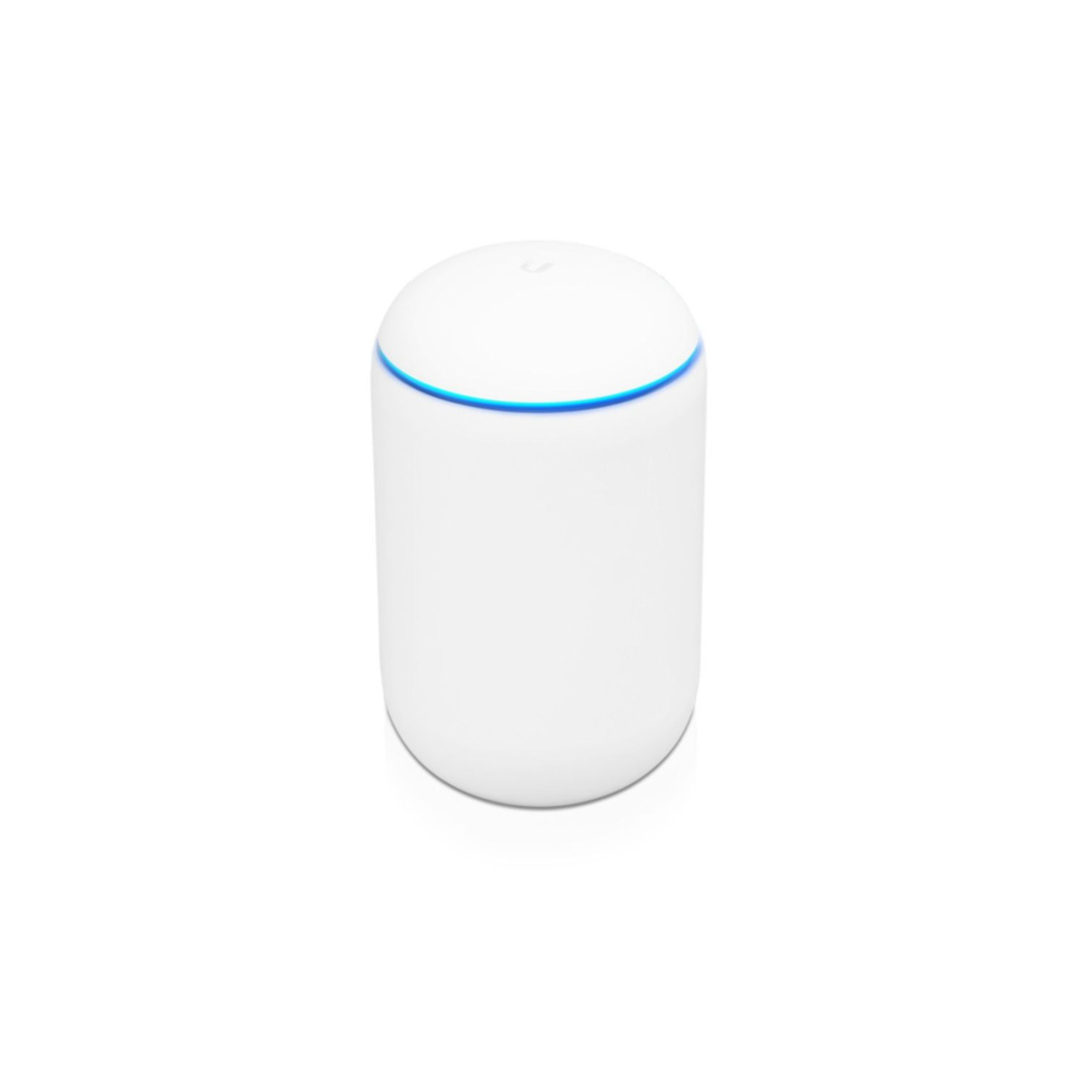

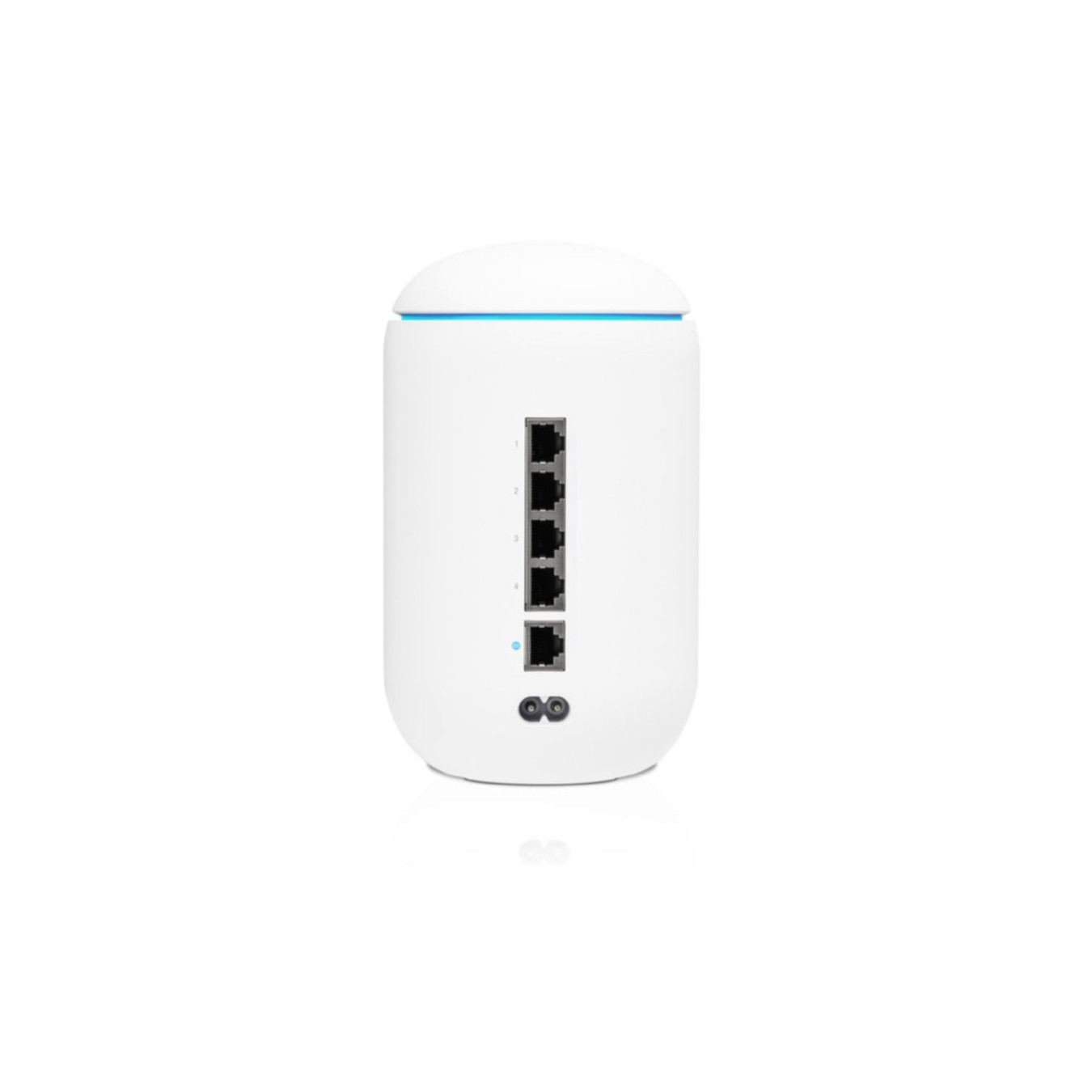

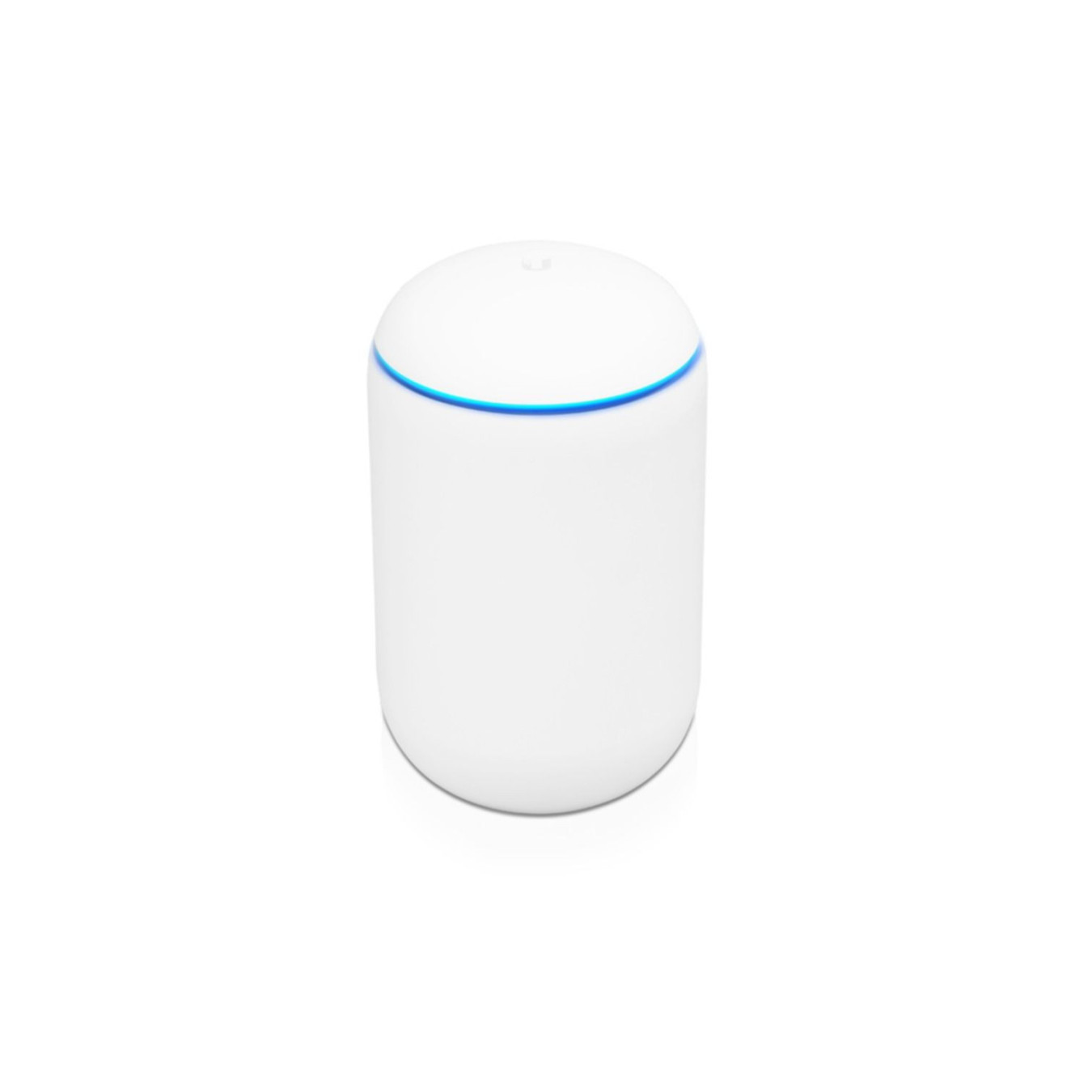

Ubiquiti UniFi Dream Machine (UDM) - All-in-One Dual-Band Wi‑Fi 5 Router with 4× Gigabit LAN & Integrated Controller
All-in-one UniFi Dream Machine (UDM): Dual-band Wi‑Fi 5 router with up to 1733 Mbps (5 GHz), integrated UniFi controller, 4× Gigabit LAN ports—ideal for home & small business.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Routers - Bands | Dual-band (2.4+5 GHz) |
| Routers - LAN Ports | 4 |
UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1733 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Throughput data rate | 1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2 |
| DHCP server | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Internal RJ-45 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Power consumption (max) | 26 W |
| Placement | Table |
| Product colour | White |
| Reset button | Yes |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 4.5 dBi |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Flash memory | 16000 MB |
| Internal memory | 2000 MB |
| Width | 110 mm |
| Height | 184.2 mm |
| Weight | 1.05 kg |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 45 °C |
| Harmonized System (HS) code | 85176990 |
