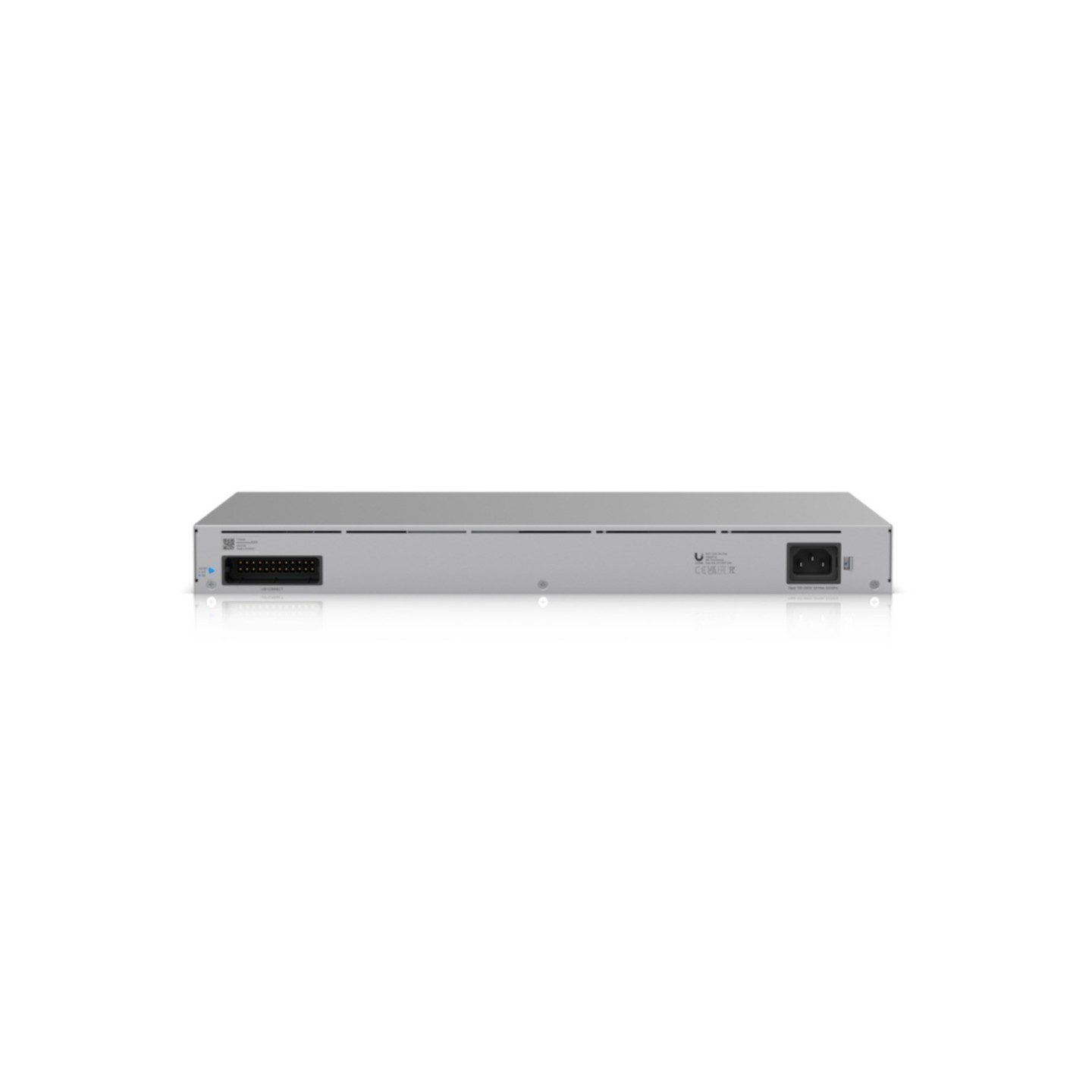

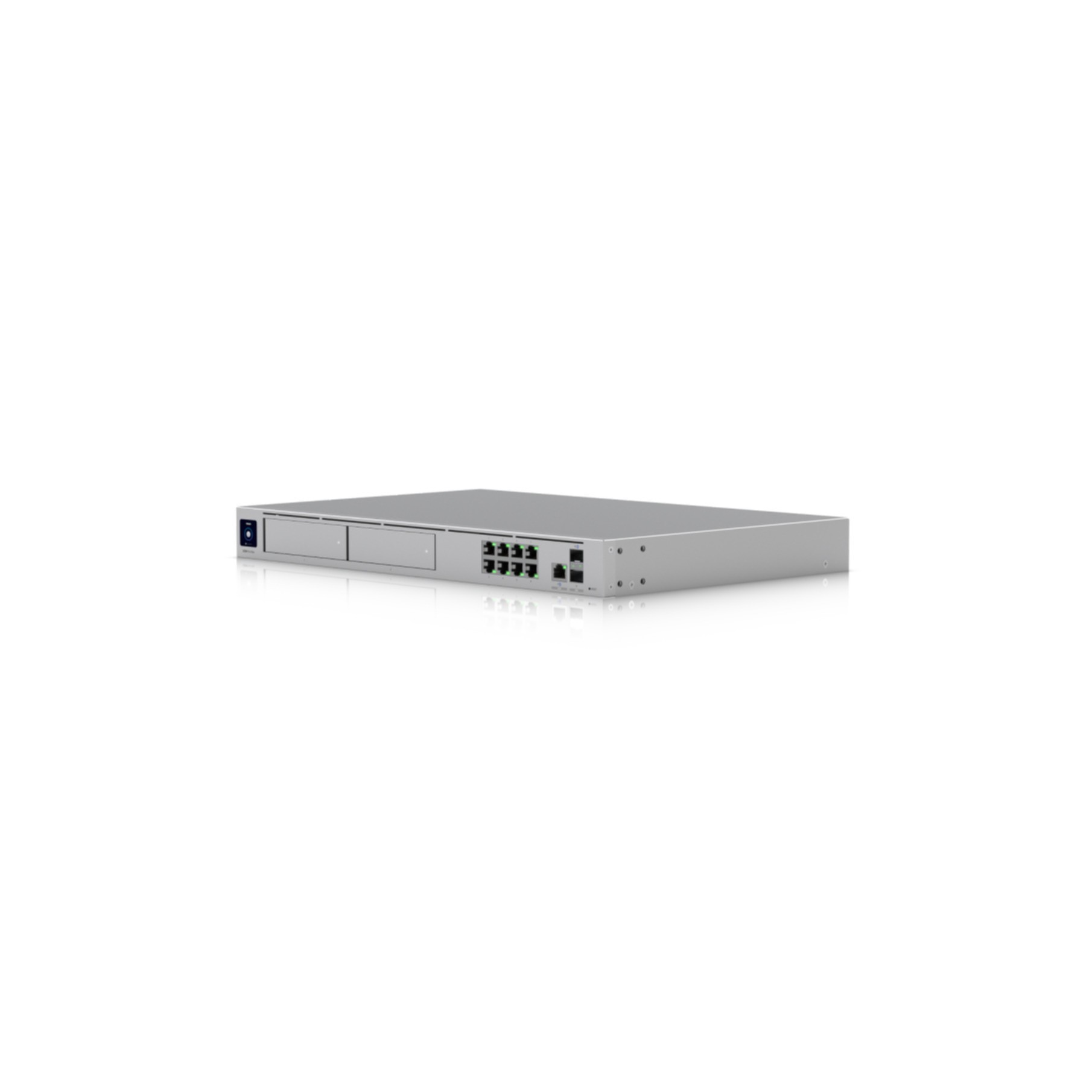

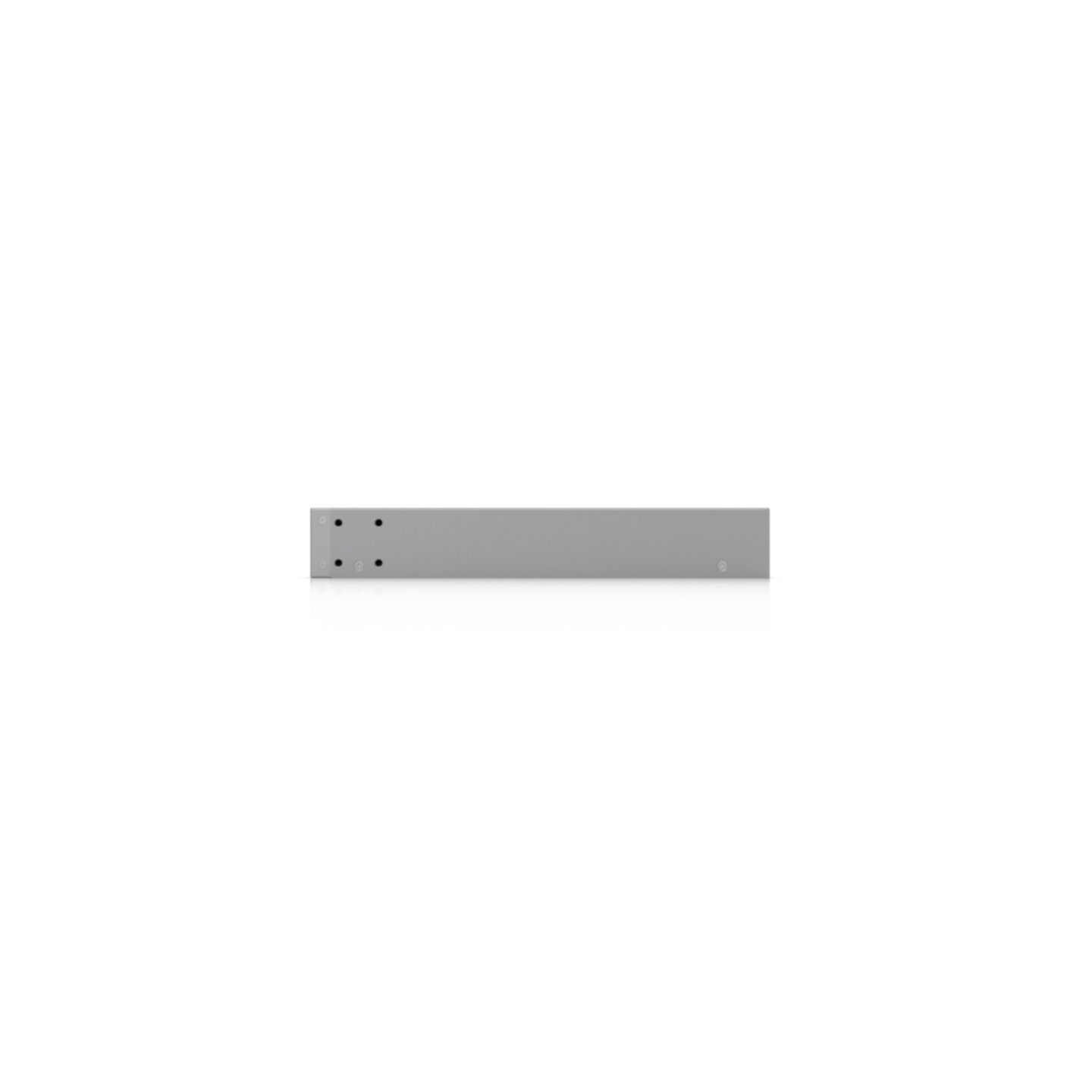

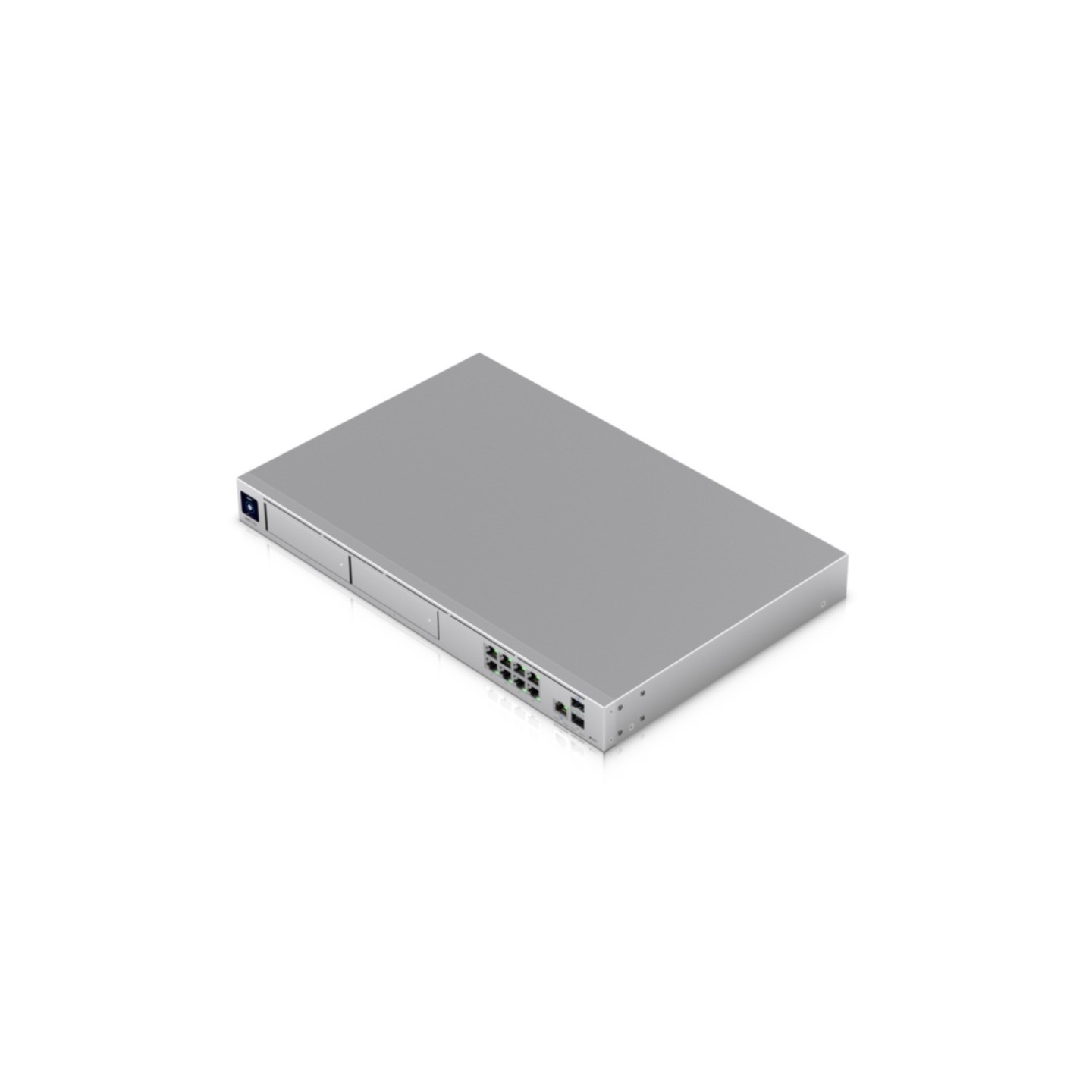

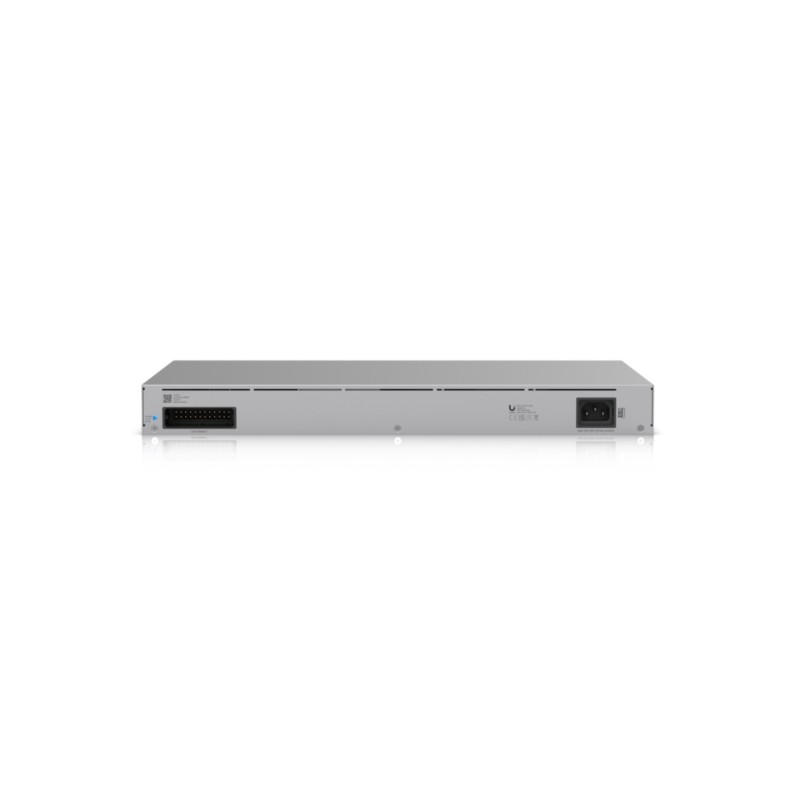

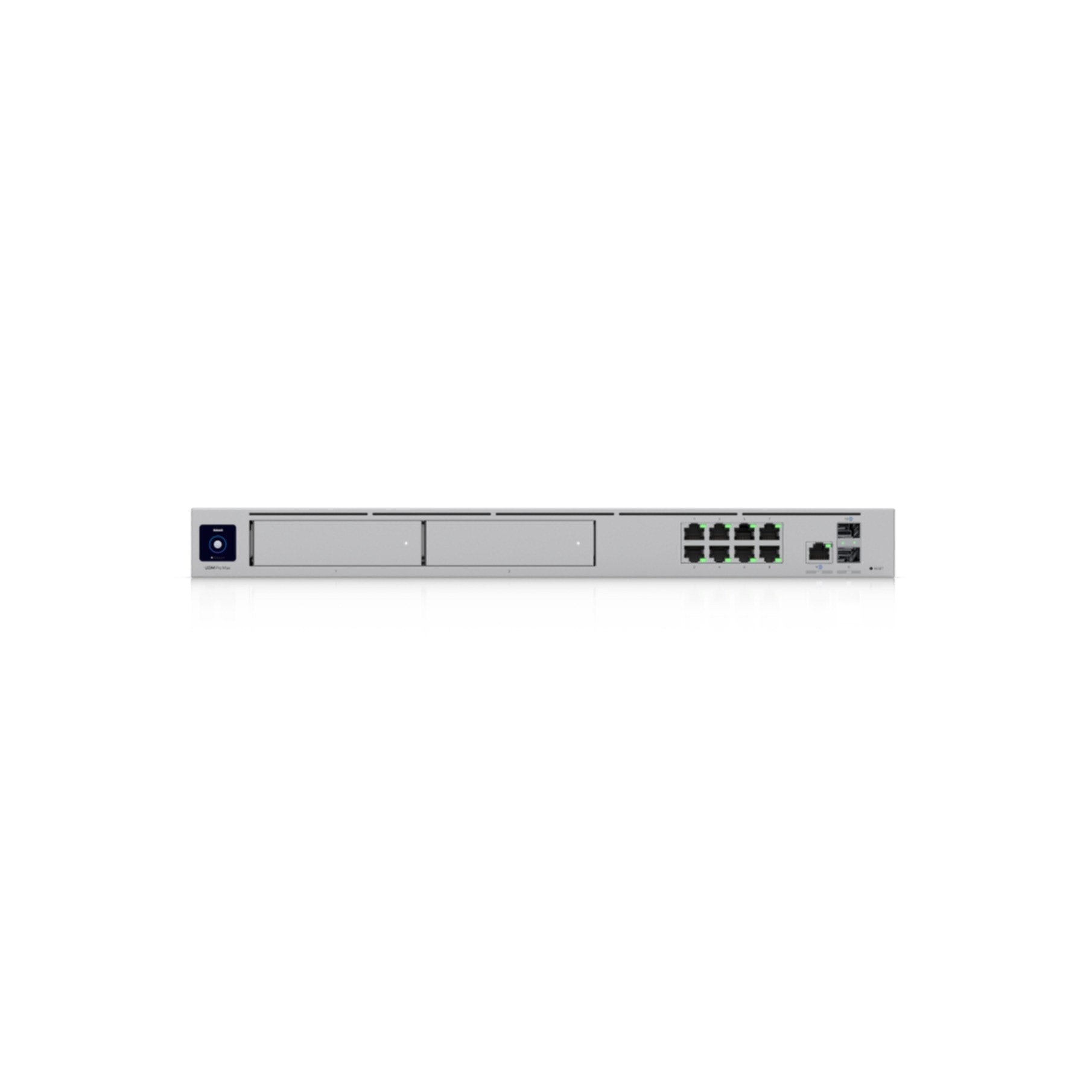

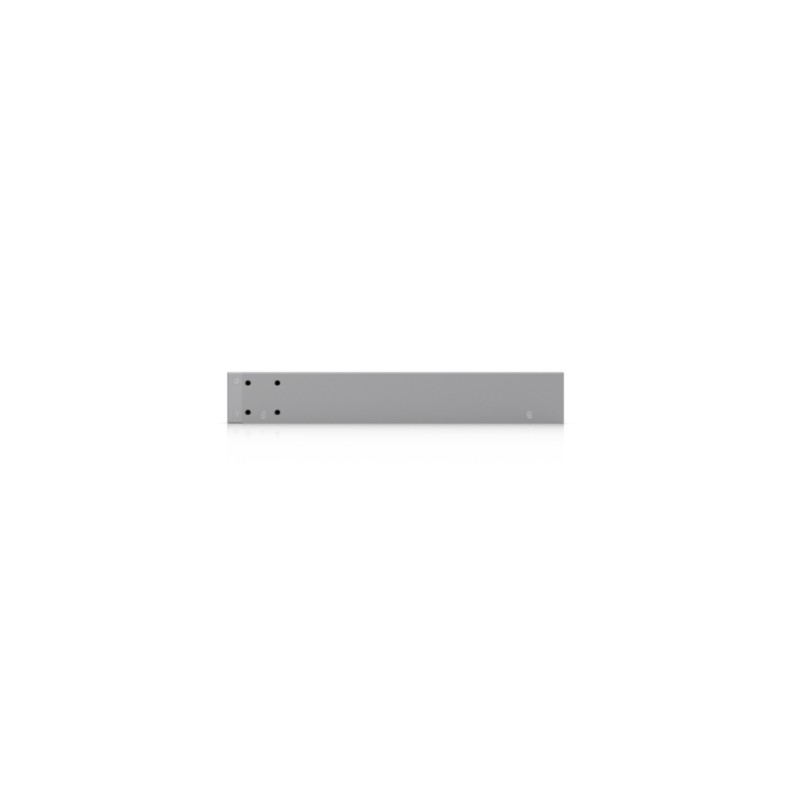

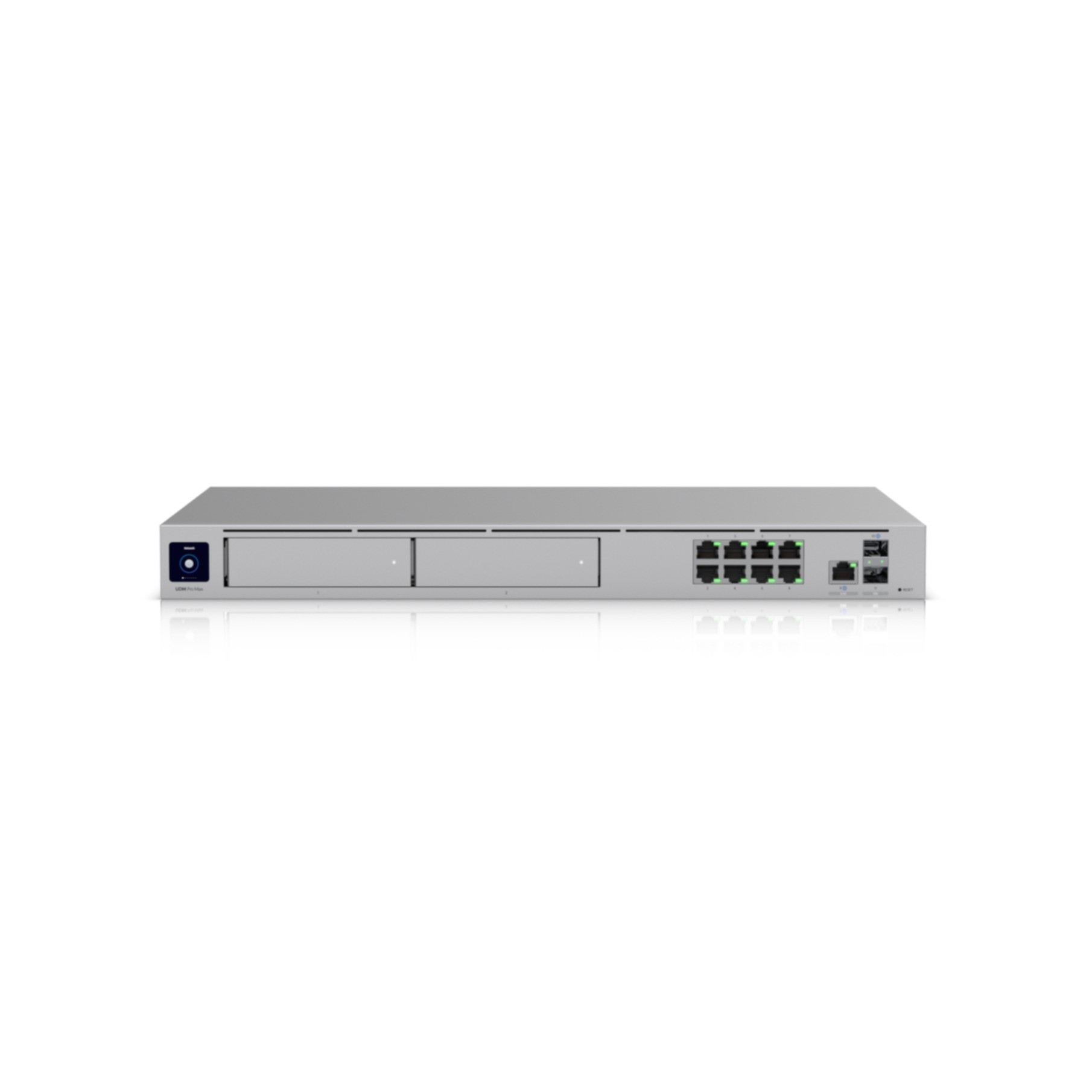

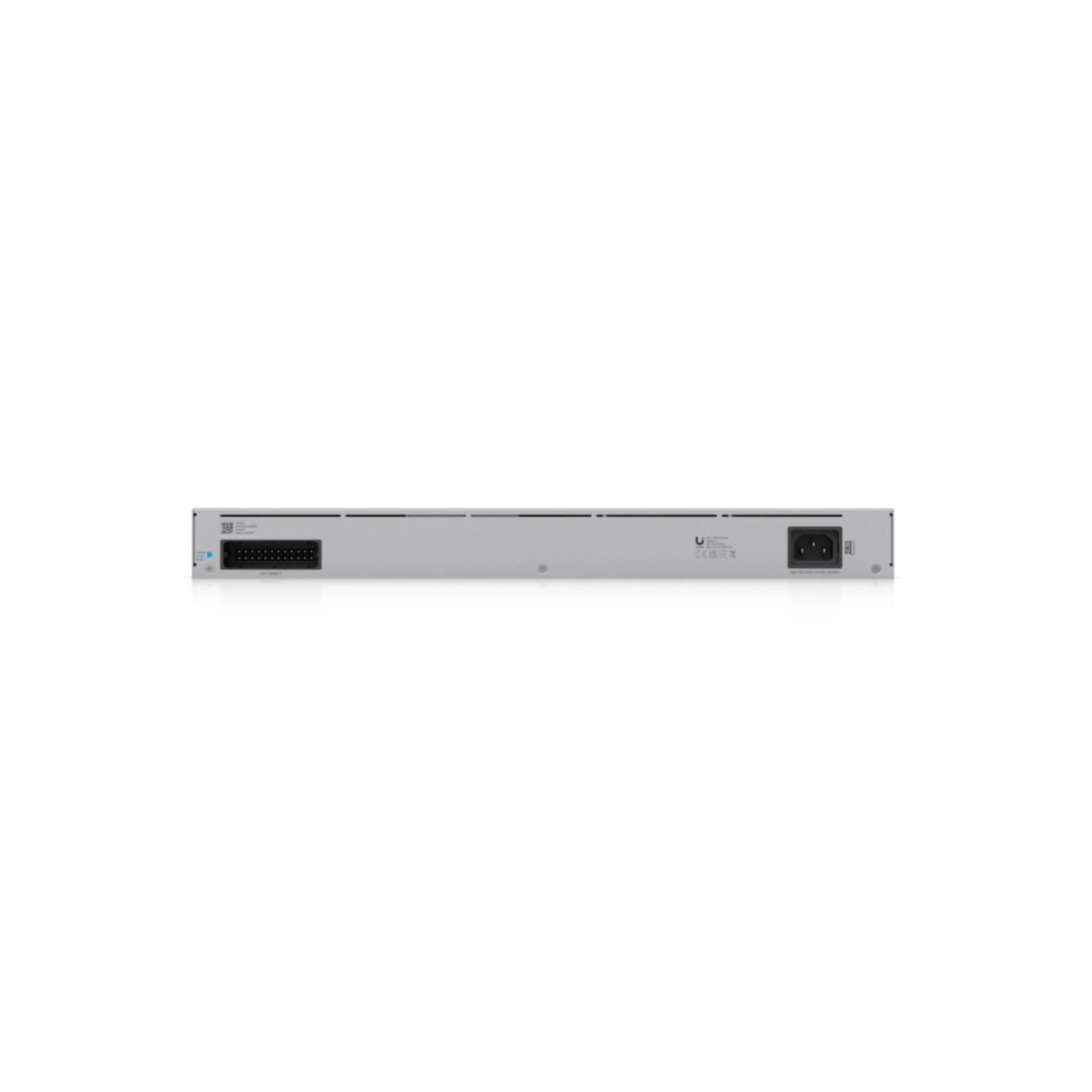

Ubiquiti UniFi Dream Machine Pro Max - UDM-PRO-MAX - Grey, 8GB RAM, 32GB Flash, ARM Cortex-A57 2.0GHz, 8x GbE, 2x SFP+, 1U
1U rack-mount UniFi gateway with up to 10 Gbps performance, 8x Gigabit LAN, 2x SFP+, dual NVR bays, 8GB DDR4, 32GB flash, multi-WAN and UniFi management.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Mesh Support | Proprietary Mesh |
|---|---|
| Routers - VPN | Server (OpenVPN/WireGuard/PPTP/L2TP) |
| Routers - LAN Ports | 8 |
| Routers - USB Ports | None |
| Routers - 3G/4G/5G Failover | No |
| Routers - App Management | Yes |
Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| 2.5G Ethernet (copper) ports quantity | 1 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| 10G support | Yes |
| Policy-based routing | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN |
| Throughput | 5 Gbit/s |
| DHCP features | DHCP relay, DHCP server |
| IGMP proxy | Yes |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | Aluminium, Galvanized steel |
| Reset button | Yes |
| LED indicators | Activity, Error, Link, Ready |
| Display type | LCM |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Processor frequency | 2000 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 12 V |
| Input current | 2 A |
| Power consumption (max) | 60 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 442.4 mm |
| Depth | 285.6 mm |
| Height | 43.7 mm |
| Weight | 4.7 kg |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
