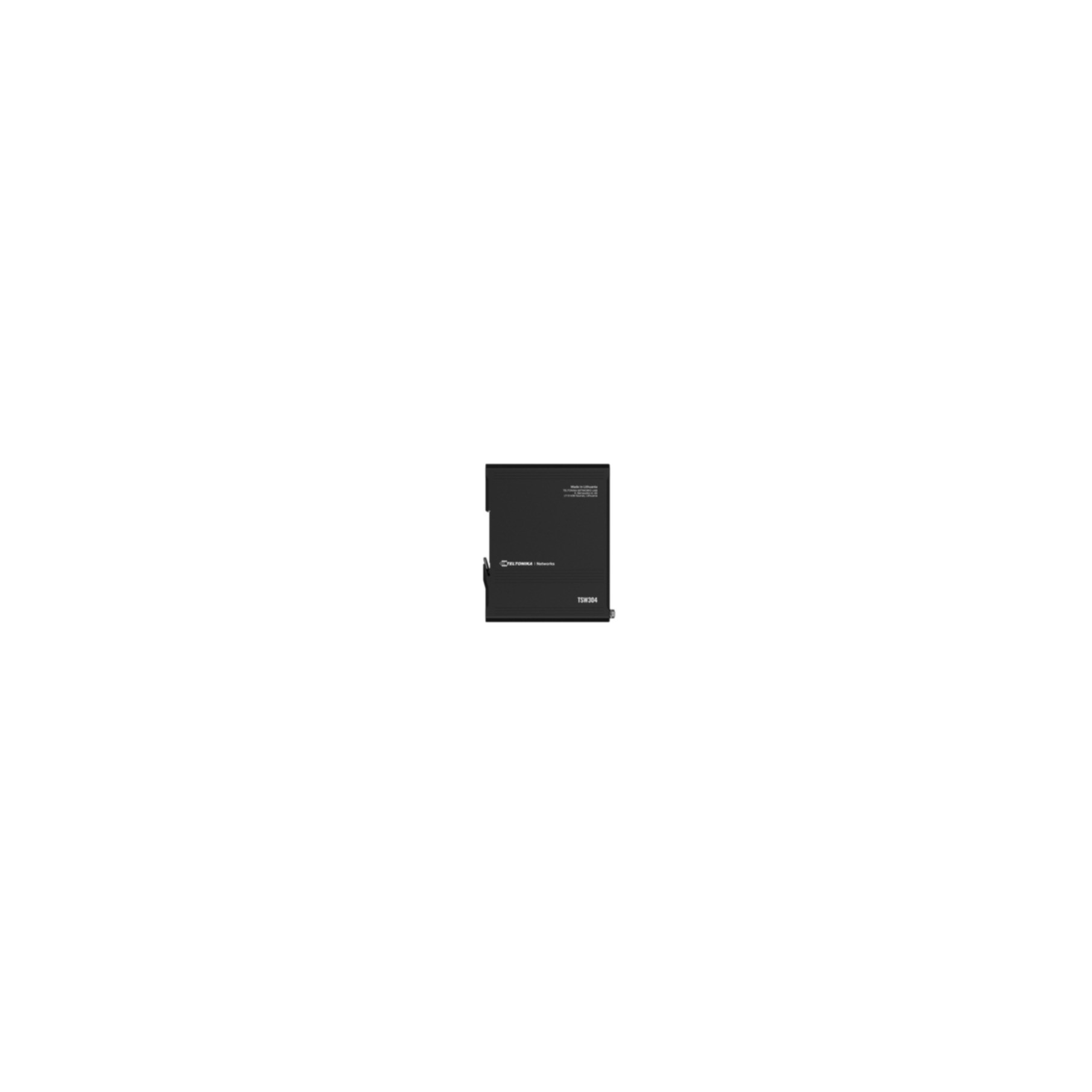

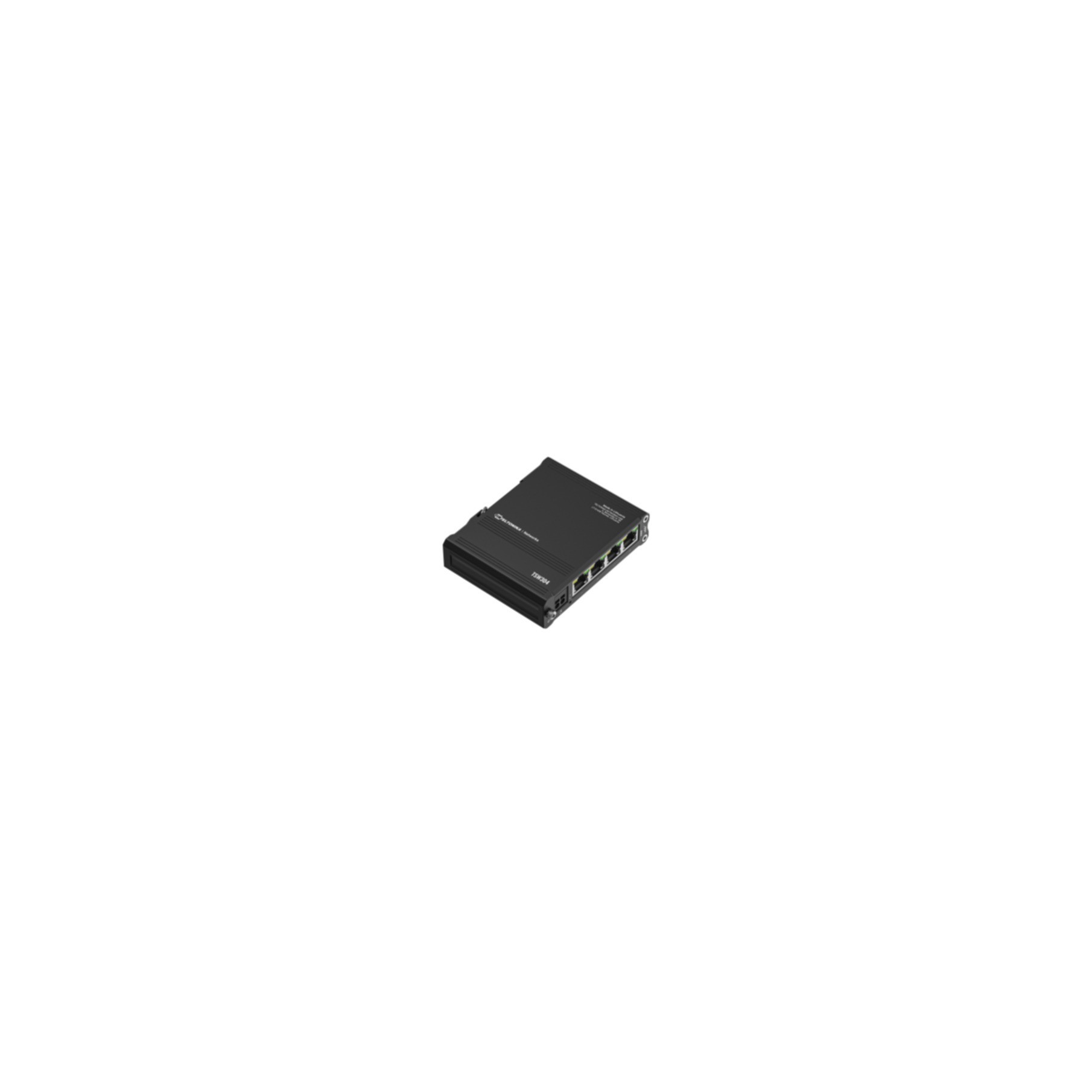

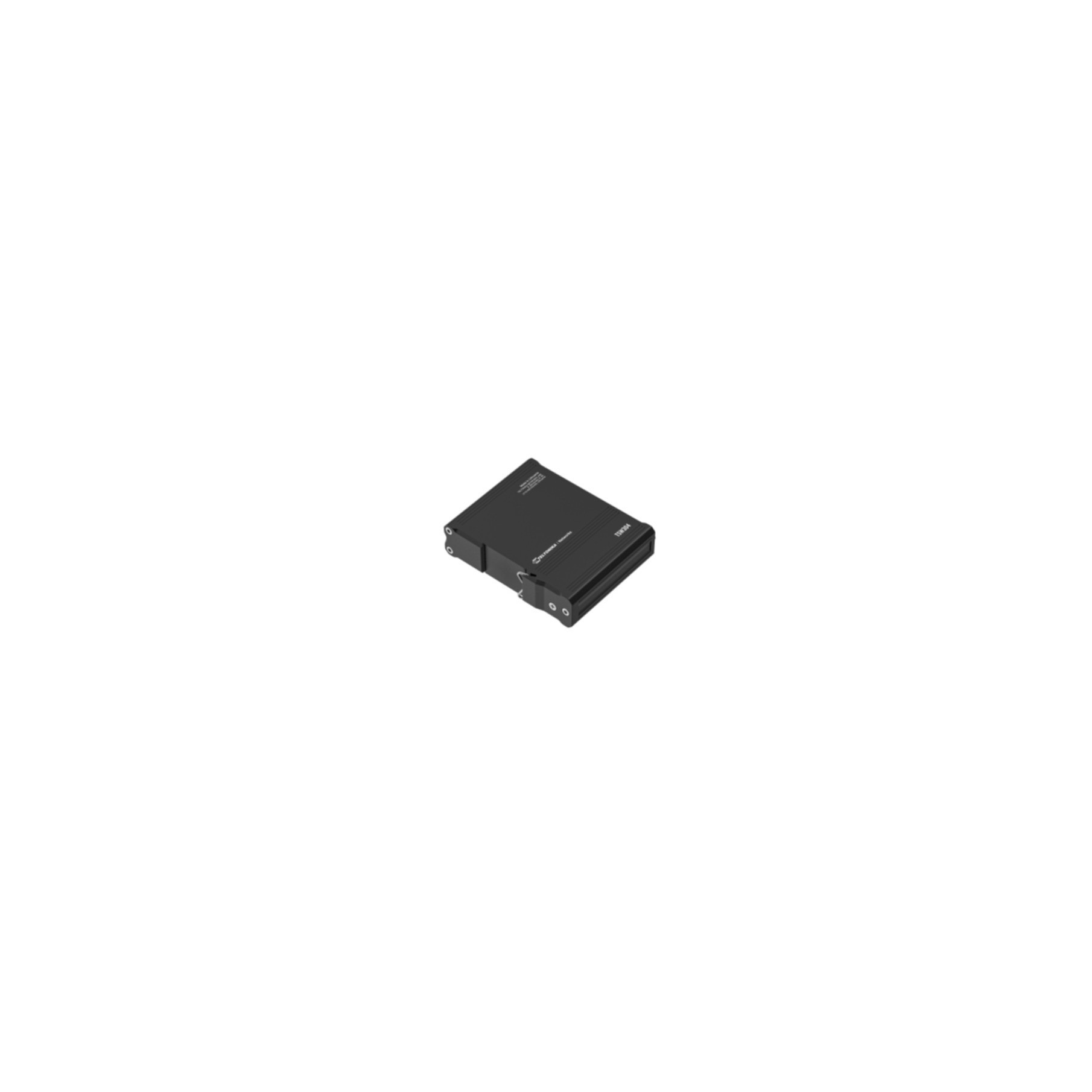

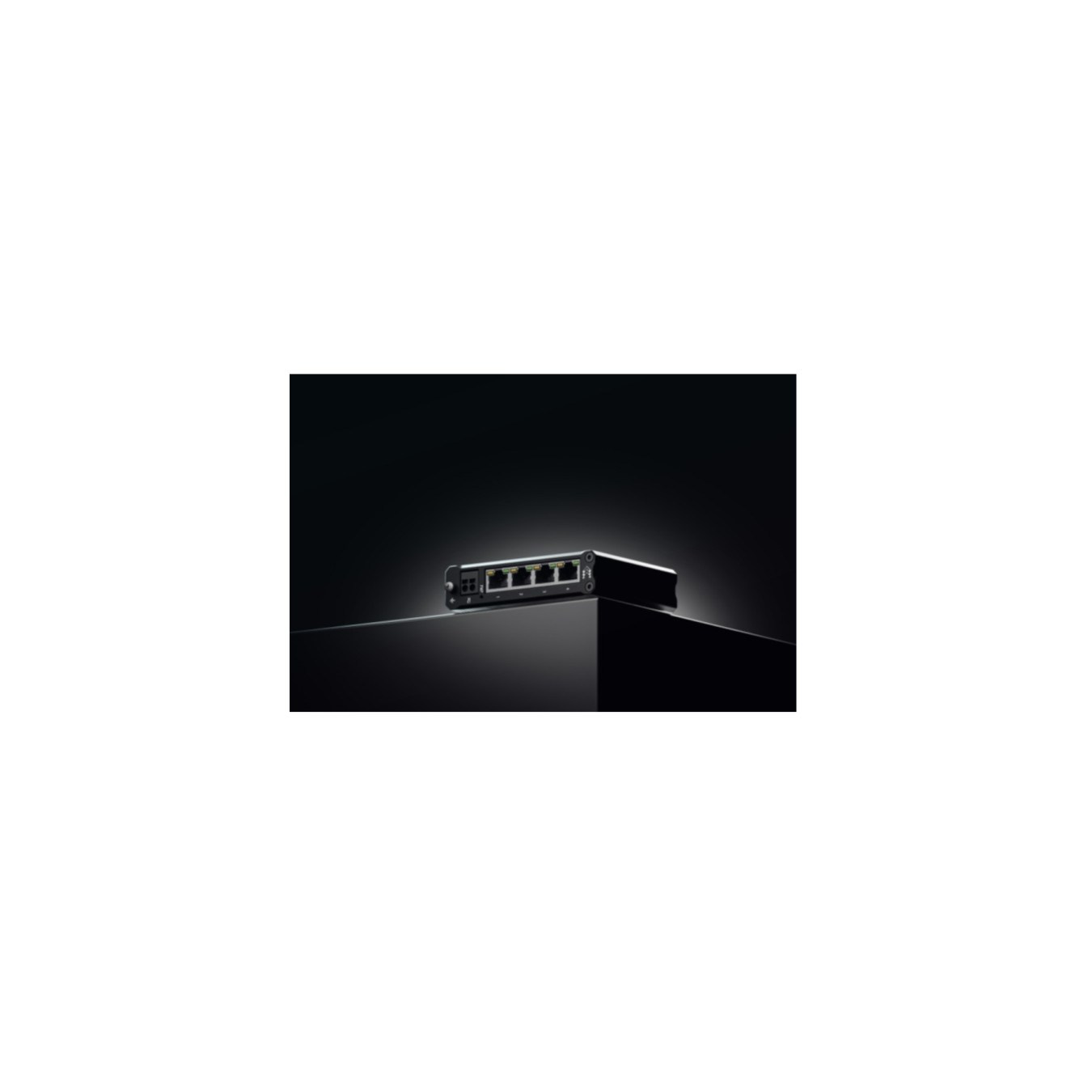

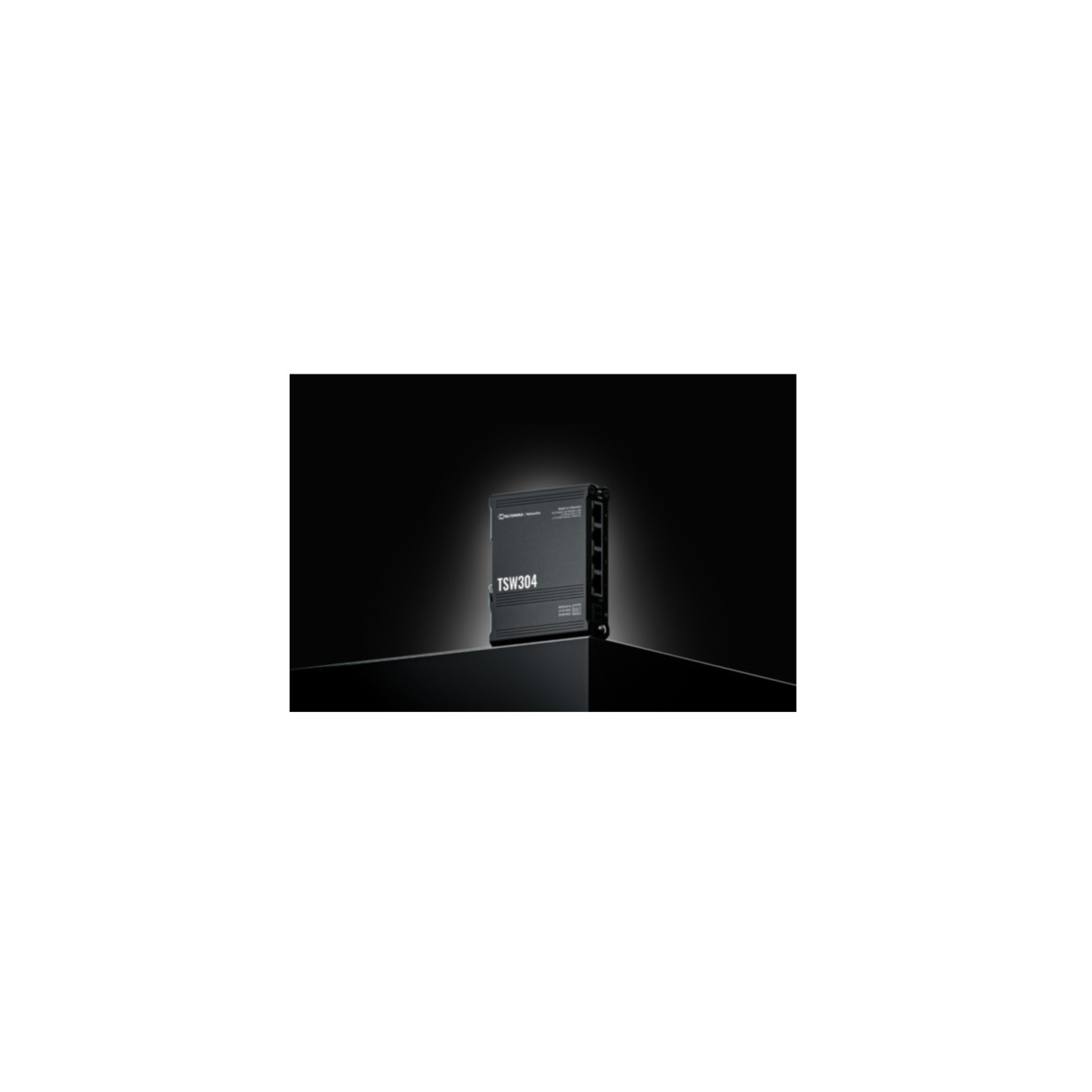

Teltonika TSW304 - 4-Port Gigabit Industrial Switch, Passive PoE, Black Aluminum, DIN-rail/Wall-mount
Compact 4x Gigabit RJ45 switch with Passive PoE, 8 Gbit/s switching, jumbo frames (9216), IP30, wide temp -40–75°C, wall and DIN‑rail mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries. Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3az. IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3. IEEE 802.3az. IEEE 802.3u |
| Feature | Power over Ethernet (PoE) |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 8 Gbit/s |
| MAC address table | 2000 entries |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Power. Status |
| International Protection (IP) code | IP30 |
| Power source | AC/DC |
| DC input voltage | 7 - 57 V |
| Input voltage | 9 - 40 V |
| Power consumption (typical) | 0.26 W |
| Power consumption (max) | 1.44 W |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 102 mm |
| Depth | 81.5 mm |
| Height | 25 mm |
| Weight | 210 g |
| Certification | CE. REACH. RoHS. WEEE. UKCA. FCC. IC. CB. RCM |
