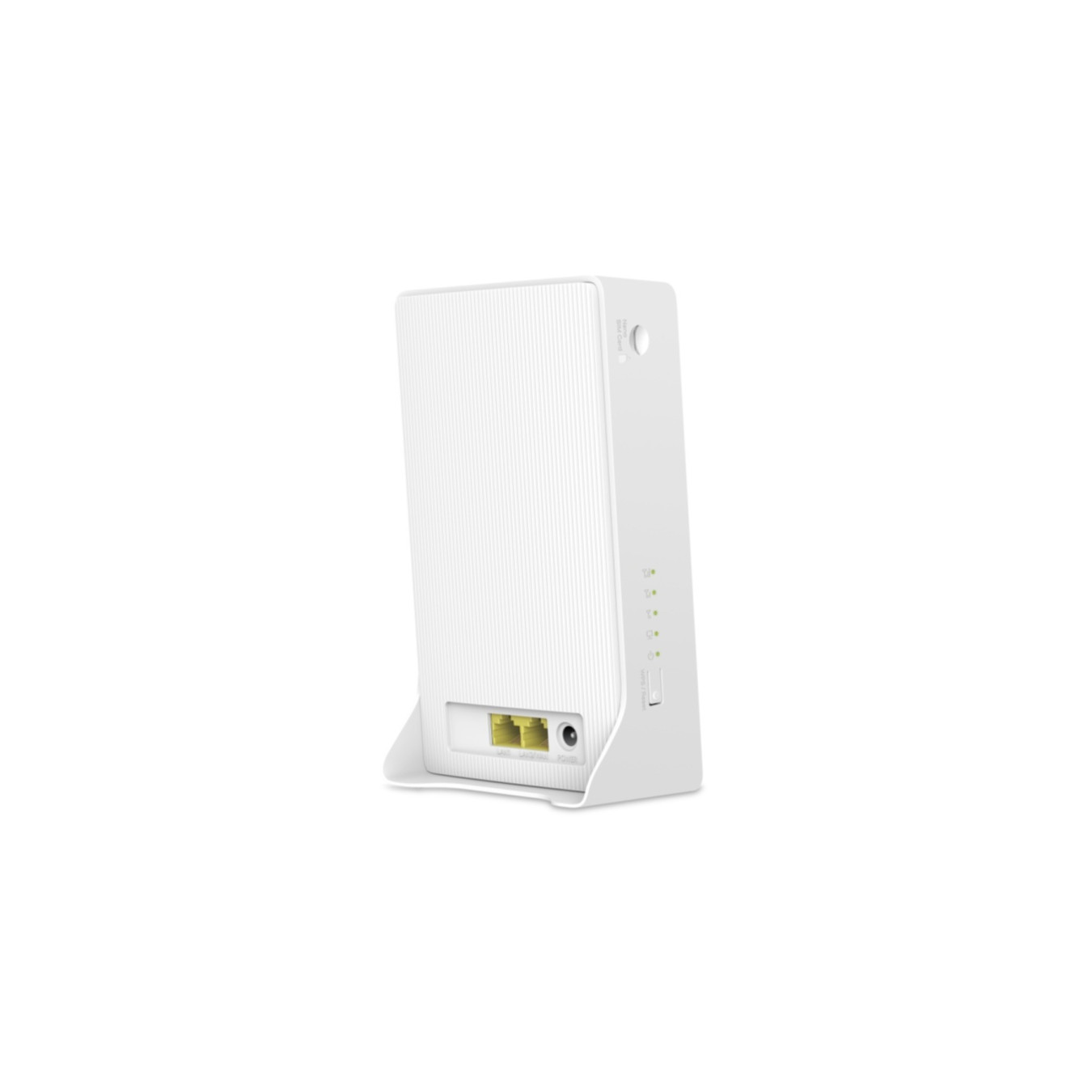

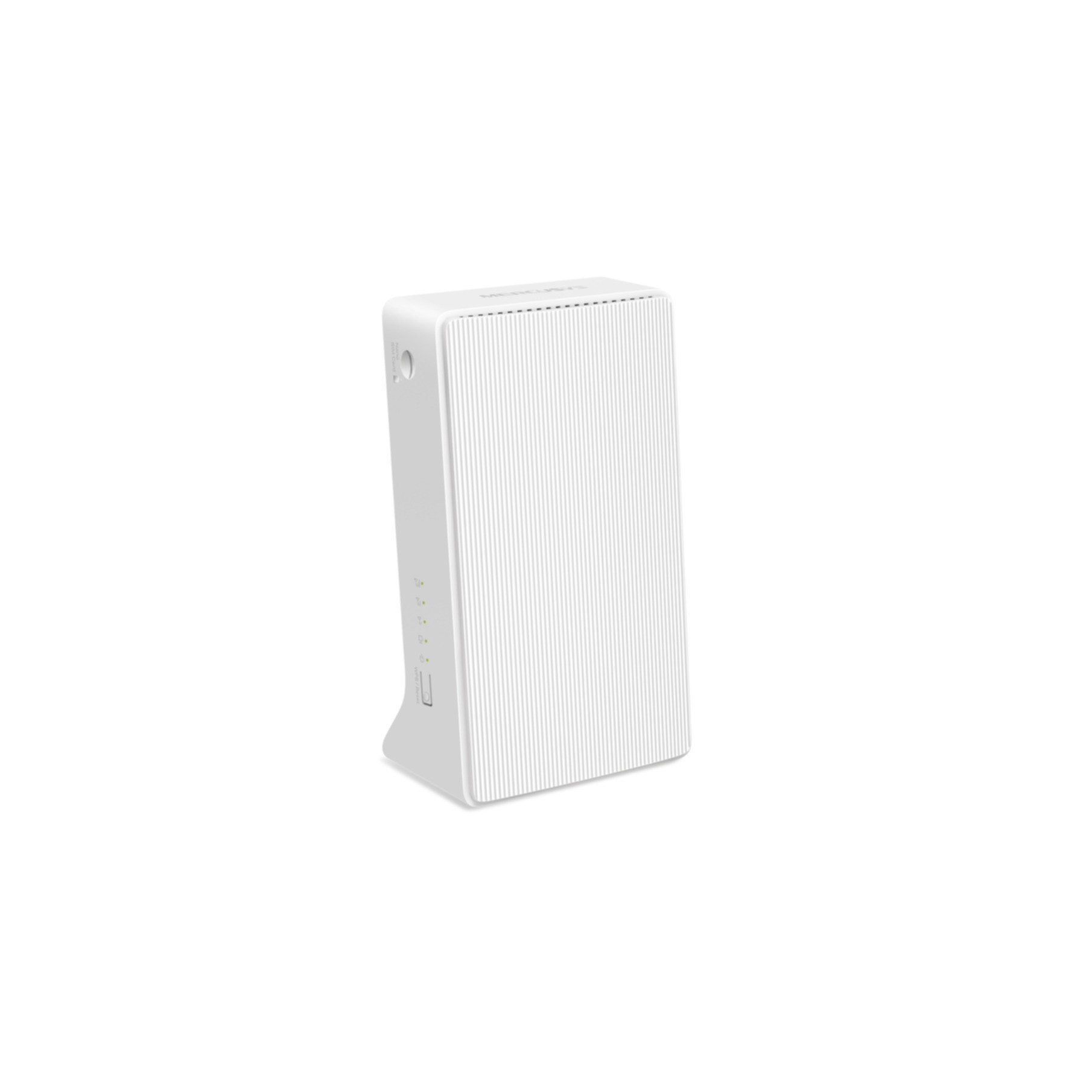

Mercusys MB230-4G - AC1200 Dual-Band 4G+ Cat6 LTE Router (Nano-SIM, Dual-Band 2.4/5 GHz, Gigabit)
AC1200 Wi-Fi 5 dual-band (2.4/5 GHz) router with built-in nano-SIM 4G+ Cat6 modem (up to 300 Mbps DL / 50 Mbps UL). Plug-and-play LTE sharing for up to 64 devices.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Bands | Dual-band (2.4+5 GHz) |
|---|
Faster and Smoother
with 4G+ Speed and
Dual Band WiFi
4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

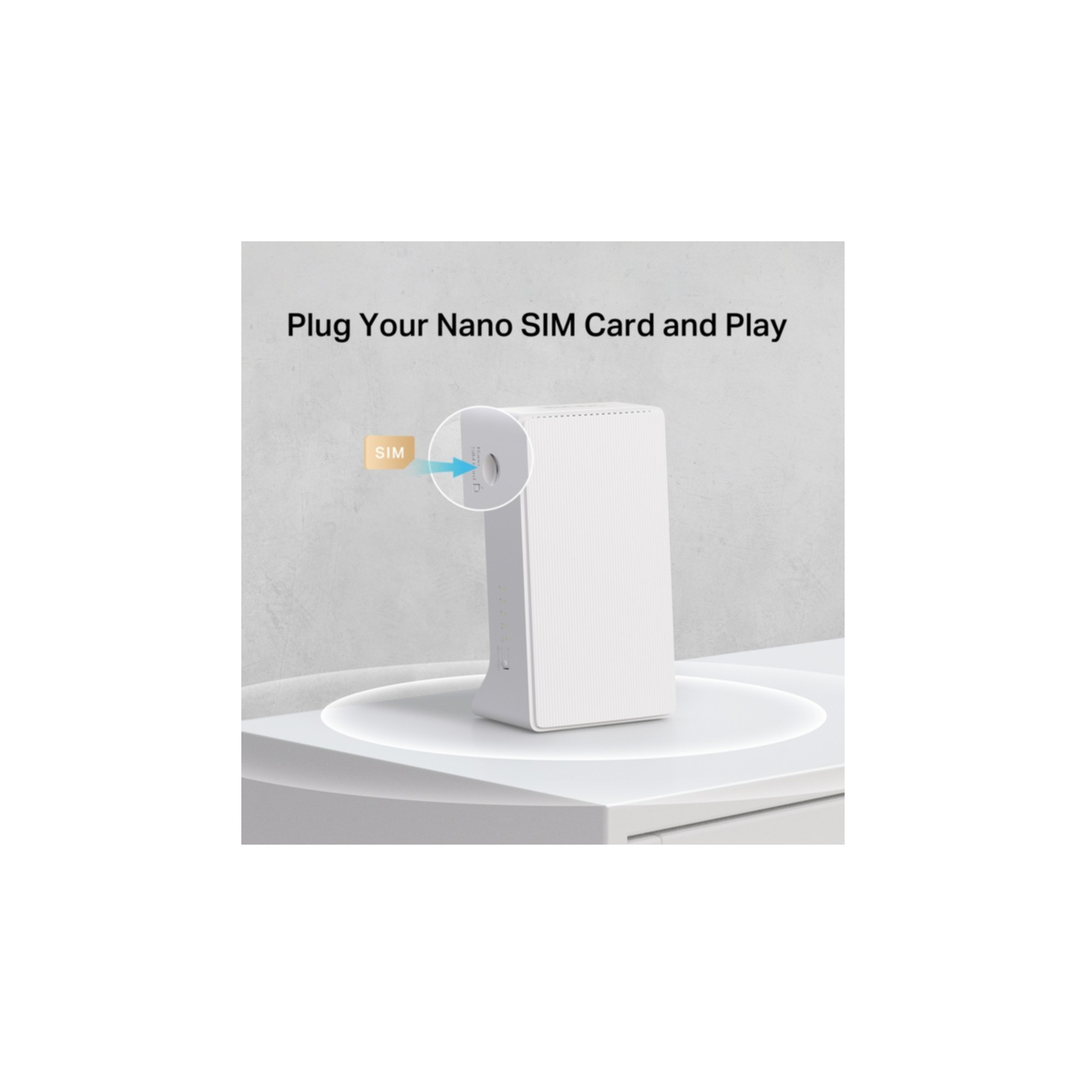

Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.
Extra Fast 4G+ Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.
Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Full with Strong and Stable Signal
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

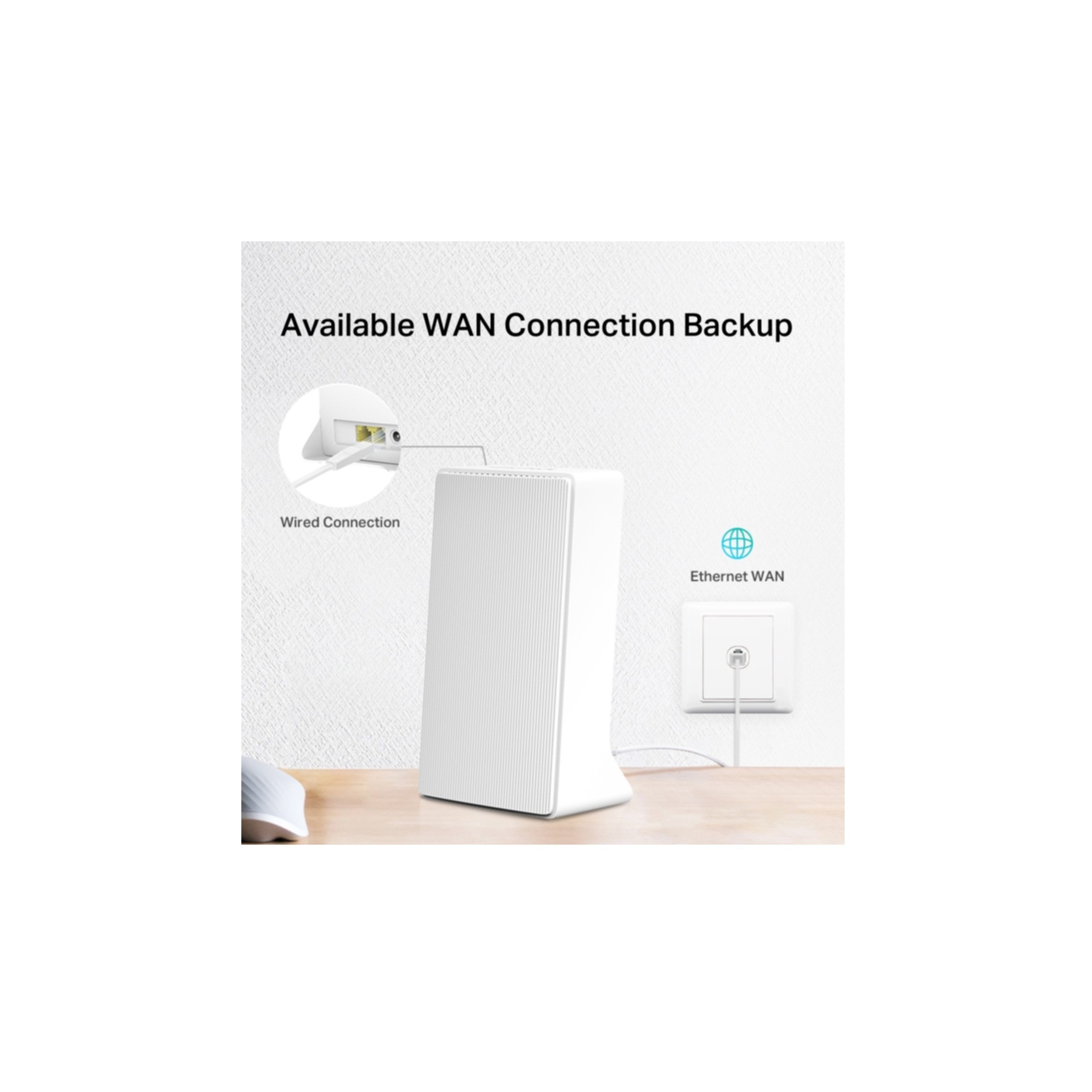

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1200 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Receiver sensitivity | 11g 6Mbps: -95dBm; 11g 54Mbps: -77dBm; 11n HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm; 11a 6Mbps: -92dBm; 11a 54Mbps: -75dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65dBm; 11ac VHT80 MCS9: -61dBm |
| Mobile network generation | 4G |
| Dual SIM support | No |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 700, 800, 850, 900, 1800, 2100, 2300, 2600 MHz |
| 3G bands supported | 850, 900, 2100 MHz |
| SIM card type | NanoSIM |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| DC-in jack | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security algorithms | 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE |
| Firewall | Yes |
| Port-based Network Access Control (PNAC) | Yes |
| System event log | Yes |
| DMZ support | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| VoIP protocols | IPv4, IPv6 |
| Product colour | White |
| Indication light | Yes |
| Product type | Desktop/pole router |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna design | Internal |
| Firmware upgradeable | Yes |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 95 mm |
| Depth | 61 mm |
| Height | 166 mm |
| Package type | Box |
| Number of products included | 1 pc(s) |
