Teltonika TSF010 - Unmanaged 5x 10/100 Mbps Ethernet Switch - DIN-rail, Black, Flat Design
Compact Teltonika TSF010 unmanaged DIN-rail Ethernet switch with 5x 10/100 RJ45 ports, 7–57 VDC input, aluminium IP30 housing for plug-and-play industrial use.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

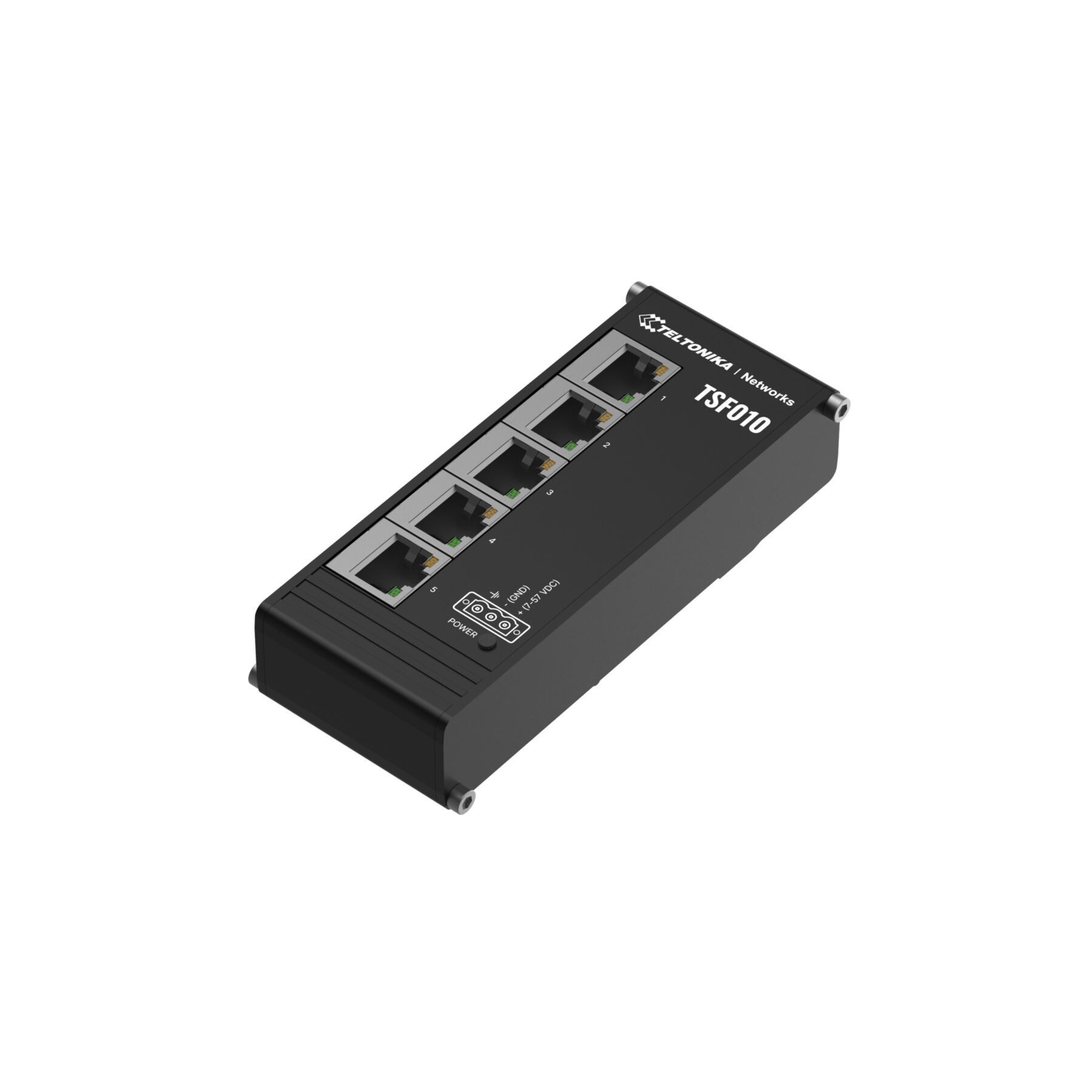

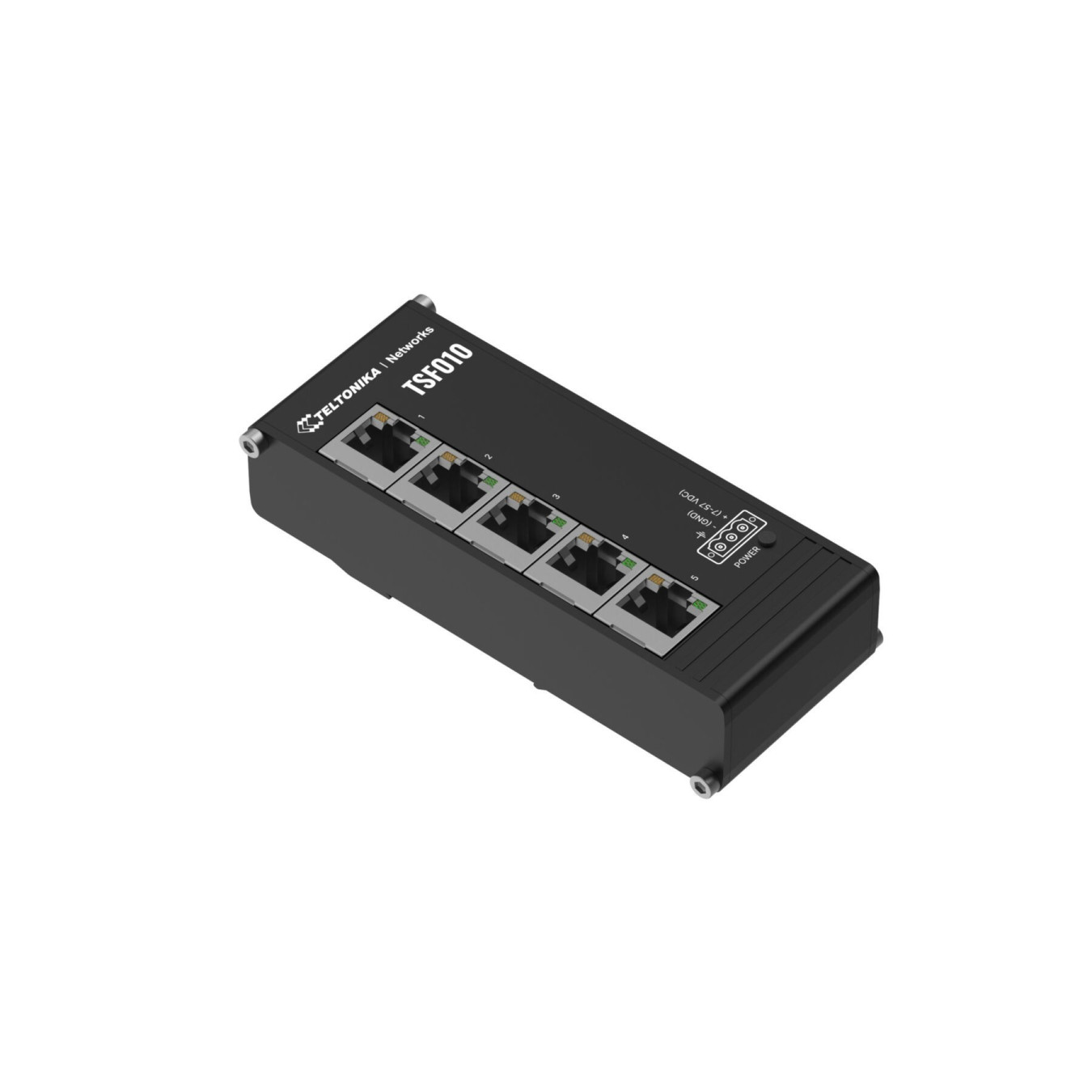

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2048 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Rack mounting | No |
| Stackable | No |
| Form factor | DIN rail |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |

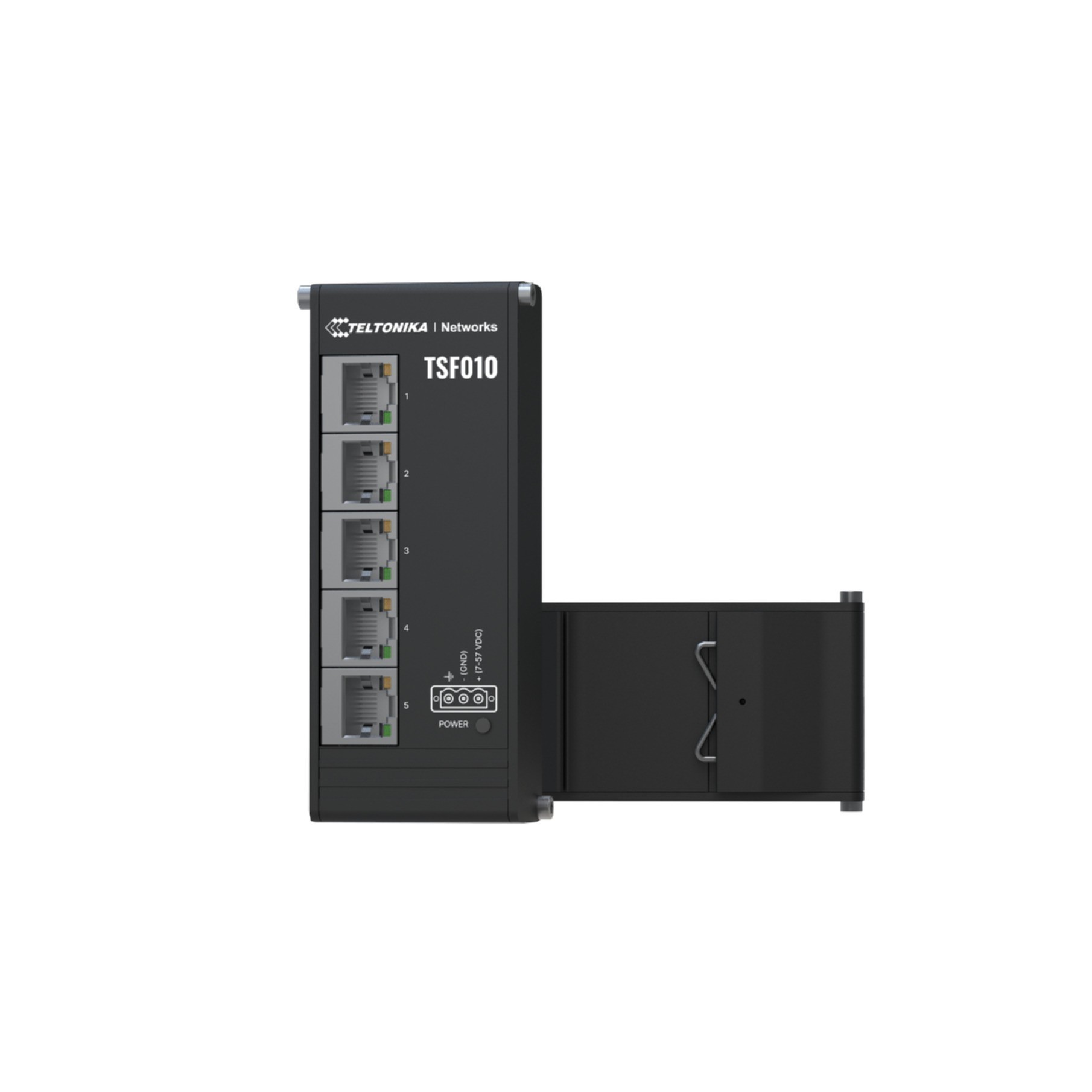

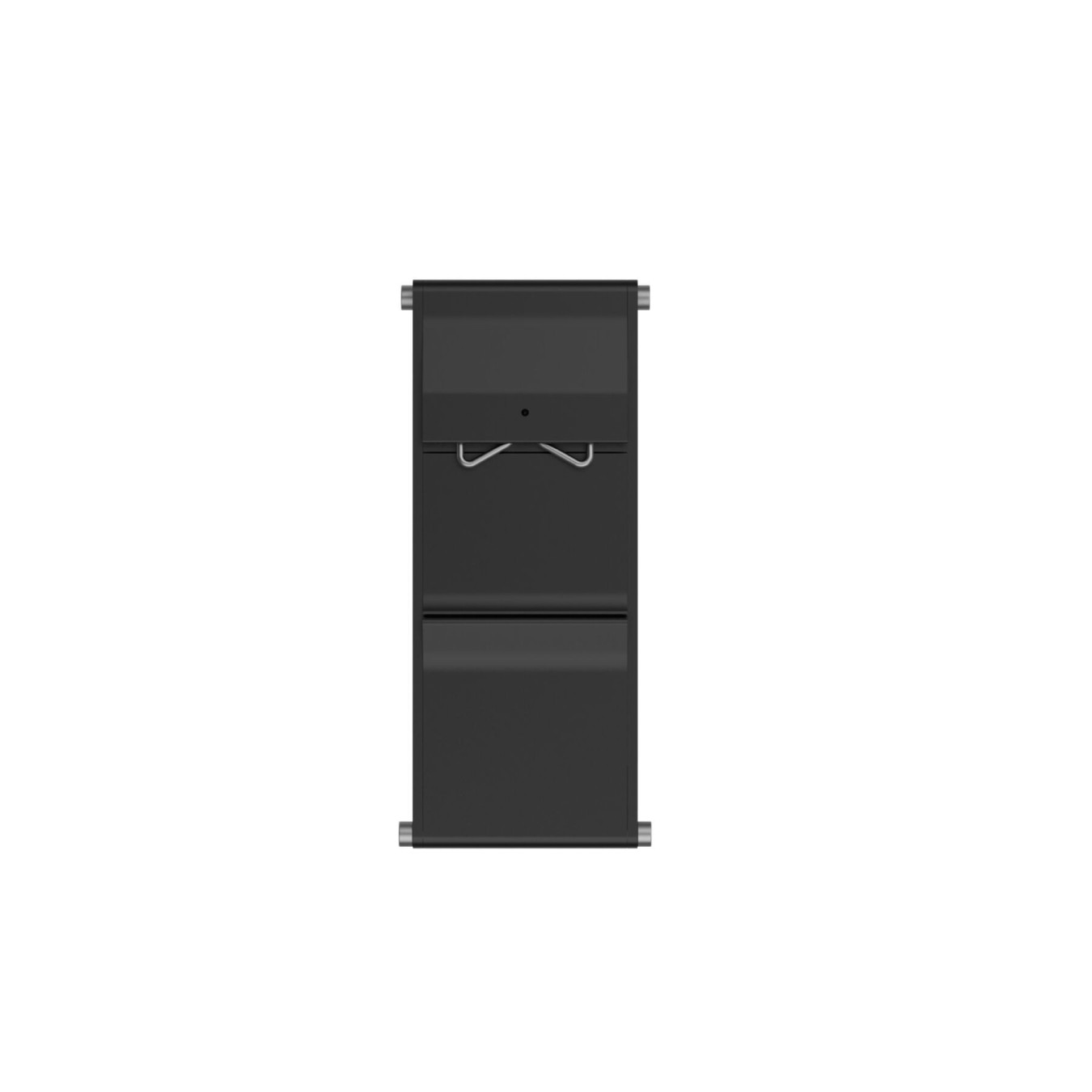

| DIN rail mounting | Yes |
| Power source | DC |
| Power supply included | No |
| Input voltage | 7 - 57 V |
| Power consumption (typical) | 1 W |
| Power consumption (max) | 1.5 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 113 mm |
| Depth | 50 mm |
| Height | 28 mm |
| Weight | 142 g |
