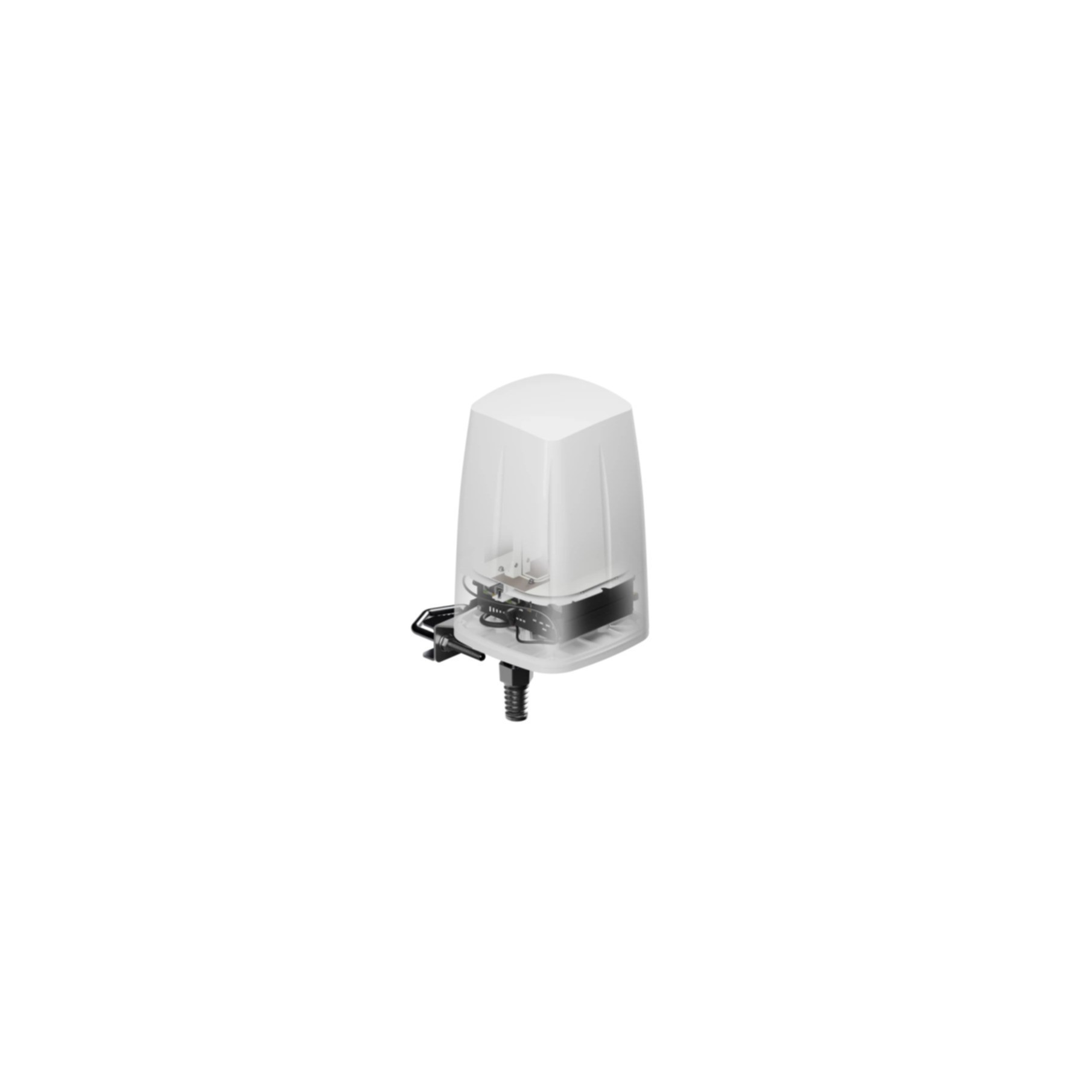

Teltonika TPR1IC97 Antenna - Omni LTE/Wi‑Fi 617–4300 MHz - SMA Male, IP67, RHCP (for RUTX11/RUTM11)
High-gain omni-directional Teltonika TPR1IC97 antenna for RUTX11/RUTM11 routers. SMA male, IP67, RHCP, 617–4300 MHz, Wi‑Fi 2.4–6 GHz, Bluetooth supported.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PR1IC970
OUTDOOR LTE/WI-FI/GPS/BLUETOOTH ANTENNA FOR RUTX11 AND RUTM11 ROUTERS
| Frequency band | 0.617 - 4.3 GHz |
| Impedance | 50 Ω |
| Bandwidth note | 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz |
| Antenna gain level (max) | 28 dBi |
| Wi-fi frequency range | 2.4 - 6 GHz |
| Bluetooth | Yes |
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Connector gender | Male |
| Polarization | RHCP polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.50 |
| International Protection (IP) code | IP67 |
| Mounting | Ceiling/wall |
| Input voltage | 2.5 - 6.5 V |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | -40 - 75 °C |
| Width | 160 mm |
| Depth | 189 mm |
| Height | 347 mm |
| Weight | 1.5 kg |
