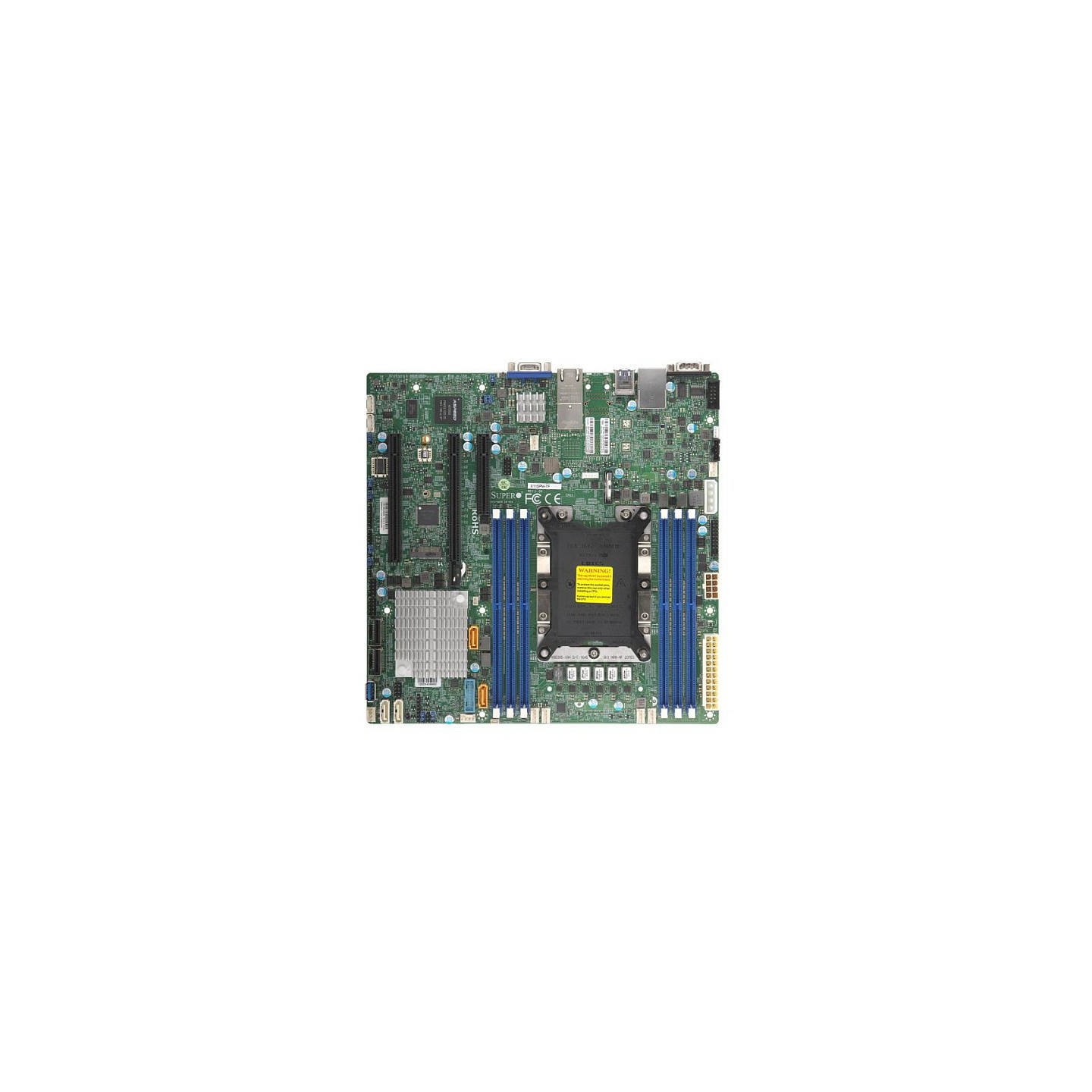

Supermicro MBD-X11SPM-TF-B LGA3647 Xeon Scalable mATX MB 10GbE (Boxed)
Supermicro X11SPM-TF-B mATX motherboard. Single LGA3647 Intel Xeon Scalable (up to 28 cores, 165W TDP). 6x DDR4 ECC up to 1.5TB-2933MHz. Intel C622, 2x 10GbE, 12x SATA3, M.2, 3x PCIe3 (2x16/1x8). ASpeed AST2500 VGA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 3647 |
|---|---|
| Motherboards - Chipset | Intel C246 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | ECC DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 512 GB (HEDT) |
| Motherboards - Main Slot PCIe Version | PCIe 3.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 10+ |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The Supermicro MBD-X11SPM-TF-B is a high-performance micro ATX motherboard designed for embedded and server applications, supporting single Intel Xeon Scalable processors (1st/2nd Gen) via LGA3647 socket with up to 165W TDP and 28 cores. Featuring Intel C622 chipset, it delivers robust I/O including dual 10GBASE-T Ethernet (Intel X557), 12x SATA3 ports (RAID 0/1/5/10), M.2 PCIe3 x4 slot (2280/2242), and expansion via 2x PCIe3 x16 + 1x PCIe3 x8.
Memory configuration includes 6 DIMM slots supporting up to 1.5TB 3DS ECC DDR4-2933 (LRDIMM/RDIMM), with ECC compatibility for reliability. Onboard ASpeed AST2500 provides VGA output and BMC for remote management. Rear I/O: 2x USB3, 2x USB2, 1x VGA, 1x COM, 2x 10GbE RJ45, IPMI LAN. Supports 12V DC input, TPM header, and wide temp range (0-60°C).
- CPU: Single LGA3647, up to 165W TDP
- Memory: 6x DDR4 ECC, max 1.5TB @2933MHz
- Storage: 12x SATA3, 1x M.2 PCIe3 x4
- Network: 2x 10GbE BASE-T
- Expansion: 2x PCIe3 x16, 1x PCIe3 x8
- Form Factor: Micro ATX (24.38 x 24.38 cm)
| Processor manufacturer | Intel |
| Number of supported processor cores | 28 |
| Processor socket | LGA 3647 (Socket P) |
| Chipset | Intel C622 |
| Motherboard form factor | micro ATX |
| Width | 243.8 mm |
| Depth | 243.8 mm |
| Processor power limit (max) | 165 W |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| ECC compatibility | ECC |
| Supported memory clock speeds | up to 2933 MHz |
| Maximum internal memory | 1.5 TB 3DS ECC LRDIMM/RDIMM |
| Maximum RDIMM memory | 192 GB |
| Maximum LRDIMM memory | 768 GB |
| Number of DIMM slots | 6 |
| Supported DIMM module capacities | 4GB,8GB,16GB,32GB,64GB,128GB |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0,1,5,10 |
| On-board graphics adapter model | Aspeed AST2500 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Number of Ethernet LAN (RJ-45) ports | 2 |
| PCIe x16 (Gen 3.x) slots | 2 |
| PCIe x8 (Gen 3.x) slots | 1 |
| M.2 slots | 1 (PCIe 3.0 x4, M-key, 2280/2242) |
| SATA III ports | 12 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 3 (2 rear +1 header) |
| USB 2.0 ports | 6 (2 rear +4 headers) |
| Number of VGA (D-Sub) ports | 1 |
| Serial ports | 2 (1 rear +1 header) |
| BIOS type | UEFI AMI |
| ACPI version | 6.0 |
| Operating temperature | 0 - 60 °C |
| Storage temperature | -20 - 60 °C |
| Operating relative humidity | 10 - 85% |
| Storage relative humidity | 10 - 95% |
| Number of supported processors | 1 |
