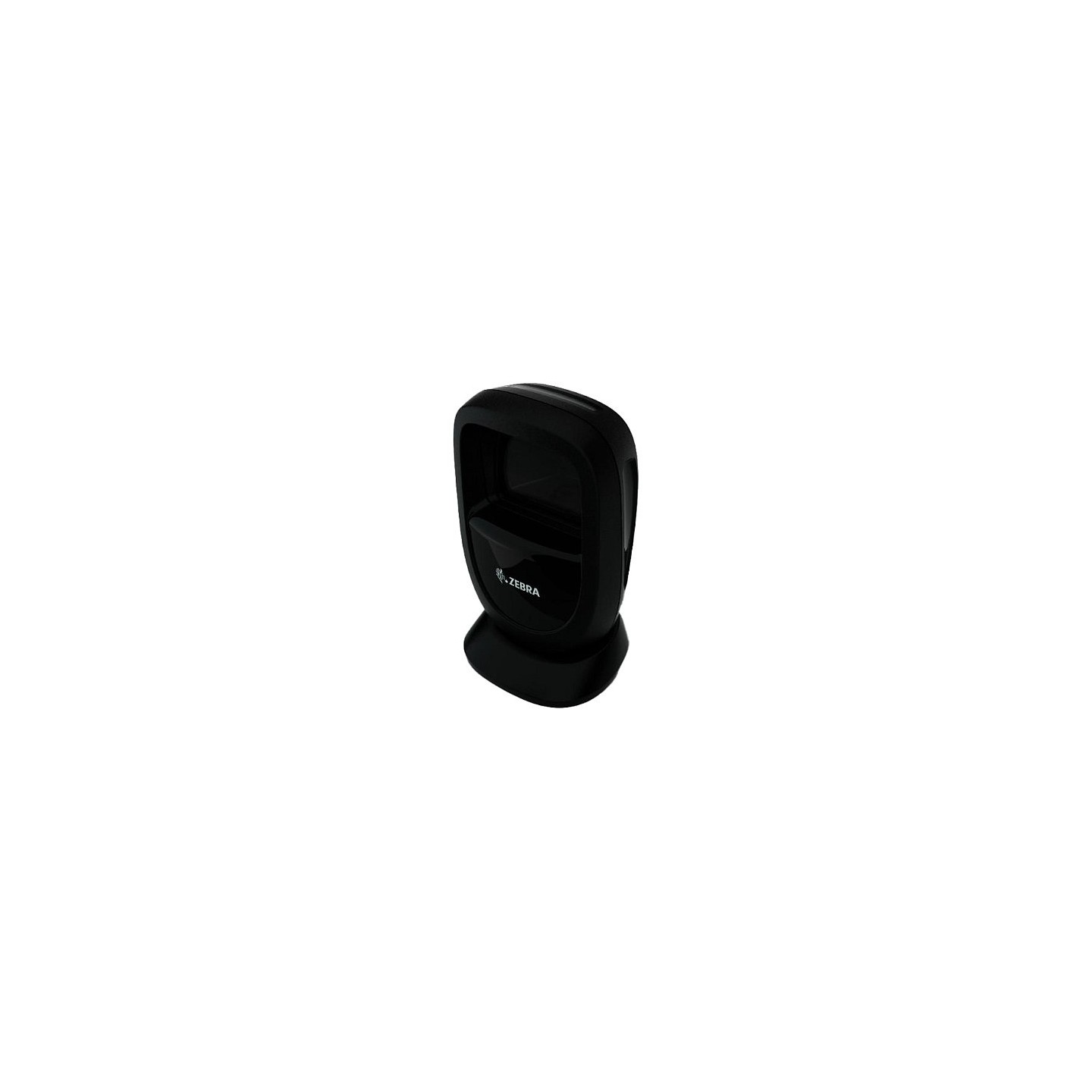

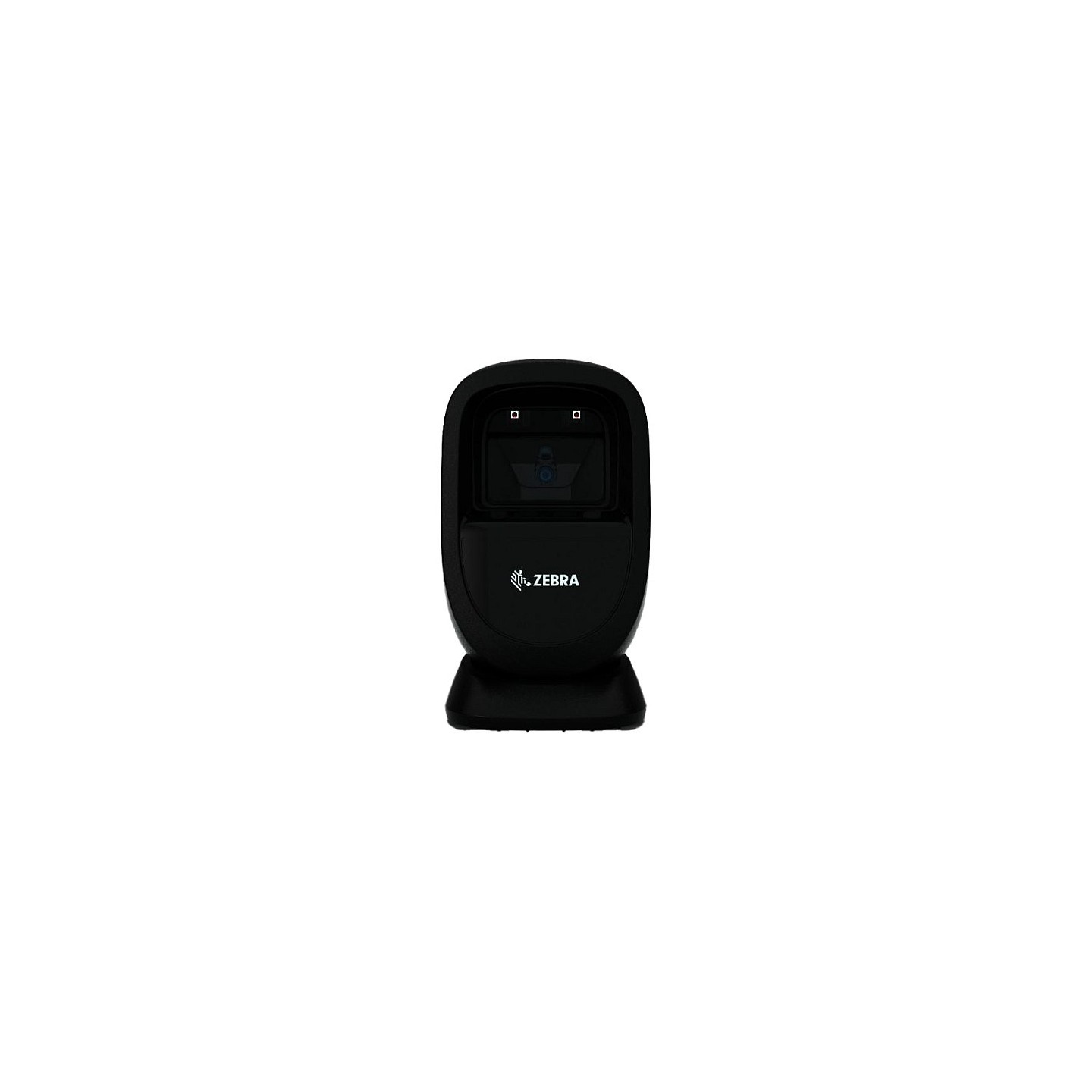

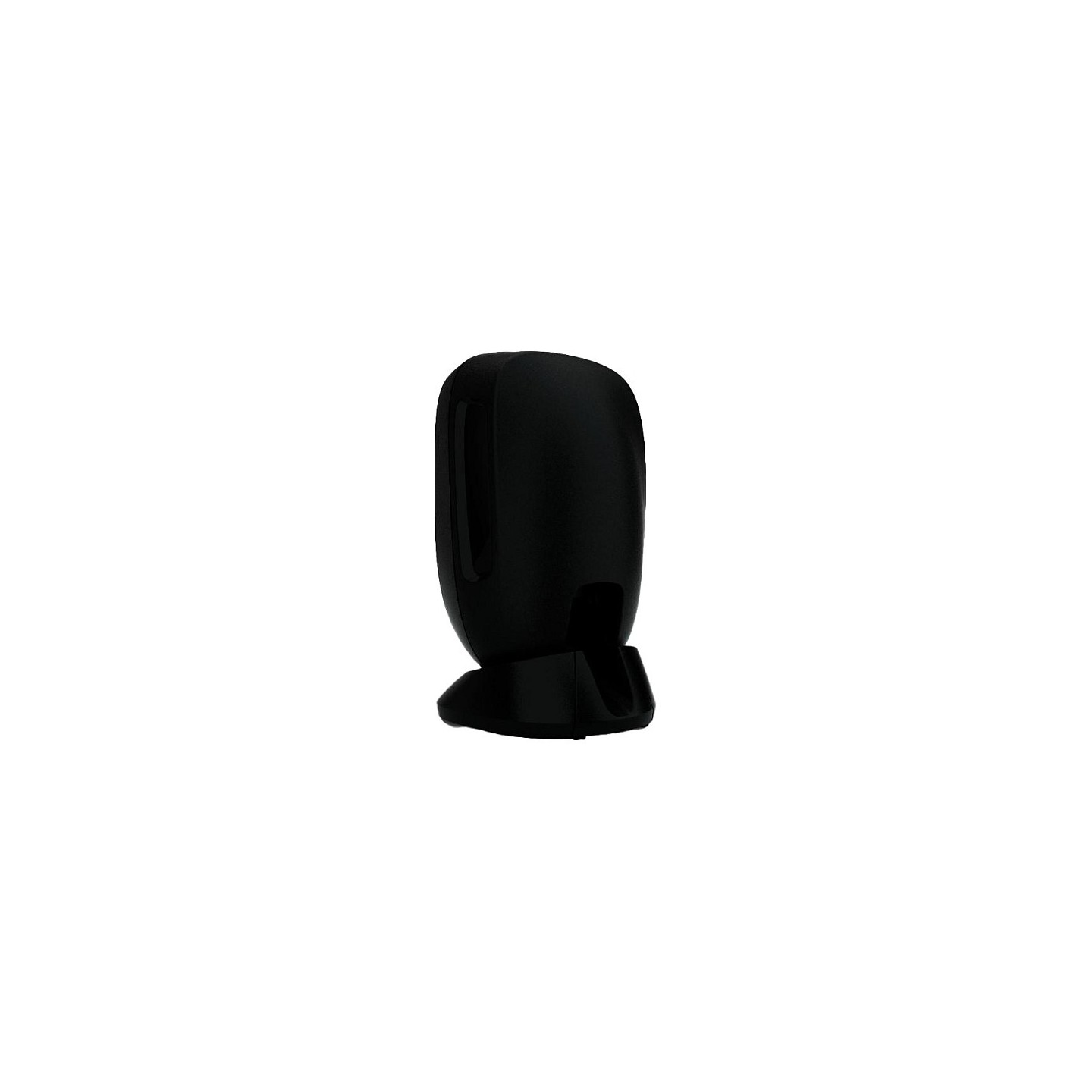

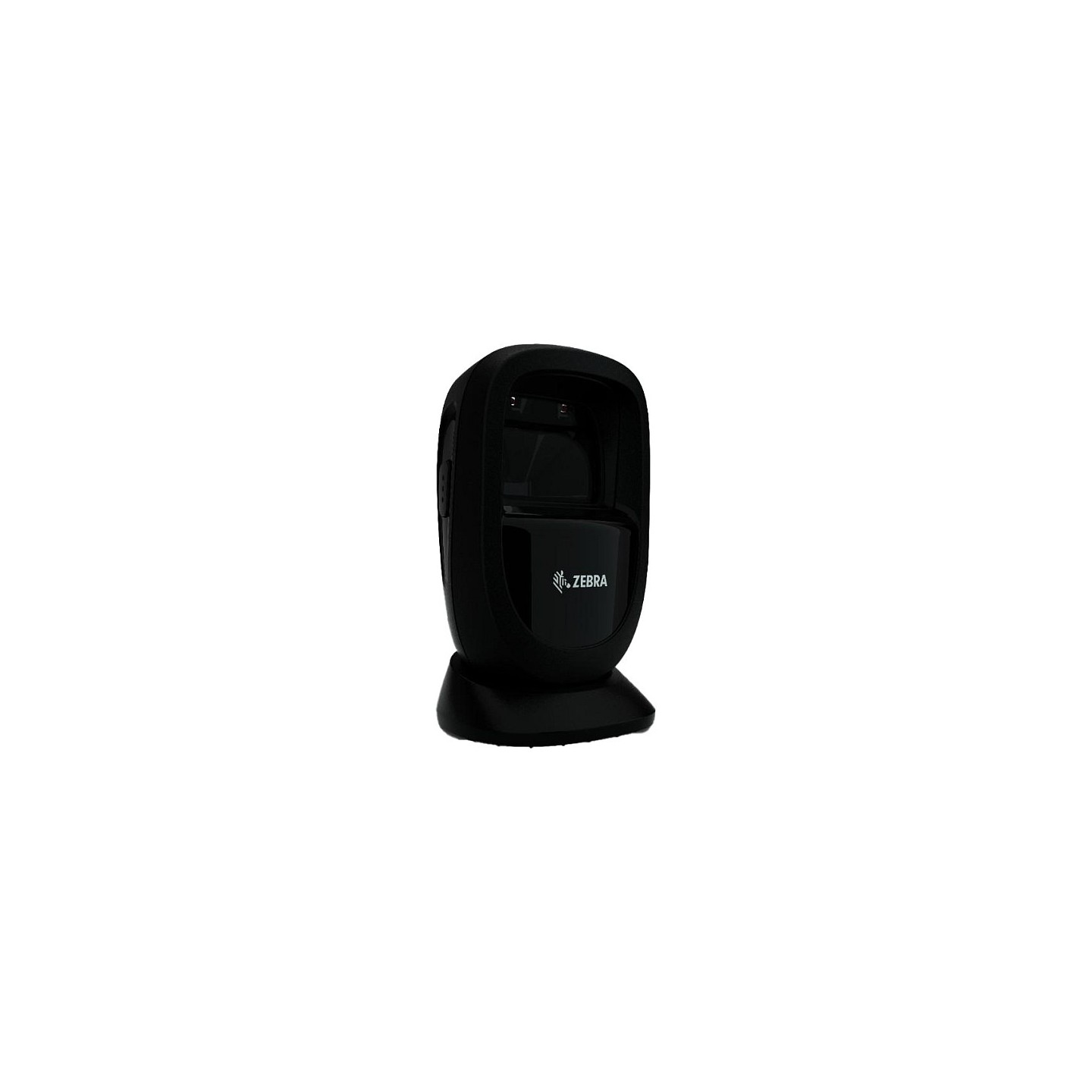

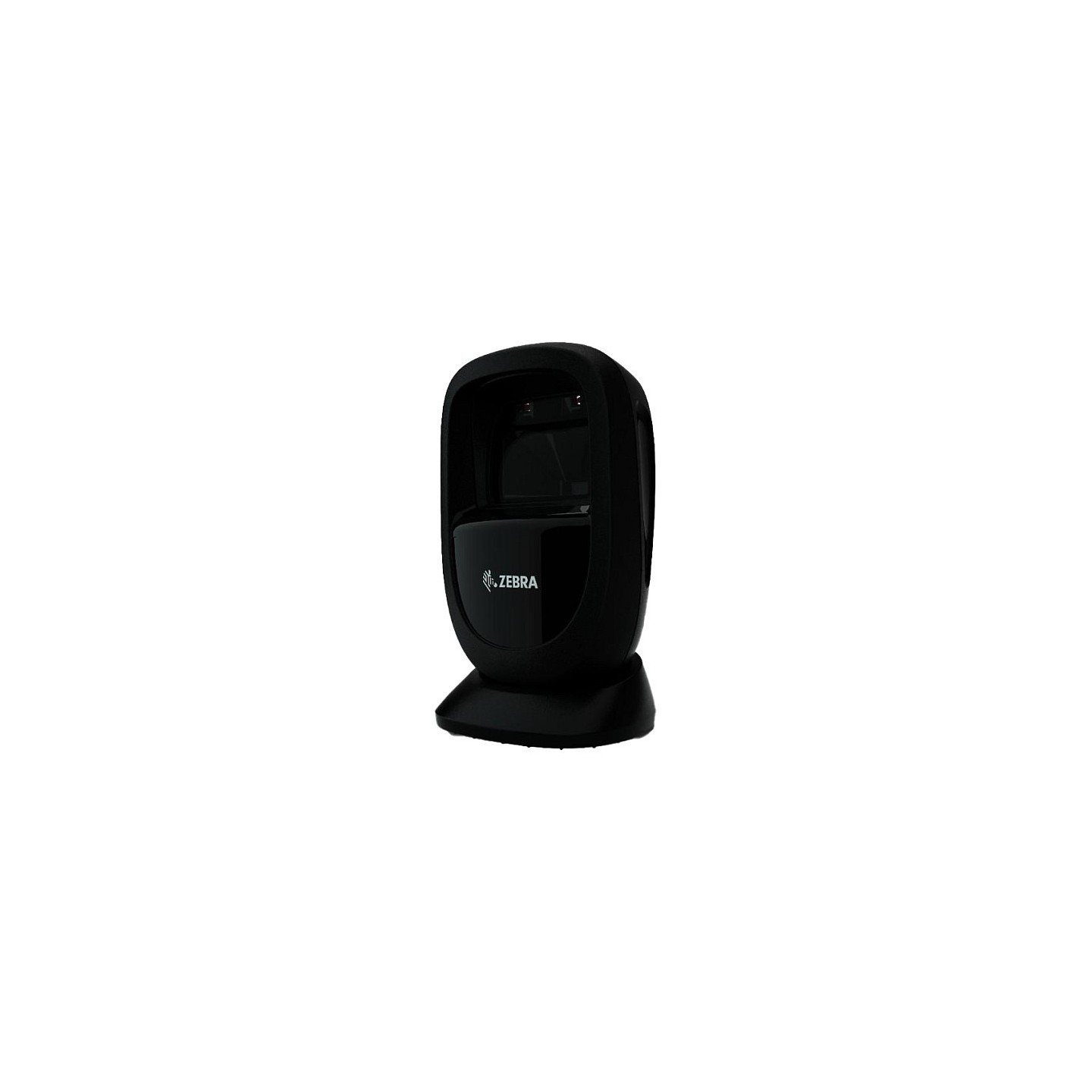

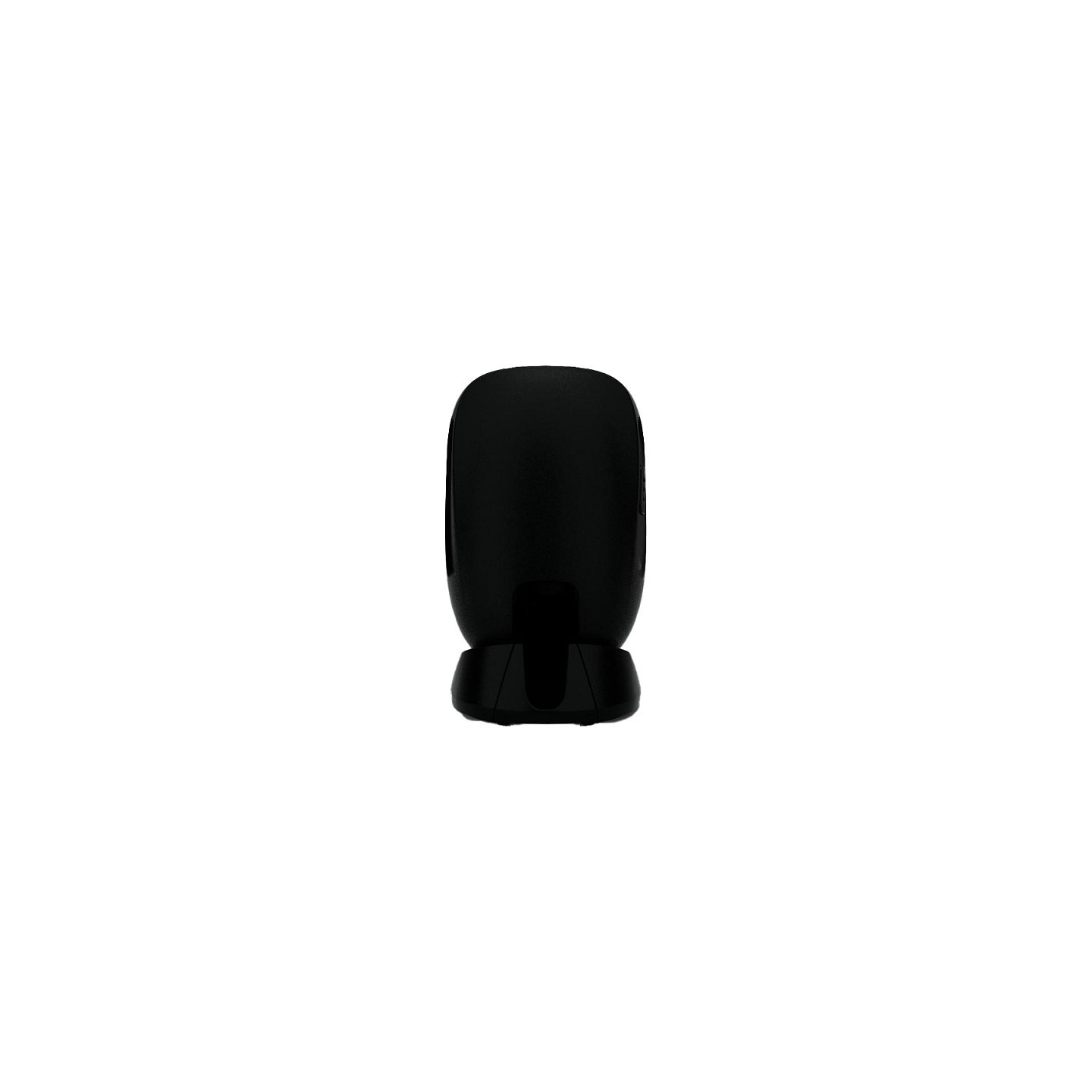

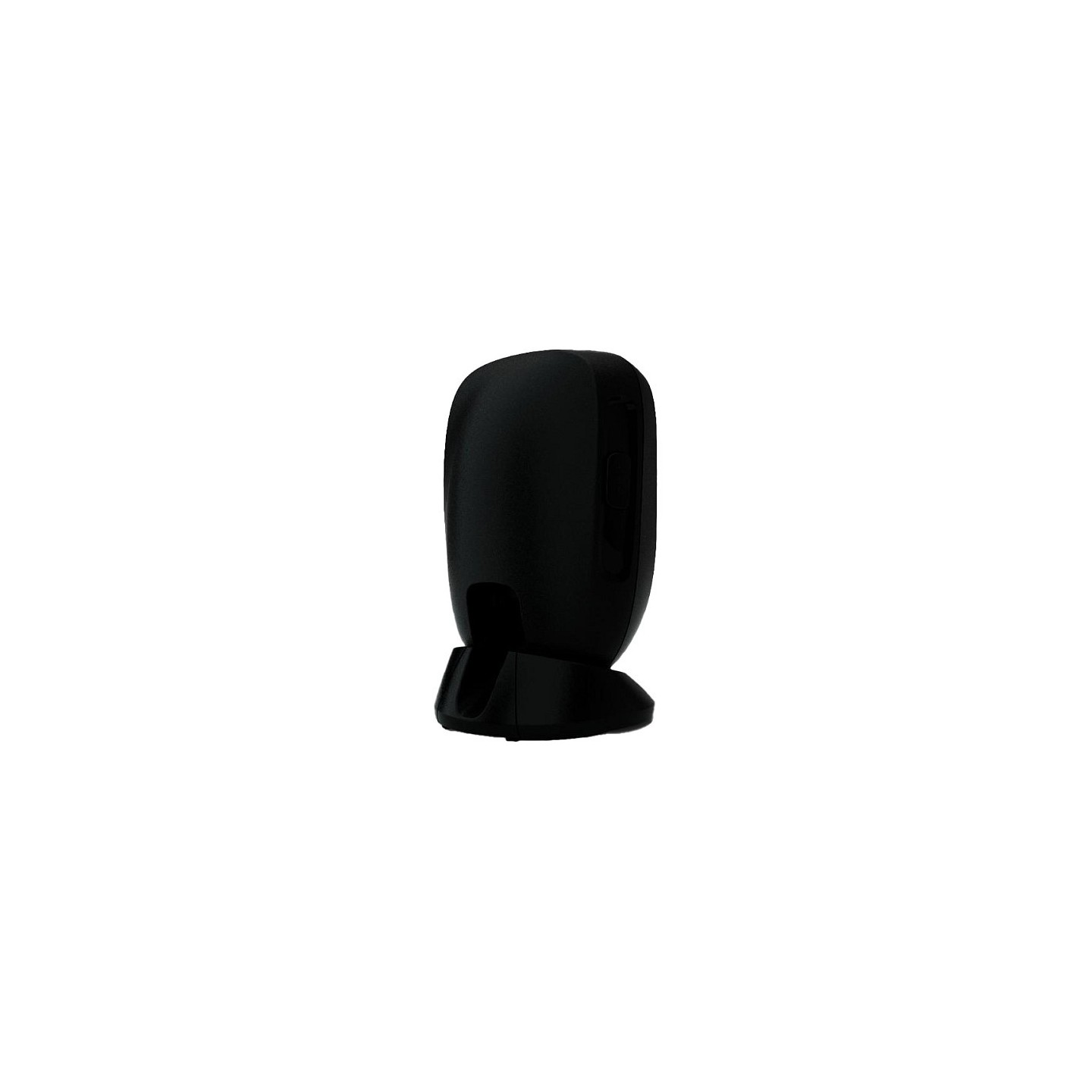

Zebra Barcode-Scanner DS9308 SR Desktop 1D 2D USB Kabelgebunden
Zebra DS9308-SR. Fester Barcodeleser. 1D/2D. LED. Codabar. Code 11. Code 128. Code 39. Code 93. EAN-13. GS1 DataBar. MSI. U.P.C.. Aztec Code. Verbundstoffcodes. Datenmatrix. Dot Code A. Han Xin. MaxiCode. Micro QR Code..... 1280 x 800 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Zebra DS9308-SR. Typ: Fester Barcodeleser. Scanner-Typ: 1D/2D. Sensor-Typ: LED. Übertragungstechnik: Kabelgebunden. Standard-Schnittstellen: RS-232. USB. Produktfarbe: Schwarz. Internationale Schutzart (IP-Code): IP52. Zertifizierung: EN 50581:2012. RoHS 2011/65/EU (2015/863) - EN 50581:2012. IEC 63000. REACH 1907/2006. IEC 62368-1.... Energiequelle: RS-232. USB. Eingangsspannung: 5.5 V. Gewicht: 318 g. Breite: 86 mm. Tiefe: 83 mm
| Typ | Fester Barcodeleser |
| Scanner-Typ | 1D/2D |
| Sensor-Typ | LED |
| Lineare (1D) Barcodes unterstützt | Codabar. Code 11. Code 128. Code 39. Code 93. EAN-13. GS1 DataBar. MSI. U.P.C. |
| 2D (Matrix & gestapelte) Barcodes unterstützt | Aztec Code. Verbundstoffcodes. Datenmatrix. Dot Code A. Han Xin. MaxiCode. Micro QR Code. MicroPDF417. PDF417. QR Code. TLC-39 |
| Optische Sensorauflösung (B x H) | 1280 x 800 Pixel |
| Arbeitsabstand | 66 cm |
| Lichtlevels (direkt Sonnenlicht) | 0 - 107700 Lux |
| Steigungslesewinkel | -60 - 60° |
| Übertragungstechnik | Kabelgebunden |
| Standard-Schnittstellen | RS-232. USB |
| Internationale Schutzart (IP-Code) | IP52 |
| Produktfarbe | Schwarz |
| Energiequelle | RS-232. USB |
| Eingangsspannung | 5.5 V |
| Breite | 86 mm |
| Tiefe | 83 mm |
| Höhe | 145 mm |
| Gewicht | 318 g |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Warentarifnummer (HS) | 84716070 |
