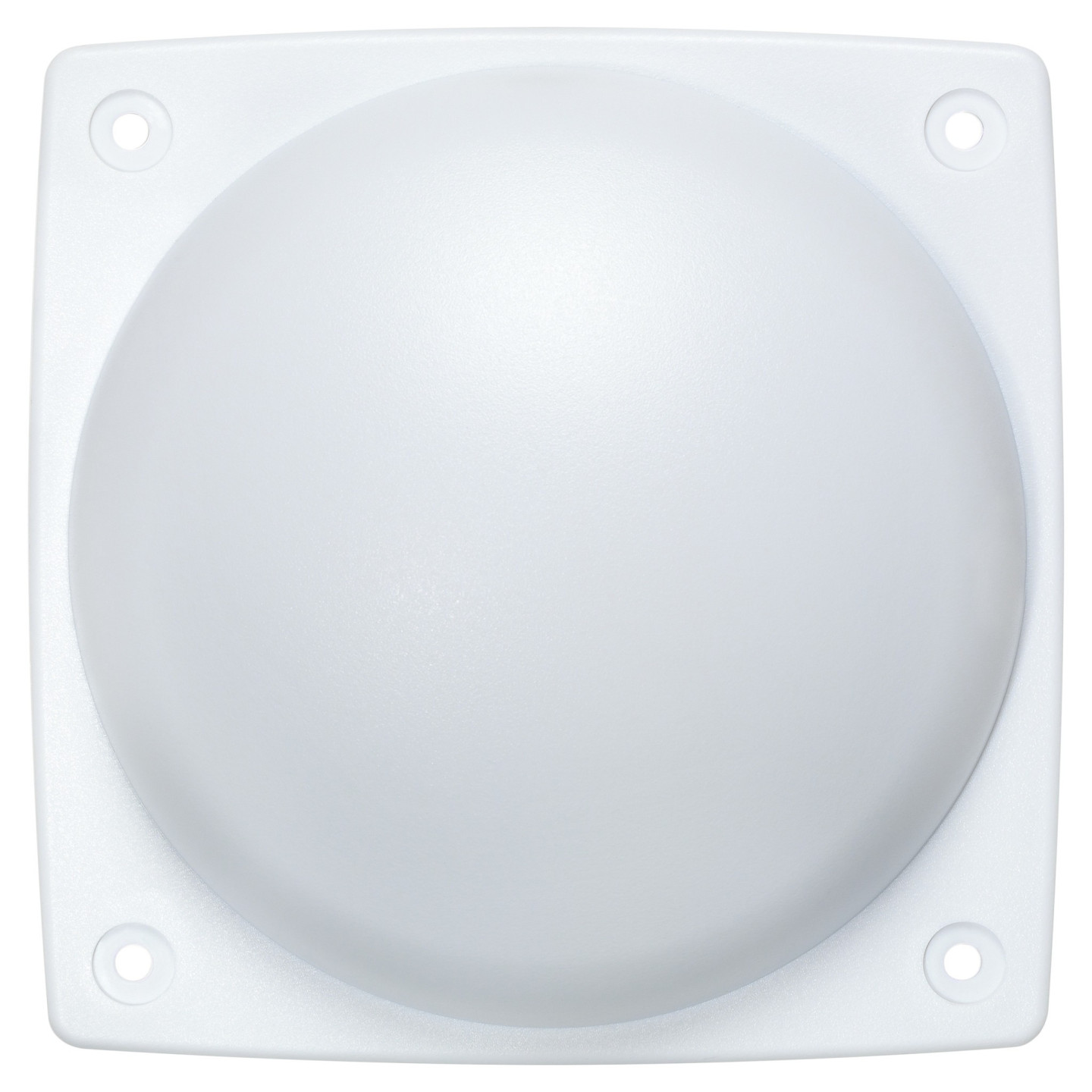

AirLancer IN-Q180+
AirLancer IN-Q180+. 5 dBi. 2.4 - 5.9 GHz. IEEE 802.11ac. IEEE 802.11ax. 3 dBi. 5 dBi. 50 Ohm
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
AirLancer IN-Q180+. Antenne Zunahmeniveau (max): 5 dBi. Frequenzband: 2.4 - 5.9 GHz. Netzstandard: IEEE 802.11ac. IEEE 802.11ax. Antennentyp: MIMO-direktionale Antenne. Antenne Steckertyp: RP-SMA. Polarisation: Duale Polarisation. Breite: 130 mm. Tiefe: 130 mm. Höhe: 45 mm. Paketgewicht: 400 g. Menge pro Packung: 1 Stück(e). Mitgelieferte Kabel: RG-178
| Frequenzband | 2.4 - 5.9 GHz |
| Netzstandard | IEEE 802.11ac. IEEE 802.11ax |
| Antenna Zuwachs (2.4 GHz) | 3 dBi |
| Antenna Zuwachs (5 GHz) | 5 dBi |
| Impedanz | 50 Ohm |
| Horizontale beam Weite (2.4 GHz) | 360° |
| Vertikale beam Weite (2.4 GHz) | 55° |
| Horizontale beam Weite (5 GHz) | 220° |
| Vertikale beam Weite (5 GHz) | 40° |
| Antenne Zunahmeniveau (max) | 5 dBi |
| Antennentyp | MIMO-direktionale Antenne |
| Antenne Steckertyp | RP-SMA |
| Polarisation | Duale Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 1.5:1 - 2.5:1 |
| Produktfarbe | Weiß |
| Gehäusematerial | Kunststoff |
| Montage | Decke/Wand |
| Zweck | Drinnen |
| Betriebstemperatur | -20 - 65 °C |
| Breite | 130 mm |
| Tiefe | 130 mm |
| Höhe | 45 mm |
| Gewicht | 208 g |
| Paketgewicht | 400 g |
| Menge pro Packung | 1 Stück(e) |
| Mitgelieferte Kabel | RG-178 |
| Feature | Montageset |
| Zolltarifnummer (TARIC) | 85177000 |
| Warentarifnummer (HS) | 85177100 |
| Ursprungsland | Taiwan |
