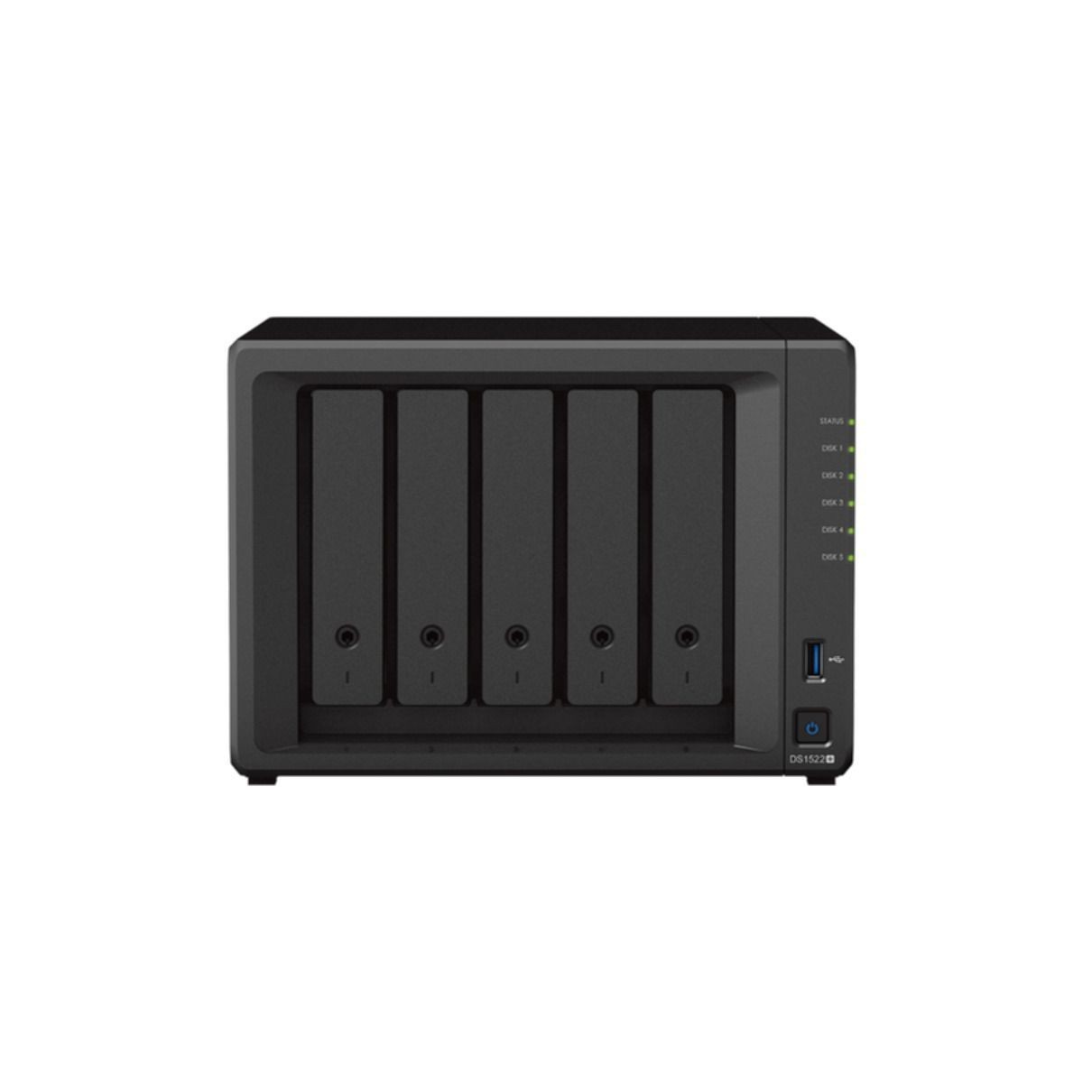

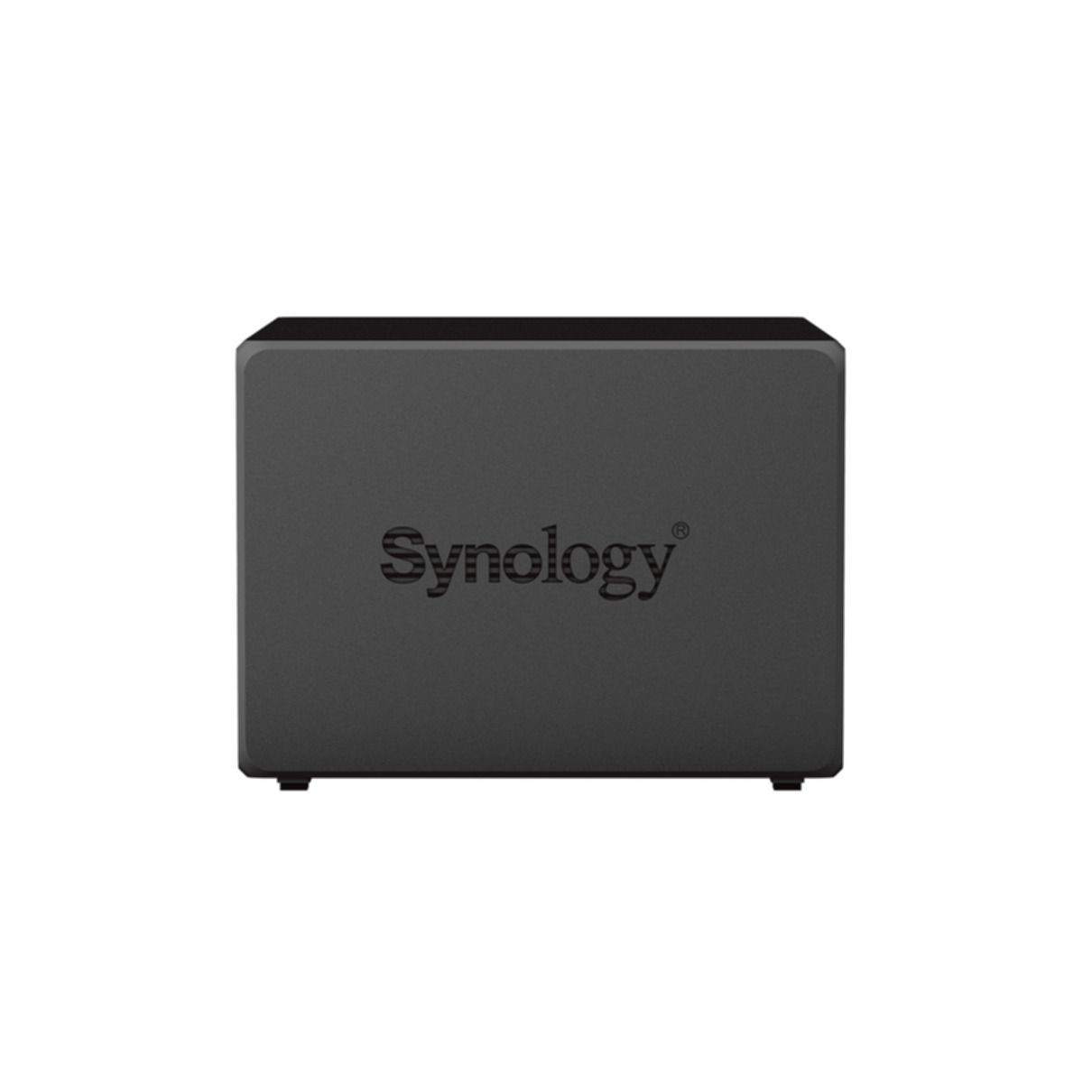

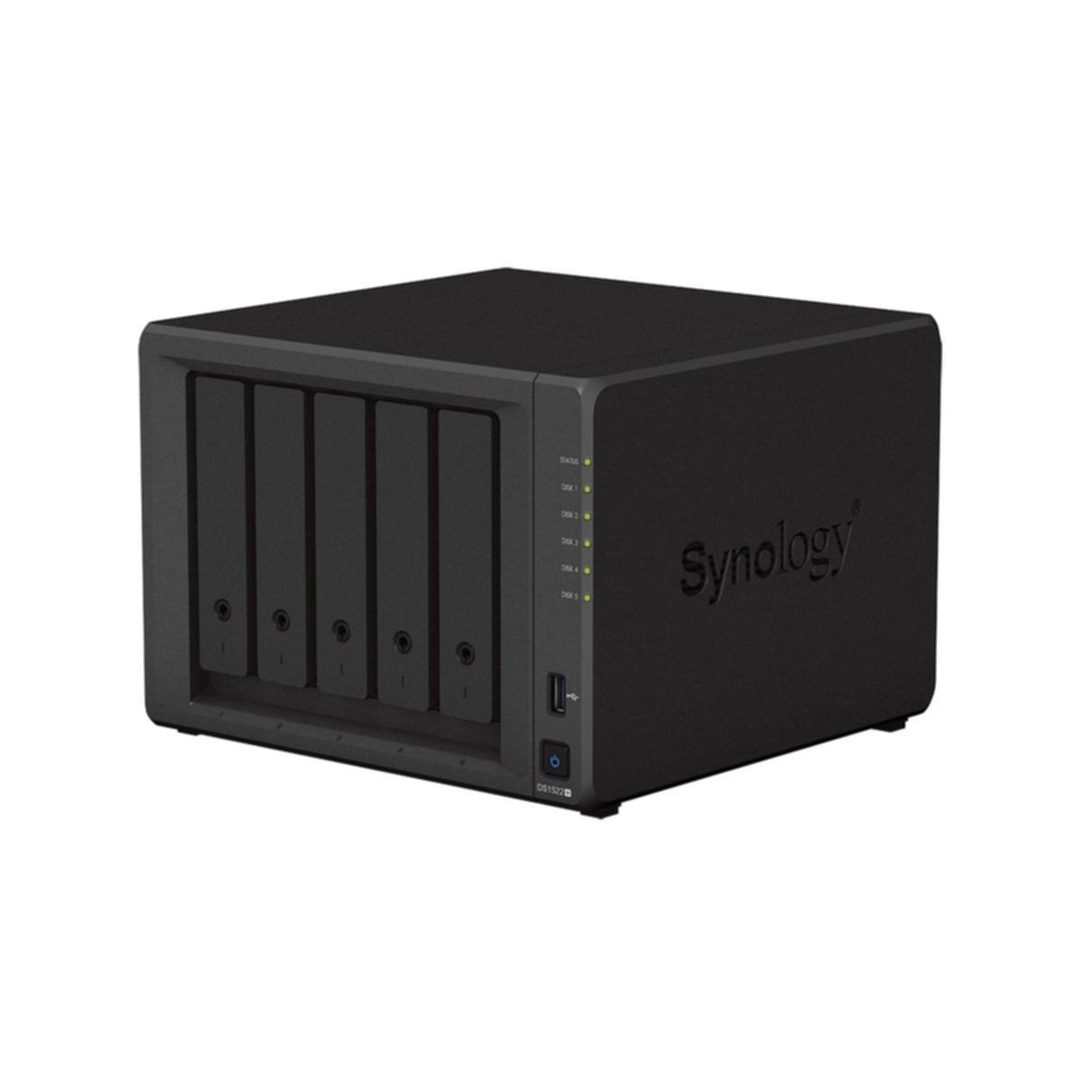

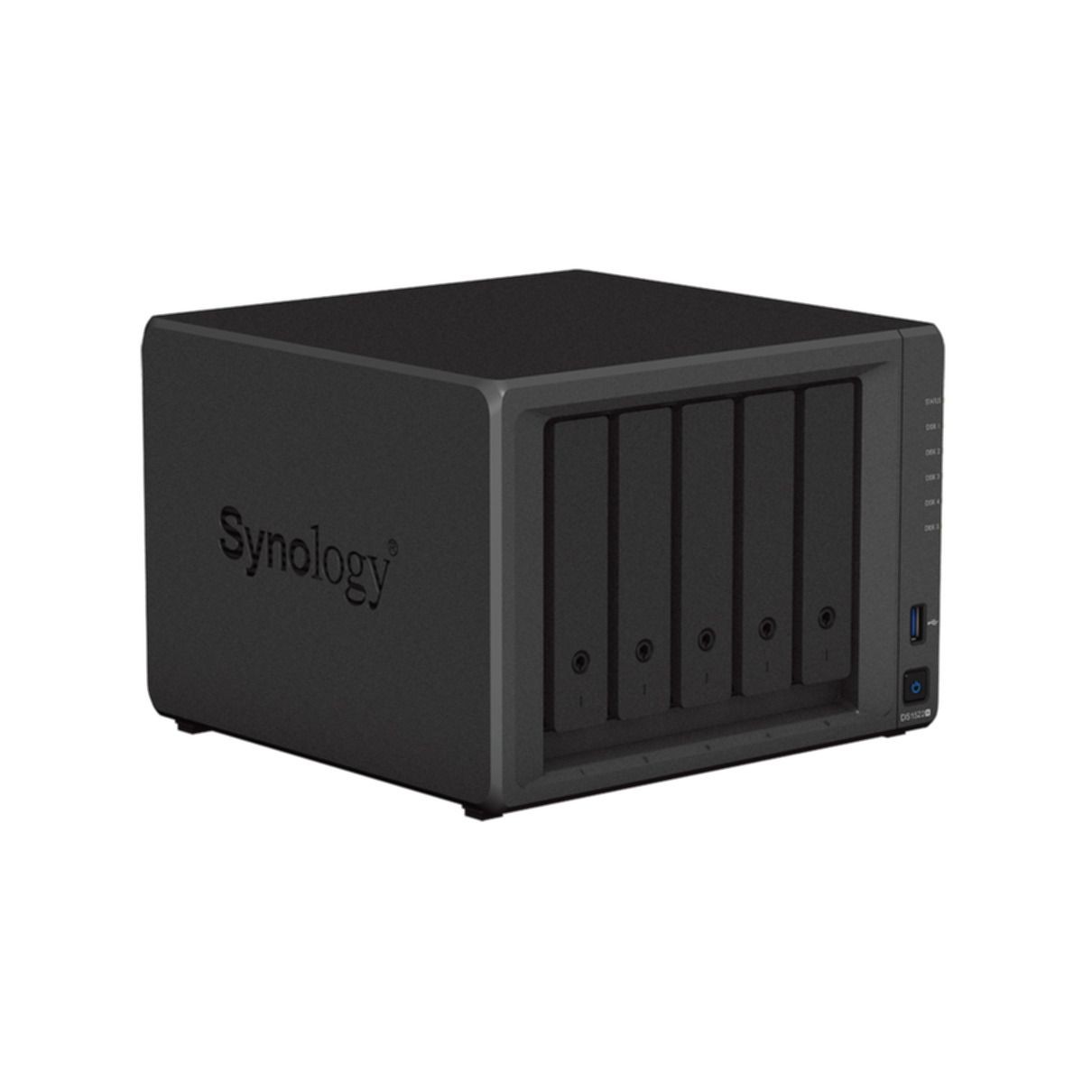

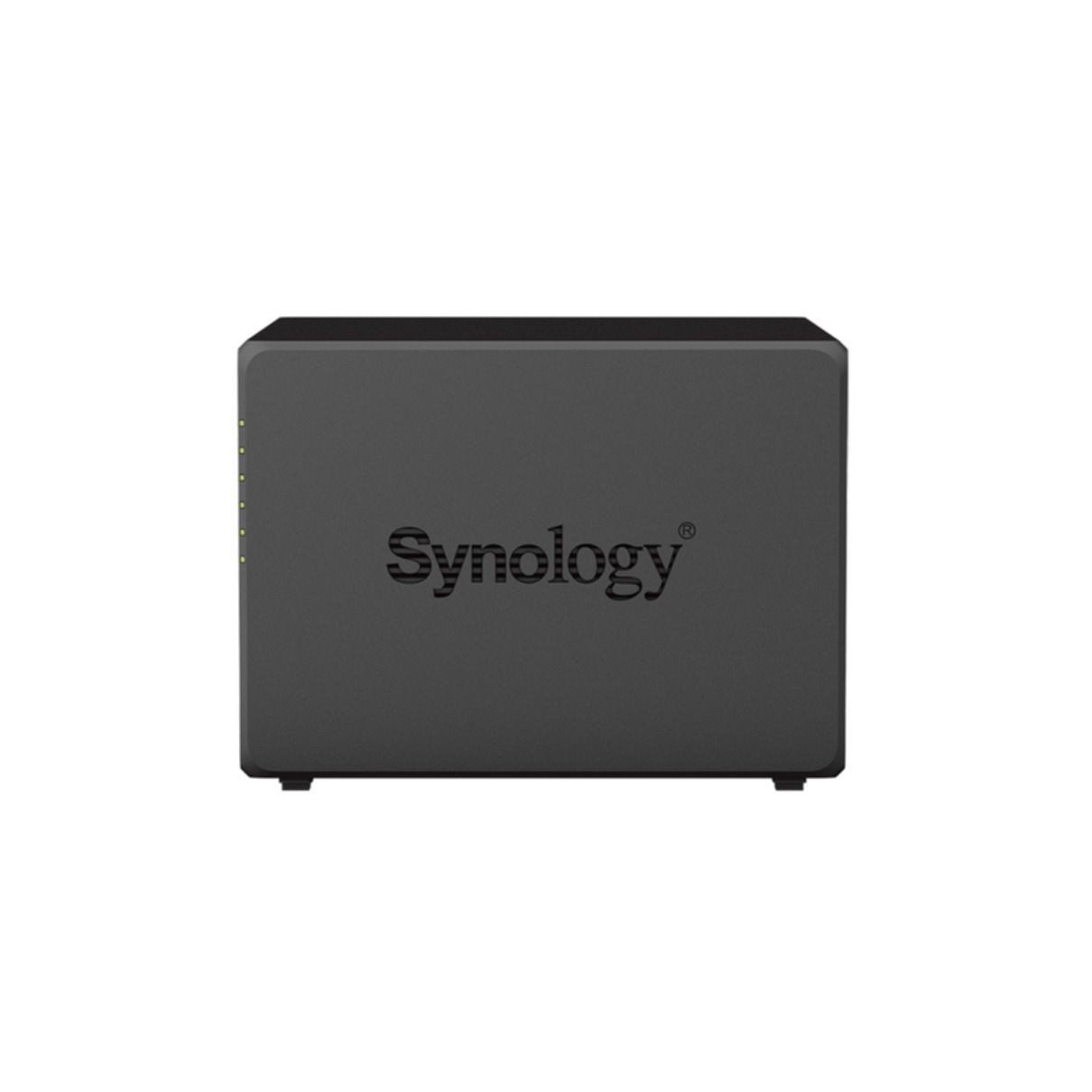

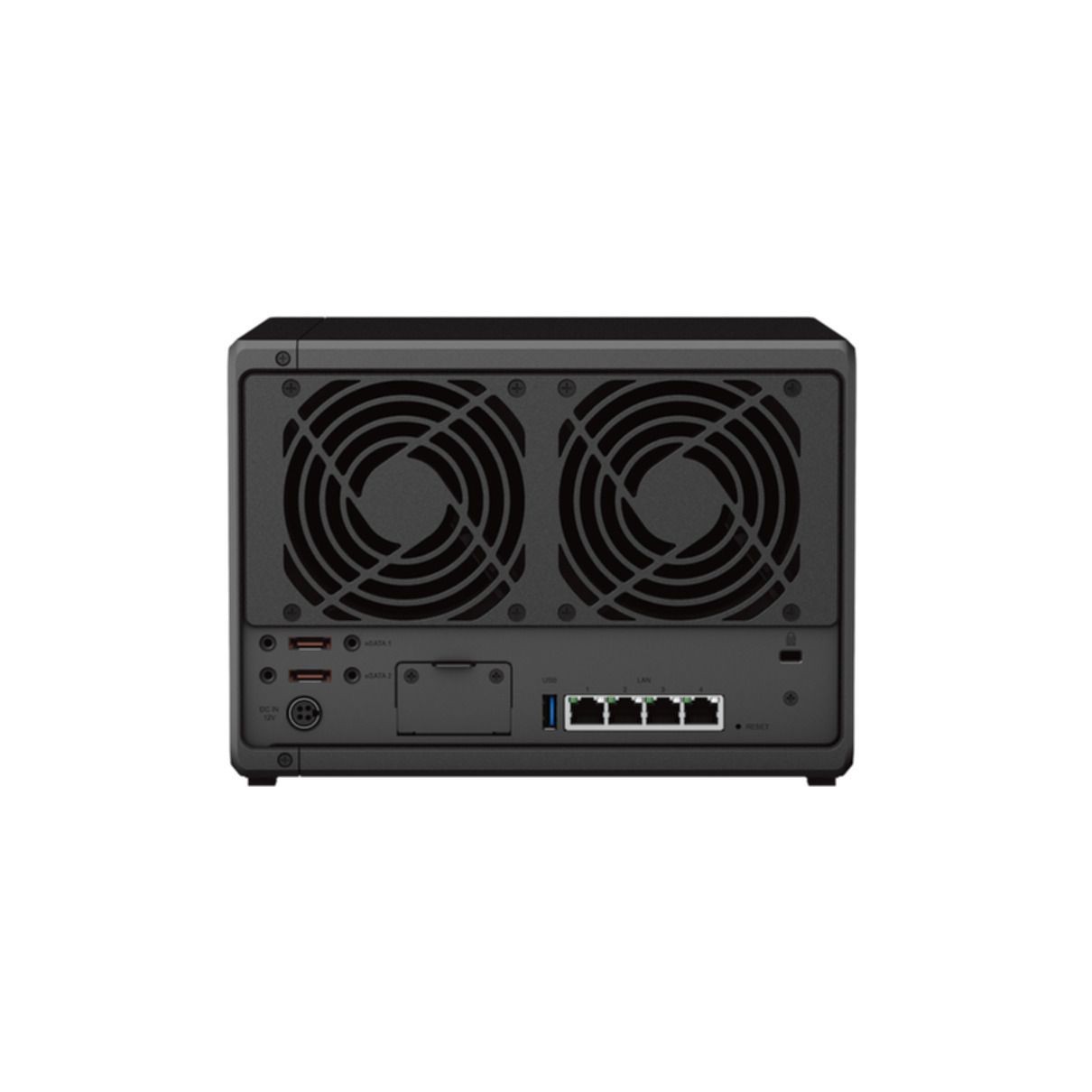

Synology DiskStation DS1522+ - 5-Bay NAS - Black, 8GB DDR4, AMD R1600 2.6–3.1GHz
5-bay Synology DS1522+ NAS with AMD R1600 (2.6–3.1GHz), 8GB DDR4 (expandable to 32GB), 2x M.2 slots, RAID (0/1/5/6/10/JBOD), 4x LAN, 2x USB3, DSM 7.1
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - Bays | 5 |
|---|---|
| NAS (Network Attached Storage) - Memory (Installed) | 8 GB |
| NAS (Network Attached Storage) - M.2 Slots | 2 |
| NAS (Network Attached Storage) - USB | USB 3.0 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
Synology DiskStation DS1522+. Type: NAS. Chassis type: Tower. Device class: Home & Home Office. Processor family: AMD Embedded R-Series SoC. Processor model: R1600. Processor frequency: 2.6 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: DiskStation Manager
| Supported storage drive interfaces | Serial ATA II. Serial ATA III |
| Storage drive sizes supported | 2.5.3.5.M.2 |
| Number of M.2 (M & B) slots | 2 |
| Feature | Sustainability compliance |
| RAID levels | 0. 1. 5. 6. 10. JBOD |
| Supported file systems | BTRFS. Fat. HFS+. NTFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor family | AMD Embedded R-Series SoC |
| Processor model | R1600 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 2 |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Supported network protocols | SMB1 (CIFS). SMB2. SMB3. NFSv3. NFSv4. NFSv4.1. NFS Kerberized sessions. iSCSI. HTTP. HTTPs. FTP. SNMP. LDAP. CalDAV |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 9.2 cm |
| Cable lock slot type | Kensington |
| Type | NAS |
| Device class | Home & Home Office |
| Backup features | Cloud. iSCSI LUN |
| Number of users | 2048 user(s) |
| Noise level | 22.9 dB |
| Video input channels | 2 channels |
| Management protocols | SNMP |
| Security algorithms | HTTPS |
| Browser supported | Google Chrome. Firefox. Microsoft Edge. Safari |
| Operating system installed | DiskStation Manager |
| Operating system version | 7.1 |
| Power supply location | External |
| Power supply unit (PSU) capacity | 120 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 52.06 W |
| Power consumption (HDD standby) | 16.71 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 230 mm |
| Depth | 223 mm |
| Height | 166 mm |
| Weight | 2.7 kg |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Certification | FCCBSMIVCCIRCMUKCAEACCCCKC |
