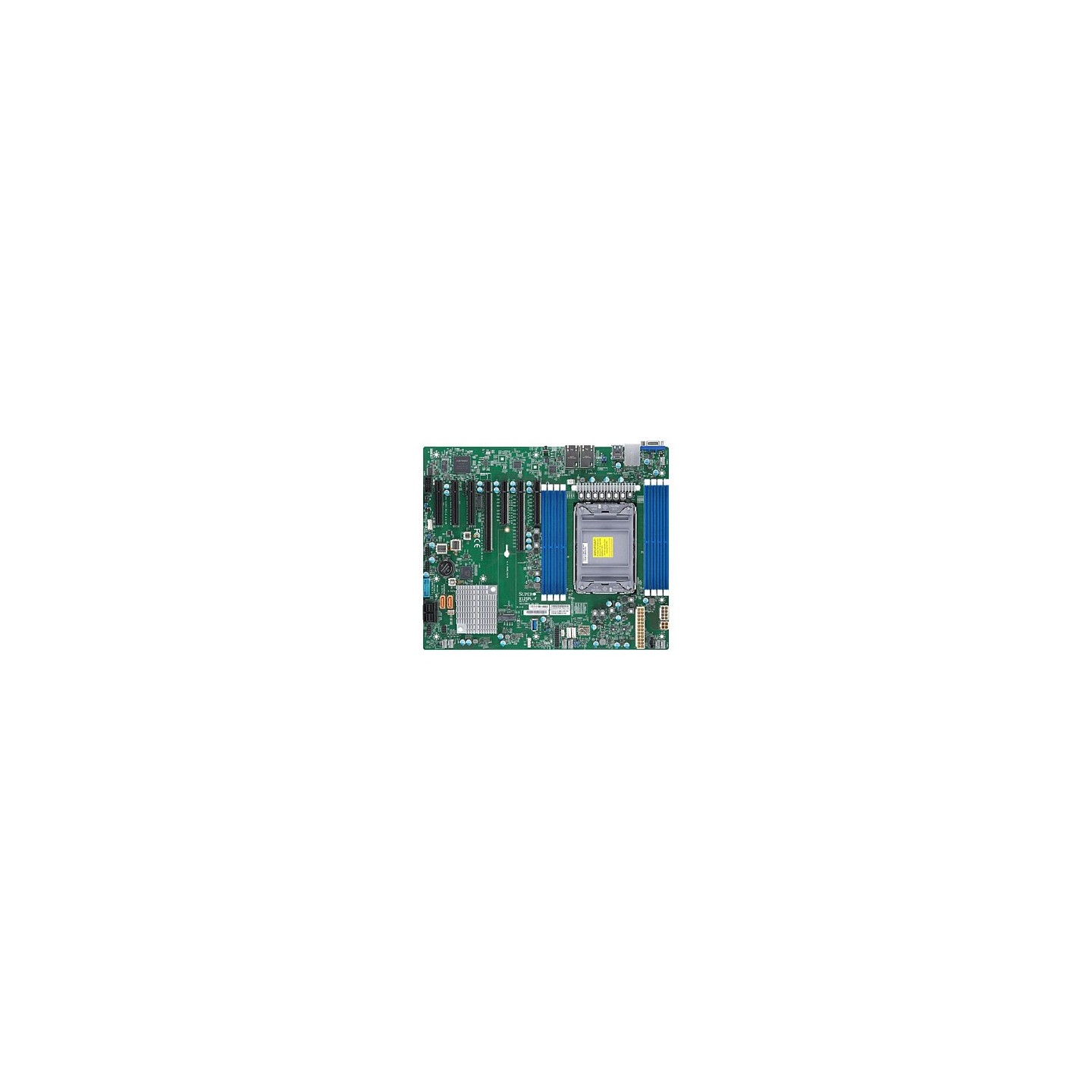

Supermicro MBD-X12SPL-F-B LGA 4189 Xeon ATX Server Motherboard (Bulk)
Supermicro MBD-X12SPL-F-B ATX server motherboard. LGA 4189 for 3rd Gen Intel Xeon Scalable (up to 270W TDP). 8x DIMM DDR4 ECC up to 2TB@3200MHz. Intel C621A chipset, 10x SATA3, 1x M.2, 2x GbE Intel I210, PCIe 4.0.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 4189 |
|---|---|
| Motherboards - Chipset | Intel C246 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | ECC DDR4 |
| Motherboards - Memory Slots | 8 (HEDT) |
| Motherboards - Max Memory Capacity | 512 GB (HEDT) |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 10+ |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |

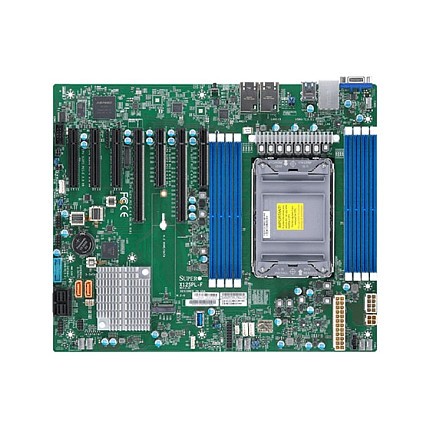

The Supermicro MBD-X12SPL-F-B is a high-performance ATX server motherboard designed for 3rd Gen Intel Xeon Scalable processors using the LGA 4189 (Socket P+) socket, supporting CPUs with up to 270W TDP and up to 40 cores. Featuring the Intel C621A chipset, it delivers robust enterprise-grade capabilities for demanding server workloads.
It supports up to 2TB of 3DS ECC RDIMM/LR-DIMM DDR4-3200 memory across 8 DIMM slots, with compatibility for Intel Optane Persistent Memory 200 series. Storage options include 10x SATA3 (6Gbps) ports and 1x M.2 (PCIe 3.0 x4/SATA, 2280/22110). Expansion via 2x PCIe 4.0 x8, 1x PCIe 4.0 x16, and 3x PCIe 3.0 x8 slots (one in x16). Dual Intel I210 Gigabit Ethernet, ASPEED AST2600 BMC graphics with VGA, and comprehensive I/O: 6x USB 2.0, 5x USB 3.2 Gen1, 1x COM, TPM header.
- Form Factor: ATX (30.73 x 25.4 cm)
- Memory: 8x DIMM, DDR4-3200 ECC up to 2TB
- Storage: 10x SATA3 + 1x M.2
- Network: 2x Gigabit Ethernet (Intel I210)
- Expansion: Multiple PCIe 4.0/3.0 slots
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 4189 |
| Kompatible Prozessoren | Intel® Xeon® |
| Intel® Xeon-Serie | 3000 |
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 8 |
| Arbeitsspeicher Typ | DIMM |
| Speicherspannung | 1.2 V |
| ECC-Kompatibilität | ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2666,2933,3200 MHz |
| RAM-Speicher maximal | 2 TB |
| Unterstützte Speichermodulkapazitäten | 8GB,16GB,32GB,64GB,128GB |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
| Motherboard Chipsatz | Intel® C621A |
| Motherboardformfaktor | ATX |
| Komponente für | Server |
| Anzahl USB 2.0 Schnittstellen | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 5 |
| SATA III Anschlüsse | 10 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl serielle Anschlüsse | 1 |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Intel I210 |
| PCI-Express x8-Slots | 3 |
| PCI-Express x16-Slots | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| BIOS-Typ | UEFI AMI |
| Betriebstemperatur | 0 - 50 °C |
| Warentarifnummer (HS) | 84733020 |
