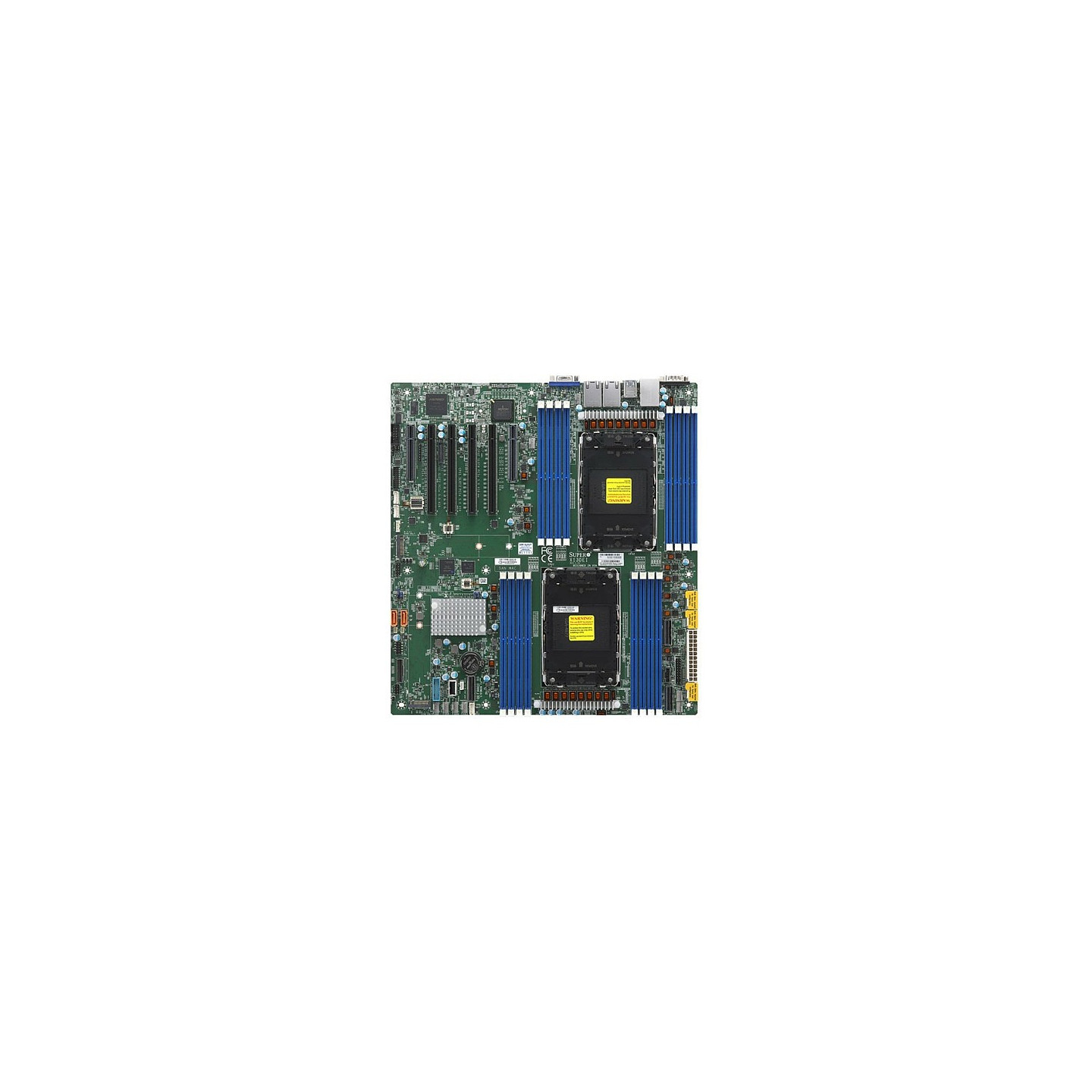

Supermicro Mainboard MBD-X13DEI-B
Supermicro X13DEI. Intel. LGA 4677 (Socket E). Intel® Xeon®. DDR5-SDRAM. 4 TB. DIMM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Supermicro X13DEI. Prozessorhersteller: Intel. Prozessorsockel: LGA 4677 (Socket E). Kompatible Prozessoren: Intel® Xeon®. Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 4 TB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: PCI Express 4.0. SATA III. RAID Level: 0. 1. 5. 10. Grafikkarte-Familie: ASPEED. Grafikkarte: AST2600. Ethernet Schnittstellen Typ: Gigabit Ethernet. LAN-Controller: Broadcom BCM5720
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 4677 (Socket E) |
| Kompatible Prozessoren | Intel® Xeon® |
| Maximale Anzahl an SMP-Prozessoren | 2 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 16 |
| Arbeitsspeicher Typ | DIMM |
| Speicherspannung | 1.1 V |
| ECC-Kompatibilität | ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4000.4400.4800.5200.5600 MHz |
| Unterstützte Speichertaktrate (max.) | 5600 MHz |
| RAM-Speicher maximal | 4 TB |
| Unterstützte Speichermodulkapazitäten | 16GB. 32GB. 64GB. 96GB. 128GB. 256GB |
| Maximaler RDIMM Speicher | 4 TB |
| Maximaler interner Speicher pro Steckplatz | 256 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | PCI Express 4.0. SATA III |
| Feature | Ethernet/LAN |
| RAID Level | 0. 1. 5. 10 |
| Grafikkarte-Familie | ASPEED |
| Grafikkarte | AST2600 |
| SATA III Anschlüsse | 10 |
| Zahl der Chassisventilatorstecker | 8 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Anzahl COM-Anschlüsse | 1 |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Broadcom BCM5720 |
| Motherboard Chipsatz | Intel C741 |
| PC Gesundheitsüberwachung | Stromversorgung. Temperatur. Spannung |
| Komponente für | Server |
| Motherboardformfaktor | Erweitertes ATX |
| Motherboard Chipsatz Familie | Intel |
| BIOS-Typ | UEFI AMI |
| ACPI-Version | 6.4 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.5 |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Betriebstemperatur | 10 - 35 °C |
| Relative Luftfeuchtigkeit in Betrieb | 8 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 307.4 mm |
| Tiefe | 331.5 mm |
