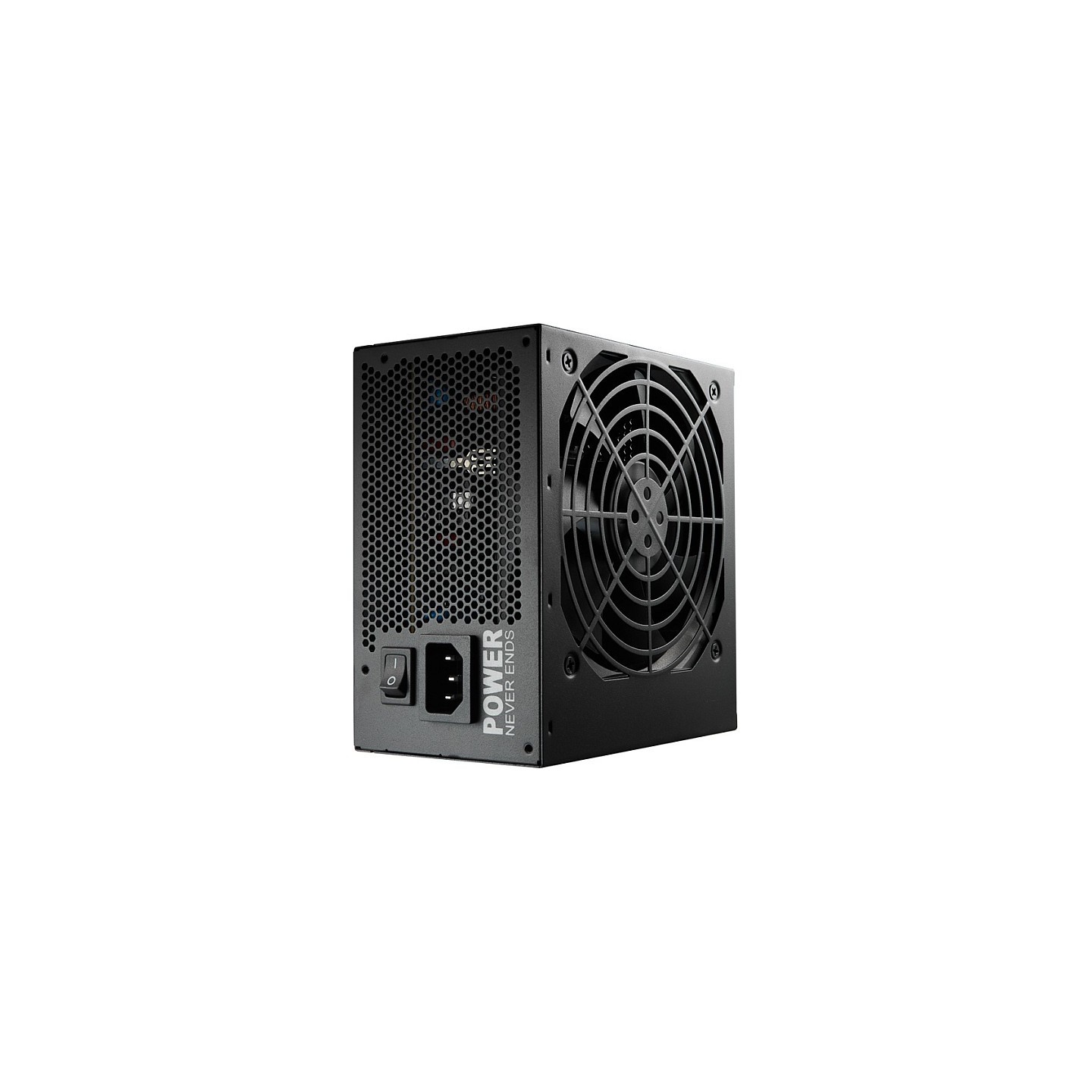

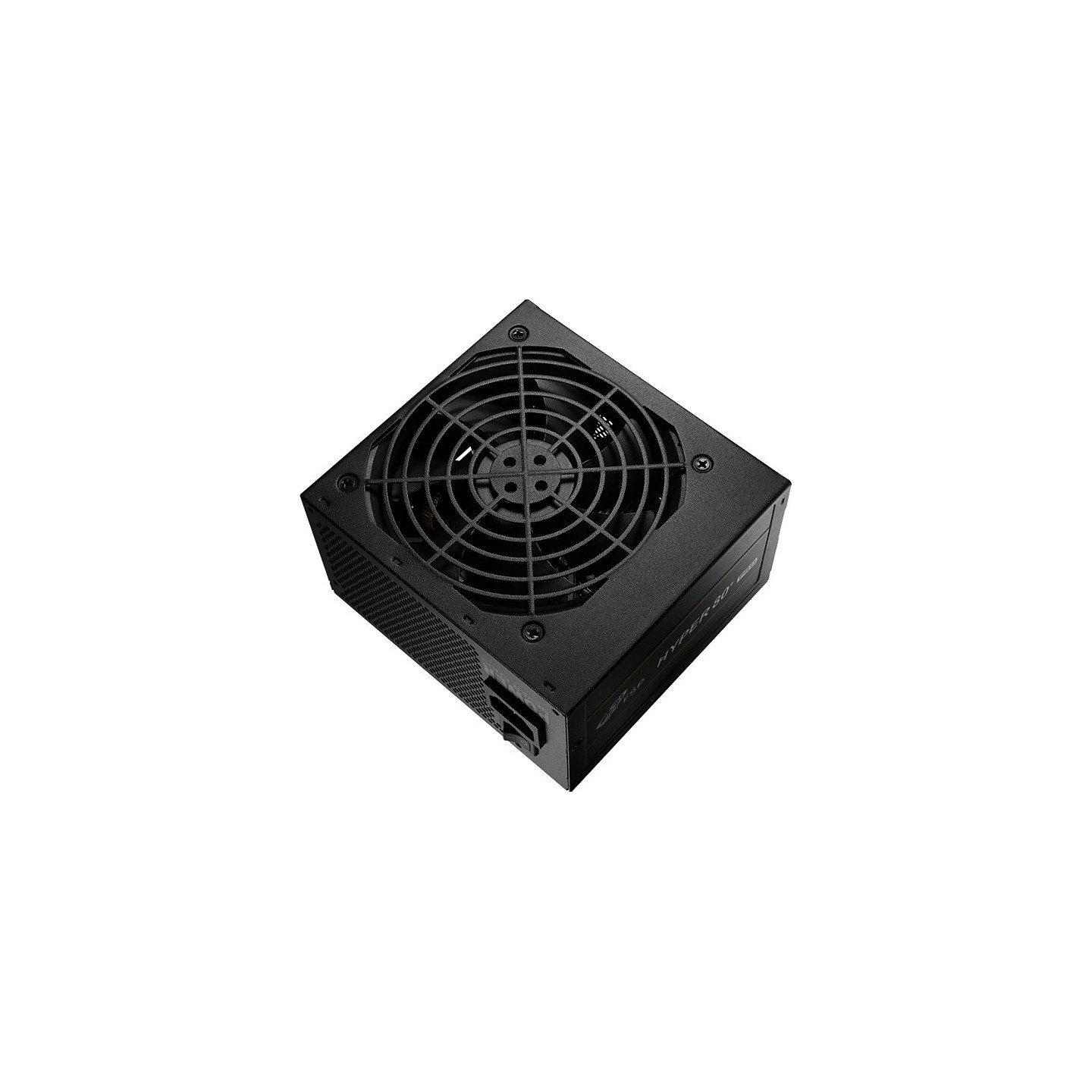

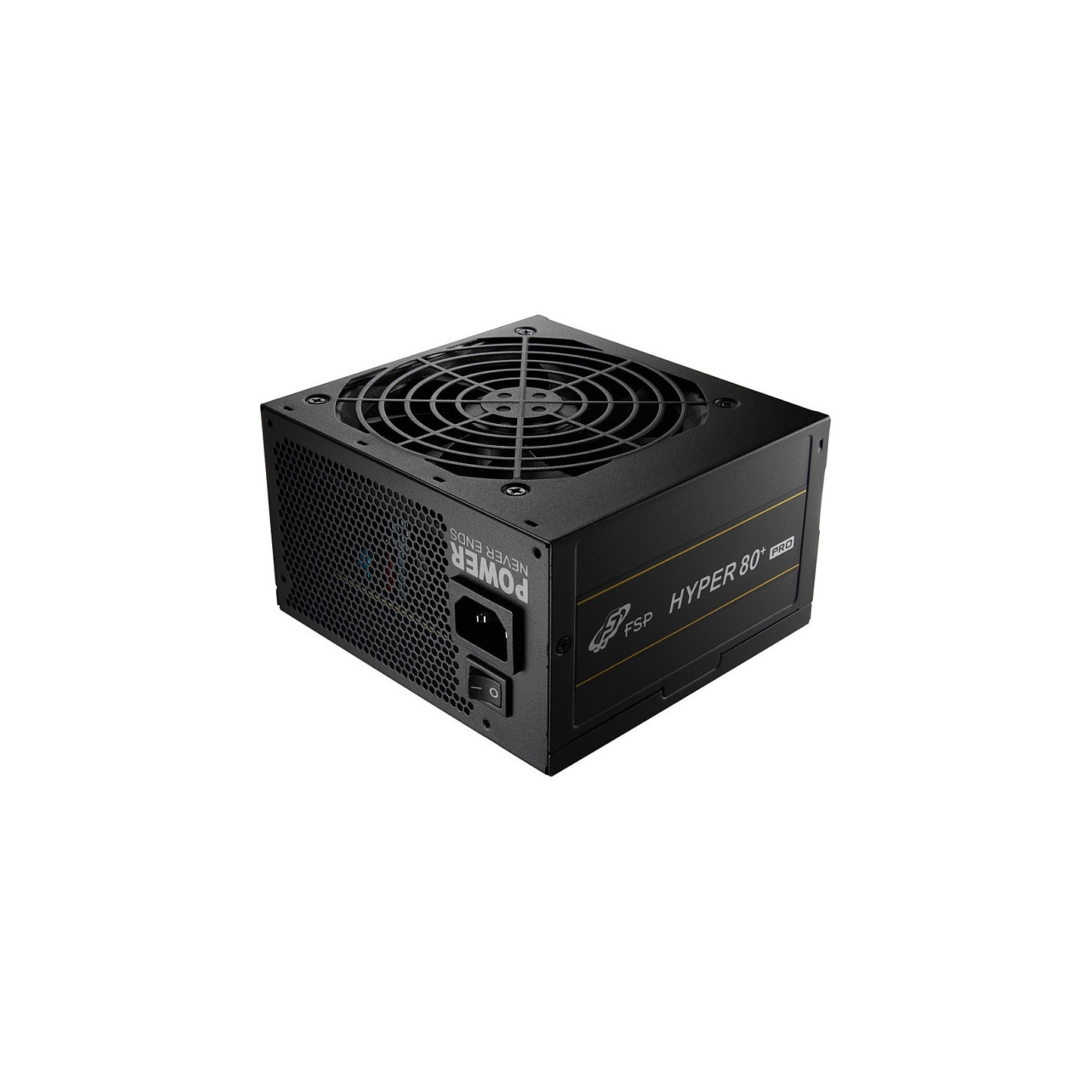

FSP HYPER 80+ PRO 650W G5.1 ATX 3.1 80+ Bronze PSU (Boxed)
FSP HYPER 80+ PRO 650W G5.1 is an ATX 3.1 compliant PSU with 80 PLUS Bronze efficiency (85-88%). Features 650W single +12V rail, active PFC, 120mm fan, non-modular black cables. Includes 4x PCIe 6+2pin, 1x 8pin, 8x SATA. Ideal for mid-range PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 3x 8/6 pins 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The FSP HYPER 80+ PRO 650W G5.1 is a reliable ATX 3.1 power supply unit designed for PC and server builds. Certified 80 PLUS Bronze for 230V EU (≥85% efficiency at typical load), it delivers 650W total power via a powerful single +12V rail (54.1A, 649.2W). Equipped with active PFC (≥0.9), DC-DC design for +5V/+3.3V, and hold-up time >17ms.

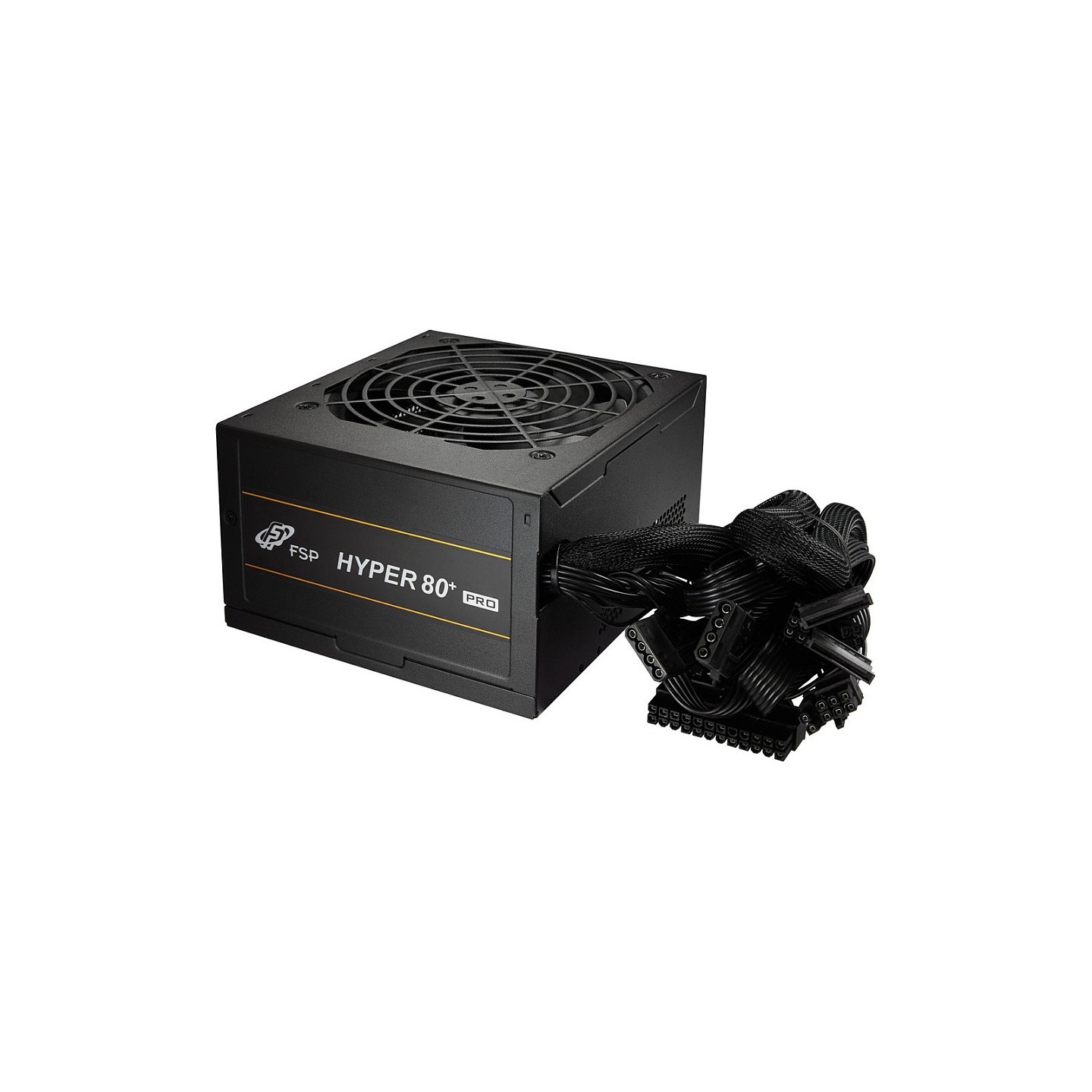

Non-modular with all-black round cables for clean builds. Cooling via quiet 120mm sleeve fan (top-mounted). Full protections: OCP, OVP, OPP, SCP, OTP. Connectors: 24-pin ATX, 1x EPS 8-pin (4+4), 4x PCIe 6+2-pin, 1x PCIe 8-pin, 8x SATA, 2x Molex, 1x Floppy. Dimensions: 150x140x86mm, weight 1.46kg.
- ✅ ATX 3.1 & EPS 2.92 compliant
- ✅ 450V 105°C Japanese capacitors
- ✅ Low noise thermal fan control
- ✅ Complete protection suite
- ✅ Black cables for aesthetics
| Total Power | 650 W |
| Form Factor | ATX |
| ATX Version | 3.1 |
| EPS Version | 2.92 |
| 80 Plus Certification | 80 PLUS Bronze (230V EU) |
| Efficiency | ≥88% at typical load |
| Input Voltage | 200-240 V |
| Input Current | 5 A |
| Input Frequency | 50-60 Hz |
| PFC | Active PFC ≥0.9 |
| Fan Diameter | 120 mm |
| Fan Type | Sleeve bearing |
| Dimensions (L x W x H) | 150 x 140 x 86 mm |
| Weight | 1.46 kg |
| Max +3.3V | 20 A |
| Max +5V | 20 A |
| Max +12V | 54.1 A |
| Max -12V | 0.3 A |
| Max +5Vsb | 2.5 A |
| Combined +3.3V/+5V | 100 W |
| Combined +12V | 649.2 W |
| Hold-up Time | >17 ms at 80% load |
| Protections | OCP/OVP/OPP/SCP/OTP |
| Mainboard Connector | 24-pin ATX |
| PCIe 6+2pin | 4 |
| PCIe 8pin | 1 |
| SATA Connectors | 8 |
| Molex 4pin | 2 |
| Floppy | 1 |
| Cable Type | Non-modular, black round cables |
| Color | Black |
