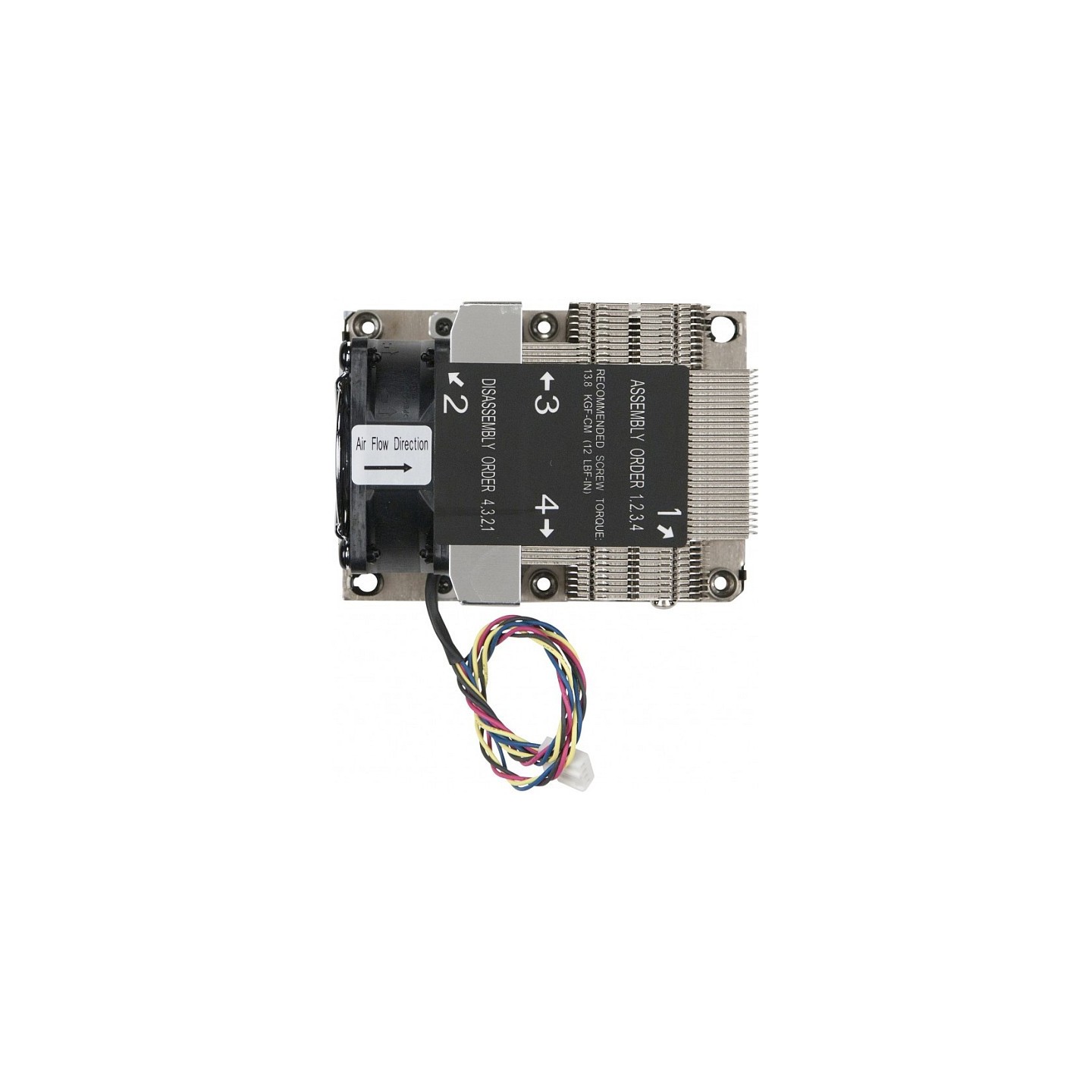

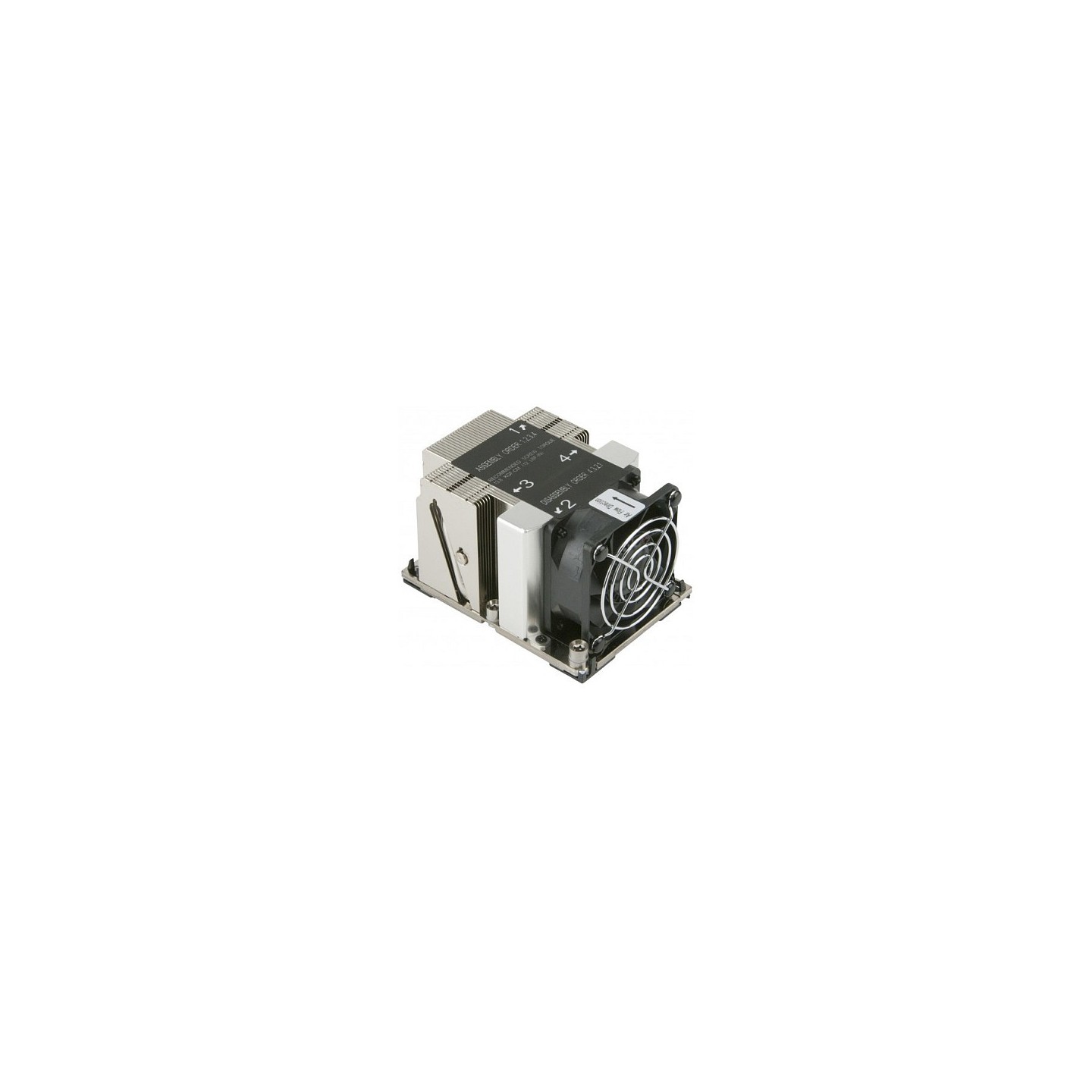

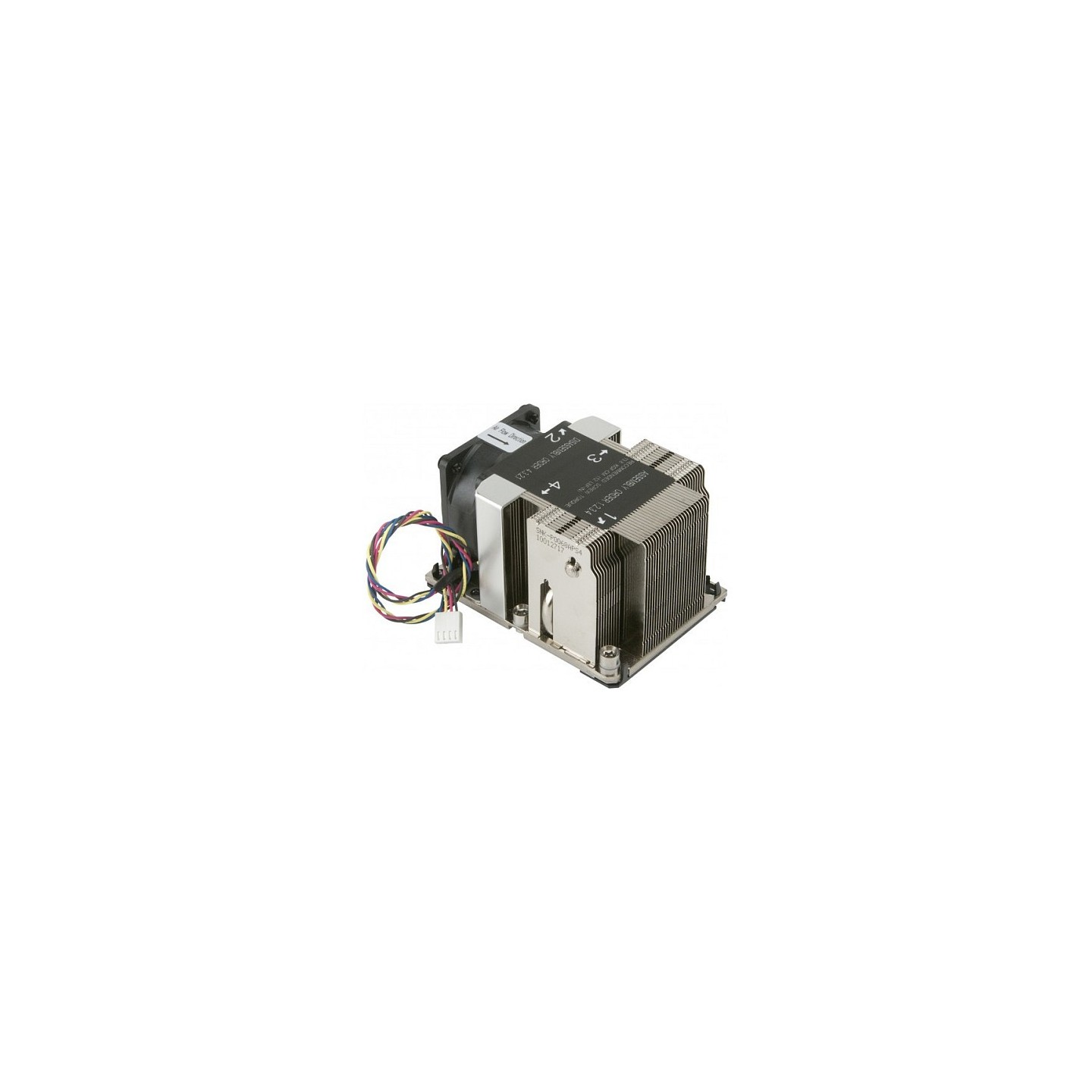

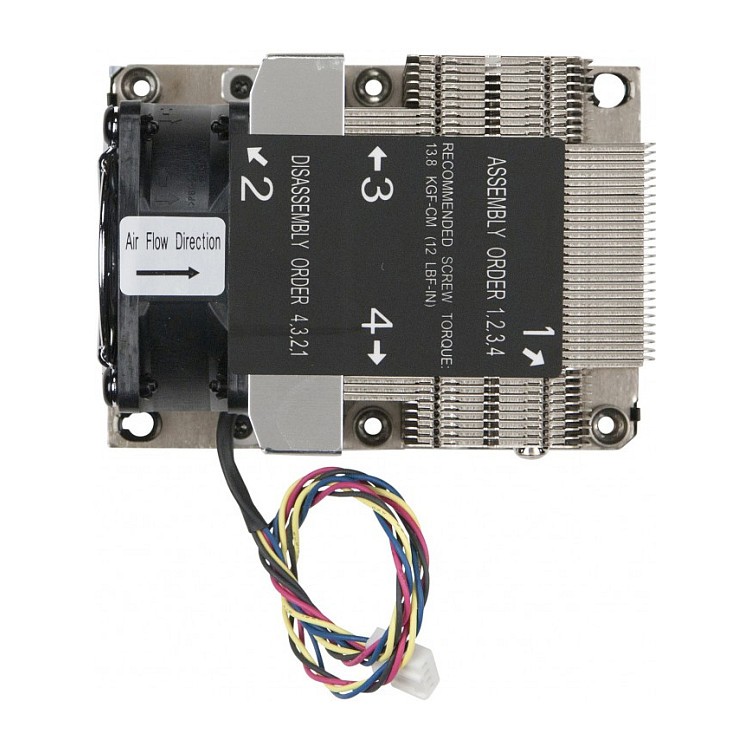

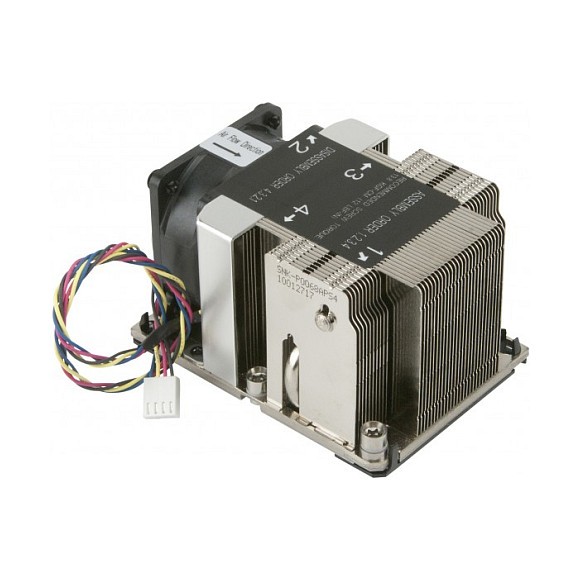

Supermicro SNK-P0068APS4 2U LGA3647 CPU Cooler 205W - 60mm Fan (Brown Box)
Supermicro SNK-P0068APS4 is a 2U active CPU cooler for Intel LGA3647-0 (narrow ILM) Xeon Scalable processors up to 205W TDP. Features 60mm 4-pin PWM fan at 8400 RPM, 52dB noise, front-side blow design for X11 servers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | Intel LGA3647 |
| Cooling (CPU & Case) - Fan Size | 60 mm |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Silver / Grey |
| Cooling (CPU & Case) - Special Features | Industrial / High Speed Low Profile |
The Supermicro SNK-P0068APS4 is a high-performance 2U active CPU heat sink designed specifically for Intel Xeon Scalable processors using the LGA3647-0 socket with narrow ILM mounting mechanism. This cooler supports up to 205W TDP and is optimized for Supermicro X11 generation 2U servers, ensuring reliable thermal management in demanding server environments.
It features a 60mm cooling fan with 4-pin PWM speed control, operating at a rated speed of 8400 RPM and 12VDC. The fan delivers airflow from the front side with an acoustic noise level of 52 dB(A). The heatsink dimensions are 108 x 78 x 64 mm, making it suitable for compact 2U chassis while maintaining excellent cooling efficiency through copper/aluminum construction with heat pipes.
With an MTBF of 145,190 hours and RoHS/REACH compliance, this cooler offers long-term reliability for uni-processor and dual-processor configurations. Ships in brown box packaging.
- Socket: LGA3647-0 (Narrow ILM)
- TDP Support: Up to 205W
- Fan Specs: 60x60x25mm, 8400 RPM, 52dB
- Form Factor: 2U Active
- Warranty: 1-3 years (varies by vendor)
| Recommended Placement | Processor |
| Type | Air Cooling |
| Fan Diameter | 6 cm |
| Supported Processor Sockets | LGA 3647 (Socket P) |
| Compatible Processors | Intel® Xeon® Scalable |
| Mean Time Between Failures (MTBF) | 145190 h |
| Fan Connector | 4-pin PWM |
| Rack Capacity | 2U |
| Rated Voltage | 12 V |
| Thermal Design Power (TDP) | 205 W |
| Fan Dimensions (W x D x H) | 60 x 25 x 60 mm |
| Noise Level | 52 dB |
| Mean Time To Failure (MTTF) | 145190 h |
| Heatsink Dimensions | 108 x 78 x 64 mm |
| Rated Fan Speed | 8400 RPM |
| Fan Position | Front Side |
| HS Tariff Number | 84733080 |
| Mounting Mechanism | Narrow ILM (LGA3647-0) |
