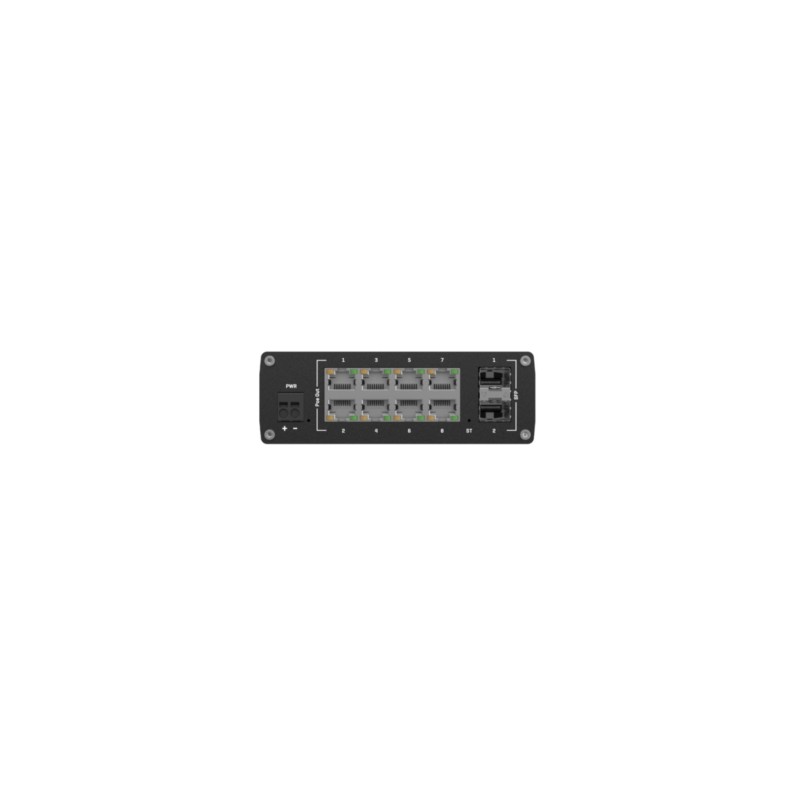

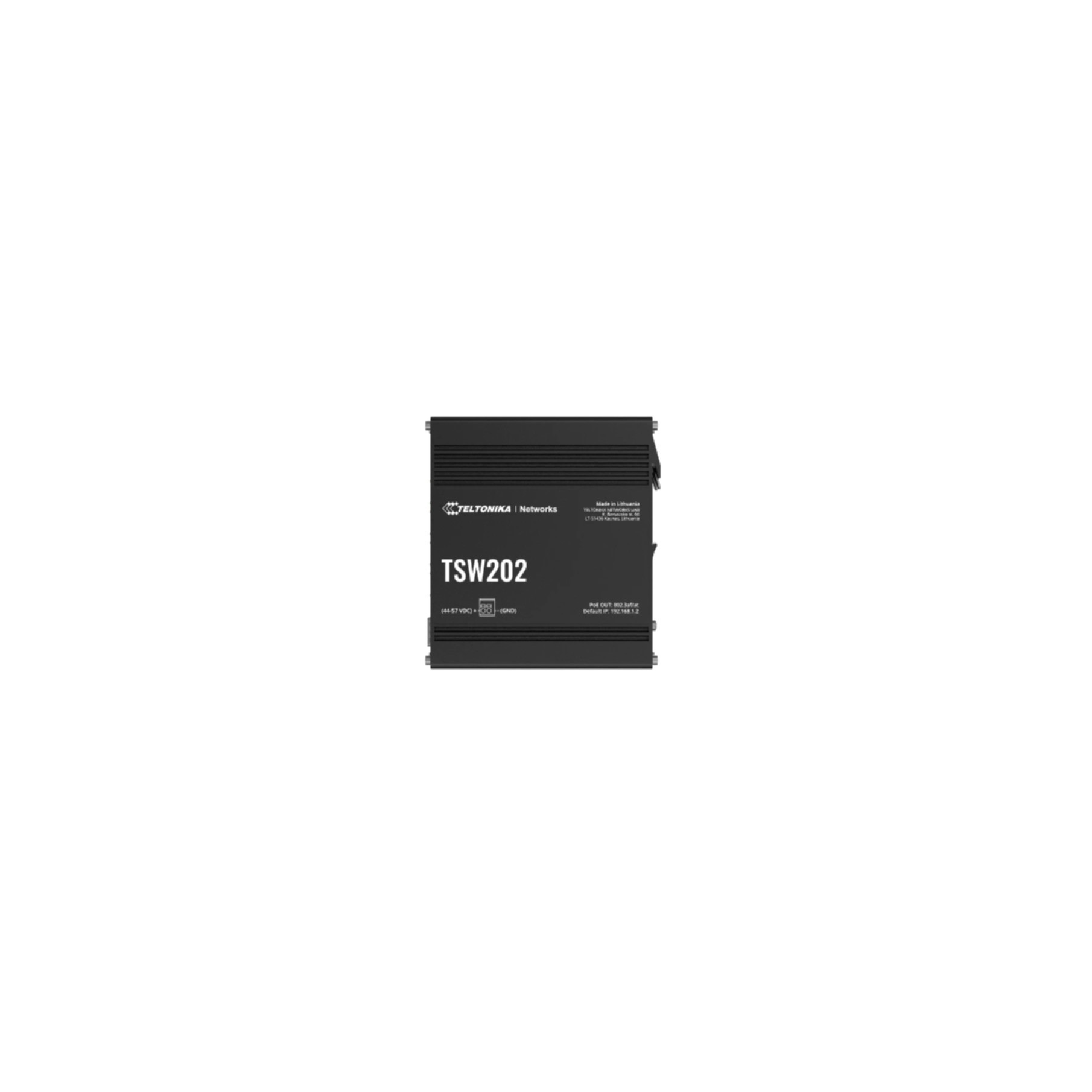

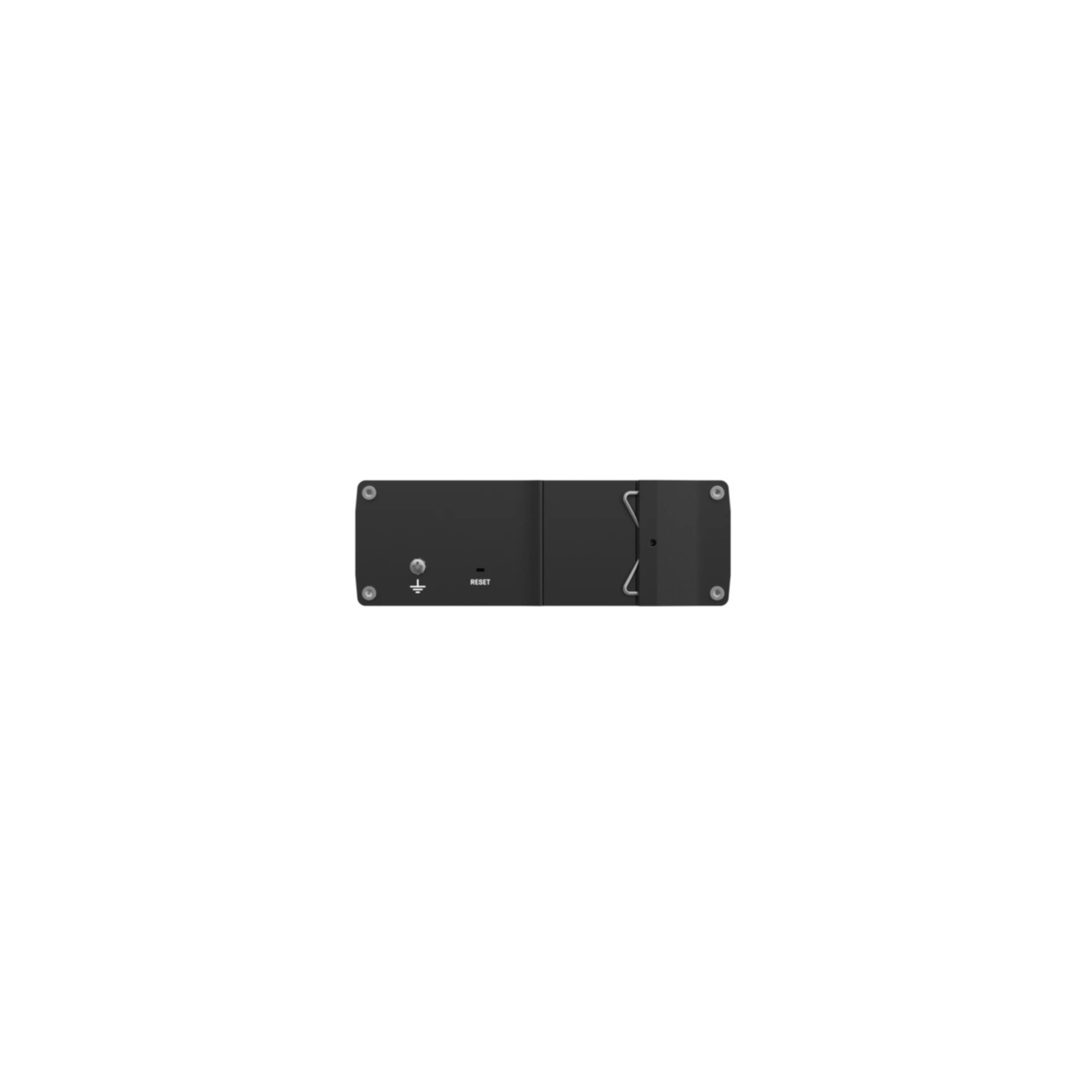

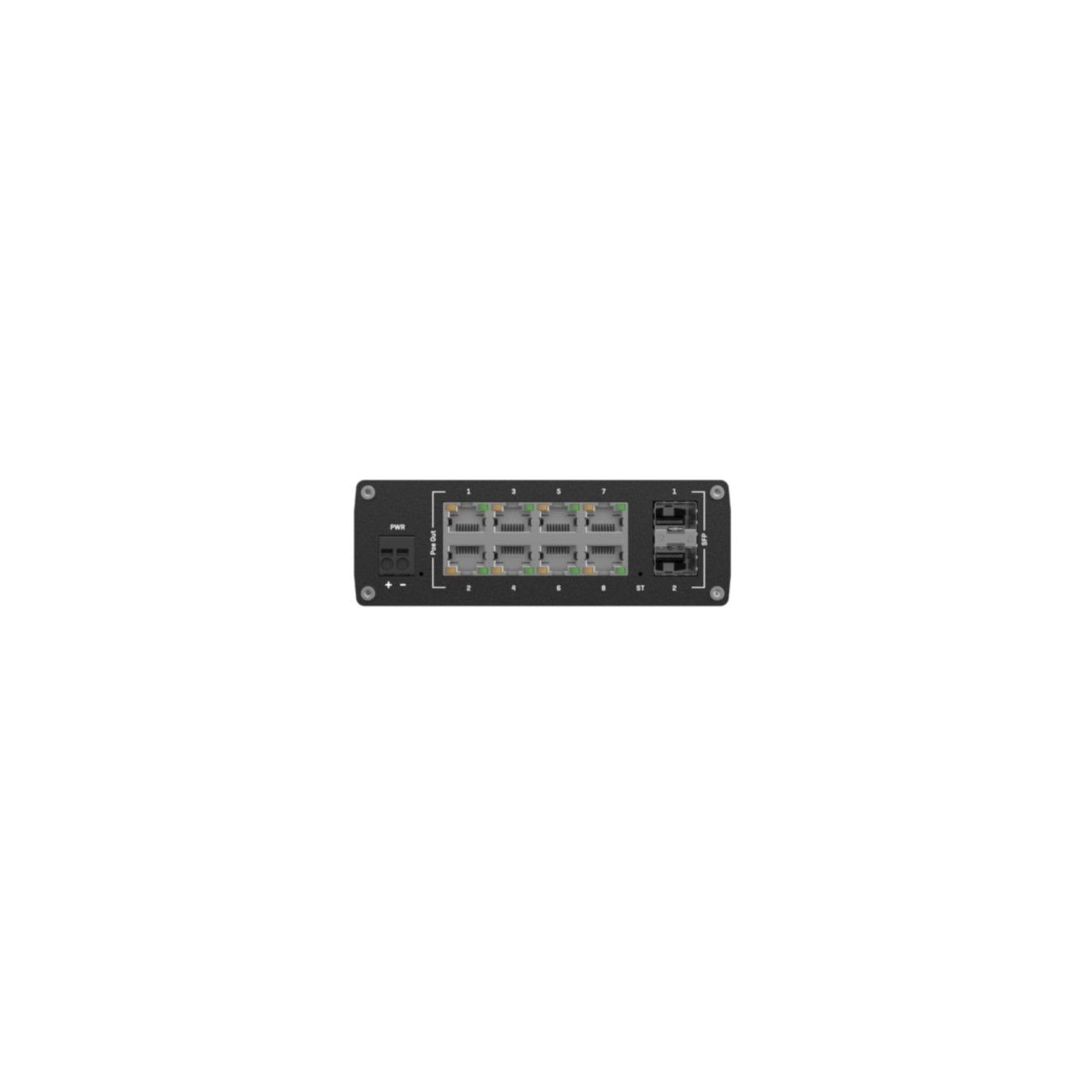

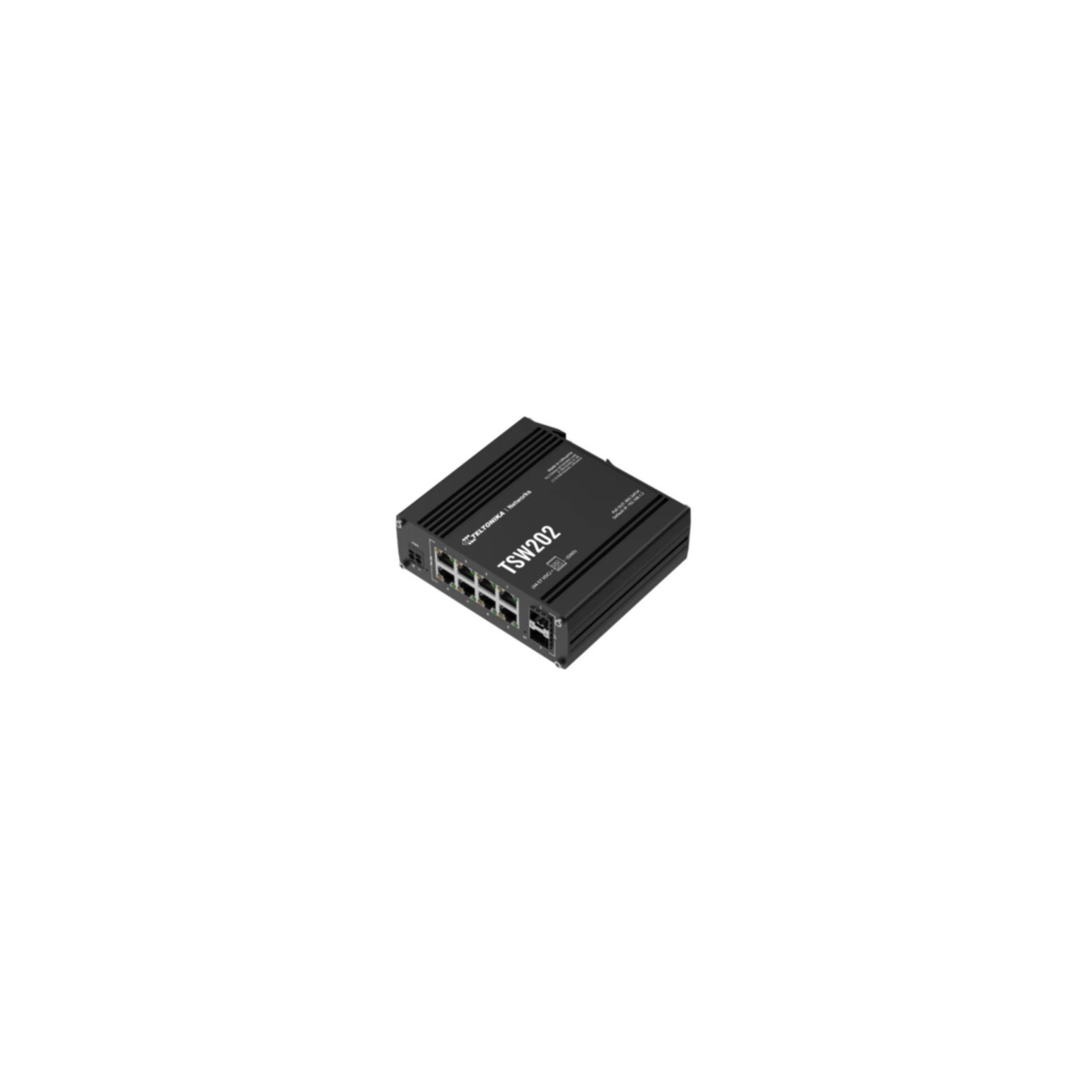

Teltonika TSW202 - 8-Port Gigabit Managed L2 PoE Switch, 240W Total, DIN-Rail, IP30 (Aluminium/Blue)
Managed L2 8x Gigabit RJ45 + 2x SFP, 8x Active PoE 30W (240W total), web-managed, QoS, port mirroring, DIN-rail, IP30, -40–75°C operating range.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 8 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | No |
Teltonika TSW202. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3af. IEEE 802.3at. IEEE 802.3z. Power connector: Terminal block (3-pin). Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 2 |
| Power connector | Terminal block (3-pin) |
| Networking standards | IEEE 802.1p. IEEE 802.3af. IEEE 802.3at. IEEE 802.3z |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 10000 |
| DHCP features | DHCP client |
| Product colour | Aluminium. Blue |
| Housing material | Aluminium |
| LED indicators | Power. Status |
| International Protection (IP) code | IP30 |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Width | 132 mm |
| Depth | 44.2 mm |
| Height | 122 mm |
| Weight | 610 g |
