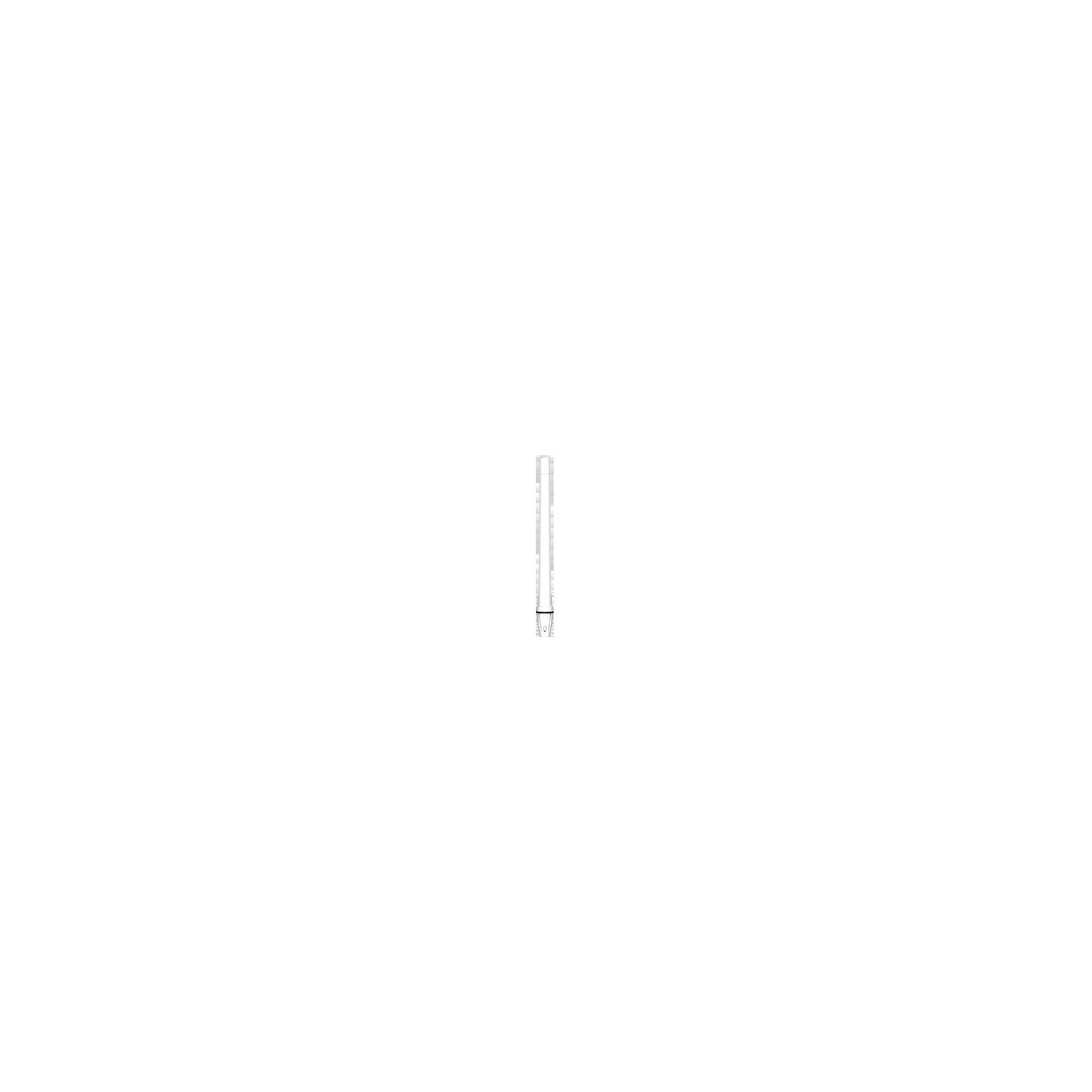

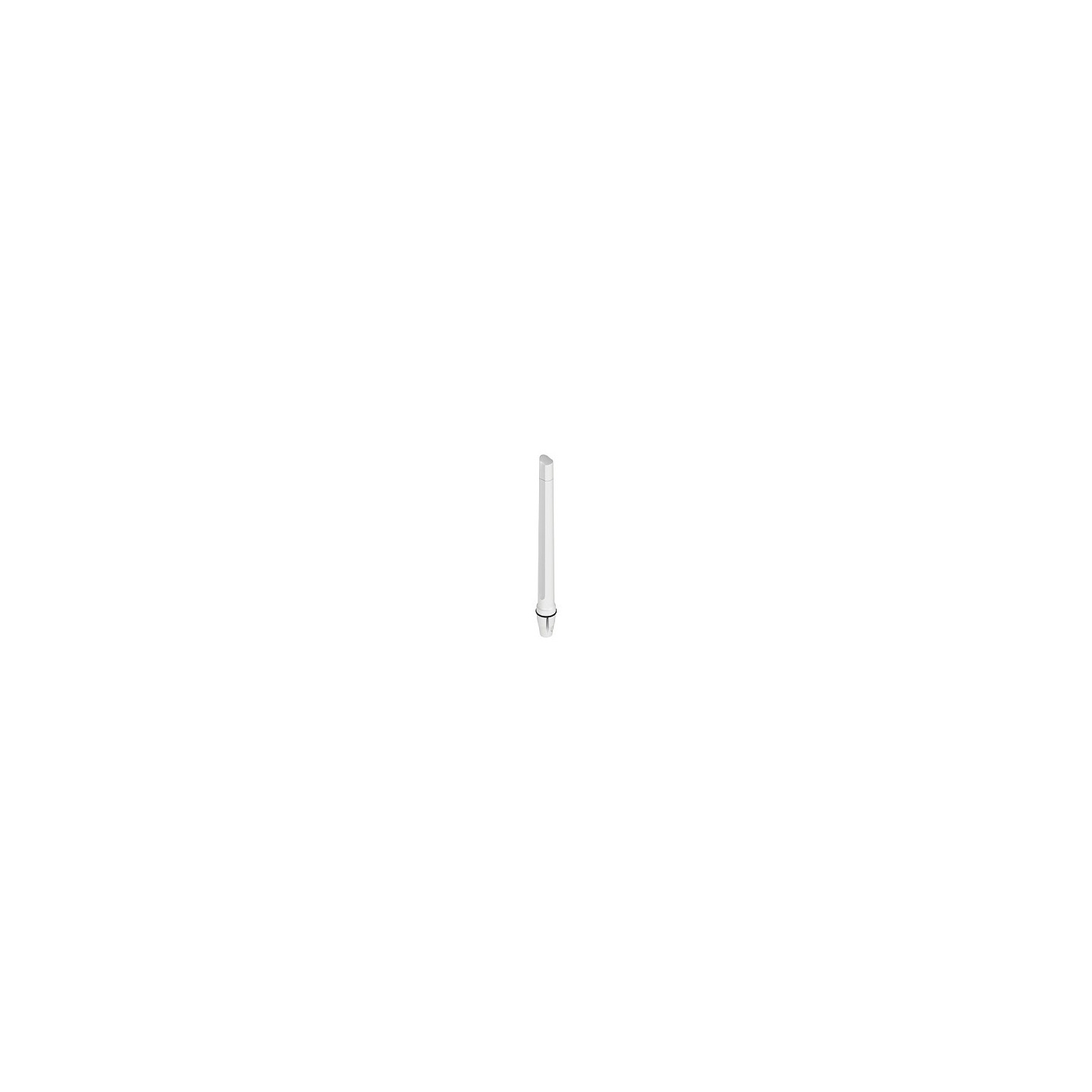

Poynting Antennas 5G LTE Marine A-OMNI-0414-V1-01 weiß SMA-M 2x2m Twin Kabel
Poynting A-OMNI-0414-V1-01. 3.5 dBi. 0.617 -3.8 GHz. 50 Ohm. Omnidirektionale Antenne. SMA. Männlich
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Poynting A-OMNI-0414-V1-01. Antenne Zunahmeniveau (max): 3.5 dBi. Frequenzband: 0.617 -3.8 GHz. Impedanz: 50 Ohm. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: SMA. Steckerverbindergeschlecht: Männlich. Konformitätsbescheinigungen: CE. RoHS. Zertifizierung: MIL-STD 810G/ASTM B117. Breite: 75 mm. Tiefe: 75 mm. Höhe: 750 mm. Verpackungsbreite: 150 mm. Verpackungstiefe: 100 mm. Verpackungshöhe: 705 mm
| Frequenzband | 0.617 -3.8 GHz |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 3.5 dBi |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | SMA |
| Steckerverbindergeschlecht | Männlich |
| Polarisation | Vertikale Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 2:1 |
| Produktfarbe | Weiß |
| Schutzfunktion | Staubresistent. UV-beständig. Wasserfest |
| Internationale Schutzart (IP-Code) | IP68 |
| Feature | Nachhaltigkeitskonformität |
| Überlebens-Windgeschwindigkeit | 160 km/h |
| Maximale Eingangsleistung | 10 W |
| Kabellänge | 2 m |
| Kabeltyp | 2 x Twin HDF 195 |
| Montage | Wand- / Mast |
| Zweck | Drinnen |
| Konformitätsbescheinigungen | CE. RoHS |
| Zertifizierung | MIL-STD 810G/ASTM B117 |
| Betriebstemperatur | -40 - 80 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 75 mm |
| Tiefe | 75 mm |
| Höhe | 750 mm |
| Gewicht | 860 g |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 100 mm |
| Verpackungshöhe | 705 mm |
| Paketgewicht | 1.9 kg |
| Menge pro Packung | 1 Stück(e) |
| Ursprungsland | China |
