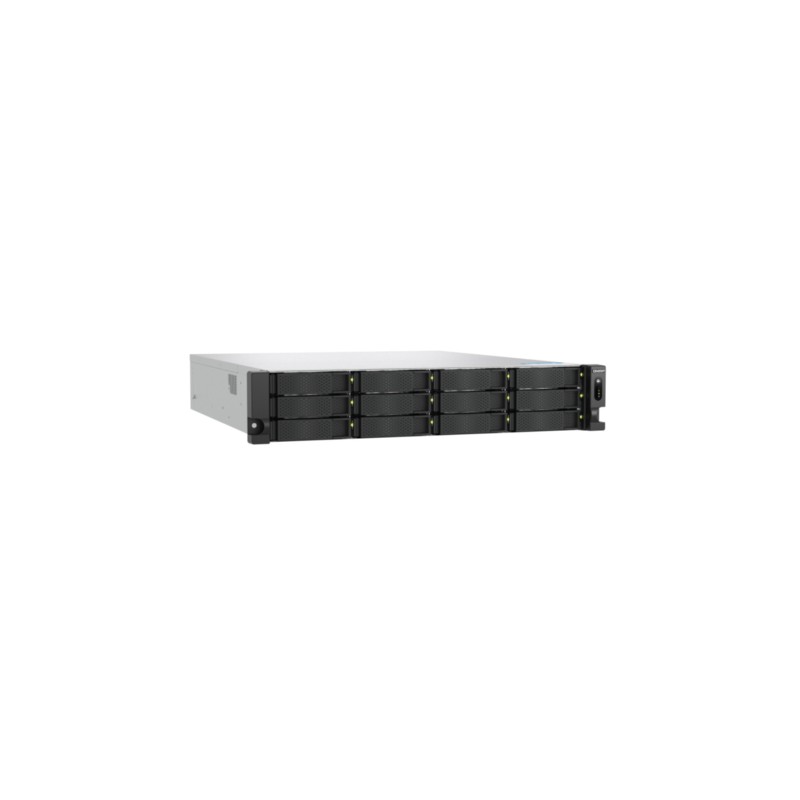

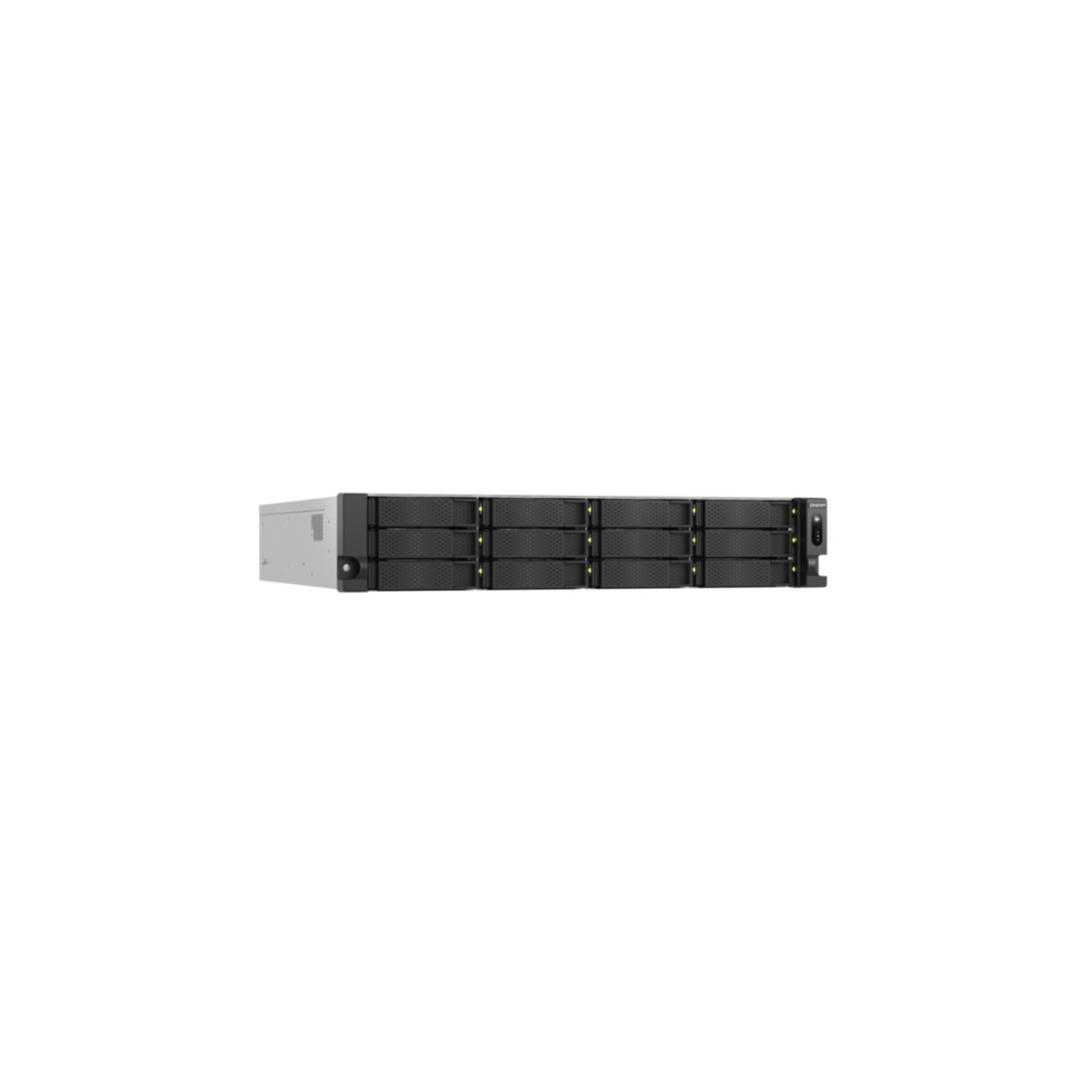

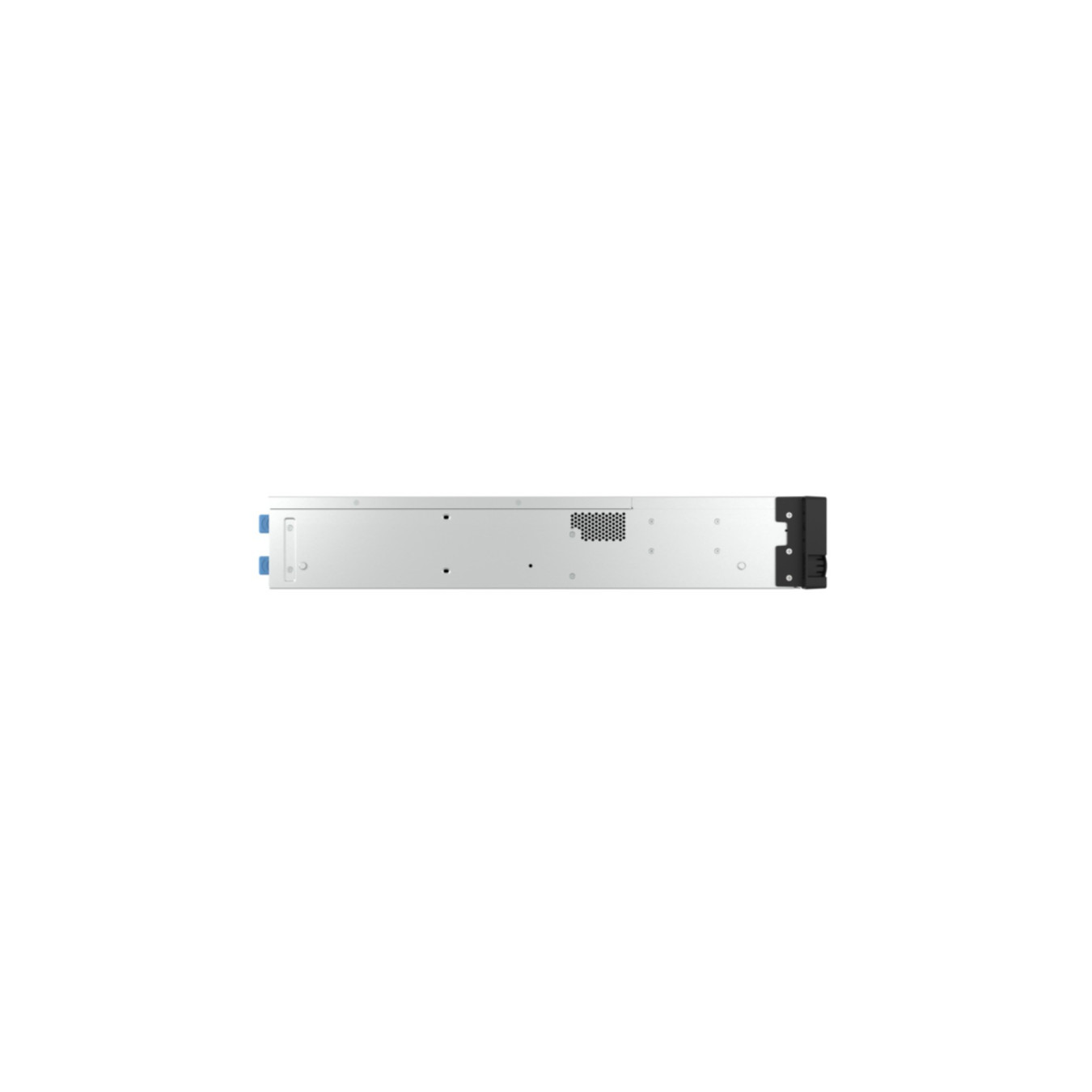

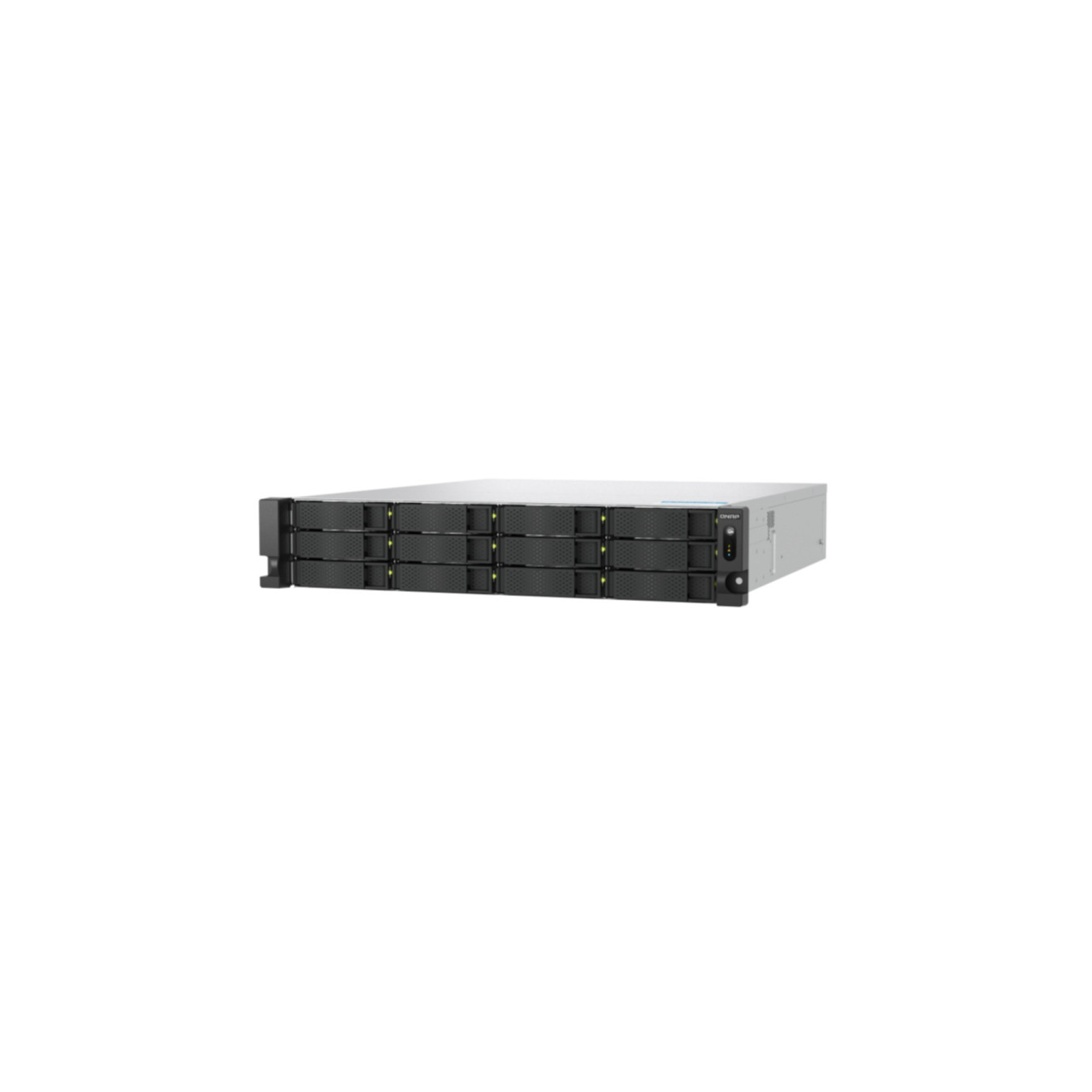

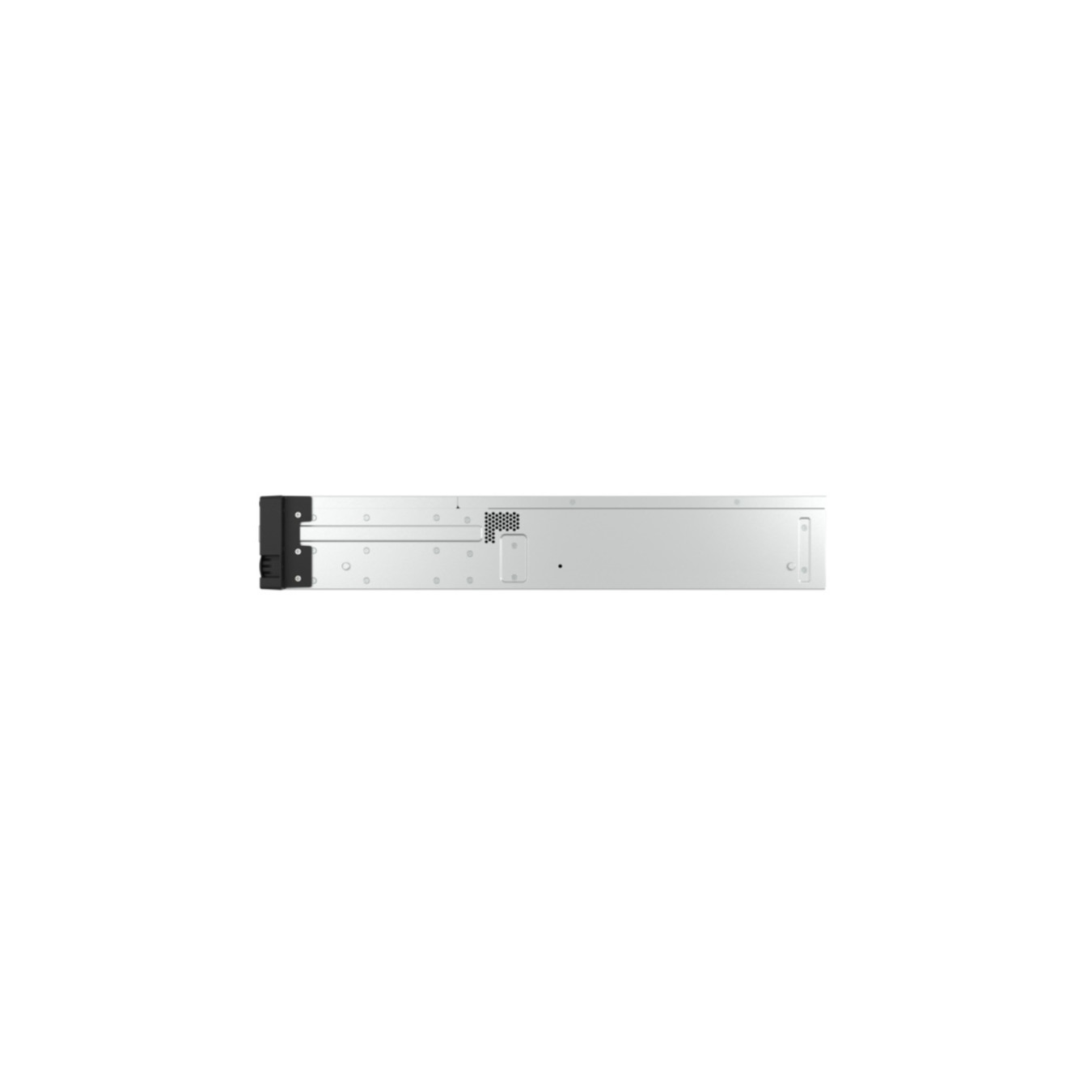

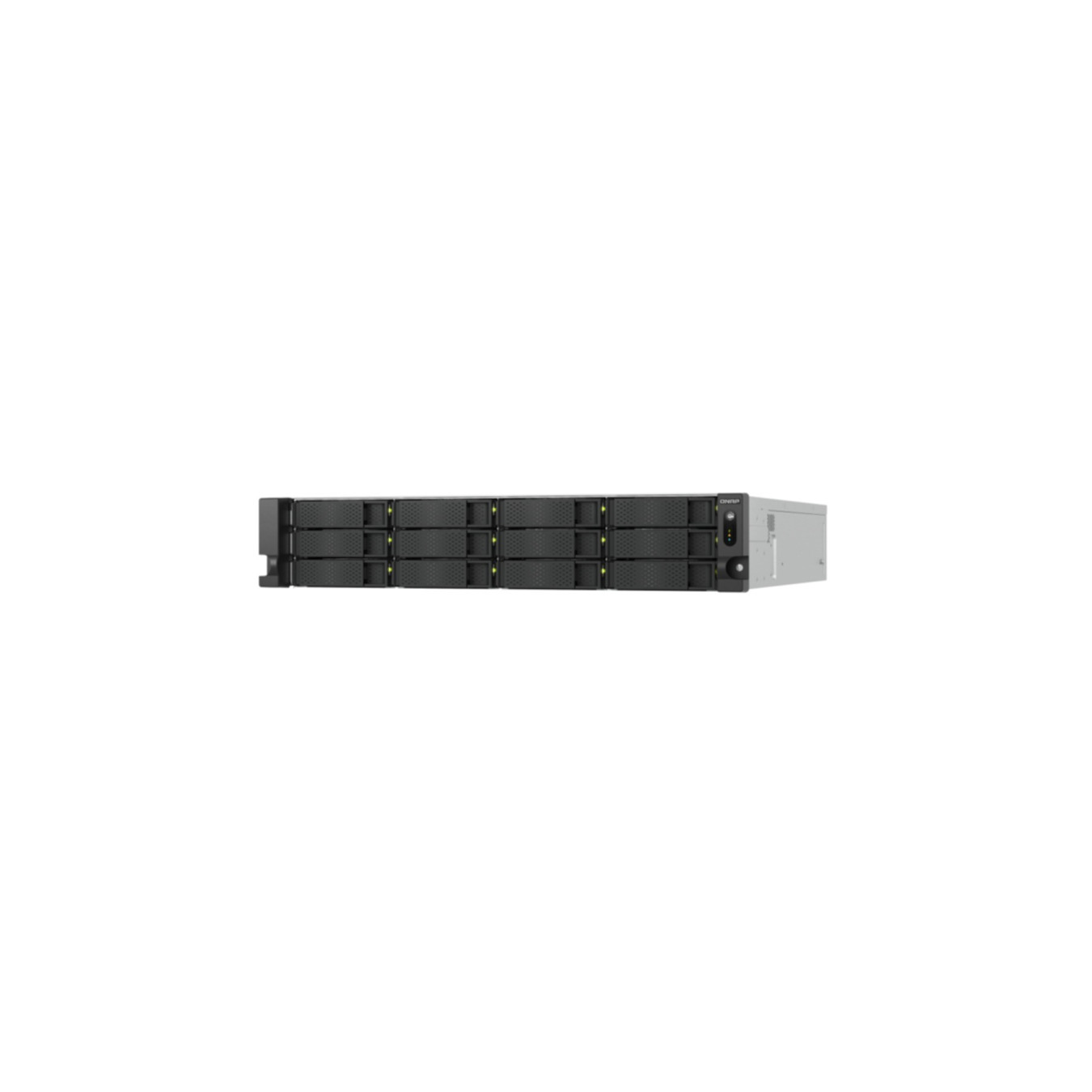

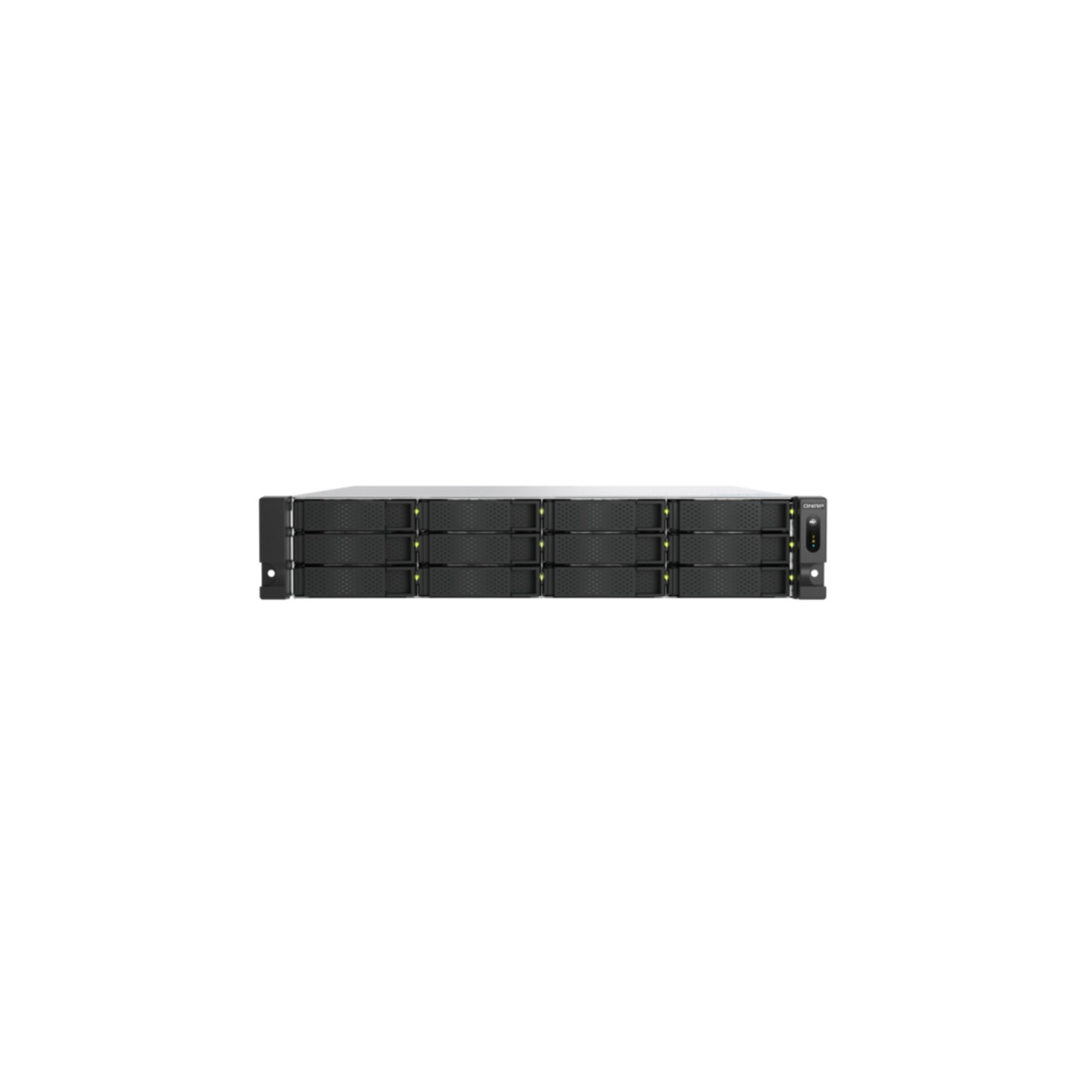

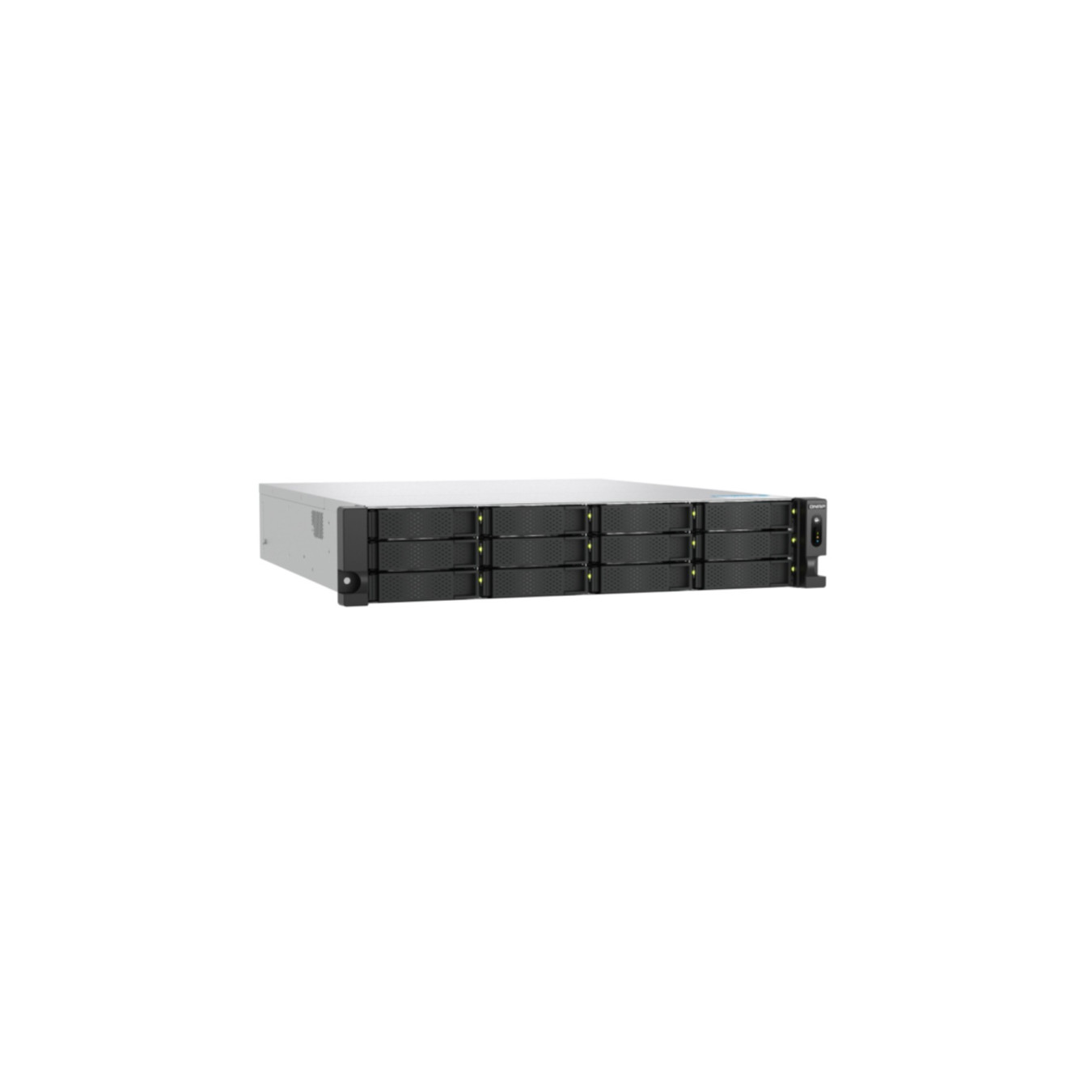

QNAP TSH1277AXU-RP-R7-32G - 12-Bay 2U Rack NAS, 32GB RAM, 2.5/3.5in Drive Support
Enterprise 12-bay 2U QNAP rack NAS (TSH1277AXU-RP-R7) with 32GB RAM, built-in PSU, supports RAID 0/1/5/6/10/50/60/JBOD, 2.5/3.5in drives and 4x LAN ports.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
QNAP TS-H1277AXU-RP. Type: NAS. Chassis type: Rack (2U). Device class: Large Enterprise Business. Processor family: AMD Ryzen™ 7. Internal memory: 32 GB. Internal memory type: DDR5. Operating system installed: QuTS hero
| Supported storage drive interfaces | Serial ATA II. Serial ATA III |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Intel VT-x with Extended Page Tables (EPT) |
| RAID levels | 0. 1. 5. 6. 10. 50. 60. JBOD |
| Supported file systems | FAT32. HFS+. NTFS. ZFS. exFAT. ext3. ext4 |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Bus type | DMI3 |
| CPU configuration (max) | 1 |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 192 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 10.100.1000.2500.5000.10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| Supported network protocols | IPv4. IPv6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | HDD. LAN. Power. SSD. Status |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup features | Cloud. iSCSI LUN |
| Management protocols | SNMP V2/V3 |
| Security algorithms | 256-bit AES. FIPS 140-2. HTTPS. TLS |
| Browser supported | Apple Safari. Google Chrome. Microsoft Edge. Mozilla Firefox |
| Share folder | CIFS/SMB |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Windows operating systems supported | Windows 10. Windows 7. Windows 8 |
| Linux operating systems supported | CentOS 7.0. Ubuntu 14.04 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite. Mac OS X 10.11 El Capitan. Mac OS X 10.12 Sierra. Mac OS X 10.13 High Sierra. Mac OS X 10.14 Mojave. Mac OS X 10.15 Catalina |
| Server operating systems supported | Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 2 |
| Power consumption (typical) | 367.65 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
| Width | 482 mm |
| Depth | 550 mm |
| Height | 88.6 mm |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 2 |
| Number of screws | 84 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
