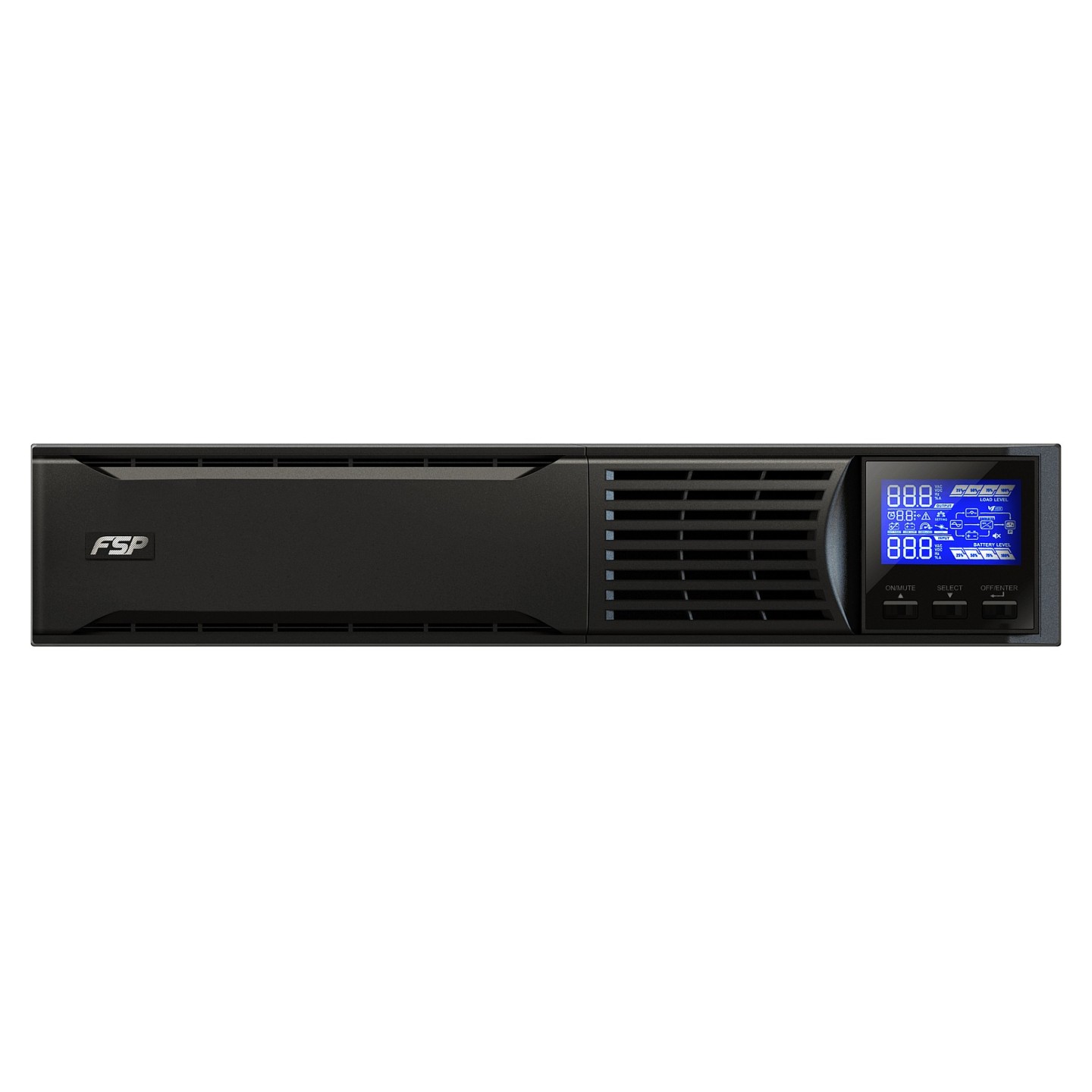

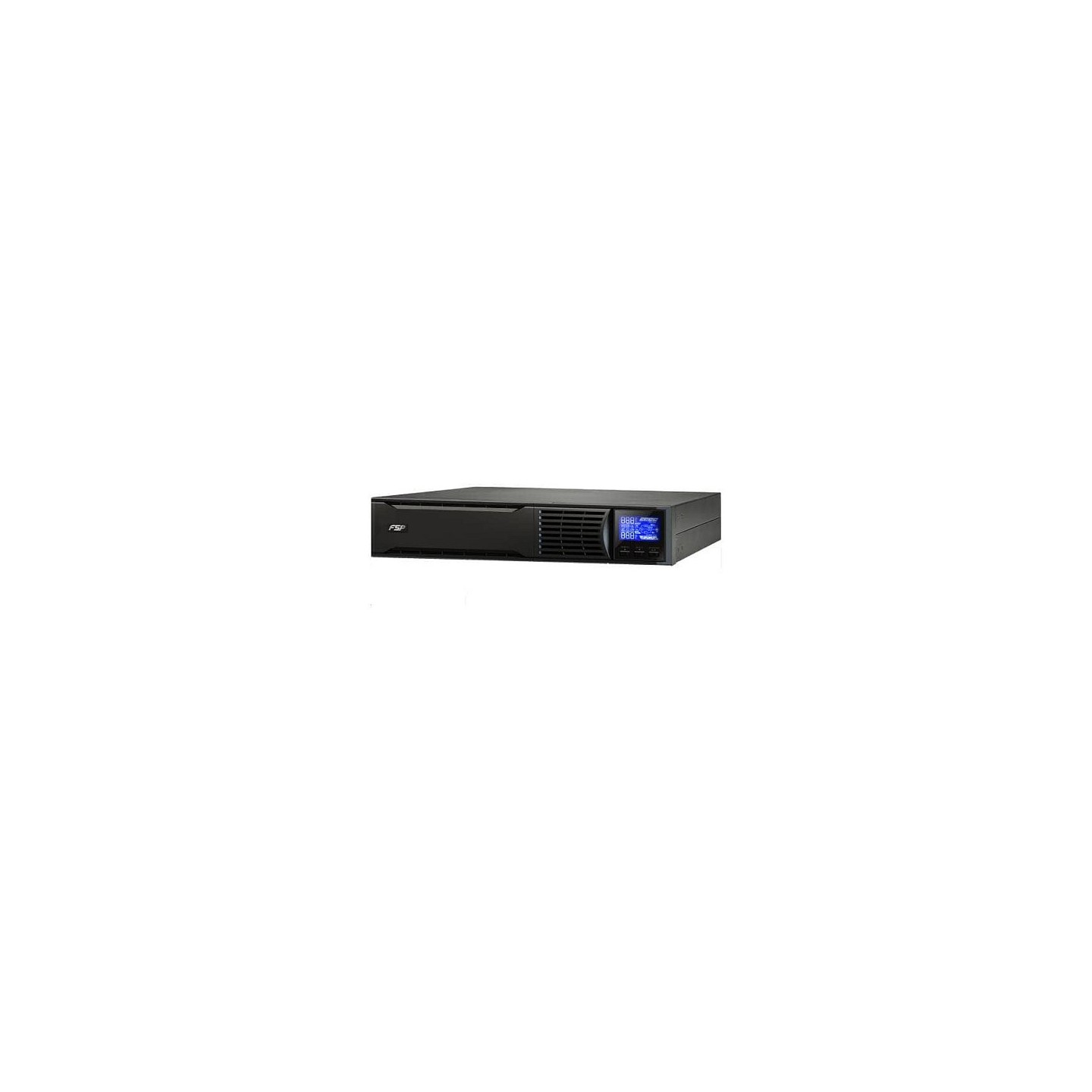

FSP Champ 2K Rack Online UPS 2000VA 1800W (Boxed)
FSP Champ 2K Rack 2000VA/1800W online UPS with pure sine wave output, 2U rackmount form factor, LCD display, automatic voltage regulation, and dual cooling fans for reliable power backup.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 2000 - 2999 VA |
| UPS & Power Backup - Power Output (Watts) | 1500 to 1999 W |
| UPS & Power Backup - Topology | Online (Double Conversion) |
| UPS & Power Backup - Form Factor | Rackmount |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 2 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation LCD Display Pure Sine Wave Output |
The FSP Champ 2K Rack Online UPS is a professional-grade uninterruptible power supply designed for mission-critical applications requiring continuous power protection. Featuring a double-conversion (online) topology, this 2000VA/1800W unit delivers pure sine wave output that filters even the fastest power quality disturbances, making it ideal for sensitive equipment such as servers, network infrastructure, and data center applications. The compact 2U rackmount form factor enables seamless integration into standard server racks.
Key technical features include automatic voltage regulation (AVR) for correcting low and high voltage conditions, a large LCD display with adjustable menus for real-time monitoring, and dual 80mm cooling fans for active thermal management. The unit supports multiple connectivity options including USB and RS-232 serial ports with ViewPower management software for local and remote monitoring, plus an intelligent slot for additional communication modules. With a typical transfer time of just 4ms and power-saving modes achieving up to 88% efficiency, the Champ 2K provides both performance and energy efficiency.
Specifications and features:
- Capacity: 2000VA / 1800W with 0.99 power factor
- Input voltage range: 120-300VAC, 40-70Hz frequency
- Output voltage: 110/115/120/127/208/220/230/240VAC (user-selectable)
- Pure sine wave output with <3% THD (linear load)
- Battery: 12V, 9Ah with 4-hour charge time (90%)

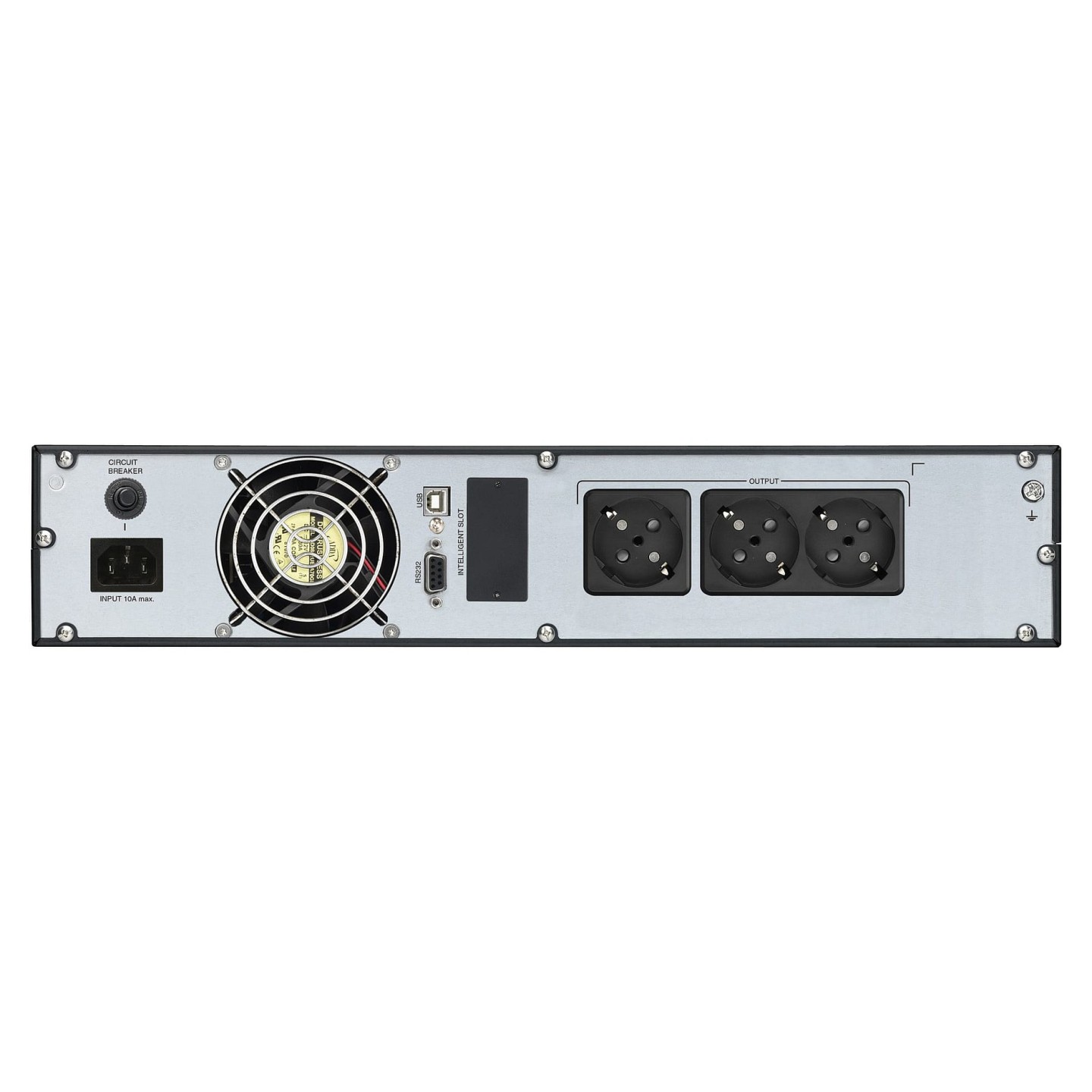

- Connectivity: 3x IEC C13 outputs, USB Type-B, RS-232 serial port
- Noise level: <50dB @ 1 meter
- Operating temperature: 0-40°C, humidity 20-90% non-condensing
- Includes USB cable and user manual
| UPS Topology | Double Conversion (Online) |
| Capacity | 2000 VA / 1800 W |
| Output Waveform | Pure Sine Wave |
| Input Voltage Range | 120-300 VAC |
| Input Frequency | 40-70 Hz |
| Output Voltage (Selectable) | 110/115/120/127/208/220/230/240 VAC |
| Output Frequency | 47/63 Hz |
| Output Voltage Regulation | ±1% |
| Transfer Time | 4 ms (typical) |
| Power Factor | ≥0.99 @ nominal voltage |
| Total Harmonic Distortion (Linear Load) | <3% |
| Total Harmonic Distortion (Non-Linear Load) | <6% |
| Crest Factor | 3:1 |
| Noise Level | <50 dB @ 1 meter |
| Battery Type | Sealed Lead Acid (SLA) |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
| Battery Charge Time (90%) | 4 hours |
| Number of Battery Cells | 4 |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Unit Width | 410 mm |
| Unit Height | 88 mm |
| Unit Depth | 438 mm |
| Unit Weight | 19 kg |
| Cooling | Active (2x 80mm fans) |
| Display Type | LCD with adjustable menus |
| Control Interface | Push buttons |
| Input Plug Type | IEC C14 with Type F Schuko cable |
| Output Receptacles | 3x IEC C13 |
| USB Port | 1x USB Type-B |
| Serial Port | 1x RS-232 |
| Intelligent Slot | Yes (for additional communication modules) |
| Management Software | ViewPower (supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, macOS) |
| SNMP Support | Optional |
| Power Saving Modes | ECO, Advanced ECO, Green (up to 88% efficiency) |
| Converter Mode | Yes |
| Automatic Voltage Regulation | Yes (corrects low and high voltages) |
| User Adjustable Voltage Sensitivity | Yes |
| Adjustable Charging Current | Yes |
| Failure Notifications | Yes |
| Resettable Circuit Breaker | Yes |
| Alarm Modes | Battery operation alarm, fault alarm, low battery warning, overload alarm |
| Operating Temperature | 0-40°C |
| Relative Humidity (Operating) | 20-90% (non-condensing) |
| Color | Black |
| Included Accessories | Input power cable, USB host cable, user manual |
| Compliance Certifications | CE |
| Generator Compatible | Yes |
| HS Tariff Code | 85078000 |
