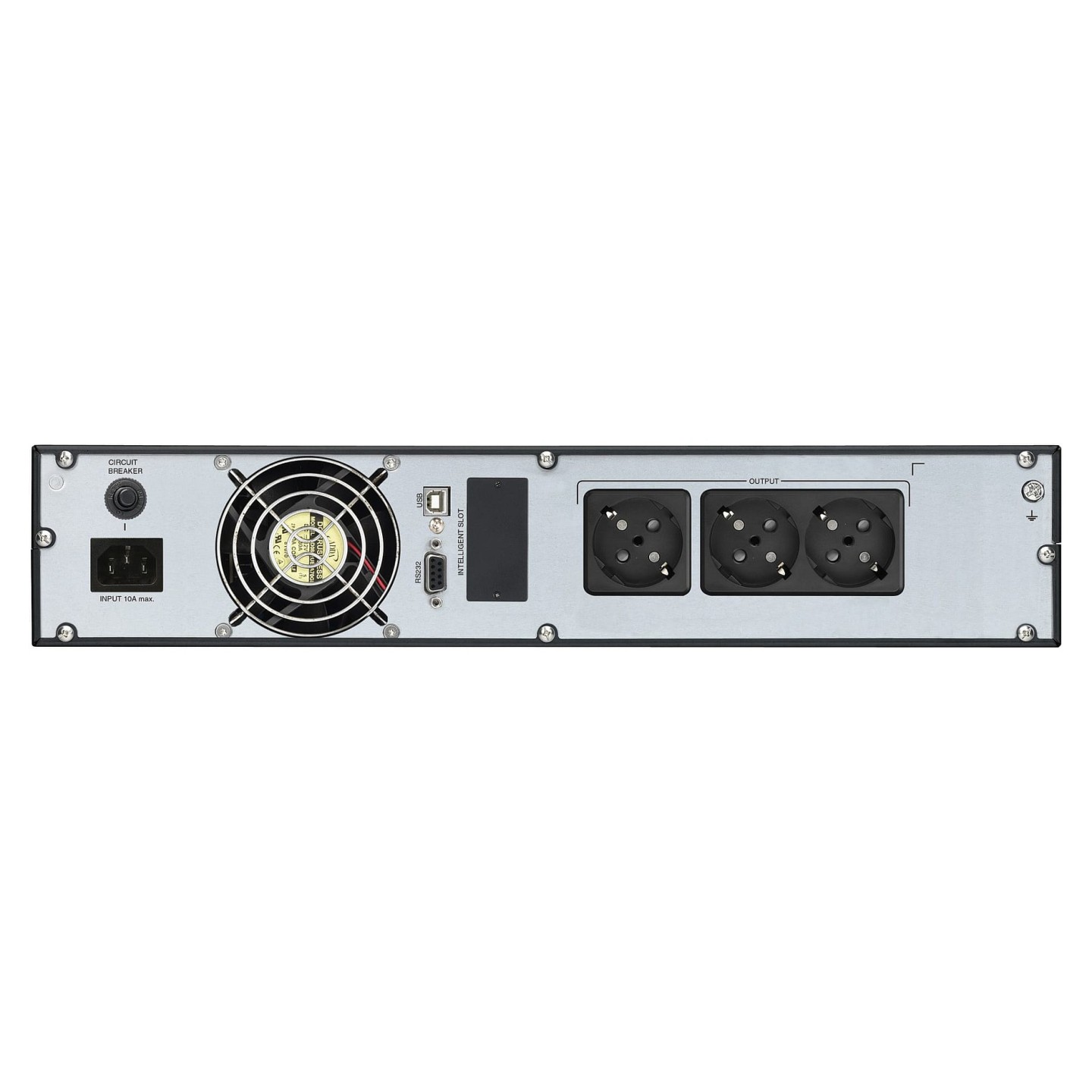

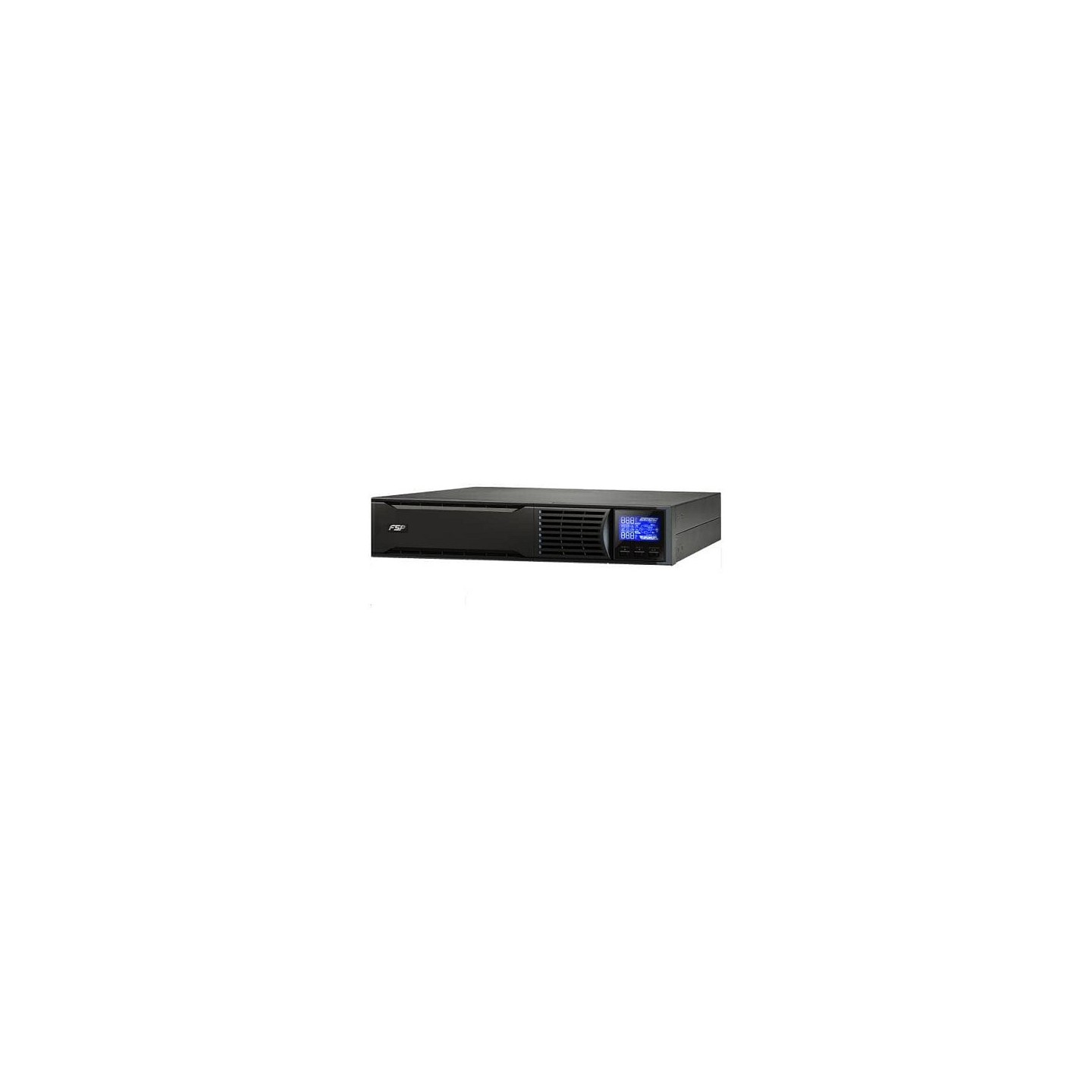

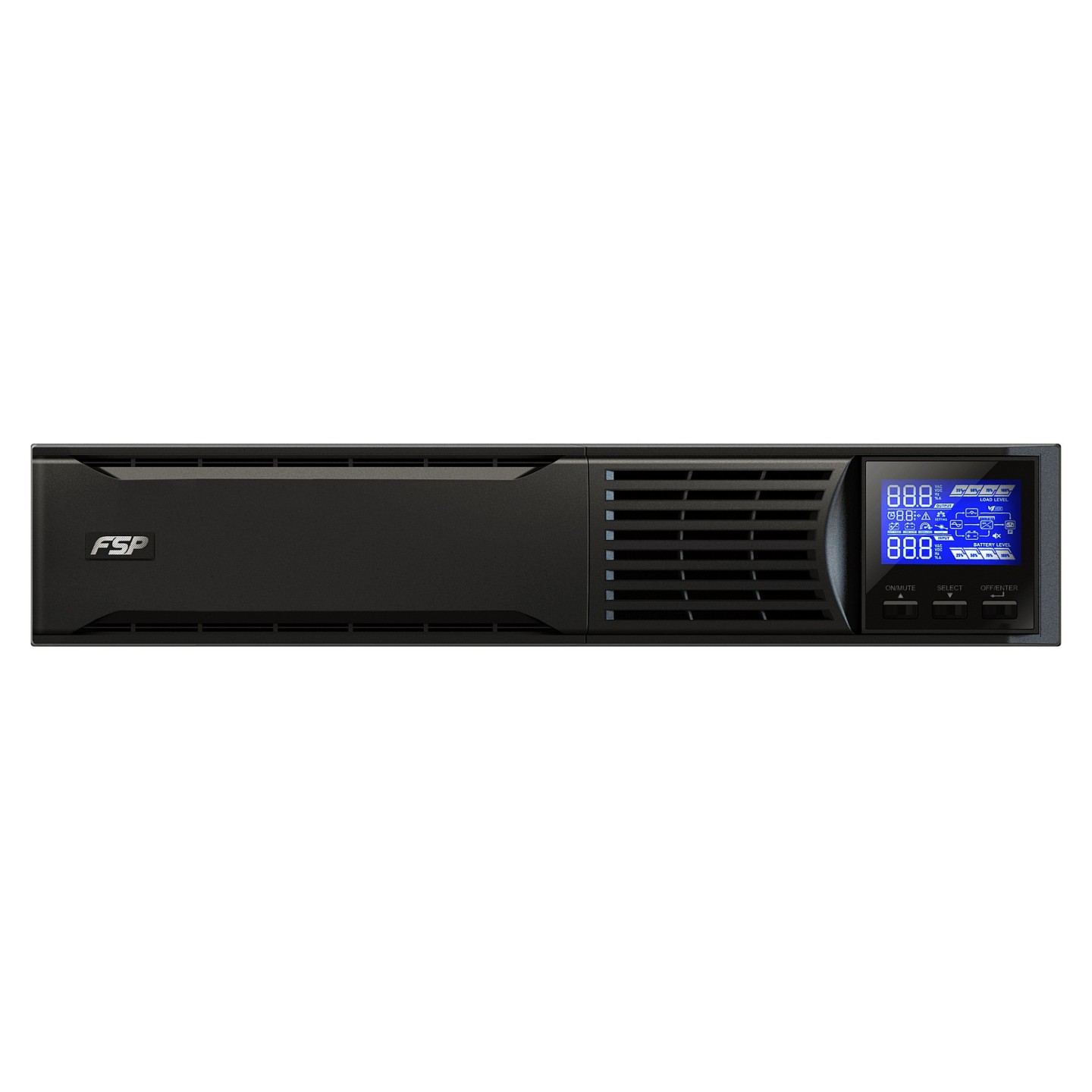

FSP Champ 2K Rack Online UPS 2000VA 1800W
FSP Champ Rack 2K. Doppelwandler (Online). 2 kVA. 1800 W. Reiner Sinus. 120 V. 300 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
FSP Champ Rack 2K. USV-Topologie: Doppelwandler (Online). Ausgangskapazität: 2 kVA. Ausgangsleistung: 1800 W. AC-Steckertypen: Typ F. Anzahl der AC-Ausgänge: 3 AC-Ausgänge. USB-Port-Typ: USB Typ-B. Batteriekapazität: 9 Ah. Akku-/Batteriespannung: 12 V. Akku-Ladezeit (90 %): 4 h. Formfaktor: Rackmount. Produktfarbe: Schwarz. Rack-Kapazität: 2U. Konformitätsbescheinigungen: CE
| USV-Topologie | Doppelwandler (Online) |
| Ausgangskapazität | 2 kVA |
| Ausgangsleistung | 1800 W |
| Wellenform | Reiner Sinus |
| Eingangs-Betriebsspannung (min) | 120 V |
| Eingangs-Betriebsspannung (max) | 300 V |
| Eingangsfrequenz | 40 - 70 Hz |
| Ausgangs-Betriebsspannung (min) | 110 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Output Frequenz | 47/63 Hz |
| Regulierung der Ausgangsfrequenz | 0 Hz |
| Regulierung der Ausgangsspannung | 1% |
| Reaktionszeit | 0 ms |
| Leistungsfaktor | 0.99 |
| Crest-Faktor | 3:1 |
| Gesamtverzerrungsfaktor THD (lineare Last) | 3% |
| Gesamtverzerrungsfaktor THD (nichtlineare Last) | 6% |
| Geräuschpegel | 50 dB |
| Feature | Software-CD |
| Akustische Alarm-Modi | Alarm bei Batteriebetrieb. Störung. Warnung bei geringer Batterie. Überlastungsalarm |
| AC-Steckertypen | Typ F |
| Anzahl der AC-Ausgänge | 3 AC-Ausgänge |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB-Port-Typ | USB Typ-B |
| Serielle Schnittstelle | RS-232 |
| RS-232 port | 1 |
| Batteriekapazität | 9 Ah |
| Akku-/Batteriespannung | 12 V |
| Anzahl Batteriezellen | 4 |
| Akku-Ladezeit (90 %) | 4 h |
| Formfaktor | Rackmount |
| Rack-Kapazität | 2U |
| Kühlung | Aktiv |
| Produktfarbe | Schwarz |
| Steuerung | Tasten |
| Display-Typ | LCD |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 90% |
| Konformitätsbescheinigungen | CE |
| Mitgelieferte Kabel | Eingangskabel. USB-Kabel |
| Breite | 438 mm |
| Tiefe | 410 mm |
| Höhe | 88 mm |
| Gewicht | 19 kg |
| Warentarifnummer (HS) | 85078000 |
| Anzahl der Phasen | 1 |
