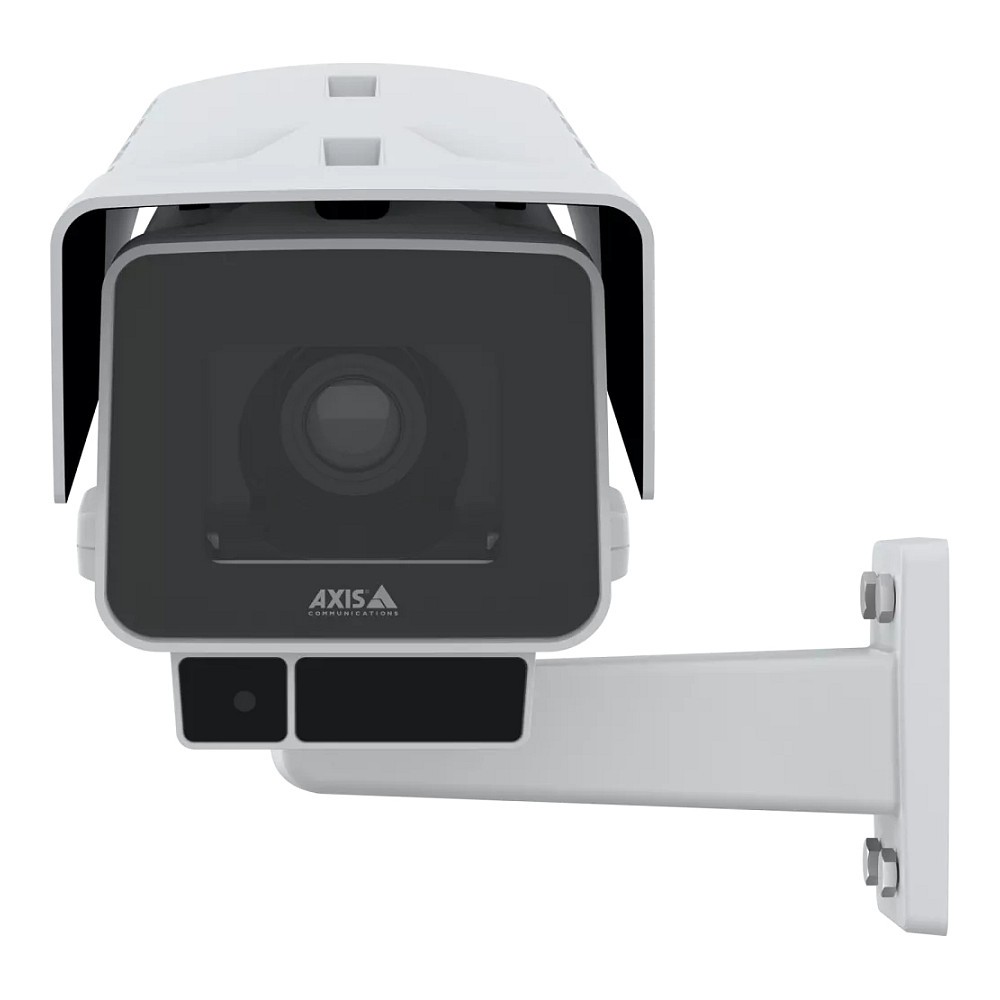

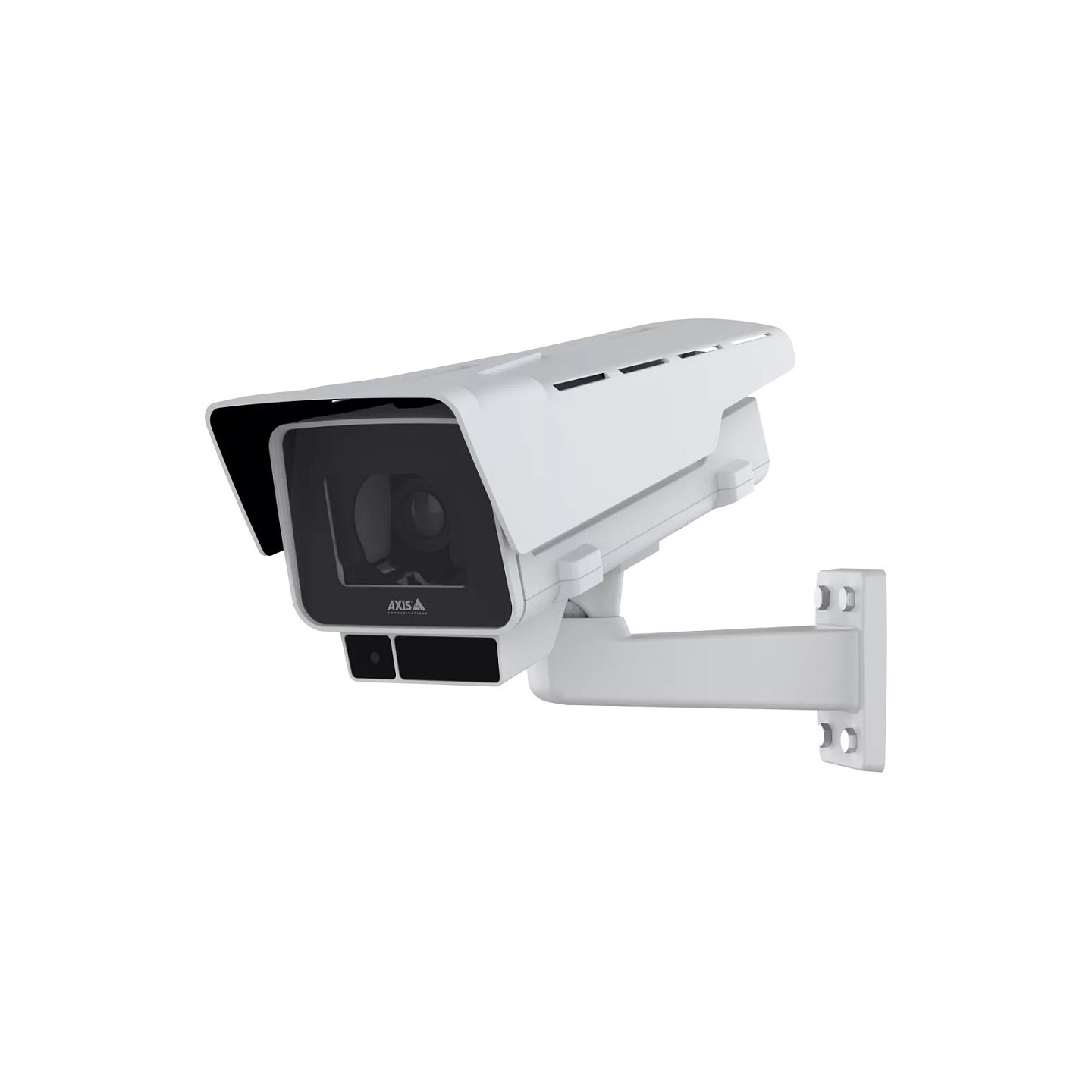

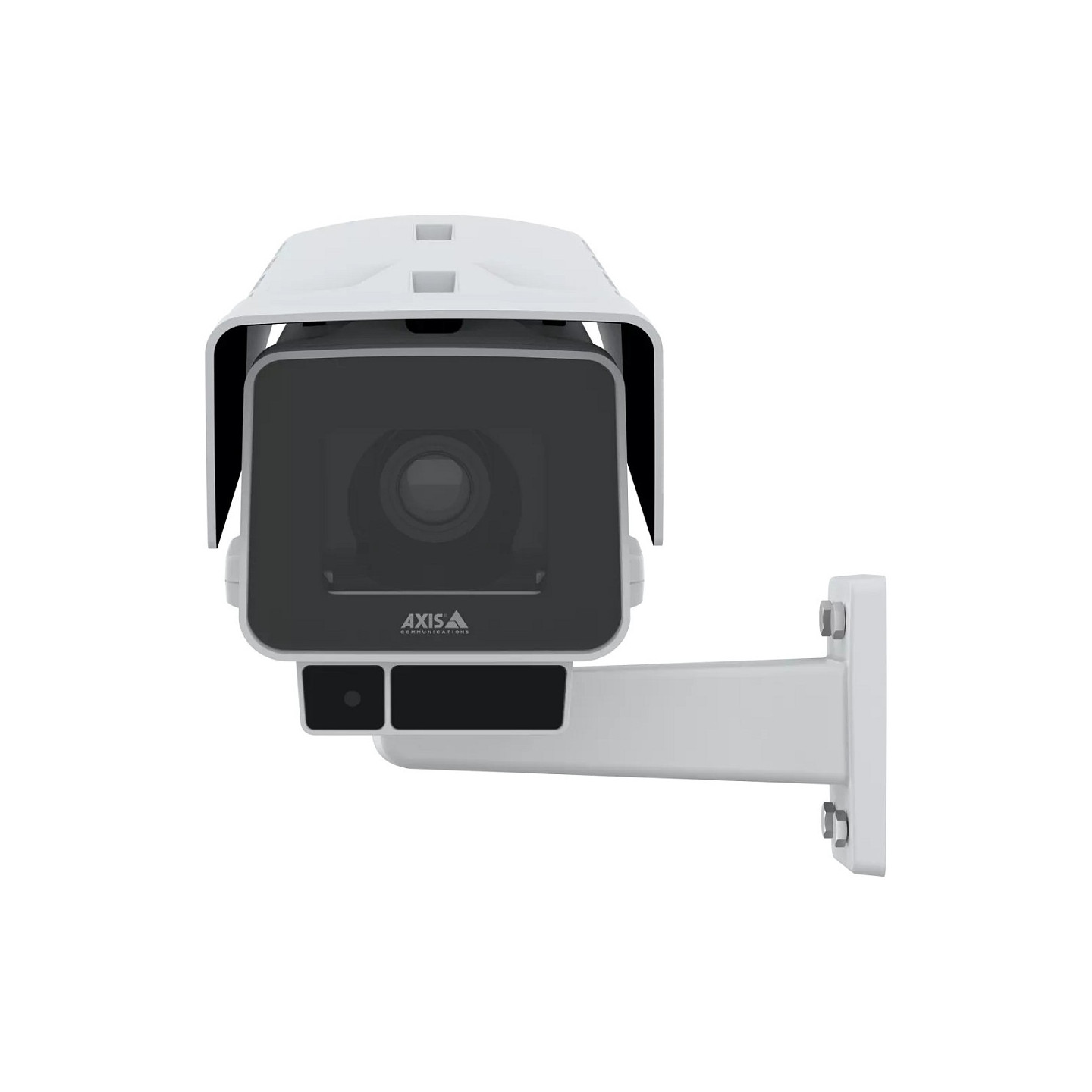

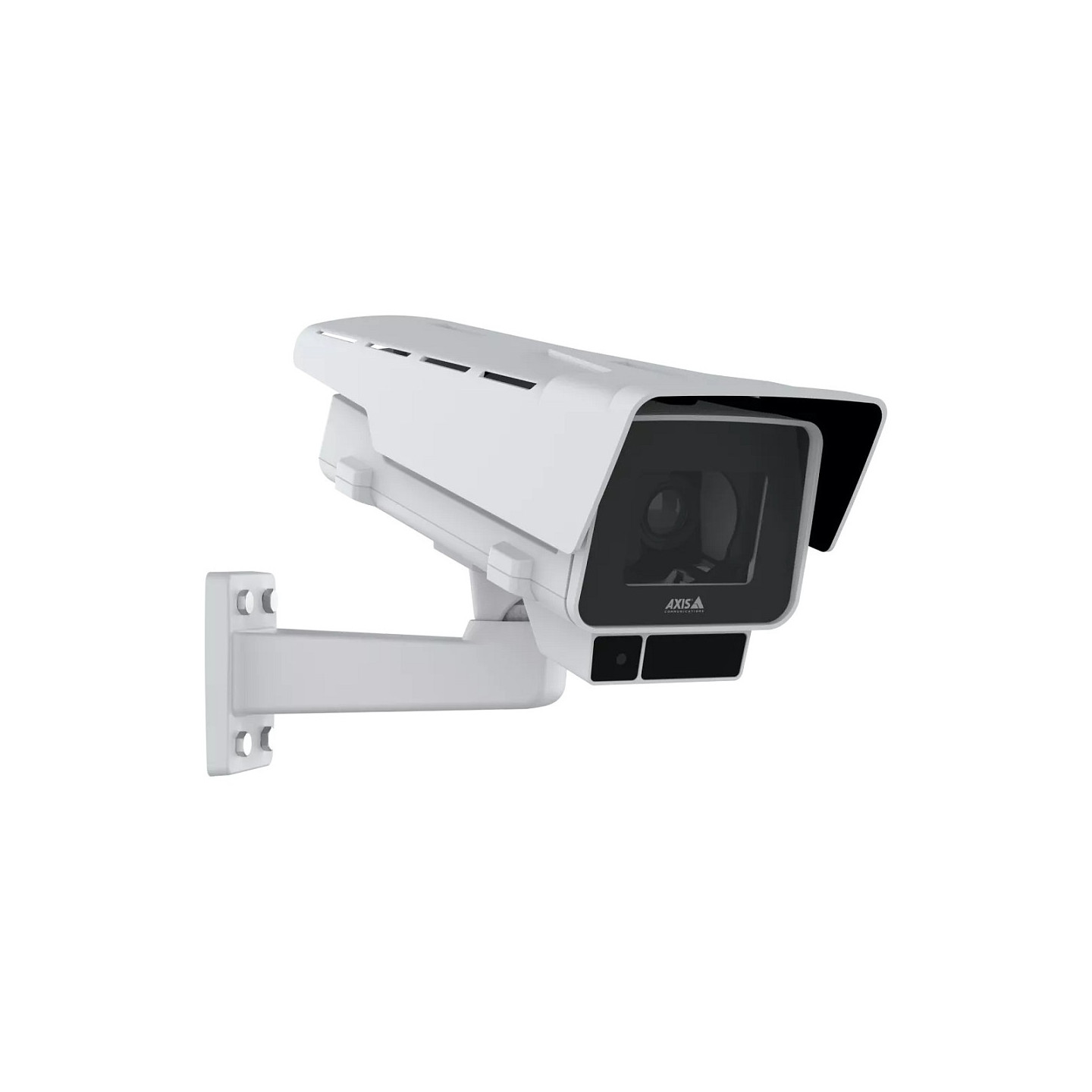

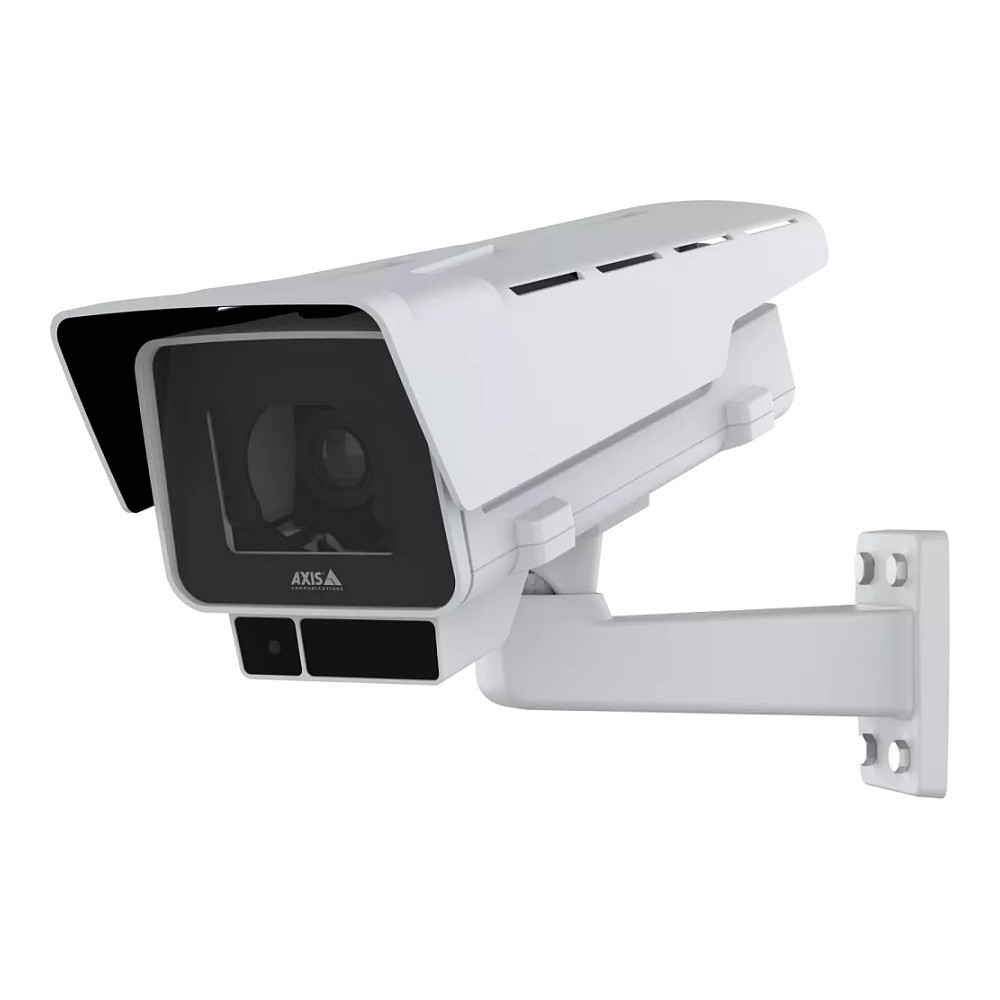

Axis Netzwerkkamera Box-Typ P1388-LE 4K
Axis P1388-LE. IP-Sicherheitskamera. Innen & Außen. Kabelgebunden. Digitale PTZ. UL/cUL. UKCA. CE. KC. EAC. VCCI. RCM. Wand
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis P1388-LE. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Innen & Außen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand. Produktfarbe: Weiß. Formfaktor: Box. Mindestbeleuchtung: 0.13 Lux. Drehungswinkel: 270°. Vertikales Sichtfeld (thermisches Modul): 64°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 1.8 mm (1 / 1.8"). Sensortyp (Panoramakamera): CMOS. Signal-Rausch-Verhältnis (SNR) (Panoramakamera): 55 dB
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Innen & Außen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Betriebsanleitung |
| PTZ-Modi | Digitale PTZ |
| Zertifizierung | UL/cUL. UKCA. CE. KC. EAC. VCCI. RCM |
| Formfaktor | Box |
| Befestigungstyp | Wand |
| Produktfarbe | Weiß |
| Gehäusematerial | Aluminium. Kunststoff |
| Schutzfunktion | Schlagfest |
| Internationale Schutzart (IP-Code) | IP66. IP67 |
| IK-Kodex | IK10 |
| Mindestbeleuchtung | 0.13 Lux |
| Drehungswinkel | 270° |
| Vertikales Sichtfeld (thermisches Modul) | 64° |
| Horizontales Sichtfeld (thermisches Modul) | 122 - 46° |
| Pixelgröße Kamera | 2 µm |
| Kamera Verschlusszeit | 1/66500 - 2 s |
| Anzahl der Sensoren | 1 |
| Größe des Bildsensors | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor-Typ | CMOS |
| Sensortyp (Panoramakamera) | CMOS |
| Signal-Rausch-Verhältnis (SNR) (Panoramakamera) | 55 dB |
| Anzahl der Linsen | 1 |
| Brennweitenbereich | 3.9 - 10 mm |
| Abstandsfeststellung (wide) | 78.7 m |
| Abstandsfeststellung (tele) | 193.5 m |
| Abstandsbeobachtung (wide) | 31.2 m |
| Abstandsbeobachtung (tele) | 76.8 m |
| Abstandserkennung (wide) | 15.7 m |
| Abstandserkennung (tele) | 38.7 m |
| Abstandsermittlung (wide) | 7.9 m |
| Abstandsermittlung (tele) | 19.4 m |
| Nachtsichtdistanz | 40 m |
| S-/W-Nachtsichtweite | 40 m |
| LED Typ | IR |
| Anzahl der Beleuchtungs-LEDs | 2 |
| Infrarot-Wellenlänge | 850 nm |
| Maximale Auflösung | 3840 x 2160 Pixel |
| Unterstützte Videoformate | H.264. H.265 |
| Unterstützte Grafik-Auflösungen | 160 x 90. 3840 x 2160 |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Geräuschunterdrückungstechnologie | 2D-Rauschunterdrückung. 3D-Rauschunterdrückung |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Schärfe |
| Bitratenkontrolle | Variable Bitrate (VBR) |
| Audio-System | 1-Weg |
| Unterstützte Audioformate | AAC. G.711. OPUS. PCM |
| Samplerate | 48 kHz |
| Rauschverhältnis (SNR) | 55 dB |
| Netzstandard | IEEE 802.1x |
| Streaming-Verfahren | Multicasting |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Flash-Speicher | 8192 MB |
| Speicherkapazität | 2048 MB |
| Energiequelle | PoE |
| Stromverbrauch (Standardbetrieb) | 9.1 W |
| Stromverbrauch (max.) | 25.5 W |
| DC-Ausgang Volt | 10. 28 |
| Betriebstemperatur | -40 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 100% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Gewicht | 2.46 kg |
| Gewicht (inklusive Standfuß) | 3.34 kg |
| Konformitätsbescheinigungen | Gesetz über Handelsabkommen (TAA) |
| Anzahl der Kameras | 1 |
| Enthält nicht | BFR. CFR. PVC |
| Sicherheitswarnung | CAN/CSA C22.2 No. 62368-1 ed. 3.IEC/EN/UL 62368-1 ed. 3. IS 13252 |
