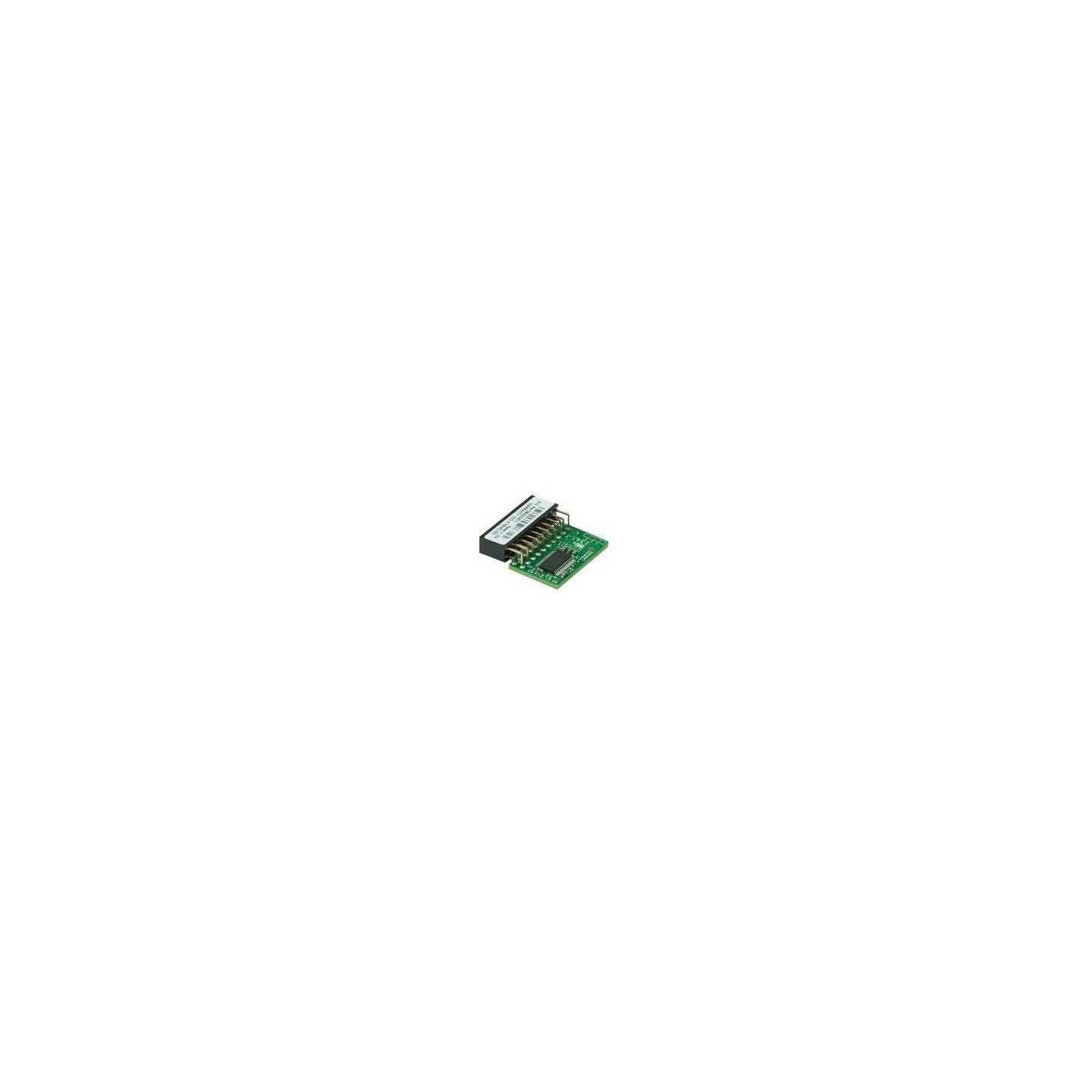

Supermicro AOM-TPM-9670H TPM 2.0 Security Module (Boxed)
Supermicro AOM-TPM-9670H is a TCG 2.0 compliant Trusted Platform Module for Supermicro X11 motherboards. Provides hardware encryption, secure key storage, Intel TXT support via 10-pin header. Horizontal form factor enhances server security.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Expansion Cards - Product Type | TPM and Security Module |
|---|---|
| Expansion Cards - Host Interface | PCIe x1 |
| Expansion Cards - Form Factor | Low Profile Half-Height |
| Expansion Cards - External Connectivity | Internal Only |
The Supermicro AOM-TPM-9670H is a Trusted Platform Module (TPM 2.0) designed for installation on Supermicro X11 series motherboards with Intel LGA 3647 sockets. This horizontal add-on module connects via a 10-pin (or 9-pin JTPM1) header, providing hardware-based security for encryption keys, passwords, and digital certificates.
It protects against software attacks and physical theft by performing cryptographic operations within the secure chip. Features include Intel Trusted Execution Technology (TXT), AMD Secure Virtual Machine support, Random Number Generator (RNG), and Common Criteria EAL4+ certification. Ideal for servers requiring enhanced data protection and compliance.
- TCG 2.0 compliant TPM module
- Horizontal orientation for compact motherboards
- Supports Intel TXT and AMD SVM
- 3.3V power supply, RoHS compliant
- Compatible with Supermicro Superservers
| Product Type | Trusted Platform Module (TPM) 2.0 |
| TPM Specification | TCG 2.0 |
| Host Interface | 10-pin TPM Header (JTPM1) |
| Form Factor | Horizontal (Low Profile) |
| Chipset | SLB 9670 / TPM9670 |
| Certifications | Common Criteria EAL4+, FIPS 140-2 Level 2 (select variants) |
| Supported Technologies | Intel TXT, AMD SVM, RNG, Memory Encryption |
| Power Supply | 3.3V |
| Module Dimensions | 0.5 x 1 x 0.6 inches (1.27 x 2.54 x 1.52 cm) |
| Compatibility | Supermicro X11 motherboards (LGA 3647) |
| Compliance | RoHS |
