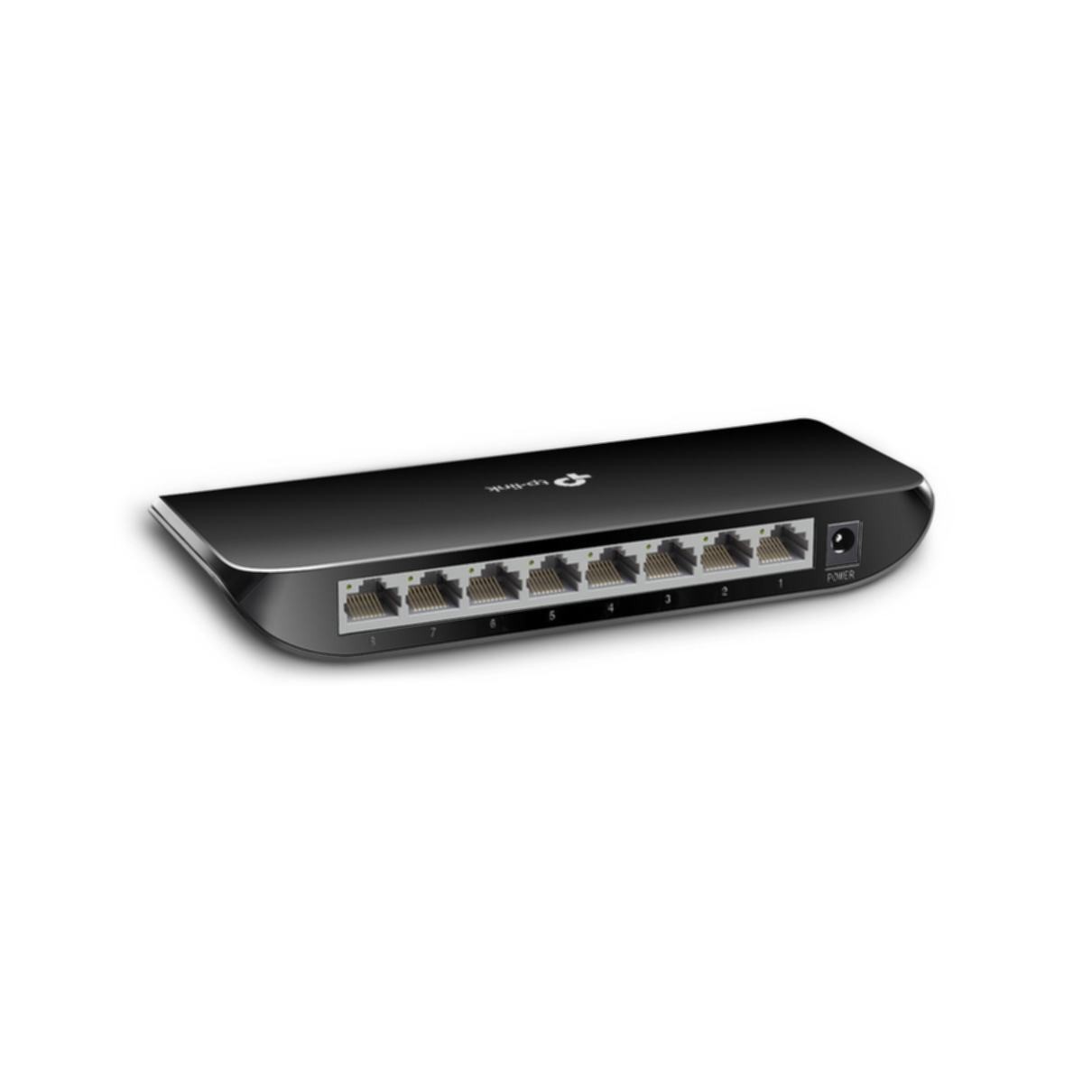

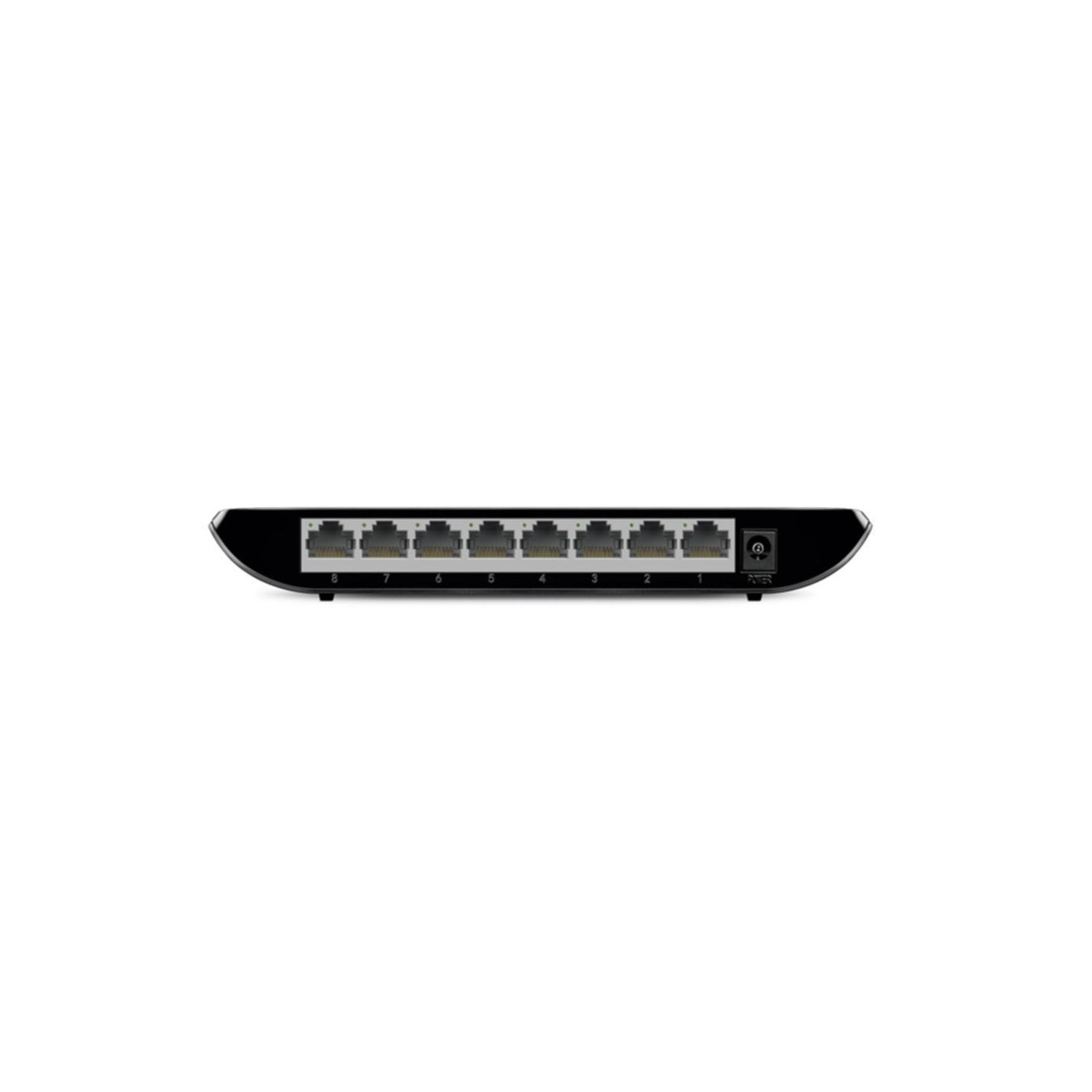

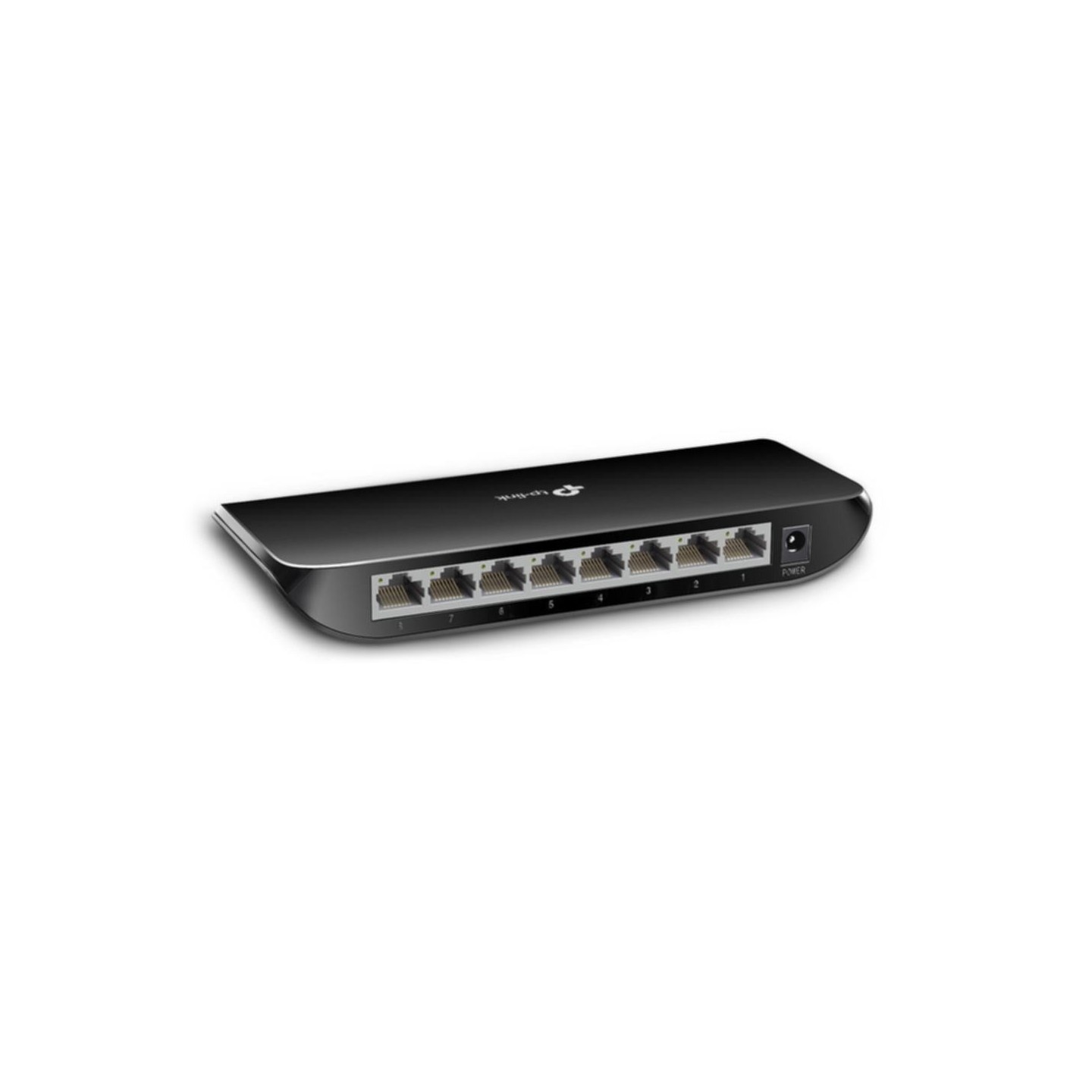

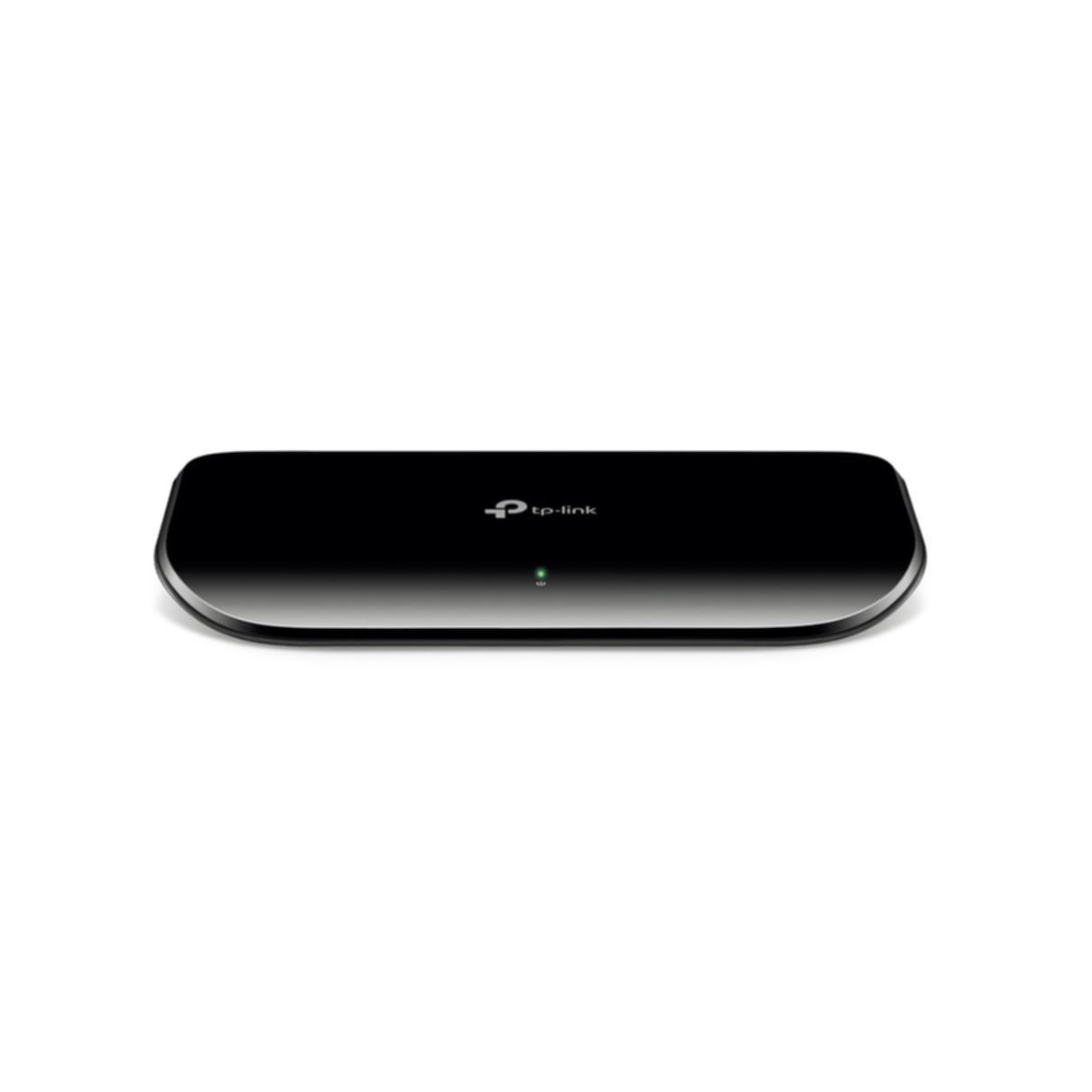

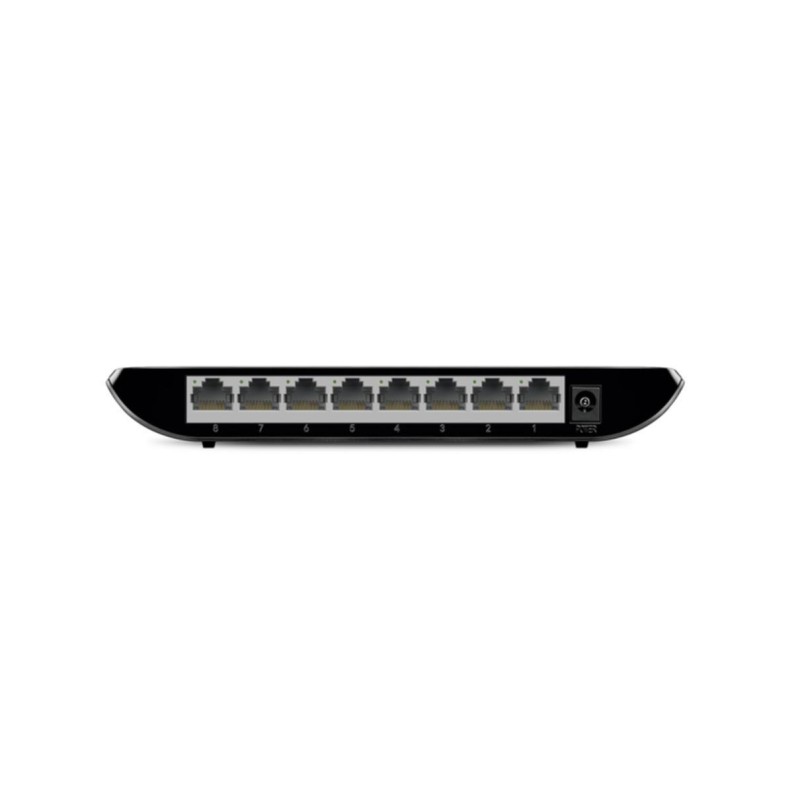

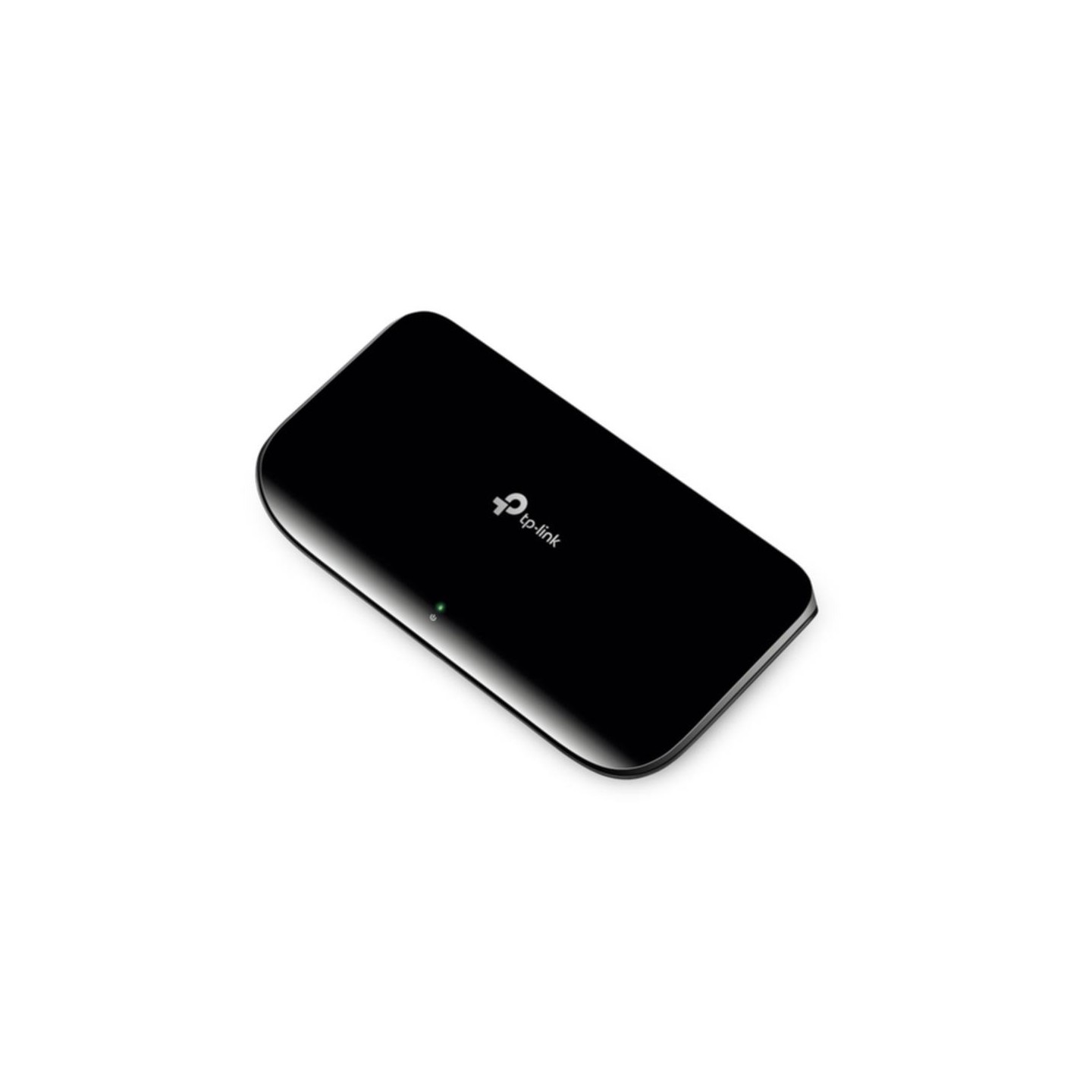

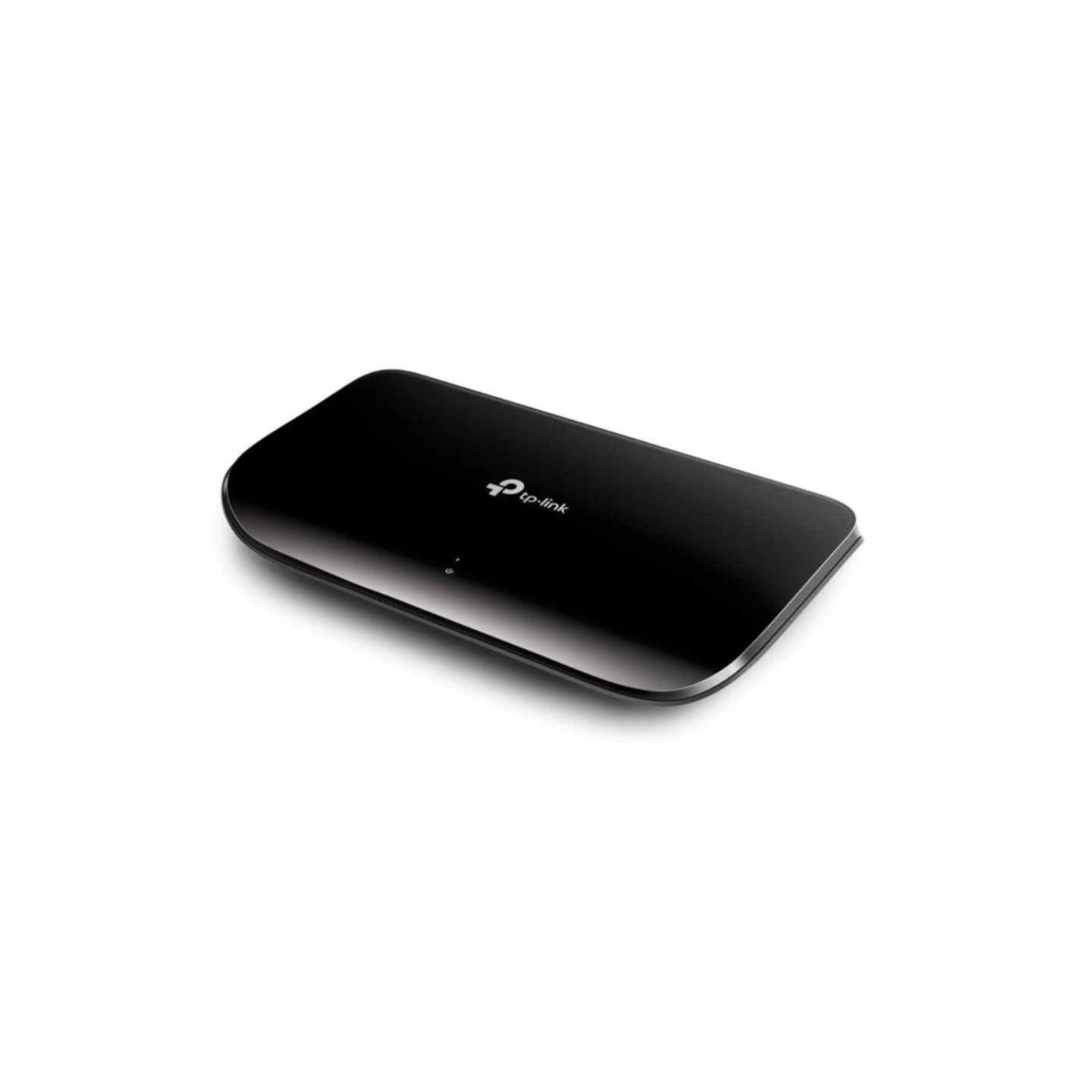

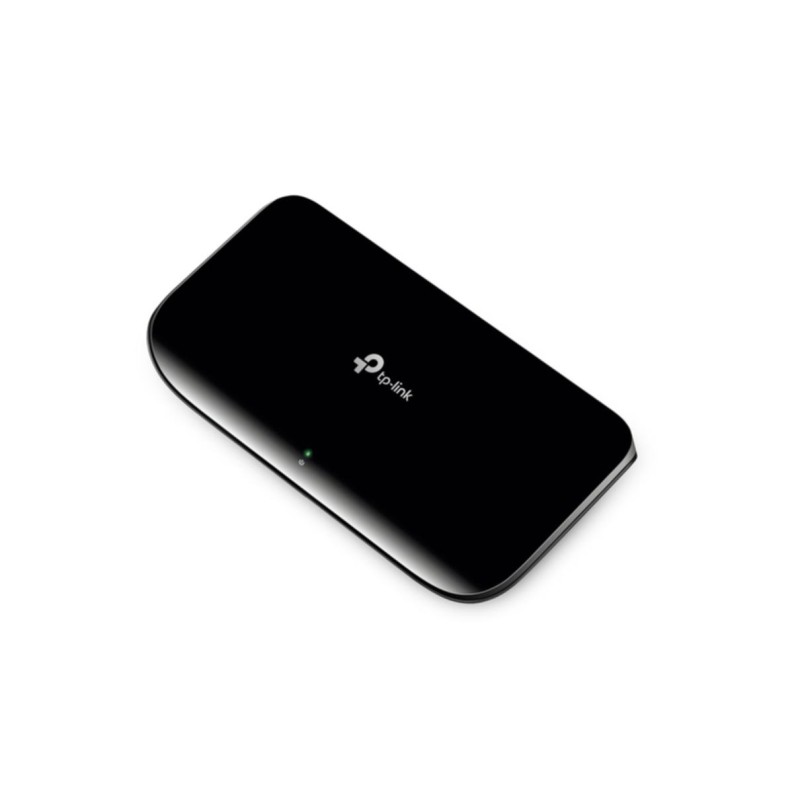

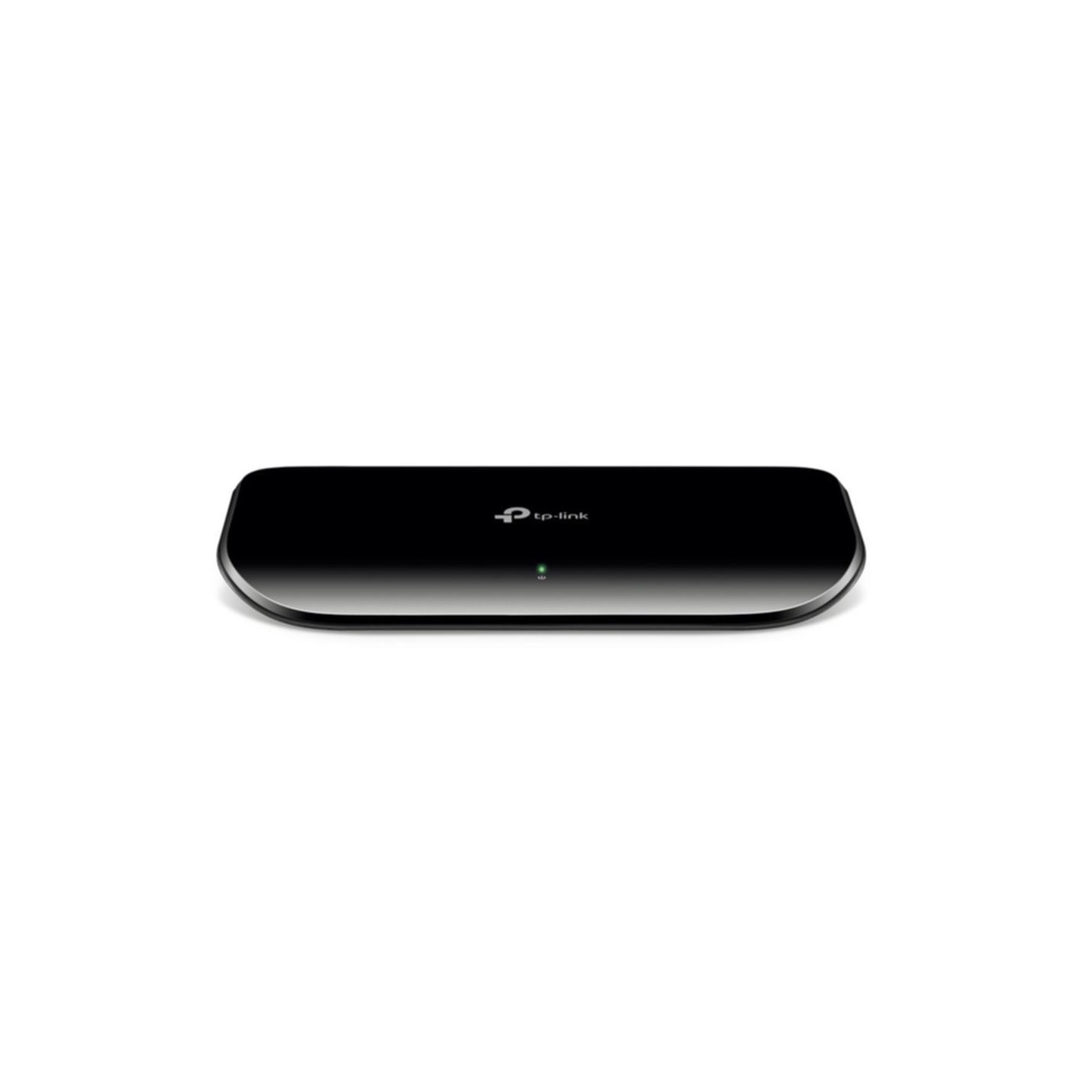

TP-Link 8-Port Gigabit Switch - TL-SG1008D - Unmanaged, Desktop/Wall-mount, 10/100/1000 Mbps

SKU 7440 Brand TP-Link EAN13 6935364092313
8-port unmanaged Gigabit switch (10/100/1000 Mbps), plug-and-play, energy-efficient Green Ethernet (up to 80% power savings), desktop or wall-mount, Auto MDI/MDIX.
Network Switches - Type Unmanaged
Network Switches - Ports 8
Network Switches - Port Speed Gigabit (10/100/1000)
Network Switches - Rackmount No

- 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 80%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required

What This Product Does

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.


Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Power connectorDC-in jack
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Switching capacity16 Gbit/s
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet forwarding rate (1 Gbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)1488000 pps
Rack mountingNo
Product colourBlack
Housing materialPlastic
LED indicatorsActivity, Link, Power
Wall mountableYes
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)4.63 W
Power over Ethernet (PoE)No
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
CertificationCE, FCC, RoHS
Harmonized System (HS) code85176990
