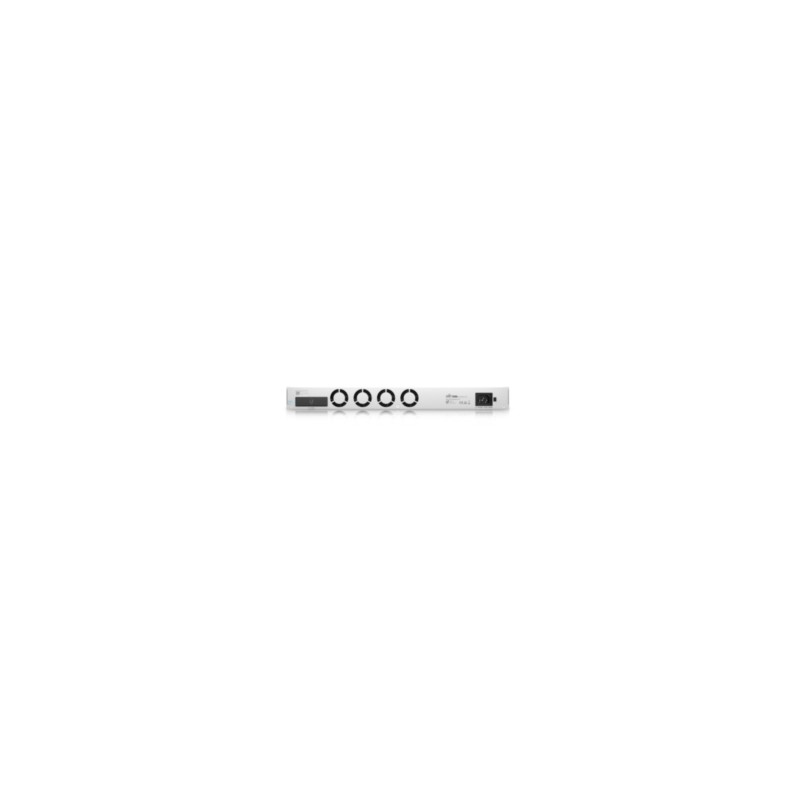

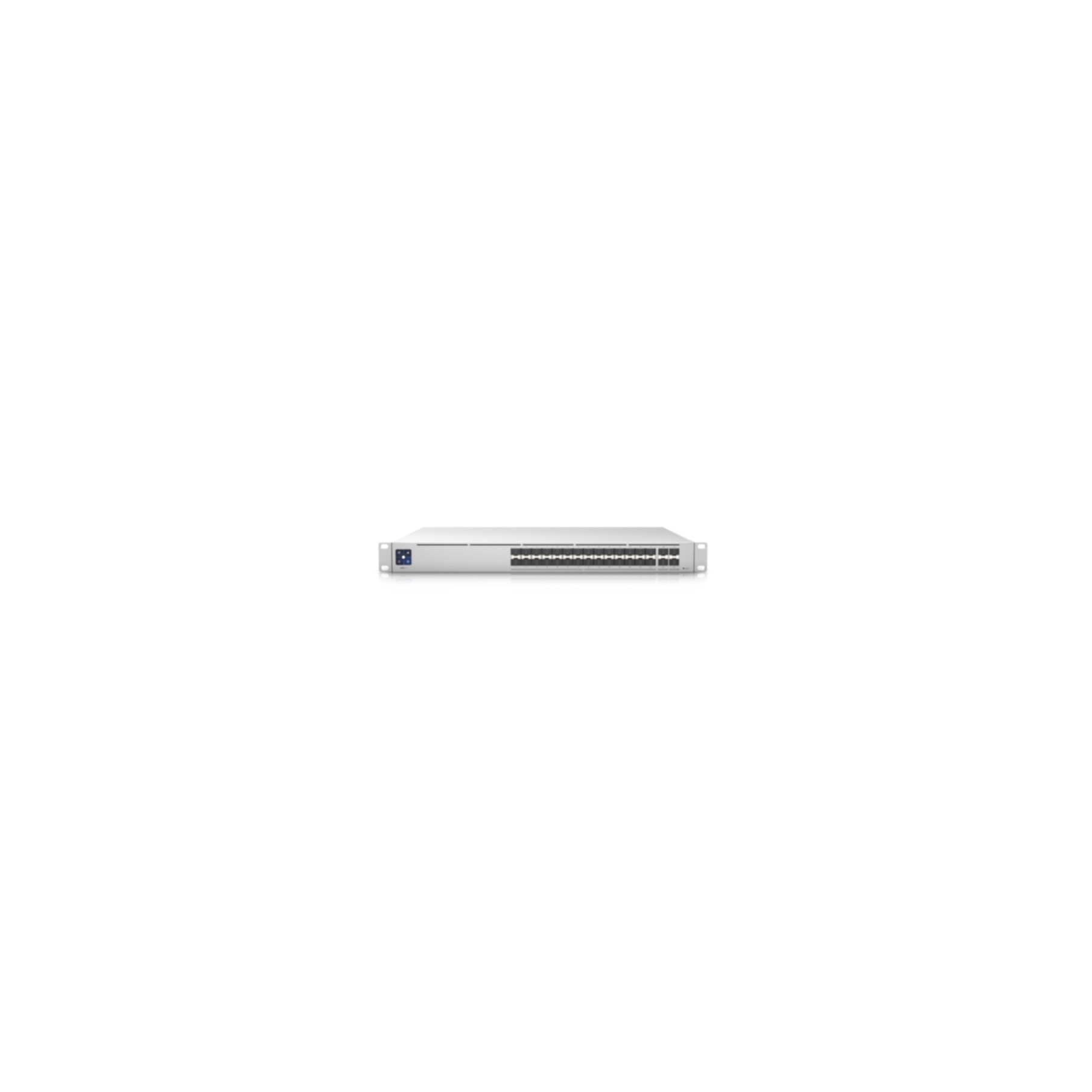

Ubiquiti UniFi USW-PRO-Aggregation - 28x 10G SFP+ & 4x 25G SFP28 - Grey, 1U Rack, L3 Managed
L3-managed 1U aggregation switch with 28x 10G SFP+ and 4x 25G SFP28, 760 Gbit/s switching, 1.3" touchscreen, 100–240VAC/DC-in, 4 fans, 100 W max.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
Featuring a 1.3” touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.
| Switch type | Managed |
| Switch layer | L3 |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 28 |
| SFP28 ports quantity | 4 |
| Power connector | DC-in jack |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Switching capacity | 760 Gbit/s |
| Throughput | 380 Mpps |
| Forwarding rate | 565.44 Mpps |
| Static route | Yes |
| DHCP features | DHCP server |
| Product colour | Grey |
| Housing material | Steel |
| LED indicators | Yes |
| Number of fans | 4 fan(s) |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 11.5 V |
| Input current | 2 A |
| Power consumption (max) | 100 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 442 mm |
| Depth | 325 mm |
| Height | 44 mm |
| Weight | 4.6 kg |
| Harmonized System (HS) code | 85176990 |
