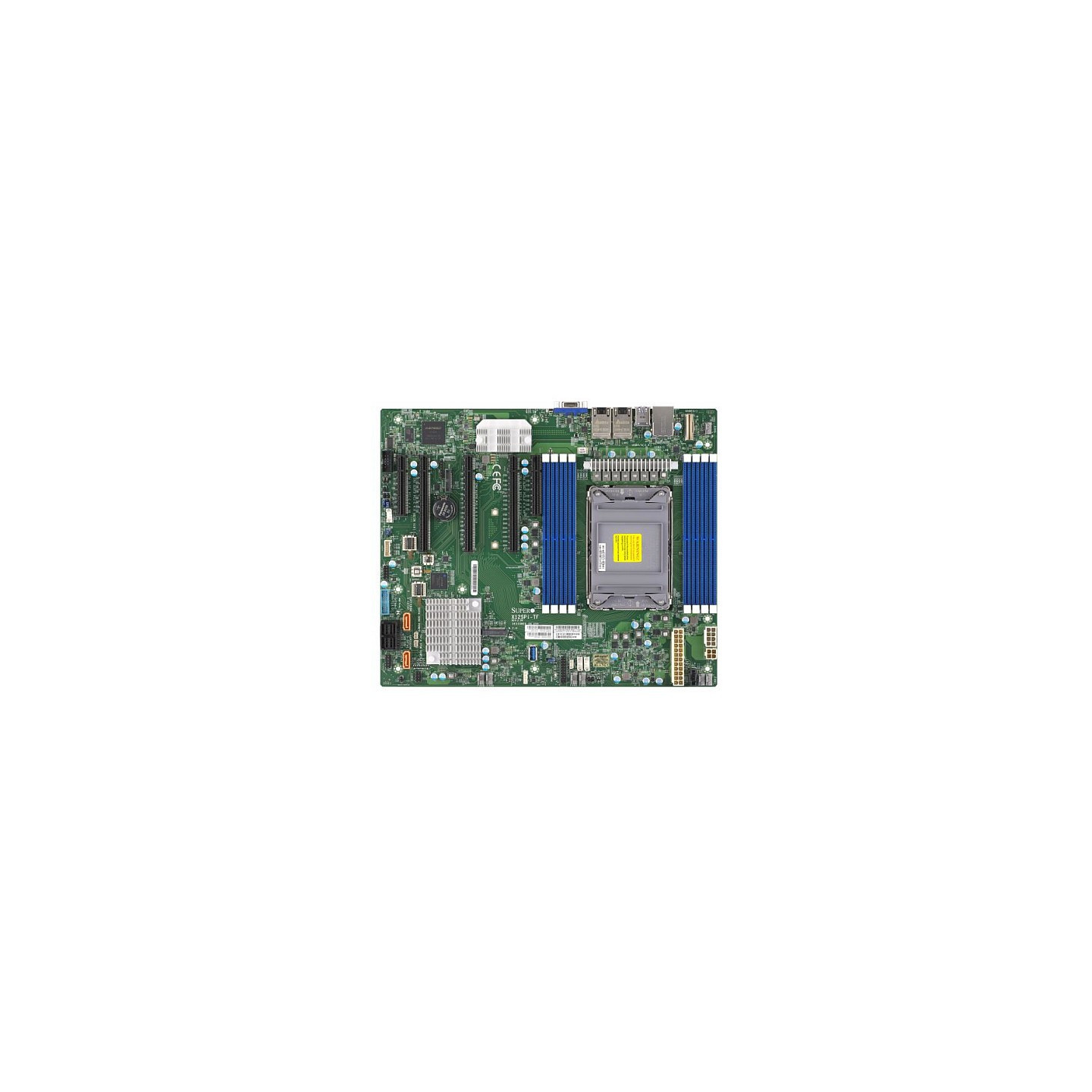

Supermicro MBD-X12SPi-TF-O LGA4189 ATX Server Motherboard Intel C621A (Boxed)
Supermicro MBD-X12SPi-TF-O ATX server motherboard. LGA4189 Intel Xeon Scalable (3rd Gen), C621A chipset, 8x DDR4-3200MHz up to 2TB ECC RDIMM/LRDIMM. 2x 10GbE, 10x SATA3, PCIe4.0, M.2.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 4189 |
|---|---|
| Motherboards - Chipset | Intel C246 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | ECC DDR4 |
| Motherboards - Memory Slots | 8 (HEDT) |
| Motherboards - Max Memory Capacity | 512 GB (HEDT) |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 10+ |
| Motherboards - USB-C Support | None |
| Motherboards - RGB Headers | None |
| Motherboards - Wireless Connectivity | None |
The Supermicro MBD-X12SPi-TF-O is a high-performance ATX server motherboard designed for 3rd Gen Intel Xeon Scalable processors using the LGA4189 (Socket P+) socket, supporting up to 270W TDP and 40 cores. Built on the Intel C621A chipset, it offers robust expandability for enterprise and data center applications.
It features 8 DIMM slots supporting up to 2TB of DDR4-3200 ECC RDIMM/LRDIMM (1.2V), with compatibility for Intel Optane Persistent Memory. Storage options include 10x SATA 3.0 ports (RAID 0/1/5/10), 1x M.2 PCIe3 x4/SATA slot, and PCIe 4.0 expansion (2x x16, 3x x8). Networking is handled by dual 10 Gigabit Ethernet ports via Intel X550 controller, plus onboard ASPEED graphics.
Connectivity includes multiple USB ports (2x USB2.0 rear, headers for more), 1x VGA, 1x COM, and IPMI LAN. Server-grade monitoring with LED indicators for temperature, voltage, and fan fail. Dimensions: 30.7 x 25.4 cm.
- CPU: Single LGA4189, 3rd Gen Xeon Scalable up to 270W
- Memory: 8x DDR4 ECC up to 2TB @3200MHz
- LAN: 2x 10GbE Intel X550
- Storage: 10x SATA3, 1x M.2, RAID support
- Expansion: 2x PCIe4 x16, 3x PCIe4 x8
| Processor Manufacturer | Intel |
| CPU Socket | LGA4189 (Socket P+) |
| Motherboard Chipset | Intel C621A |
| Supported Memory | DDR4-SDRAM |
| Number of Memory Slots | 8 |
| Memory Type | DIMM |
| Memory Voltage | 1.2 V |
| Supported Memory Speeds | 3200 MHz |
| Maximum RAM | 2 TB |
| Supported Storage Interfaces | M.2, SATA |
| RAID Levels | 0, 1, 5, 10 |
| Graphics Family | ASPEED |
| Ethernet Interface Type | 10 Gigabit Ethernet |
| LAN Controller | Intel X550 |
| Component for | Server |
| Motherboard Form Factor | ATX |
| PCI-Express x8 Slots | 3 |
| PCI Express x16 Slots (Gen 4.x) | 2 |
| Number of M.2 Slots | 1 |
| SATA III Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type A Ports | 3 |
| Number of Ethernet LAN (RJ-45) Ports | 2 |
| Number of VGA (D-Sub) Ports | 1 |
| Number of Serial Ports | 1 |
| BIOS Type | UEFI AMI |
| Operating Temperature | 0 - 50 °C |
| Storage Temperature | -20 - 60 °C |
| Operating Relative Humidity | 10 - 85% |
| Storage Relative Humidity | 10 - 95% |
| Board Dimensions | 30.73 x 25.4 cm |
| Max CPU TDP | 270 W |
| PC Health Monitoring | LED, Temperature, Voltage |
