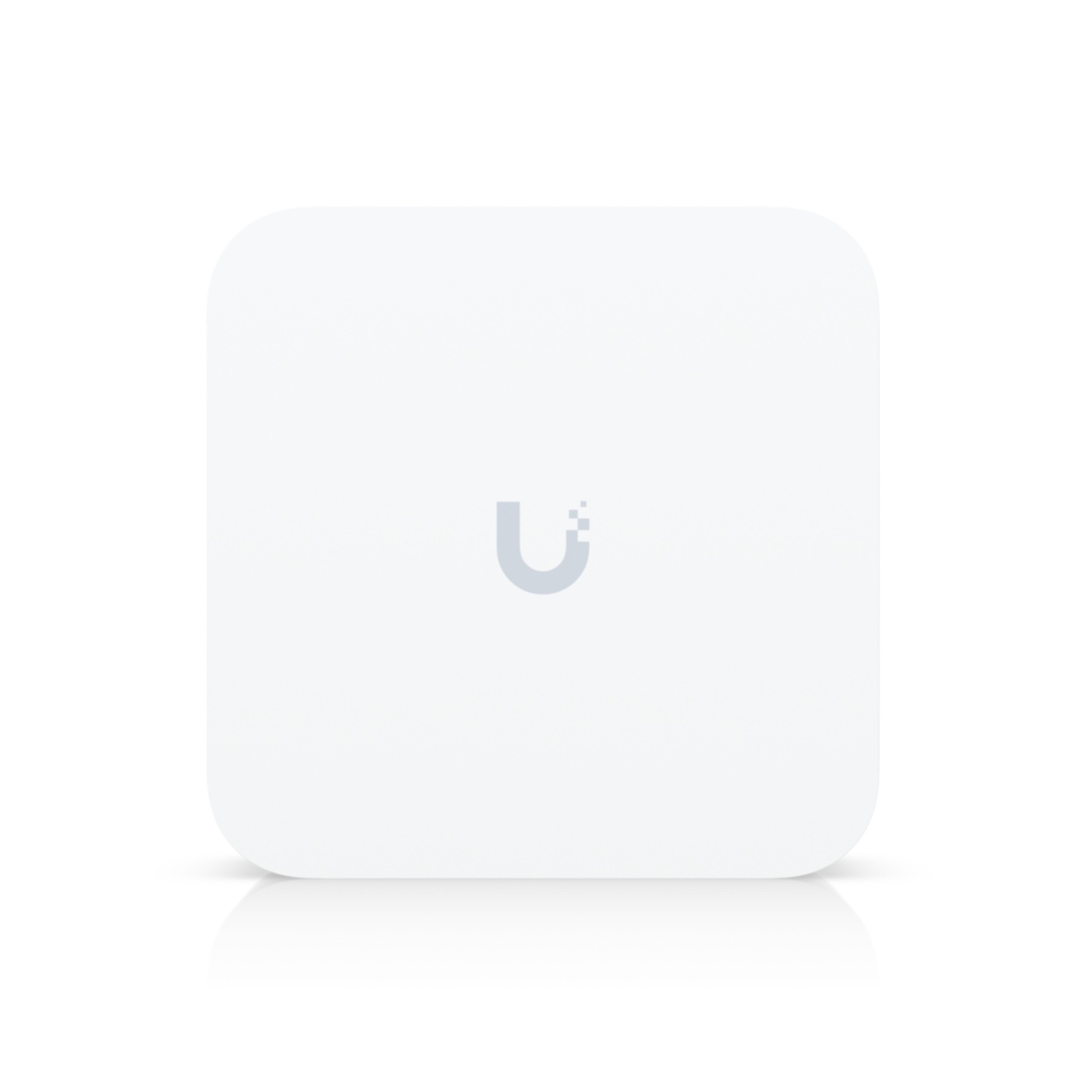

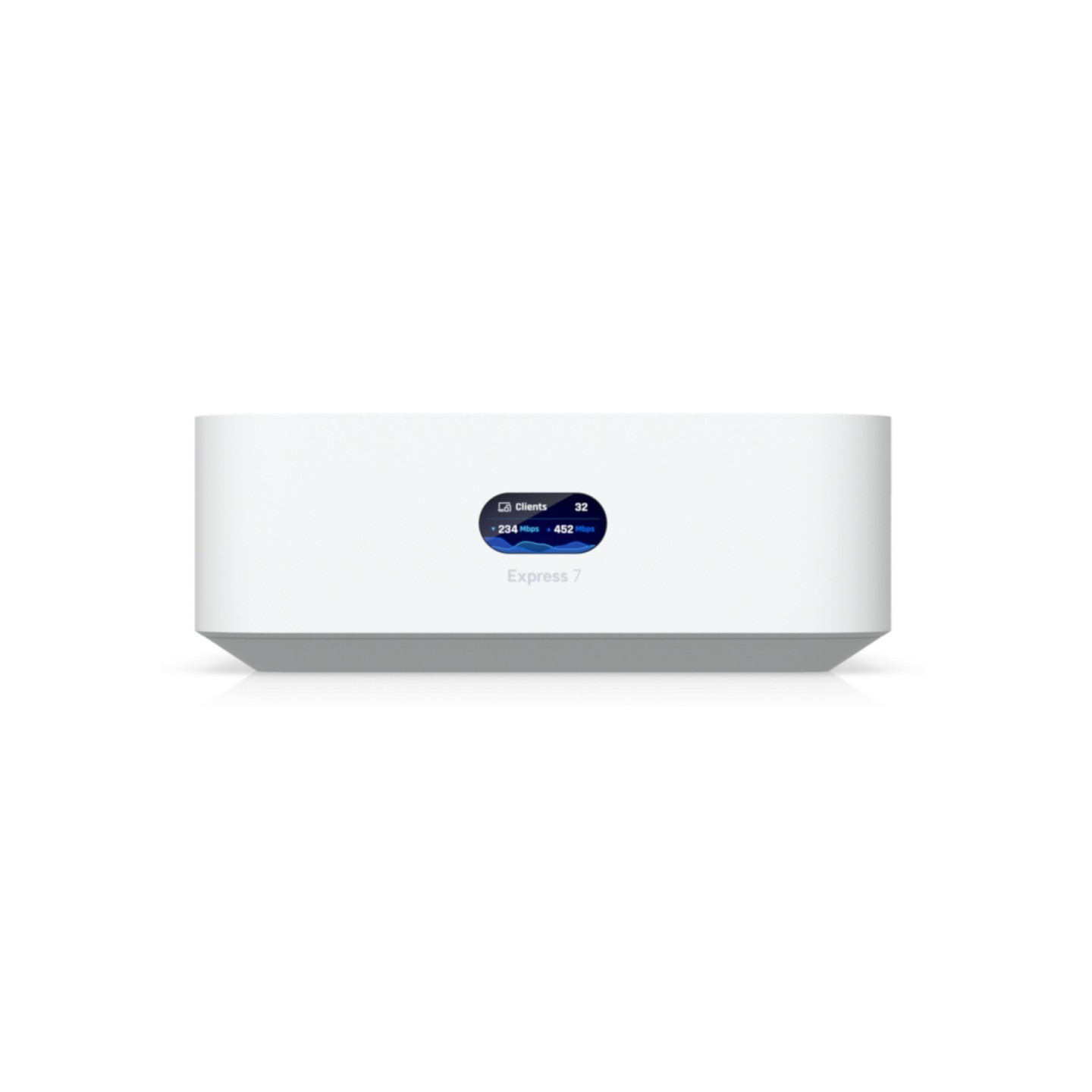

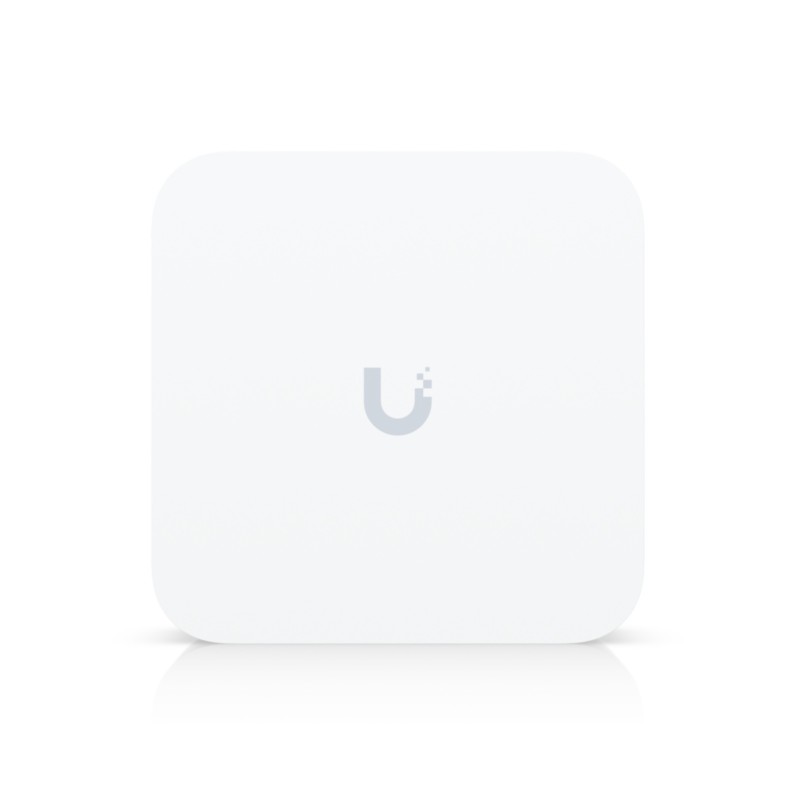

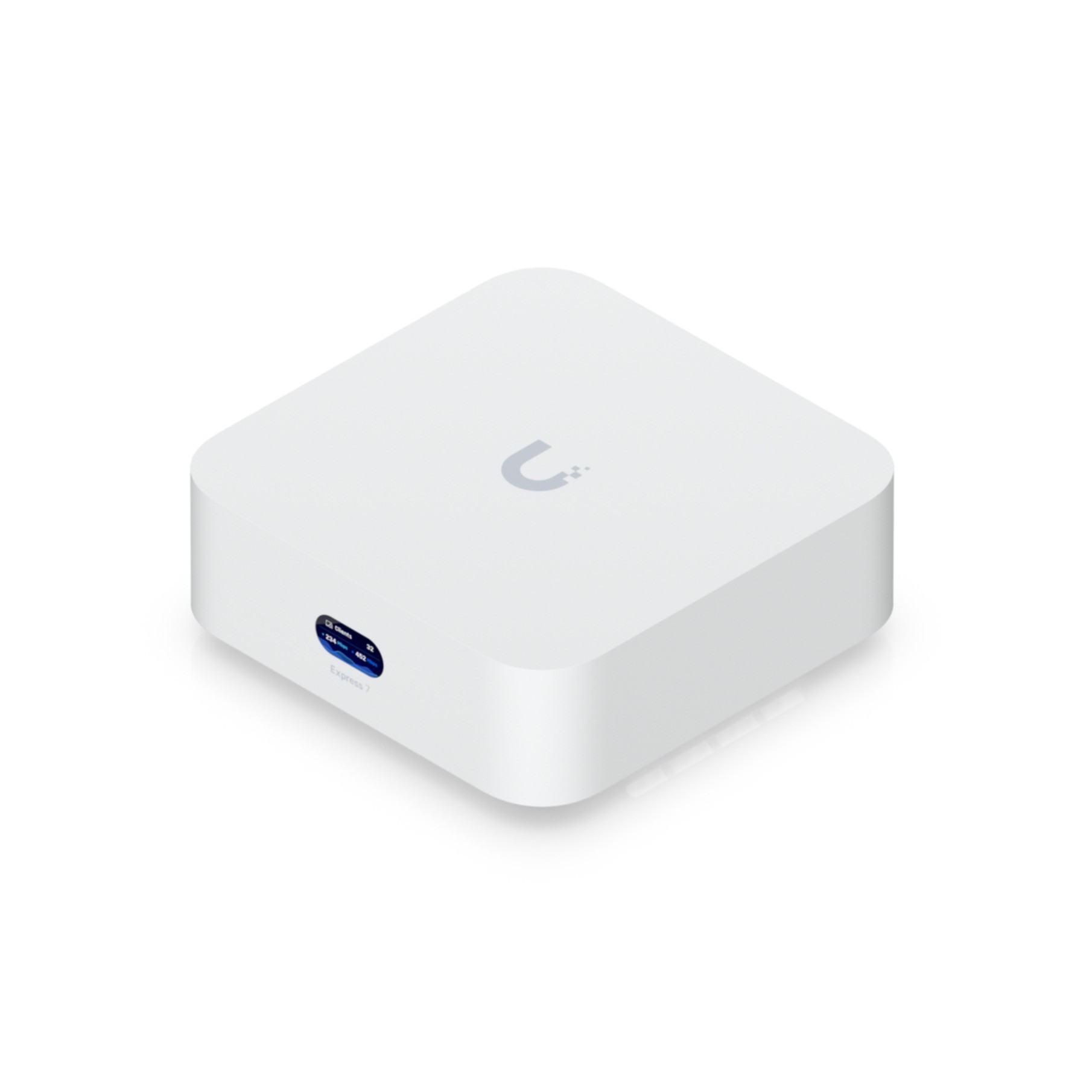

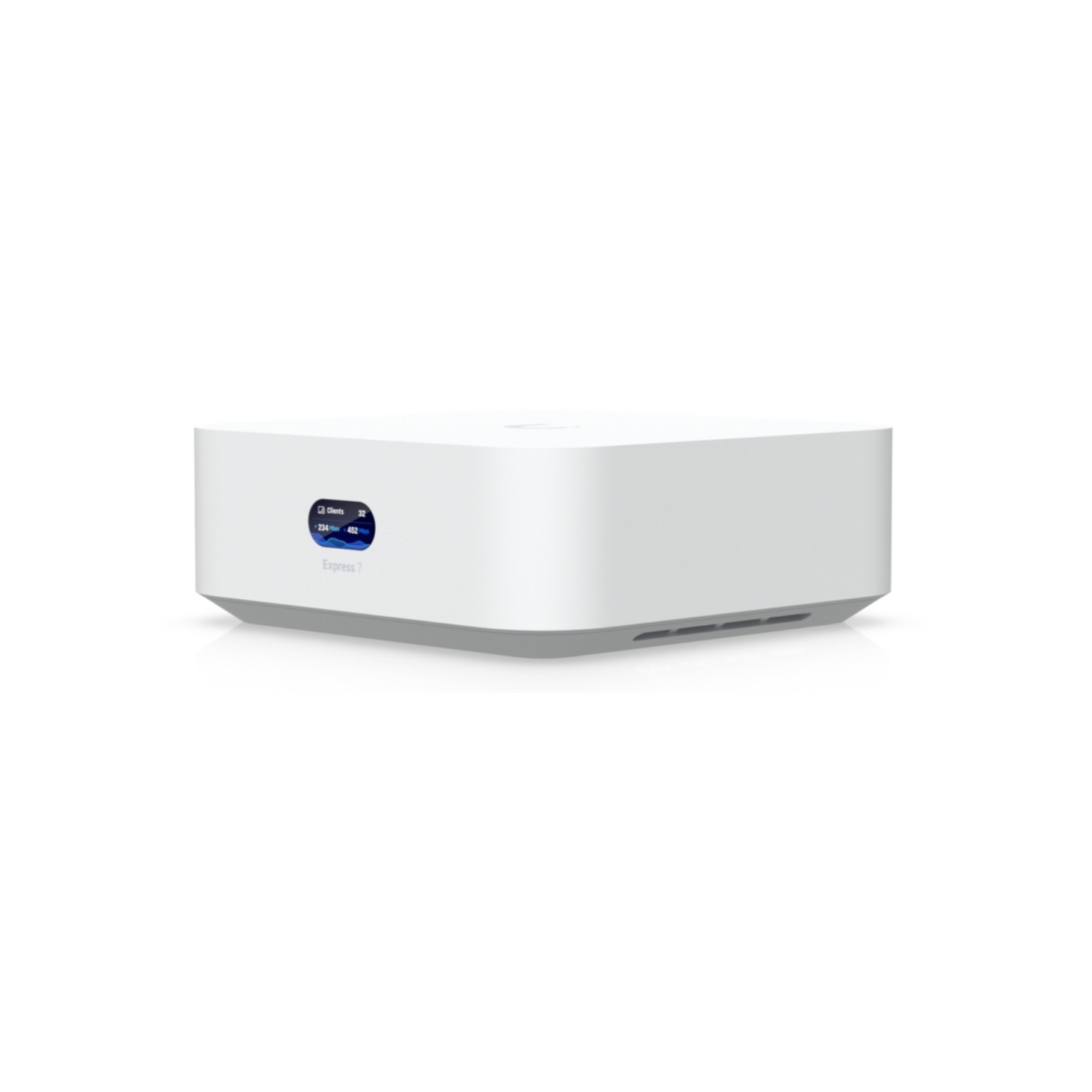

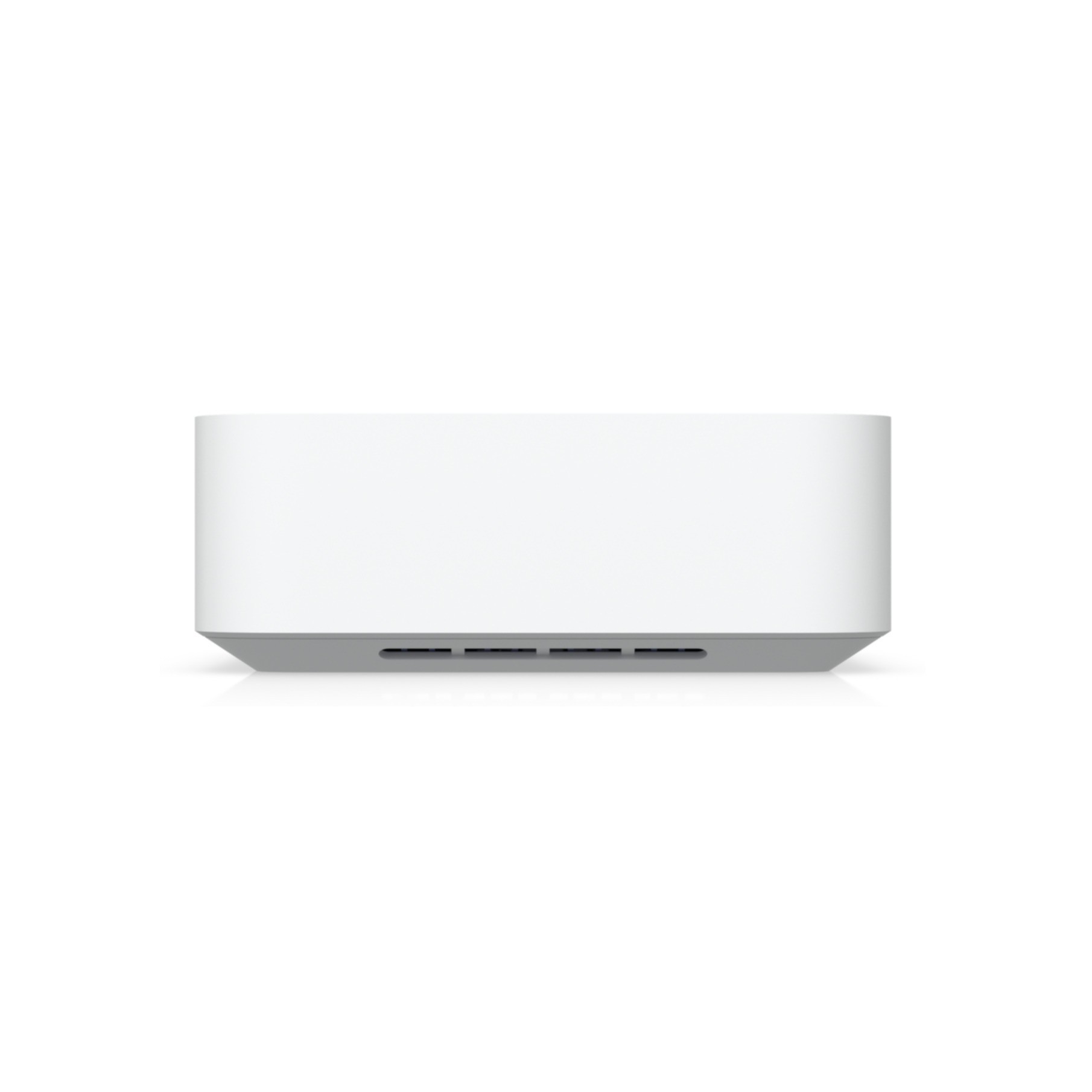

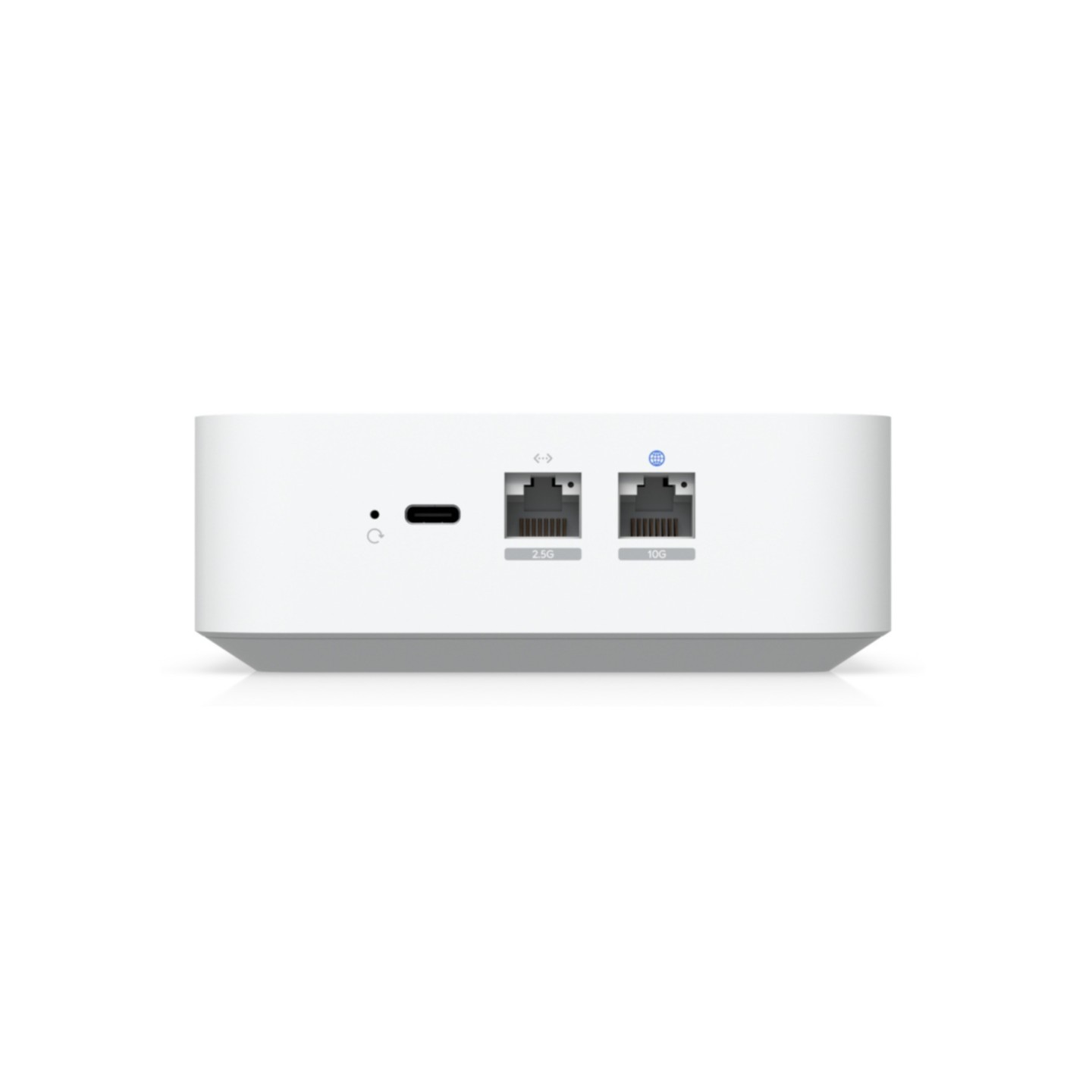

Ubiquiti UniFi Express 7 Gateway - UX7 - White, Wi-Fi 7, 3GB RAM, ARM Cortex-A53 1.5GHz, 10G
Mesh-scalable cloud-managed Wi-Fi 7 gateway with integrated 10G, tri-band 2.4/5/6 GHz, 2x RJ45 LAN, internal antennas, 3GB RAM, ARM Cortex-A53 1.5GHz.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Wi-Fi Standard | Wi-Fi 7 |
|---|---|
| Routers - Bands | Tri-band (2.4+5+6 GHz) |
| Routers - Mesh Support | Proprietary Mesh |
| Routers - LAN Ports | 2 |
| Routers - Antennas | Internal |
| Routers - App Management | Yes |
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
| Product colour | White |
| Enclosure material | Polycarbonate (PC) |
| LED indicators | Status |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Antennas quantity | 4 |
| Control display unit | Yes |
| Display type | LCM |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A53 |
| Processor frequency | 1500 MHz |
| Number of processors installed | 1 |
| Internal memory | 3000 MB |
| Routing protocols | OSPF |
| DHCP server | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 2500, 10000 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1, 2, 5.5, 6, 6.5, 9, 11, 12, 18, 24, 36, 48, 54, 300 Mbit/s |
| Bluetooth | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Load balancing | Yes |
| Data transfer rate | 5.7 Gbit/s |
| Wireless connection | Yes |
| Security algorithms | 802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Firewall security | Yes |
| VLAN support | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45) |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Multicast support | Yes |
| Power consumption (max) | 22 W |
| Input voltage | 100 - 240 V |
| Input current | 5 A |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Width | 117 mm |
| Depth | 117 mm |
| Height | 42.5 mm |
| Weight | 422 g |
| AC adapter included | Yes |

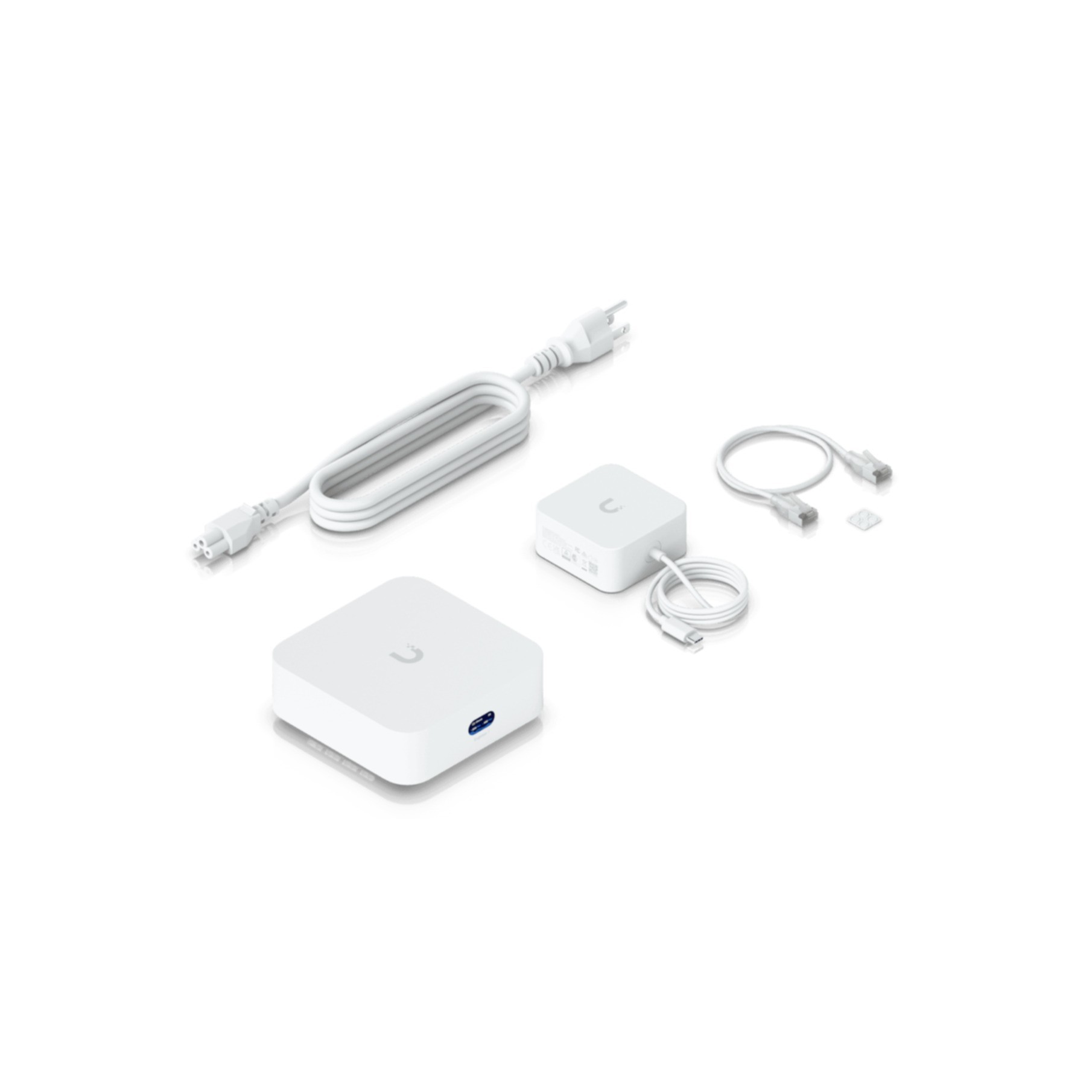

| Cables included | LAN (RJ-45), Power |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Display diagonal | 2.44 cm (0.96") |
