Ubiquiti UniFi Express 7 Gateway UX7 Wi-Fi 7 10G Tri-Band (Boxed)
Compact tri-band Wi-Fi 7 cloud gateway with 10GbE WAN, 2.5GbE LAN, quad-core ARM processor, 3GB RAM, mesh-scalable, covers 1,750 sq ft, supports 300+ users.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Mesh System Wired Gateway Wireless Router |
|---|---|
| Routers - Special Features | Cloud Managed Firewall Intrusion Prevention Load Balancing MU-MIMO QoS Traffic Monitoring VLAN Support VPN Support WPA3 Security |
| Routers - LAN Ports | 2 |
| Routers - Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Routers - Bands | Tri-band (2.4+5+6 GHz) |
The Ubiquiti UniFi Express 7 (UX7) is a mesh-scalable, super-compact 10G cloud gateway featuring integrated Wi-Fi 7 technology. This tri-band wireless router operates across 2.4 GHz, 5 GHz, and 6 GHz bands with a maximum throughput of BE11000 (5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz). Powered by a quad-core ARM Cortex-A53 processor running at 1.5 GHz with 3 GB of RAM, the UX7 delivers enterprise-grade performance in a compact desktop form factor.
Connectivity is handled by a 10 GbE RJ45 WAN port and a 2.5 GbE RJ45 LAN port, enabling lightning-fast data transfer rates. The device features advanced security capabilities including stateful firewall, IDS/IPS throughput of 2.3 Gbps, and WPA3-Enterprise encryption. With a coverage area of approximately 1,750 square feet (160 m²), the UX7 can manage 30+ UniFi devices and support 300+ simultaneous users, making it ideal for both residential and small office environments. The 0.96-inch LCM display provides real-time network status information, while the compact polycarbonate enclosure with internal antennas maintains a discreet appearance.
Key capabilities include MU-MIMO support, multi-link operation (fronthaul), load balancing, advanced QoS, VLAN support, and cloud-based management through the UniFi Network application. The device operates on 100-240V AC input via USB-C power adapter and consumes a maximum of 22W, with heat dissipation of 75 BTU/hr.
- Tri-band Wi-Fi 7 (802.11be) with 6 GHz support
- 10 GbE WAN + 2.5 GbE LAN connectivity
- Quad-core ARM Cortex-A53 1.5 GHz processor with 3 GB RAM
- Covers up to 1,750 sq ft with mesh-scalable architecture
- IDS/IPS security with 2.3 Gbps throughput
- Manages 30+ UniFi devices and 300+ simultaneous users
- 0.96-inch status display with real-time network information
- USB-C power input with included AC/DC adapter
| Device Type | Cloud Gateway / Wireless Router |
| Model Number | UX7-US |
| Wi-Fi Standard | Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11n), Wi-Fi 5 (802.11ac), 802.11a/b/g |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz (Tri-band) |
| Maximum Throughput | BE11000 (5.7 Gbps @ 6 GHz, 4.3 Gbps @ 5 GHz, 688 Mbps @ 2.4 GHz) |
| MIMO Configuration | 2x2 MU-MIMO per band (6 GHz, 5 GHz, 2.4 GHz) |
| Multi-Link Operation (MLO) | Yes (Fronthaul only) |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory (RAM) | 3 GB |

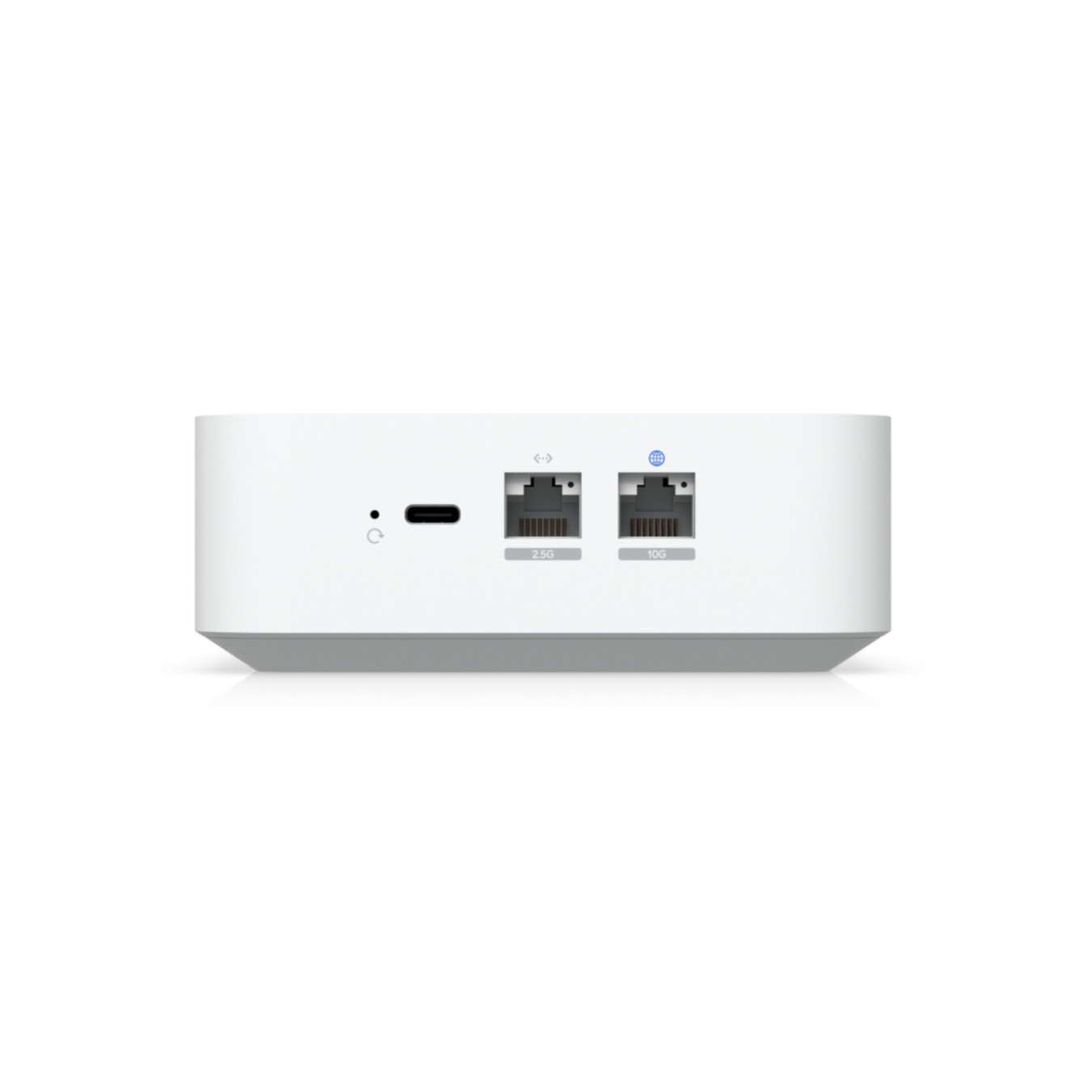

| WAN Port | 1x 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| LAN Ports | 1x 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| Total Ethernet Ports | 2 (1x 10GbE WAN + 1x 2.5GbE LAN) |
| IDS/IPS Throughput | 2.3 Gbps |
| Firewall | Stateful Firewall |
| Security Protocols | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3), PPSK, 802.1x RADIUS, IPSec, TLS |
| Managed UniFi Devices | 30+ |
| Simultaneous Users | 300+ |
| Coverage Area | 1,750 sq ft (160 m²) |
| Antenna Type | Internal (4 antennas) |
| Maximum TX Power | 6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| Antenna Gain | 6 dBi (max) |

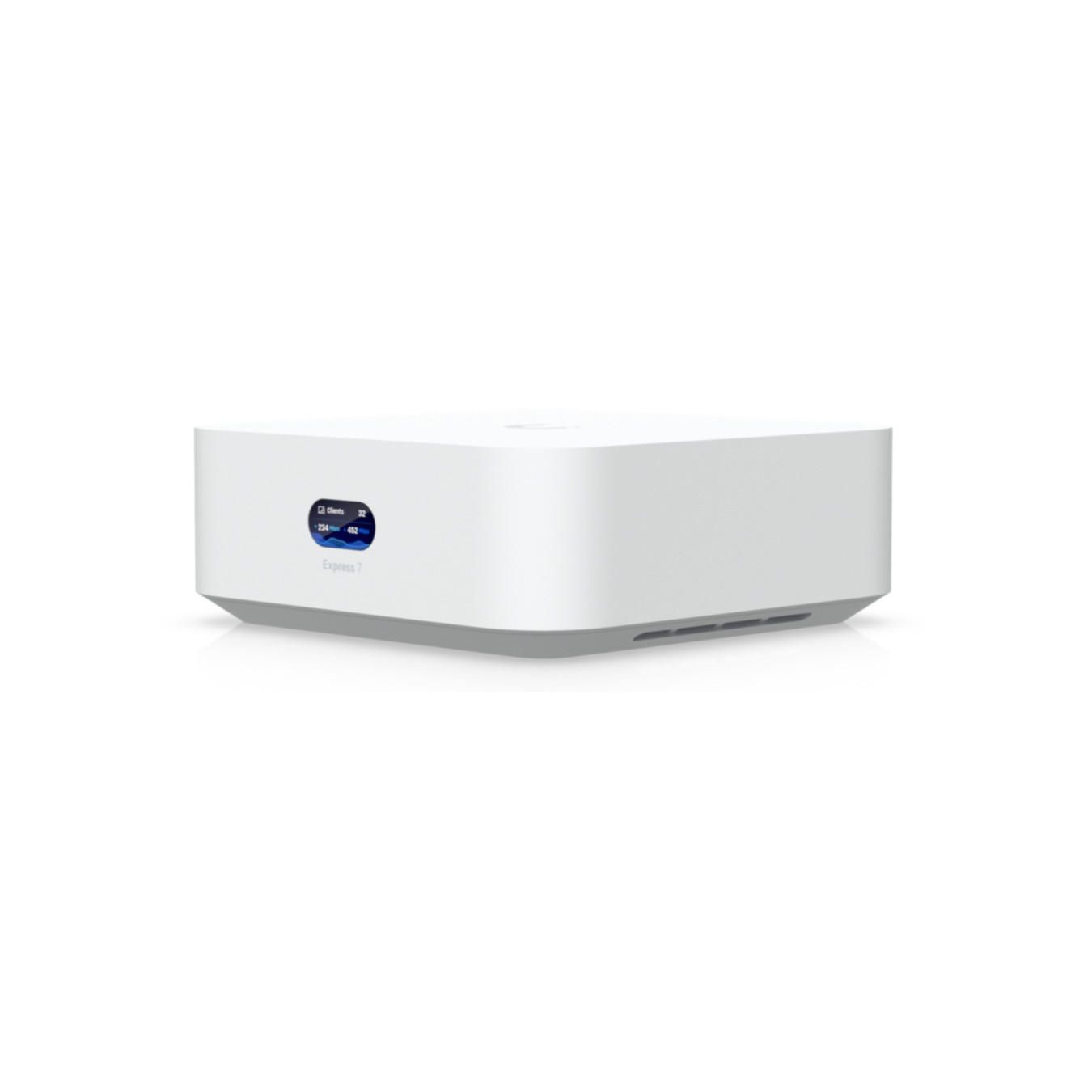

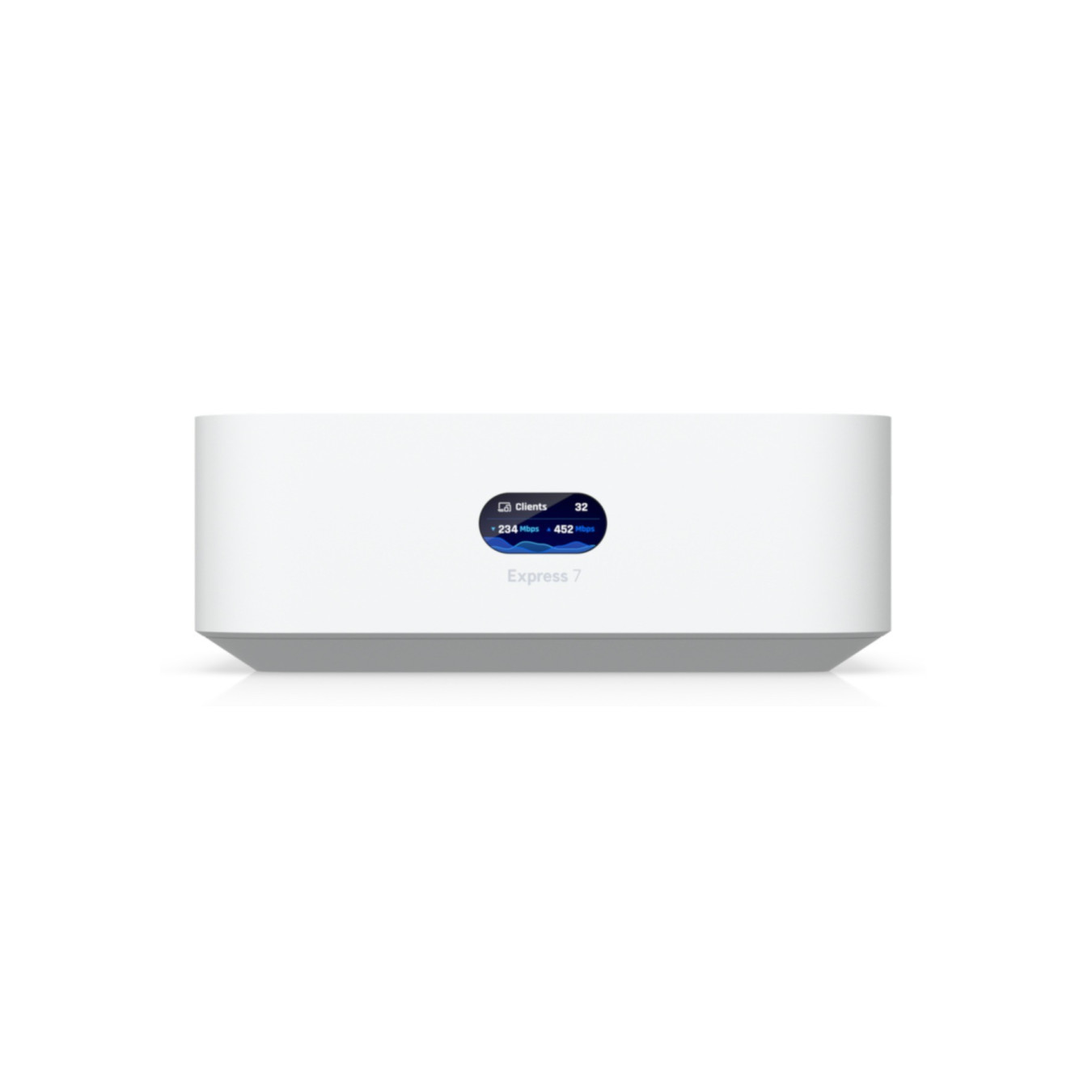

| Display | 0.96-inch LCM status display |
| Power Method | USB Type-C (5V DC / 5A) |
| Power Supply | USB Type-C AC/DC adapter (included) |
| Input Voltage | 100-240V AC |
| Maximum Power Consumption | 22 W |
| Heat Dissipation | 75 BTU/hr |
| Enclosure Material | Polycarbonate (PC) |
| Form Factor | Compact desktop |
| Device Dimensions | 117 x 117 x 42.5 mm (4.6 x 4.6 x 1.7 inches) |
| Device Weight | 422 g (14.9 oz) |
| Operating Temperature | -10 to 45°C (14 to 113°F) |
| Operating Humidity | 5 to 95% non-condensing |
| Connectivity Features | Ethernet, Bluetooth |
| Management | Cloud-managed via UniFi Network application |
| Routing Protocols | OSPF |
| DHCP Server | Yes |
| Load Balancing | Yes |
| QoS Support | Yes (Advanced) |
| VLAN Support | Yes |
| Guest Network | Yes (Guest Isolation) |
| Multicast Support | Yes |
| Reset Button | Yes (Factory reset) |
| LED Indicators | Status LEDs |
| Compliance | CE, FCC, IC |

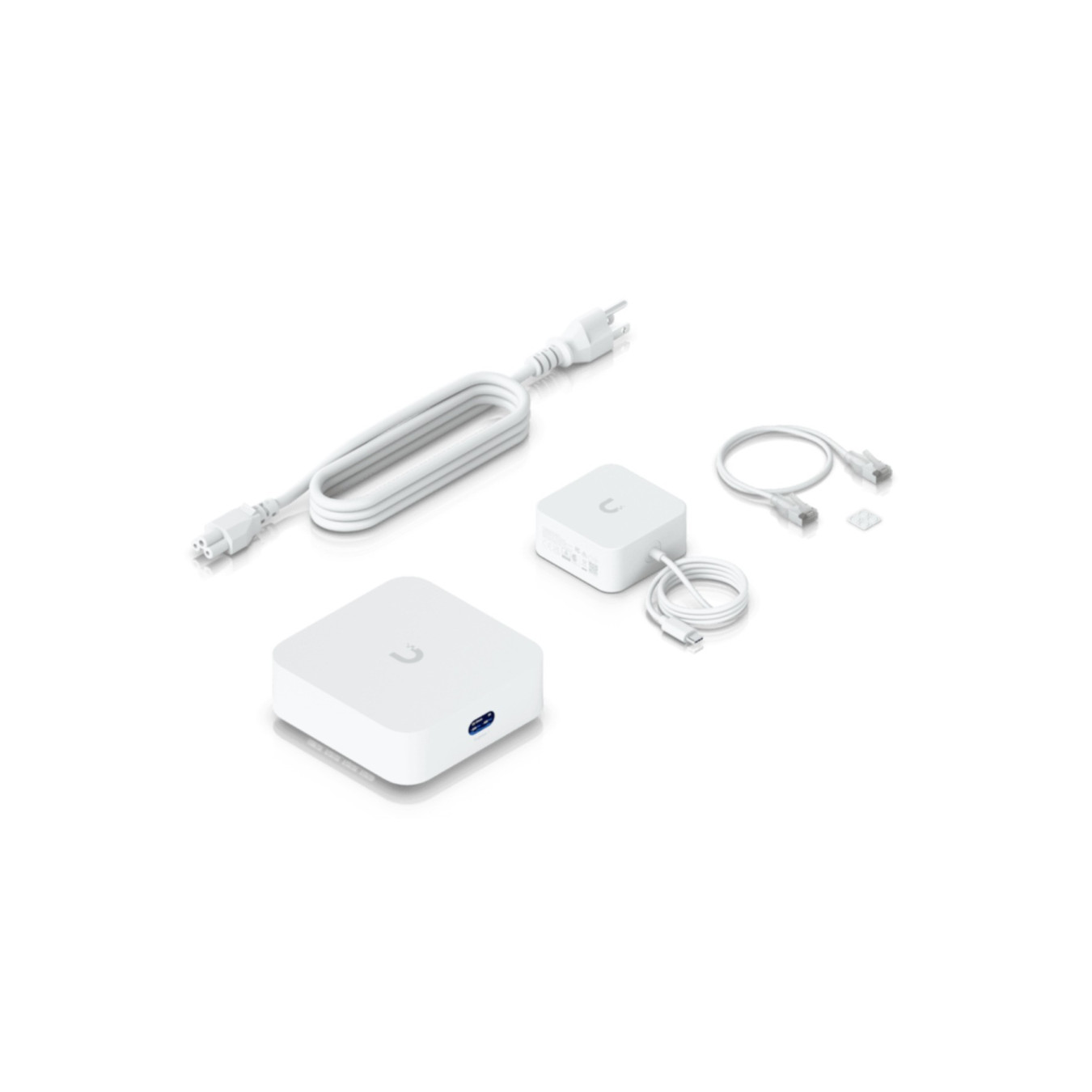

| Included Accessories | USB-C AC/DC power adapter, Ethernet cable, rubber feet |
| Mesh Capability | Yes (Mesh-scalable, can be adopted as wired or meshed Layer 2 UniFi AP) |
| Operating Roles | Wi-Fi Router, UniFi Access Point, UniFi Mesh Point, Extender |
