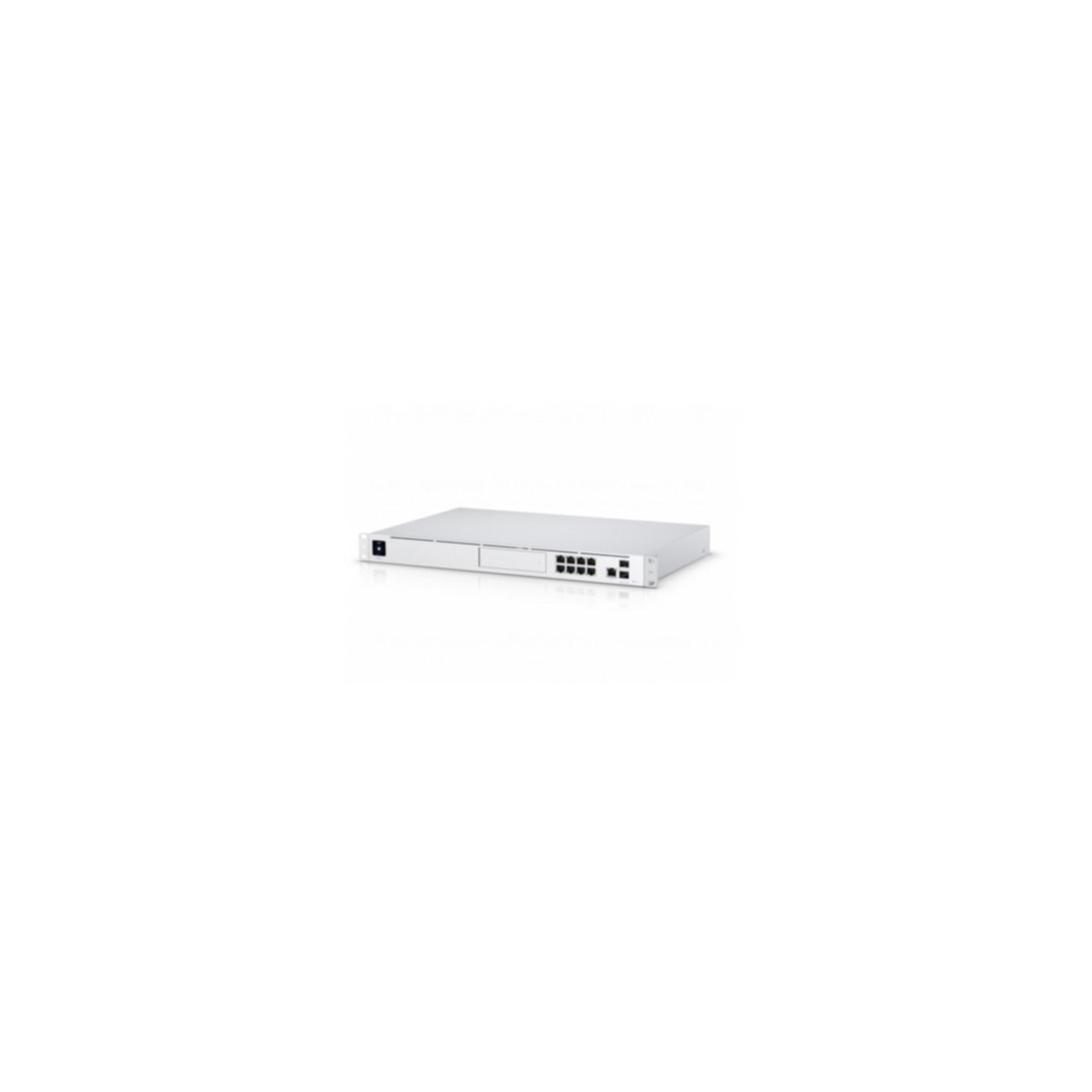

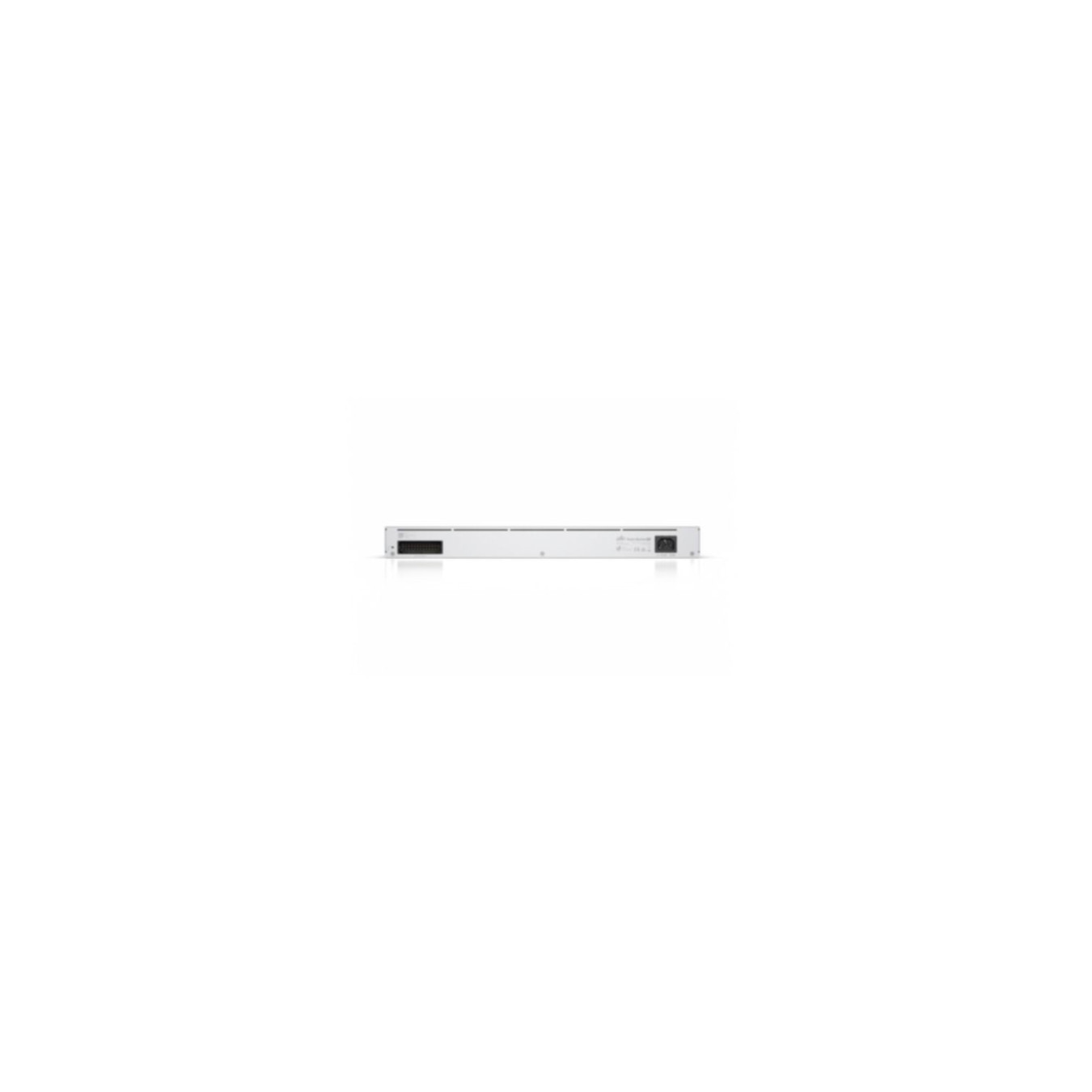

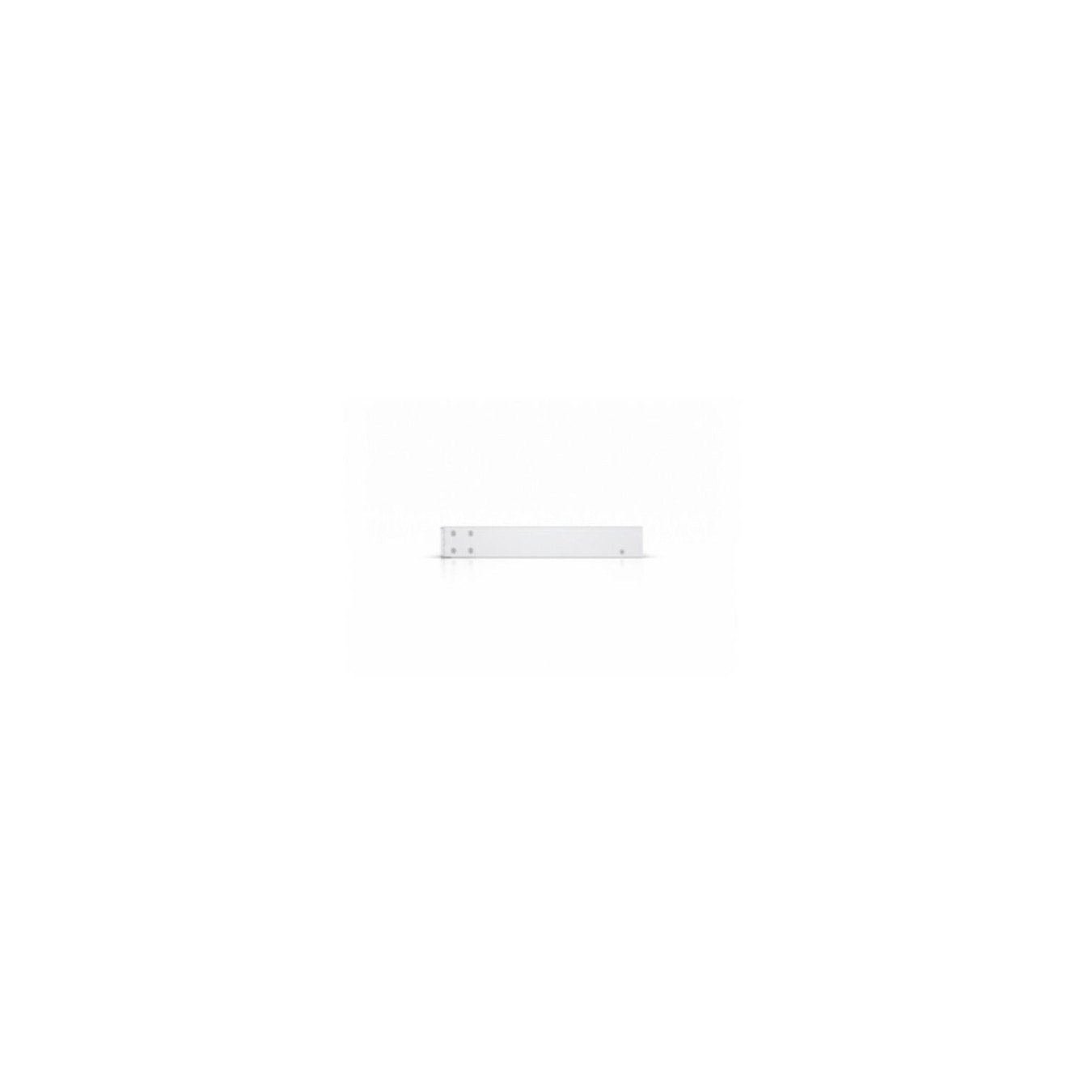

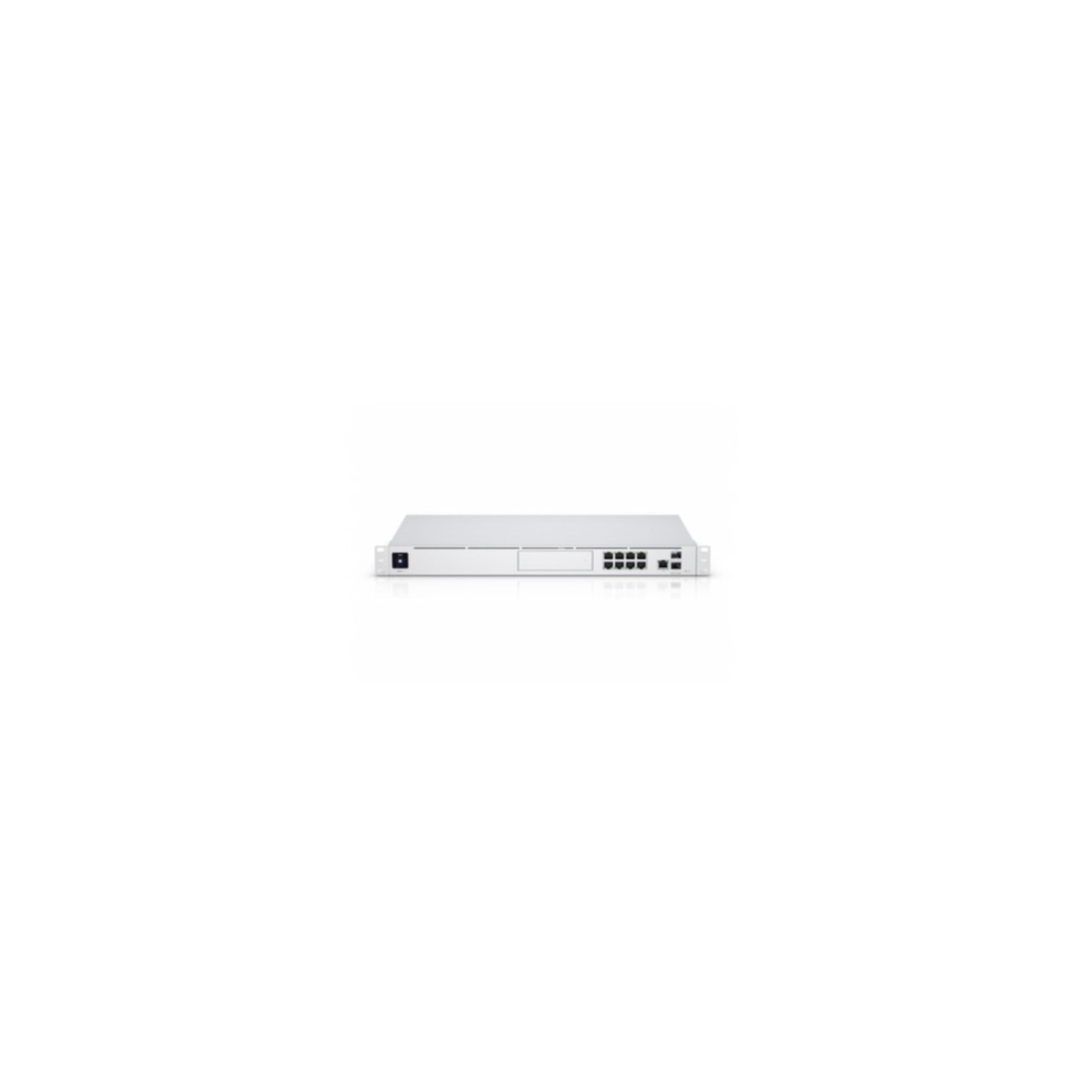

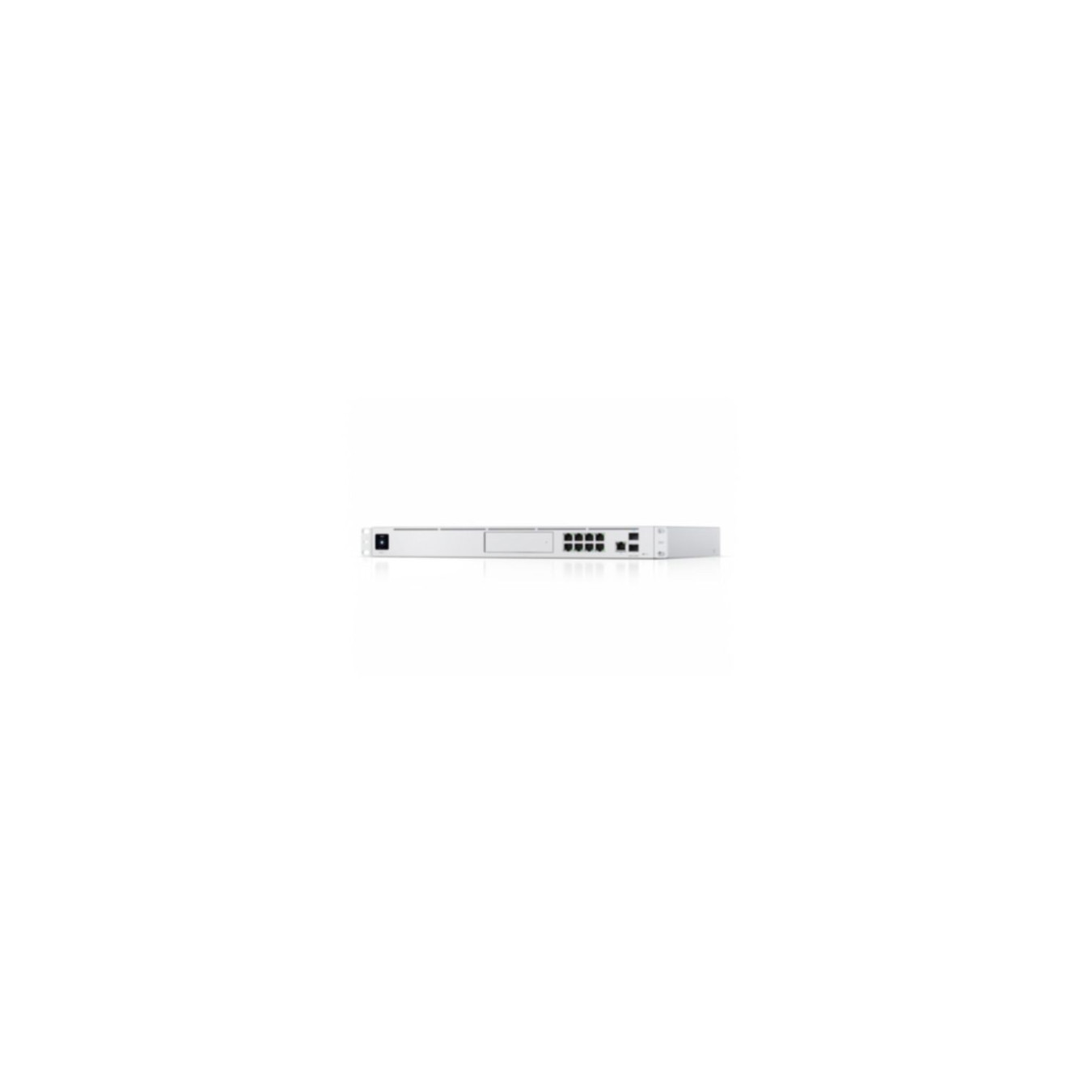

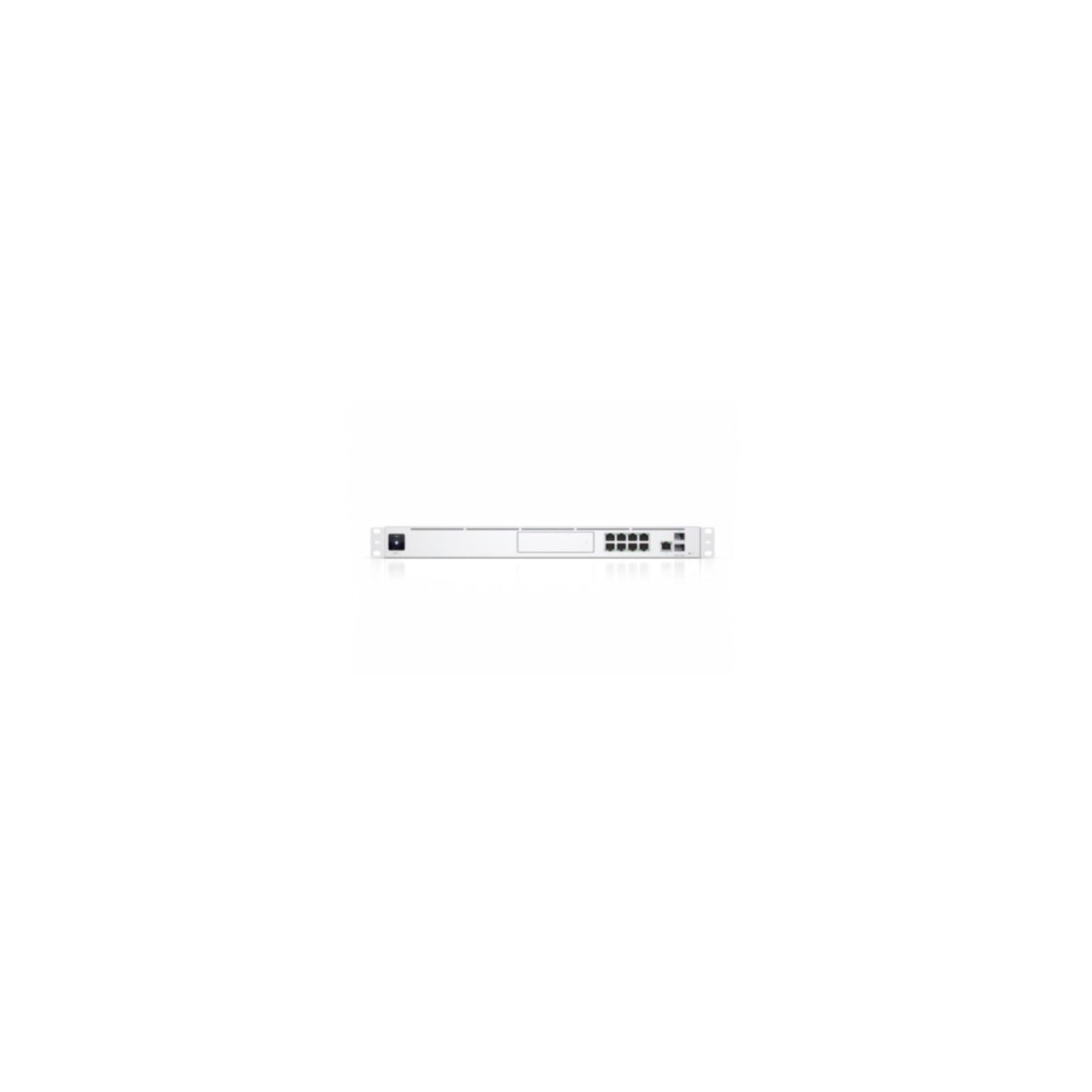

Ubiquiti UniFi Dream Machine Pro UDM-PRO White 4GB 16GB ARM 1.7GHz (Boxed)
UniFi Dream Machine Pro UDM-PRO: 10G cloud gateway with 3.5Gbps IPS, 100+ devices/1000+ clients. Features 9x GbE RJ45 (8 LAN+1 WAN), 2x 10G SFP+, 1.3in touchscreen, 3.5in HDD bay.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Cloud Managed Failover Support Firewall Intrusion Prevention QoS Traffic Monitoring VLAN Support VPN Support |
| Routers - LAN Ports | 9-16 |
| Routers - Wi-Fi Standard | Wired Only |
The Ubiquiti UniFi Dream Machine Pro (UDM-Pro) is a powerful all-in-one enterprise network appliance designed for small to medium businesses. It integrates a security gateway, UniFi Network controller, 10G SFP+ WAN, 8x Gigabit RJ45 LAN ports, one 10G SFP+ LAN port, and support for a 3.5" HDD (2.5" also compatible) for NVR storage. Rack-mountable in a 1U form factor with redundant PSU support via USP-RPS.
Key capabilities include 3.5 Gbps IDS/IPS throughput, stateful firewall, automatic QoS for voice/video, VLAN support, VPN server, policy-based routing, DHCP relay, and IGMP proxy. Manage via Ethernet, Bluetooth, or the 1.3" touchscreen LCM display. Supports 100+ UniFi devices and 1000+ clients with Shadow Mode failover redundancy.
- Ports: (1) 10G SFP+ WAN, (1) GbE RJ45 WAN, (8) GbE RJ45 LAN, (1) 10G SFP+ LAN
- Processor: Quad-core ARM Cortex-A57 @ 1.7 GHz, 4 GB DDR4 RAM, 16 GB eMMC
- Power: 100-240V AC, max 33W, operating -10 to 40°C
- Dimensions: 442.4 x 285.6 x 43.7 mm, weight 3.9 kg
- Certifications: CE, FCC, IC
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| 10G support | Yes |
| Throughput | 3.5 Gbit/s |
| IDS/IPS throughput | 3.5 Gbps |
| Rack mounting | Yes |
| Form factor | Rack mount (1U) |
| Product colour | White |
| LED indicators | Yes |
| LCM Display | 1.3 |
| Built-in processor | Yes |
| Processor model | Quad-core ARM Cortex-A57 |
| Processor frequency | 1.7 GHz |
| Internal memory | 4 GB DDR4 |
| Flash memory | 16 GB eMMC |
| HDD bay | 3.5 |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 12 V |
| Power consumption (max) | 33 W |
| Width | 442.4 mm |
| Depth | 285.6 mm |
| Height | 43.7 mm |
| Weight | 3.9 kg |
| Certification | CE, FCC, IC |
| Harmonized System (HS) code | 85176990 |
| Operating temperature | -10 to 40° C |
| Management interface | Ethernet, Bluetooth |
