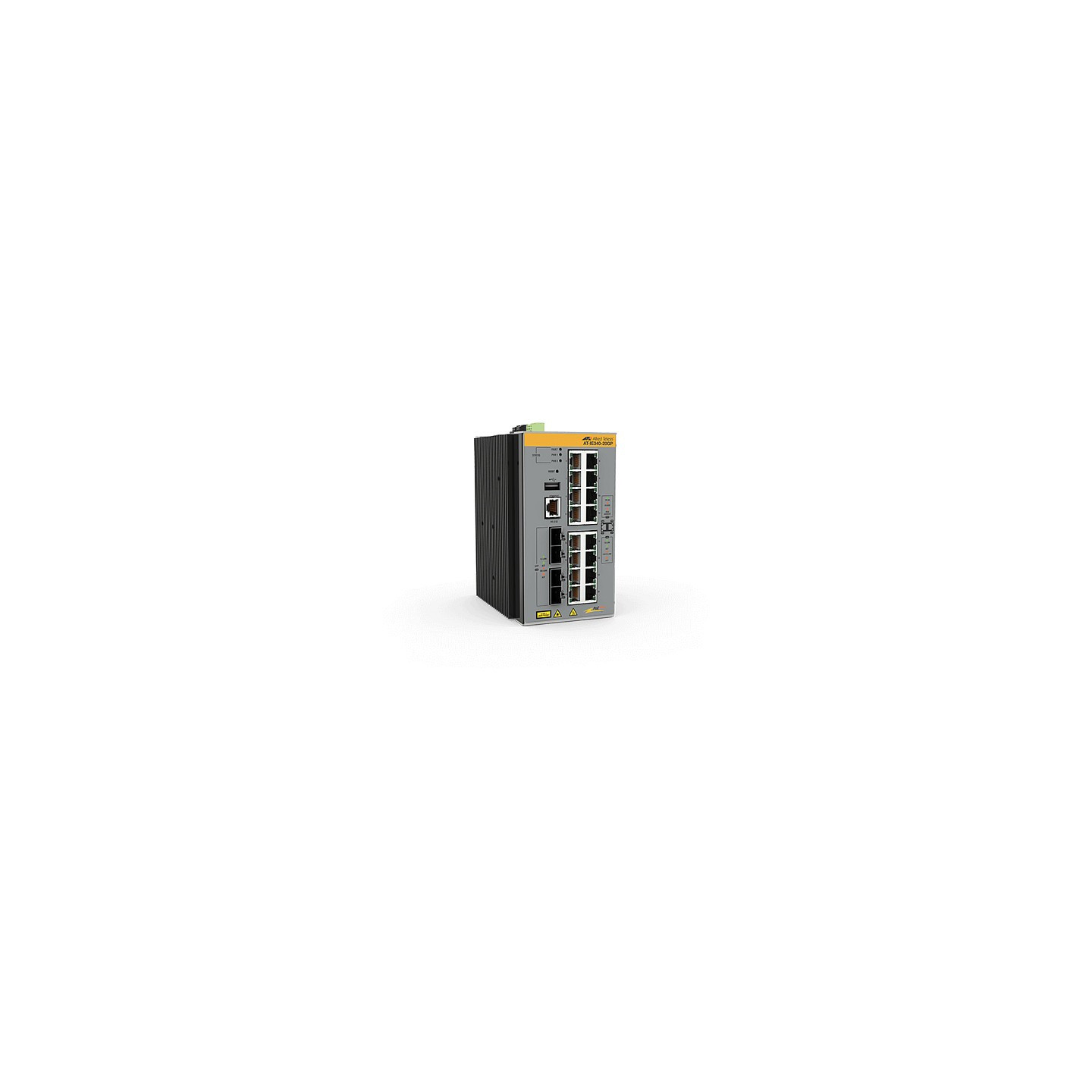

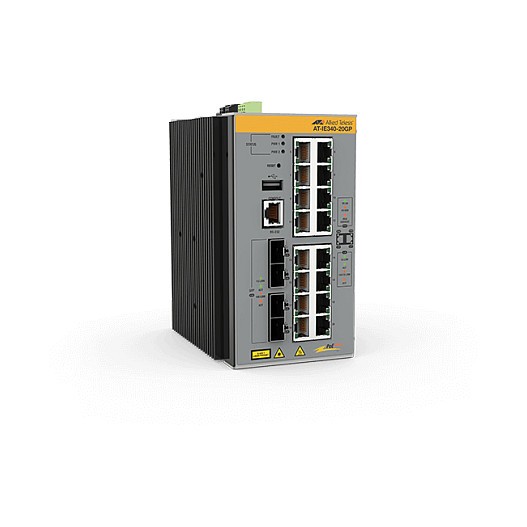

ALLIED L3 Industrial Ethernet Switch 16x 10 100 1000-T PoE+ 4x SFP Ports
Allied Telesis AT-IE340-20GP-80. Managed. L3. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE). Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Allied Telesis AT-IE340-20GP-80. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. Anzahl USB 2.0 Anschlüsse: 1. Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 40 Gbit/s. Netzstandard: IEEE 1588. IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1ad. IEEE 802.1ag. IEEE.... DC input Spannung: 18 - 57 V. Power over Ethernet (PoE). Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Power over Ethernet (PoE) |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 4 |
| Konsolen-Port | RJ-45 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Virtuelle LAN-Funktionen | Private VLAN. Tagged VLAN |
| Anzahl der VLANs | 4094 |
| Routing-/Switching-Kapazität | 40 Gbit/s |
| Transferrate | 29.7 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 9000 |
| Datenpaket-Pufferspeicher | 1.5 MB |
| DHCP-Funktionen | DHCP relay. DHCP server. DHCP snooping. DHCPv6 relay. DHCPv6 server |
| Authentifizierung | Gast VLAN. MAC-basierte Authentifizierung. Port-basierte Authentifizierung. Webbasierte Authentifizierung |
| Router Protokoll | BGP. OSPF. RIP |
| Produktfarbe | Grau |
| Gehäusematerial | Aluminium. Metall |
| Internationale Schutzart (IP-Code) | IP30 |
| Elektromagnetische Verträglichkeit | EN 55024. EN 61000-6-2 |
| Speichertyp | DDR-SDRAM |
| Speicherkapazität | 512 MB |
| Flash-Speicher | 128 MB |
| Exportkontroll-Klassifizierungsnummer (ECCN) | 5A992C |
| DC input Spannung | 18 - 57 V |
| Stromverbrauch (max.) | 271 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 16 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 15 W |
| Gesamtleistung Power over Ethernet (PoE) | 240 W |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Höhe bei Betrieb | 0 - 3000 m |
| Wärmeableitung | 105.8 BTU/h |
| Breite | 91 mm |
| Tiefe | 139 mm |
| Höhe | 153 mm |
| Gewicht | 2.34 kg |
| Zertifizierung | CE. FCC. ICES. RCM. TEC8. UL. VCCIRoHS. China-RoHS. WEEE |
| Warentarifnummer (HS) | 85176990 |
