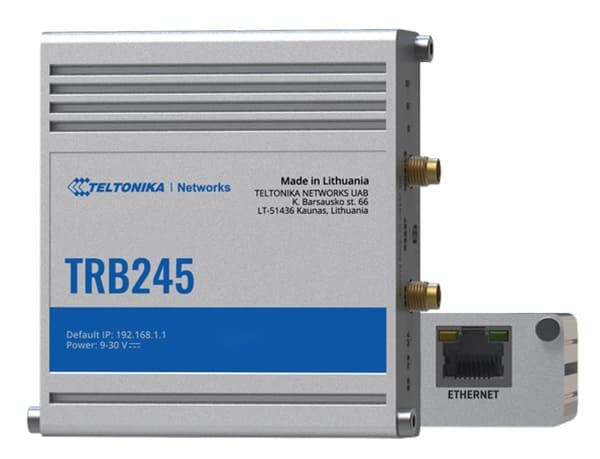

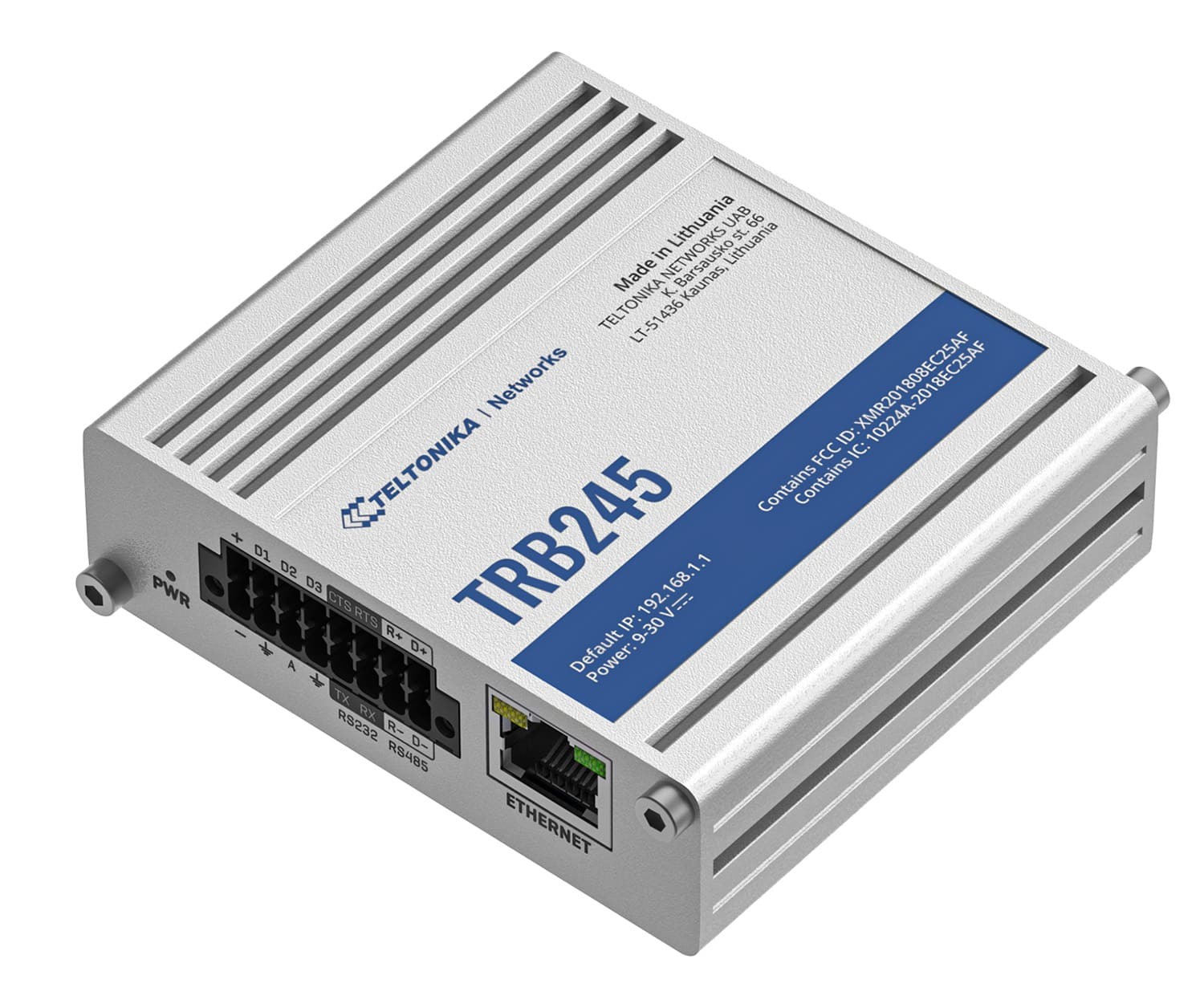

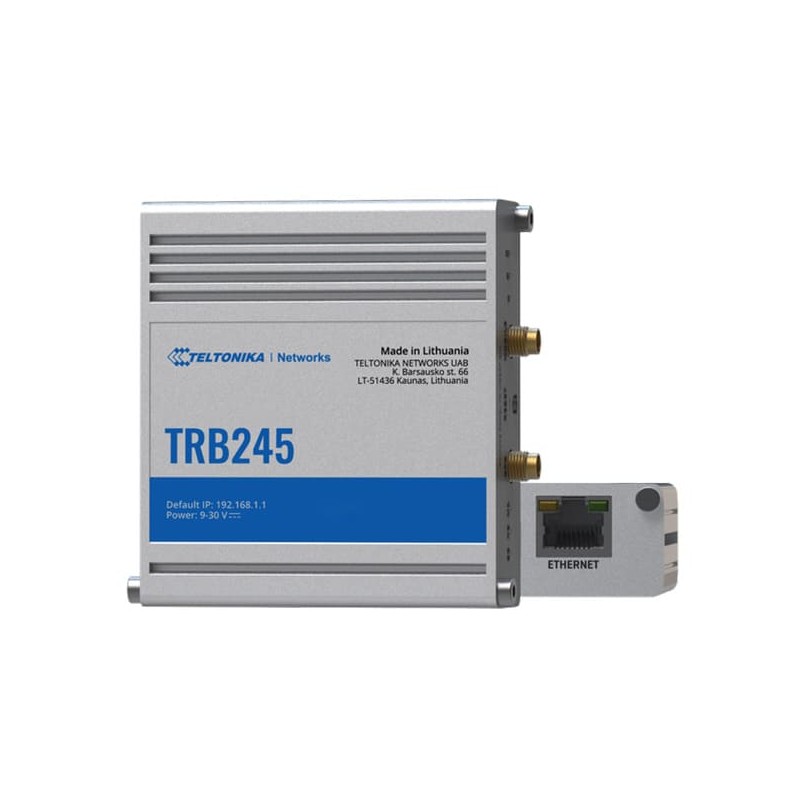

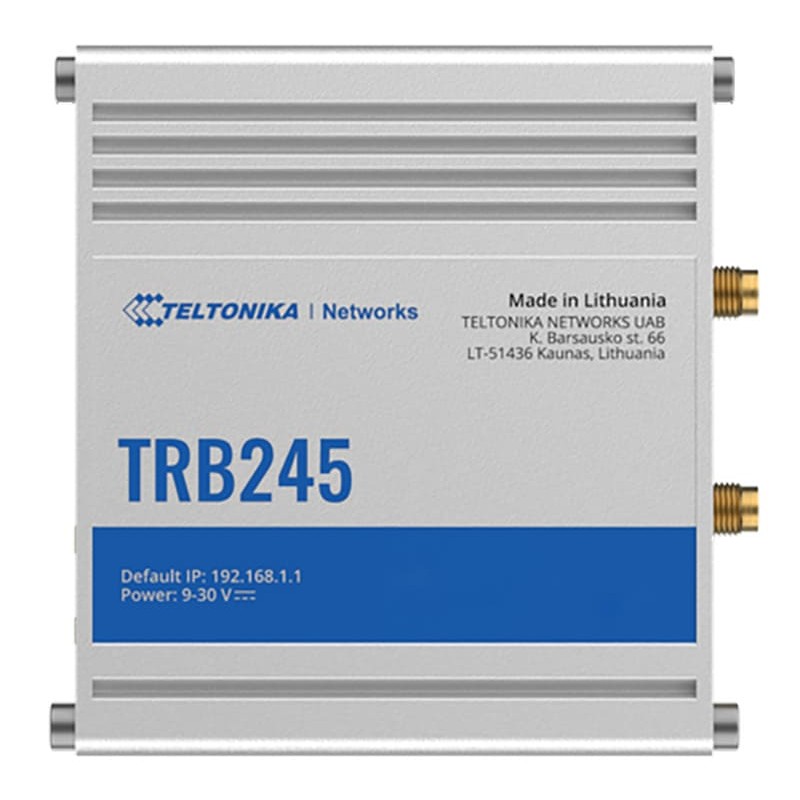

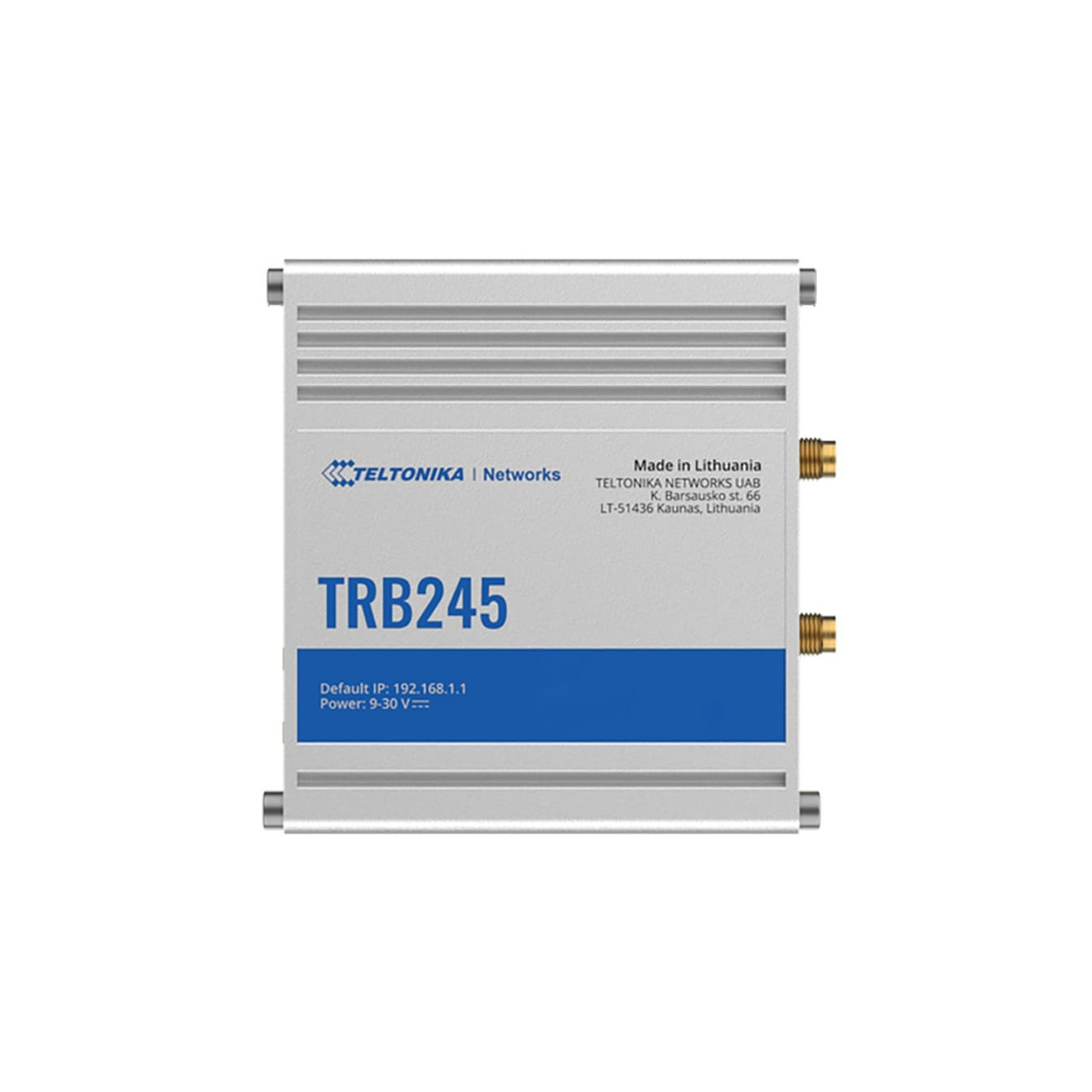

Teltonika TRB245 Gateway
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

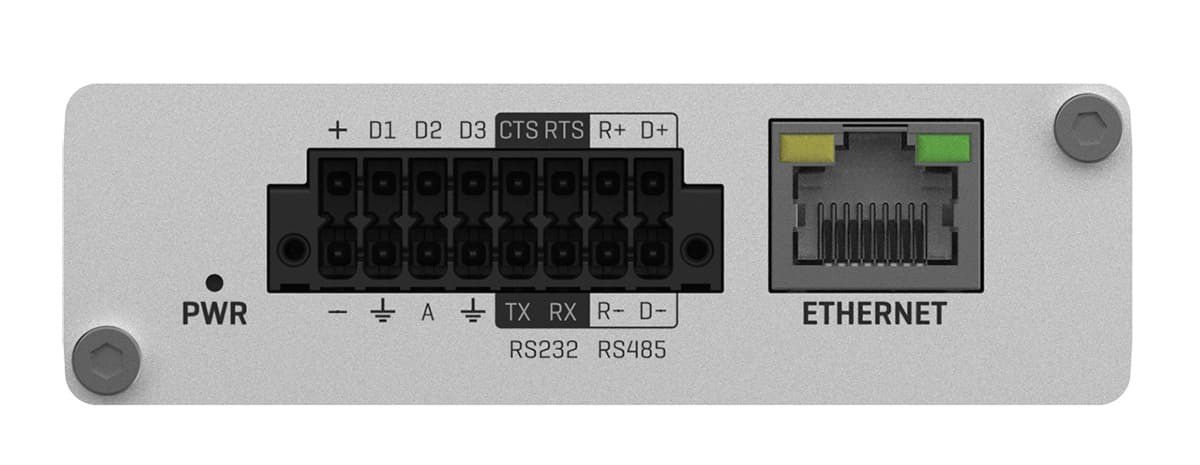

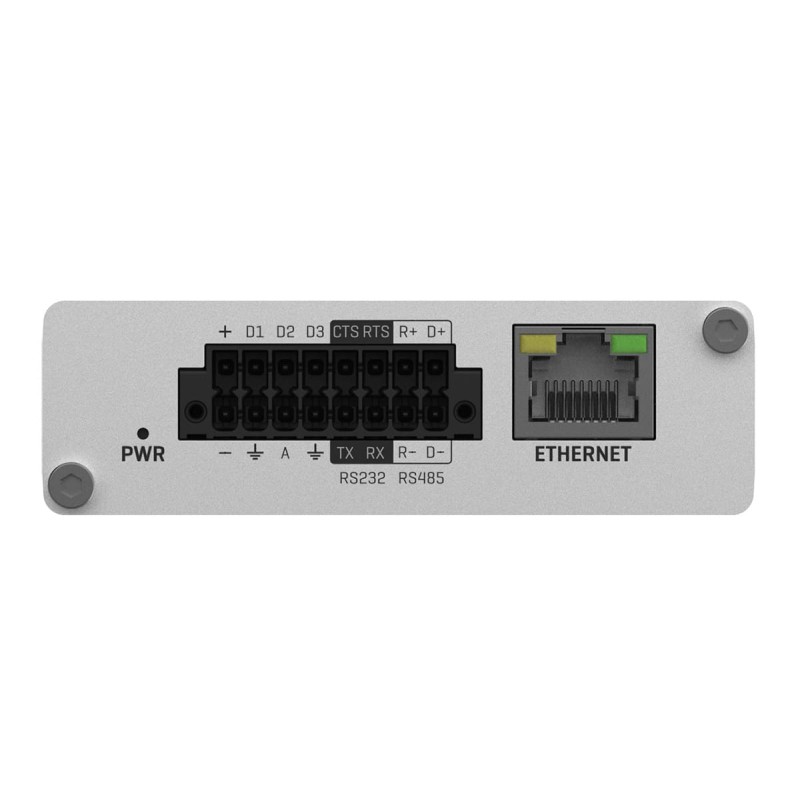

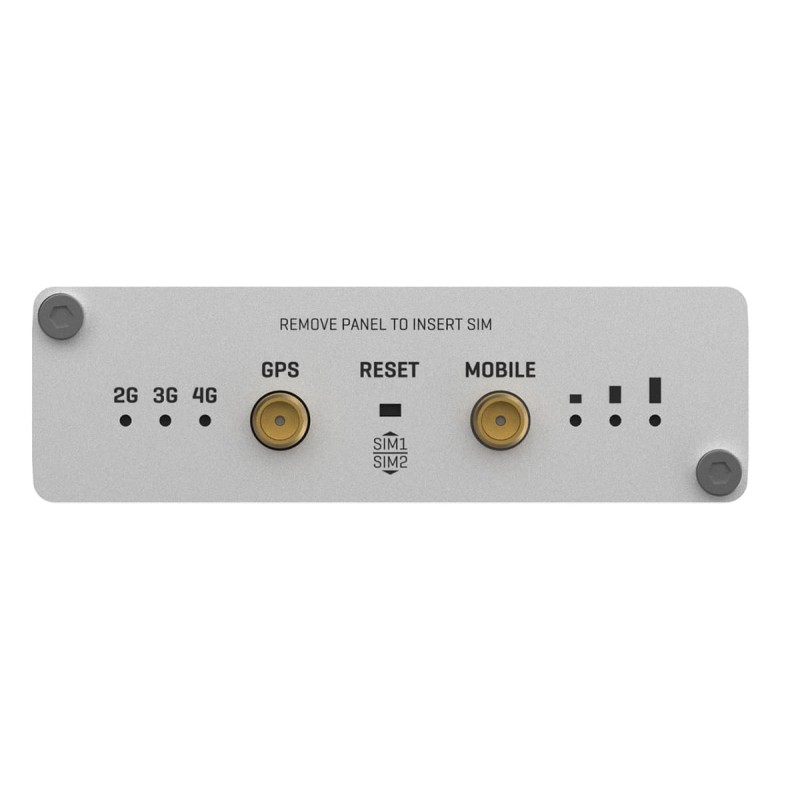

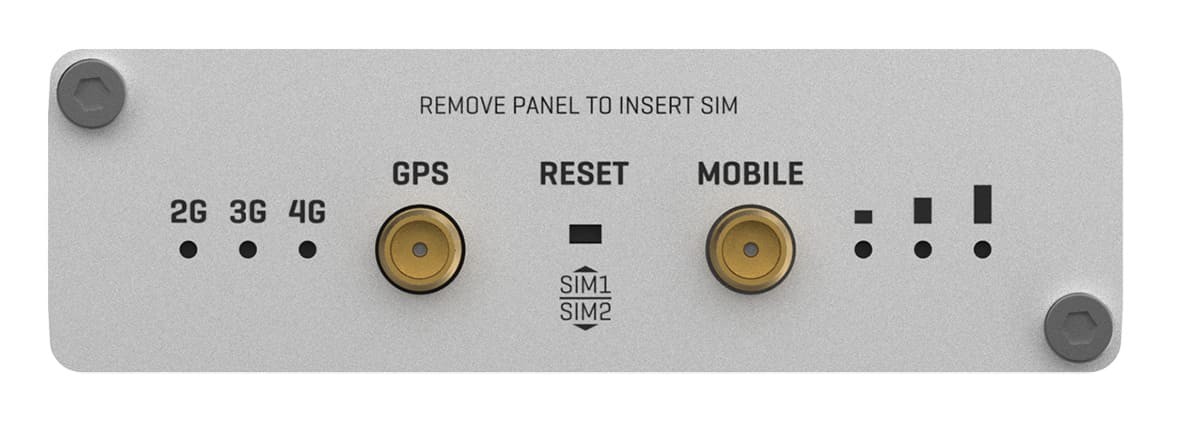

Industrial LTE Cat 4 Gateway TRB245 is equipped with GNSS receiver, Ethernet port, durable 16 pin connector block. This Gateway board packs all essential features for an industry in one package: secure power connector, I/O ports, serial communication, fast and reliable internet connection. TRB245 can be used to integrate modern and legacy industrial equipment in one solution and with a wide range of software features such as SMS control, Firewall, open VPN, IPSec, RMS user can be ensured that data can be reached securely and without compromises.
| Product colour | Grey |
| LED indicators | Power |
| Management protocols | SNMP |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPP (planned), SSH, DHCP, Telnet, MQTT (planned), Wake On Lan (WOL) (planned) |
| DMZ support | Yes |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Forwarding rate | 150 Mpps |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| VLAN support | Yes |
| Network address translation (NAT) | Yes |
| RS-232 ports | 1 |
| SIM card slot | Yes |
| Console port | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial interface type | RS-232/485 |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Width | 83 mm |
| Depth | 25 mm |
| Height | 74 mm |
| Weight | 165 g |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Safety | IEC 62368-1:2014, EN 50385:2017, EN 62232:2017 |
| Certification | CE/RED, EAC, RoHS, WEEE Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 EN 61000-4-2:2009 EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 EN 61000-4-3:2006 + A1:2008 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2014 EN 61000-4-11:2004 |
| Harmonized System (HS) code | 85176990 |
