TP-Link

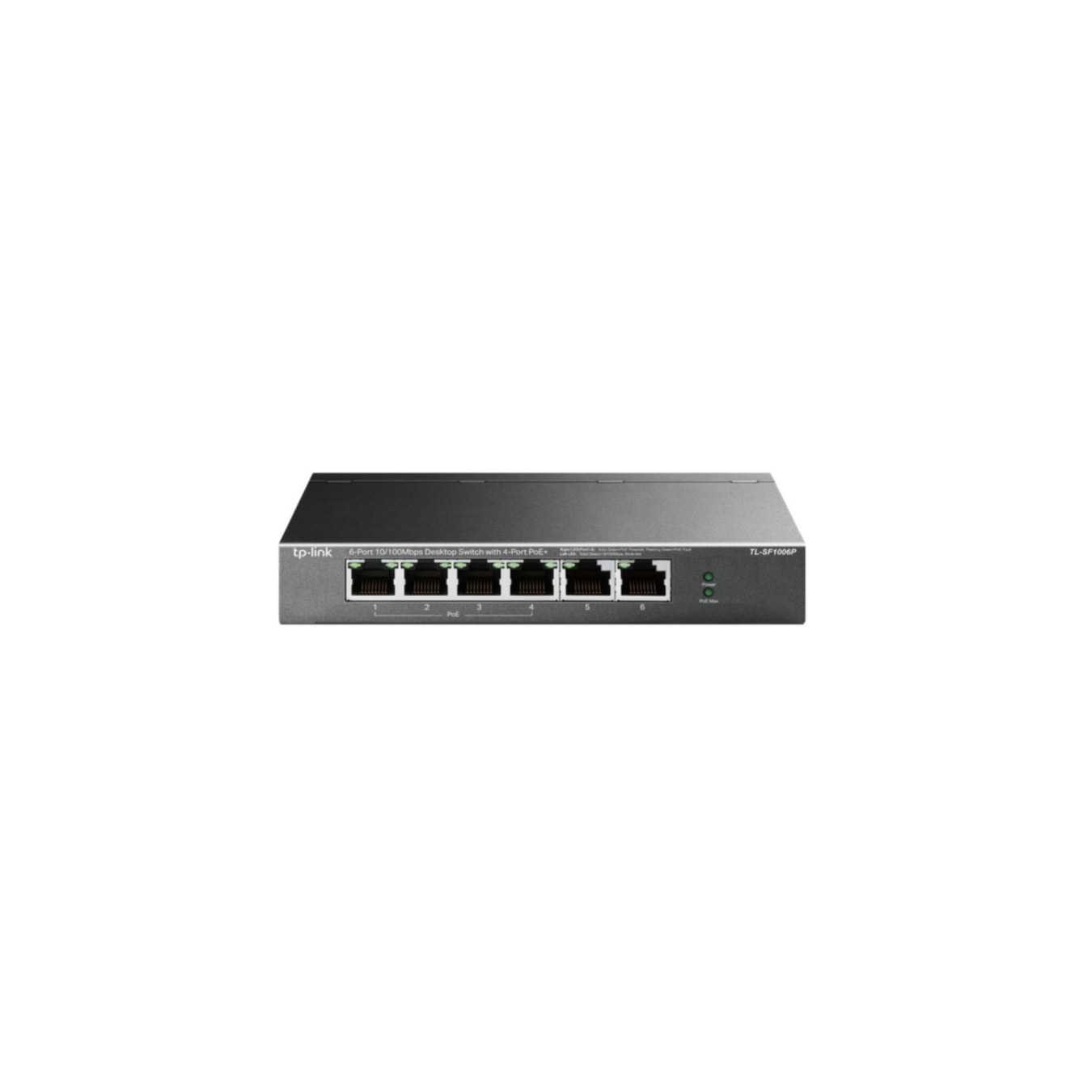

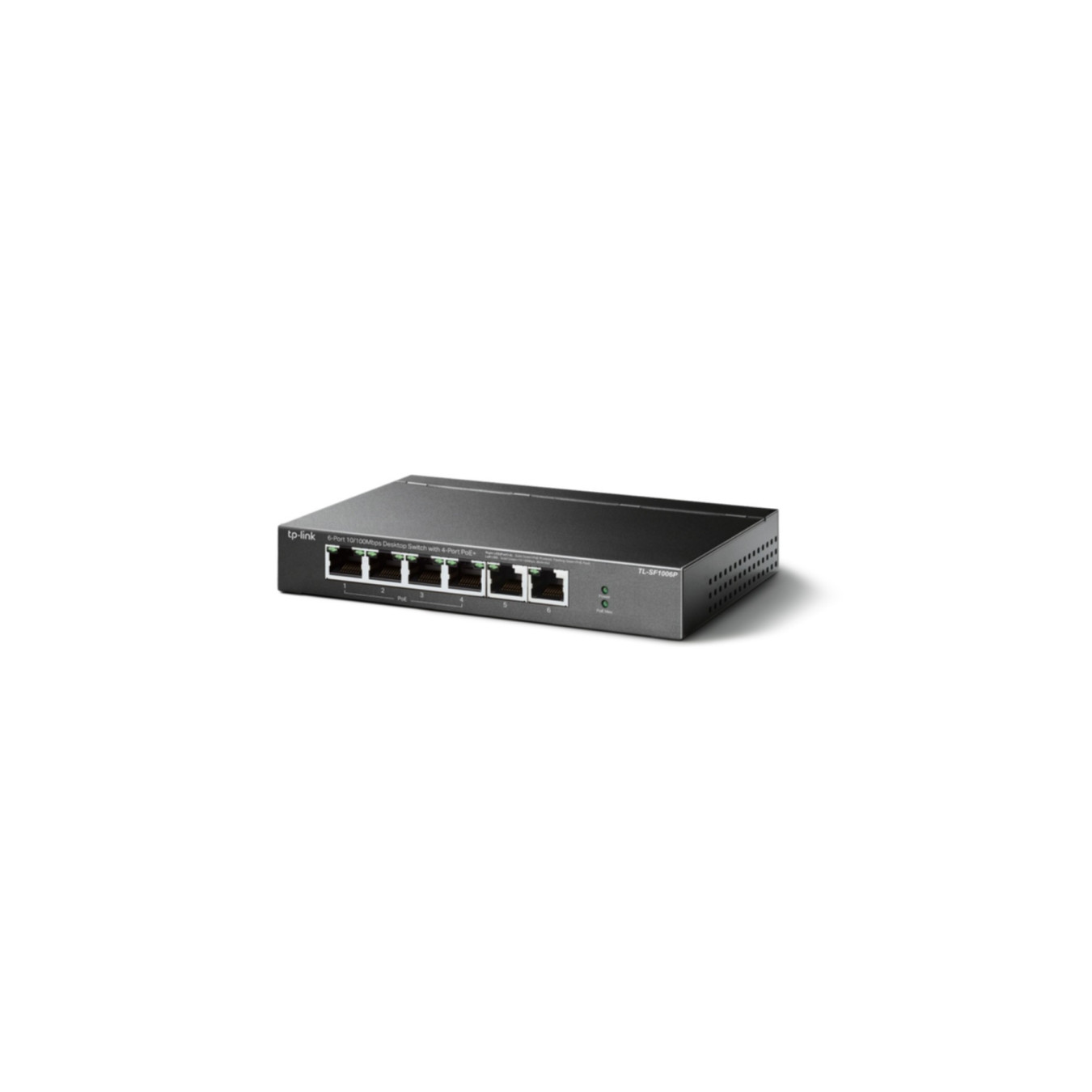

TP-Link TL-SF1006P - 6-Port 10/100 Fast Ethernet Unmanaged PoE Switch, 4x PoE+ Ports, Black

SKU 7508 Brand TP-Link EAN13 6935364030933
Unmanaged 6-port 10/100 Fast Ethernet switch with 4 PoE+ ports, 67W PoE budget, metal fanless housing, 1.2 Gbit/s switching capacity — plug-and-play for small offices.
Network Switches - Fanless Yes

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.


Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Networking standardsIEEE 802.3af, IEEE 802.3at
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 100BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Full duplexYes
Half duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Switching capacity1.2 Gbit/s
Forwarding rate0.8928 Mpps
MAC address table2000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames2000
Rack mountingNo
StackableNo
Product colourBlack
Housing materialMetal
LED indicatorsYes
FanlessYes
Power sourceDC/PoE
Power supply includedYes
AC input voltage220 V
AC input frequency50 Hz
DC input voltage53.5 V
Input current1.31 A
Power consumption (max)74 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget67 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation252.34 BTU/h
Width158 mm
Depth101 mm
Height25 mm
User guideYes
AC adapter includedYes
Package typeBox
Package width131 mm
Package depth196 mm
Package height121 mm
Package weight870 g
Sustainability complianceYes
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
CertificationFCC, CE, RoHS
Harmonized System (HS) code85176990
