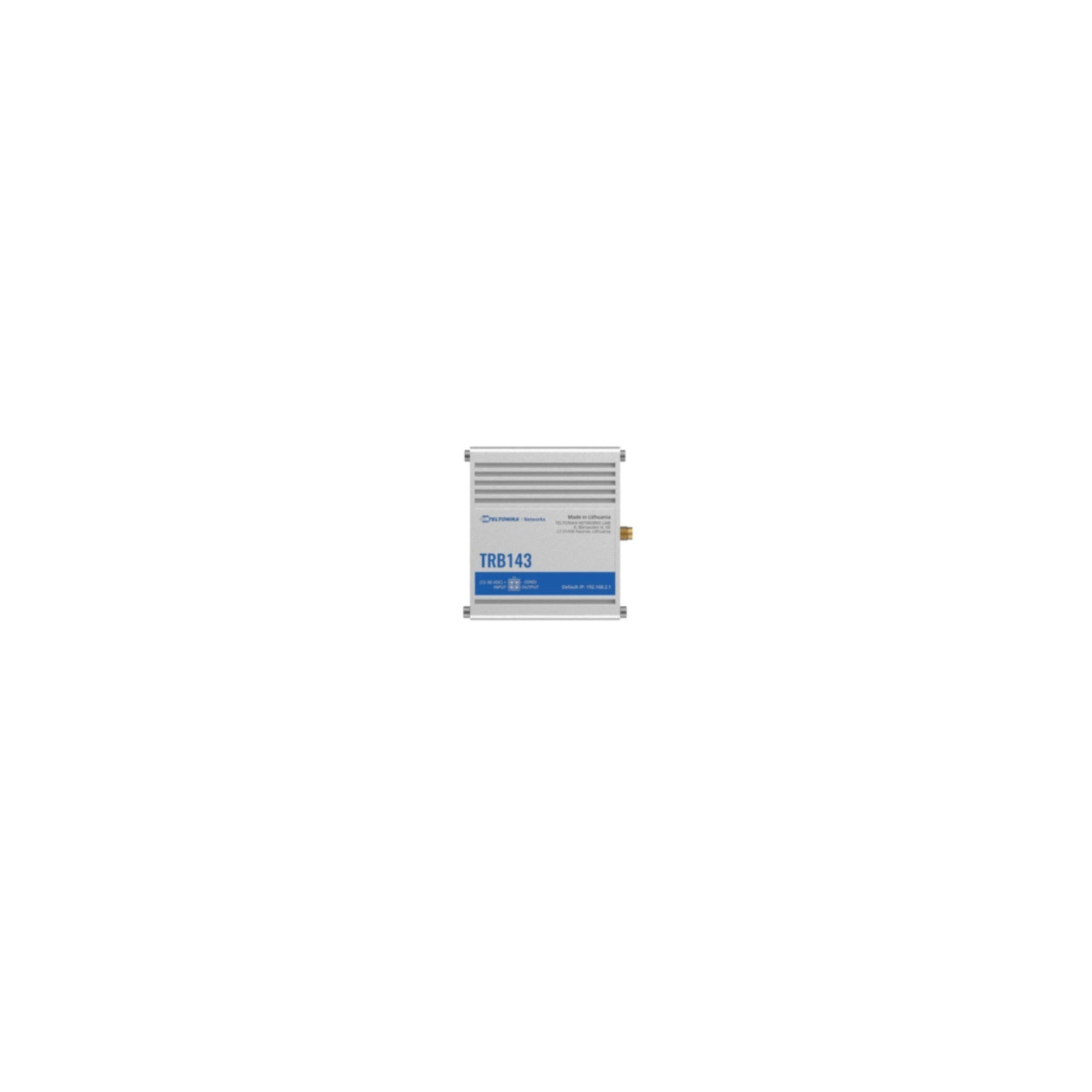

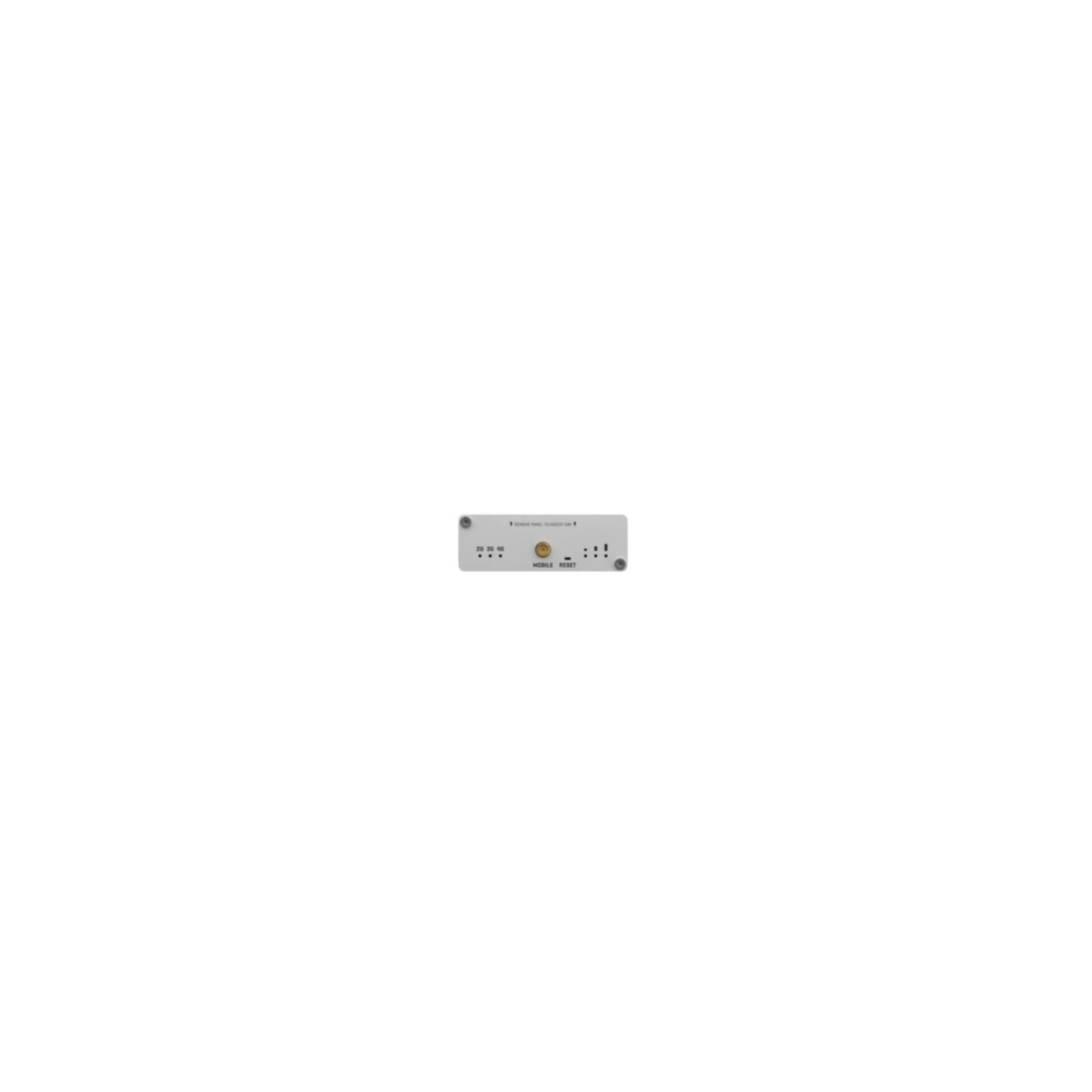

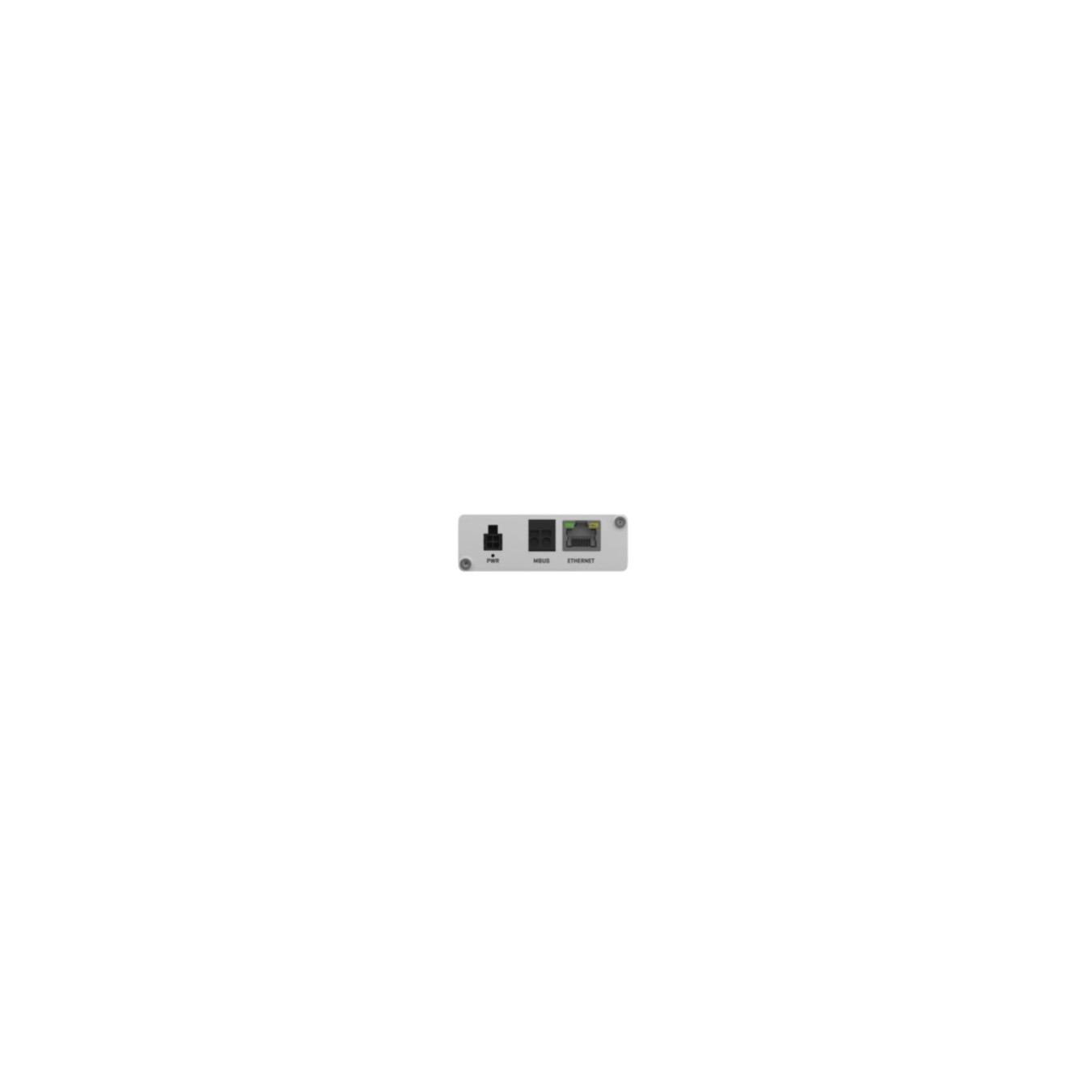

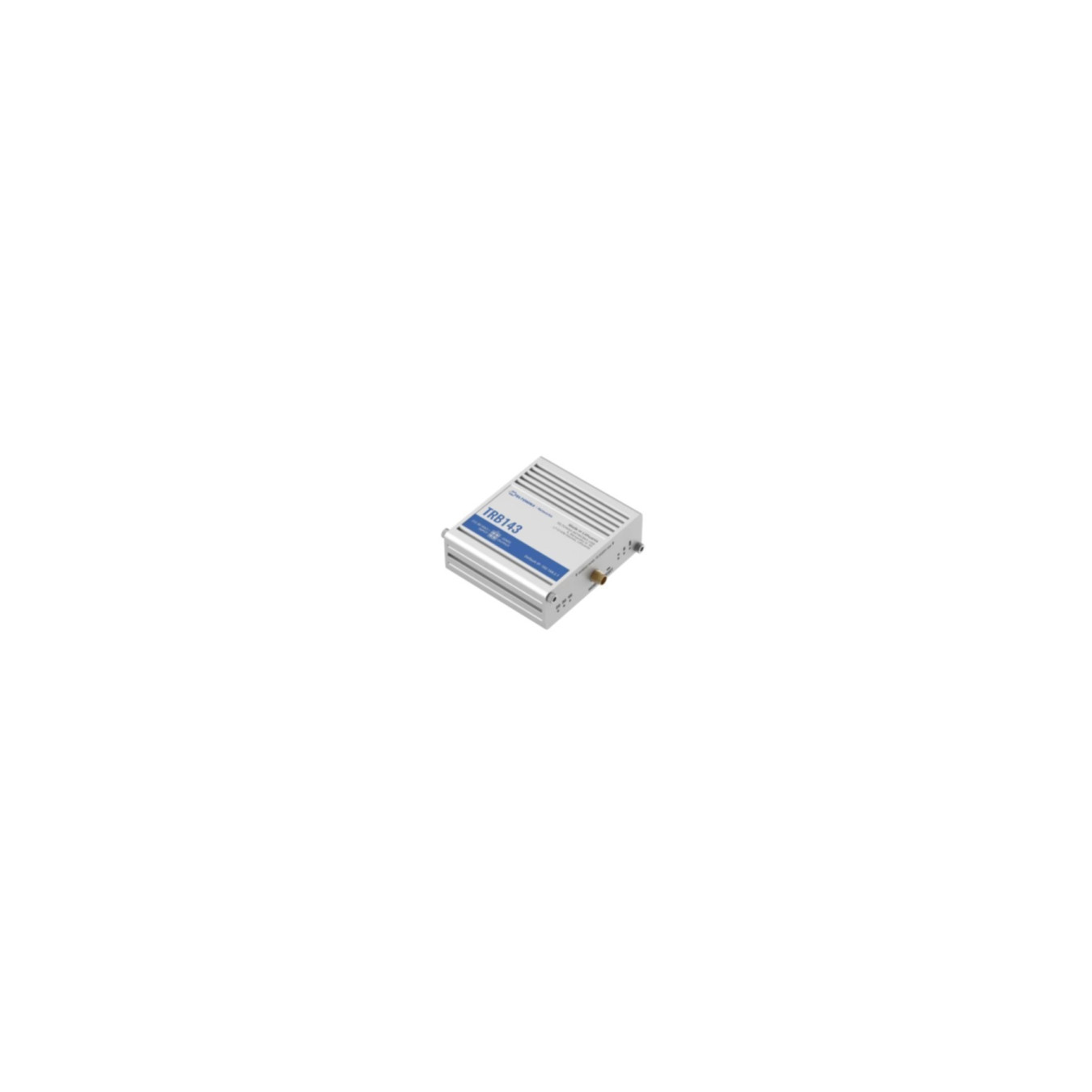

Teltonika TRB143 - Industrial M-Bus Cellular Gateway, Steel, ARM Cortex-A7 1.3 GHz, 256MB RAM, 512MB Flash, LTE Cat4
Industrial M-Bus cellular gateway for telemetry and utility monitoring; supports up to 250 M-Bus clients, LTE Cat4/3G/2G, 1x Gigabit Ethernet, digital I/O, rugged aluminum housing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TRB143 - M-BUS CELLULAR GATEWAY
The TRB143 industrial gateway was designed with an integrated M-Bus interface specifically for telemetry and utility-monitoring applications. It features cellular and wired connectivity, one Gigabit Ethernet port, and a pair of digital Inputs/Outputs, making it applicable to a variety of environment-monitoring scenarios.
- M-BUS INTERFACE
Supporting up to 250 client devices
- CONNECTIVITY
4G/LTE (Cat 4), 3G, 2G
- DURABILITY
Rugged aluminum housing
- COMPACT
Simple integration
- Hardware version
Europe, The Middle East, Africa, Thailand
| Product colour | Steel |
| Enclosure material | Aluminium |
| International Protection (IP) code | IP30 |
| Enclosure International Protection (IP) code | IP30 |
| Antenna type | External |
| Antenna connector type | SMA |
| Antennas quantity | 1 |
| Short Message Service (SMS) | Yes |
| Control display unit | No |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor model | Cortex-A7 |
| Processor frequency | 1300 MHz |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 512 MB |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| DMZ support | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| 4G LTE category | 4 |
| Mobile network generation | 4G |
| Data network | 2G, 3G, 4G |
| Cabling technology | 10/100/1000Base-T(X) |
| Dynamic DNS (DDNS) | Yes |
| Firewall security | Yes |
| VLAN support | Yes |
| Network address translation (NAT) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Quality of Service (QoS) support | Yes |
| Power consumption (typical) | 3 W |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
| DC input voltage | 12 – 30 |
| Width | 74.5 mm |
| Depth | 73 mm |
| Height | 25 mm |
| Weight | 145 g |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
