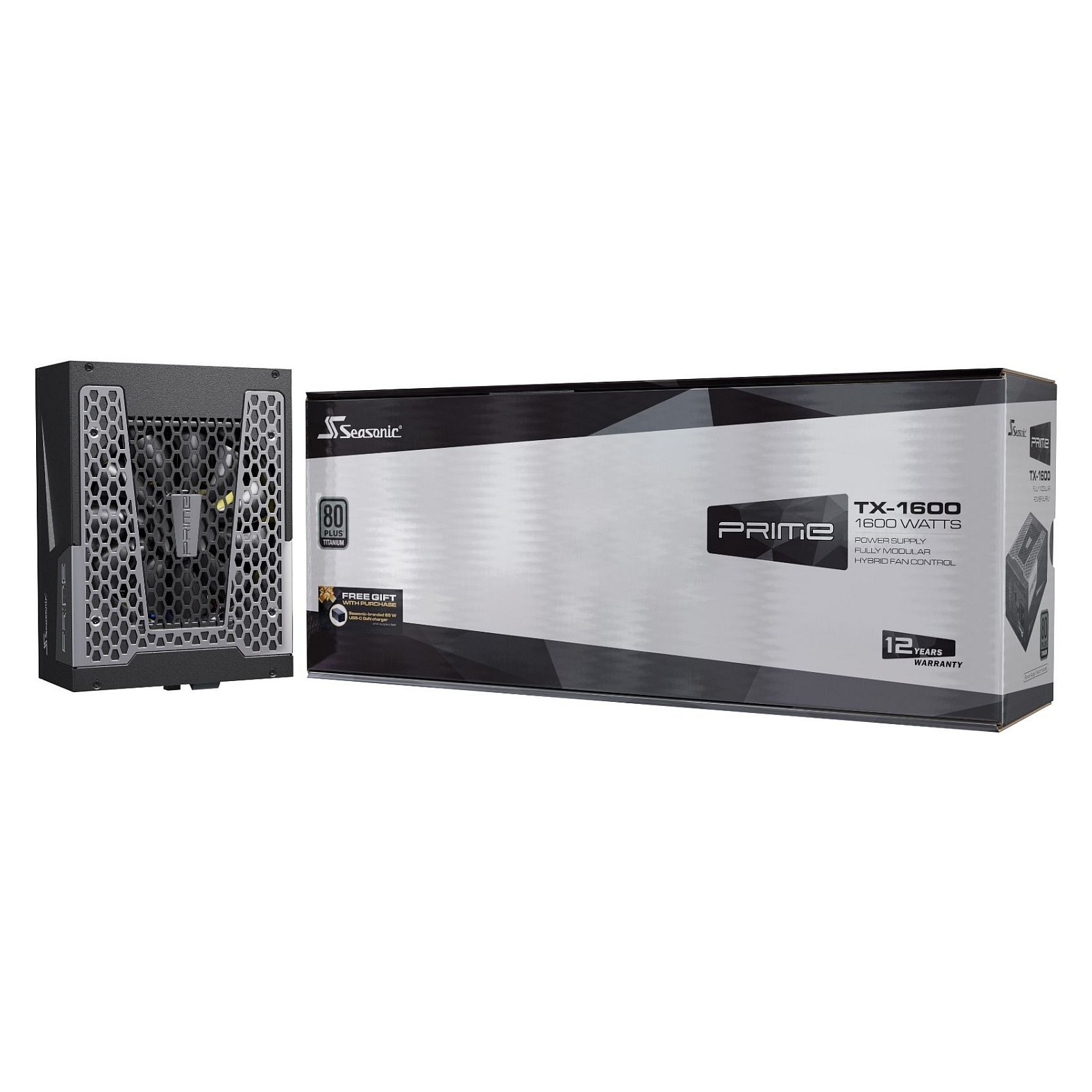

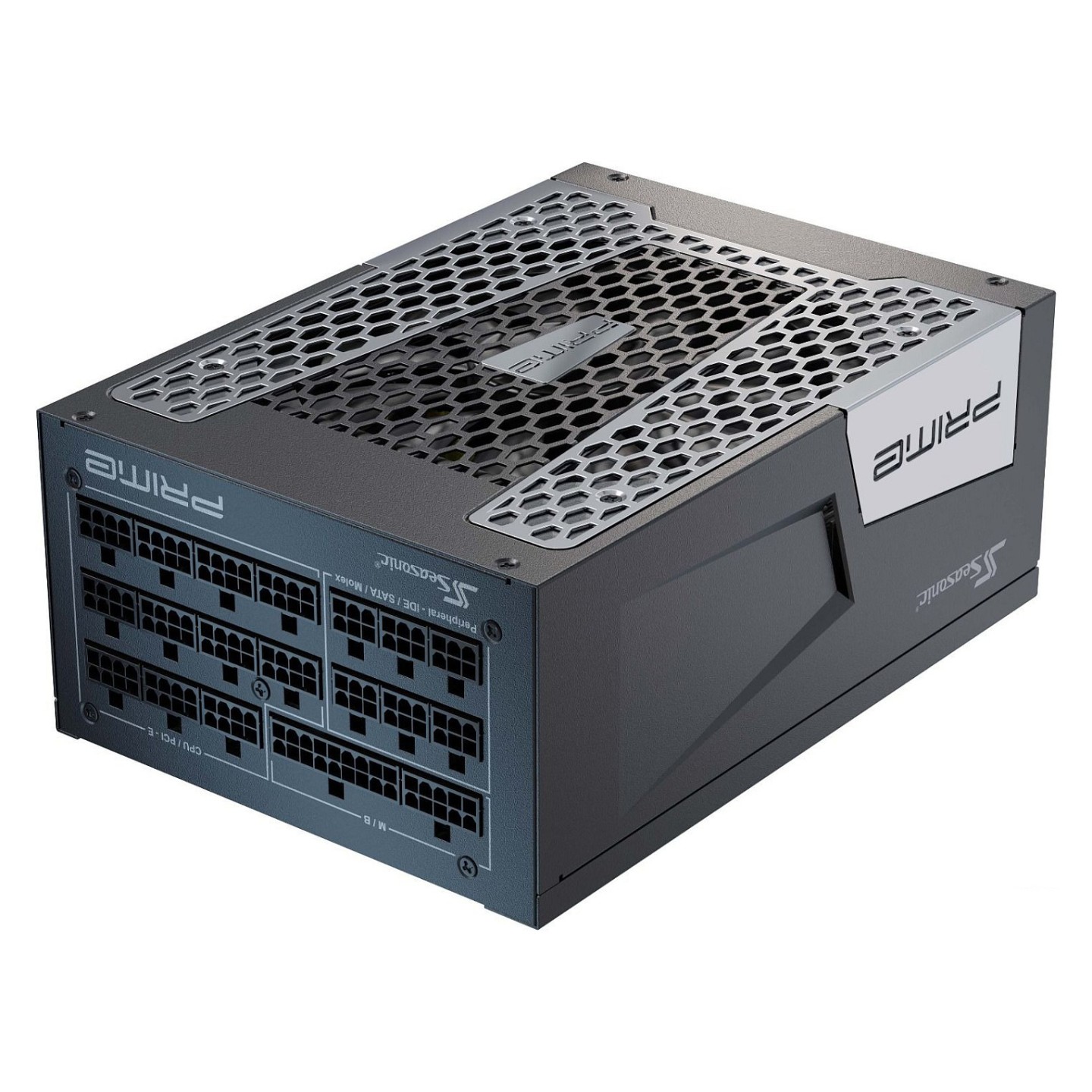

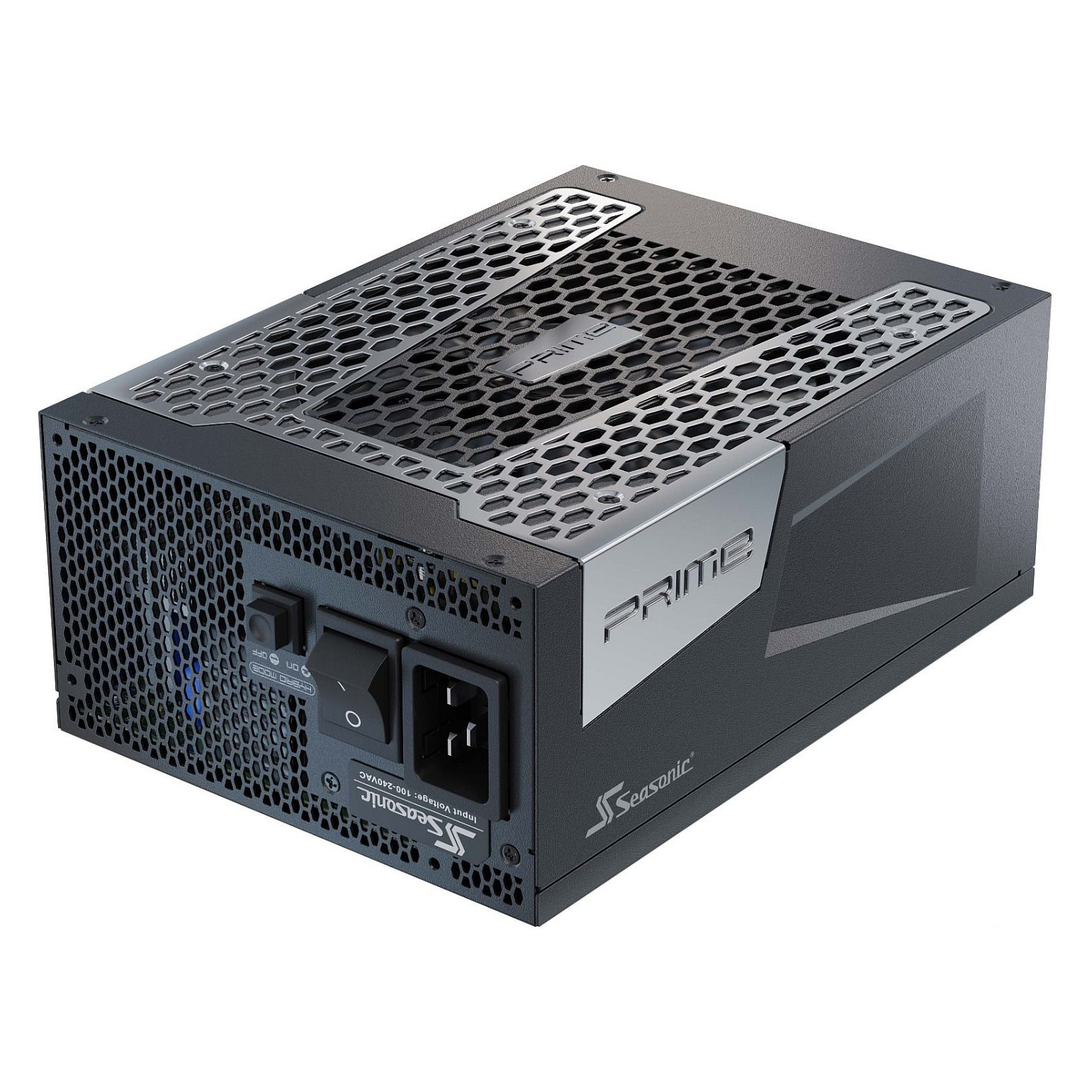

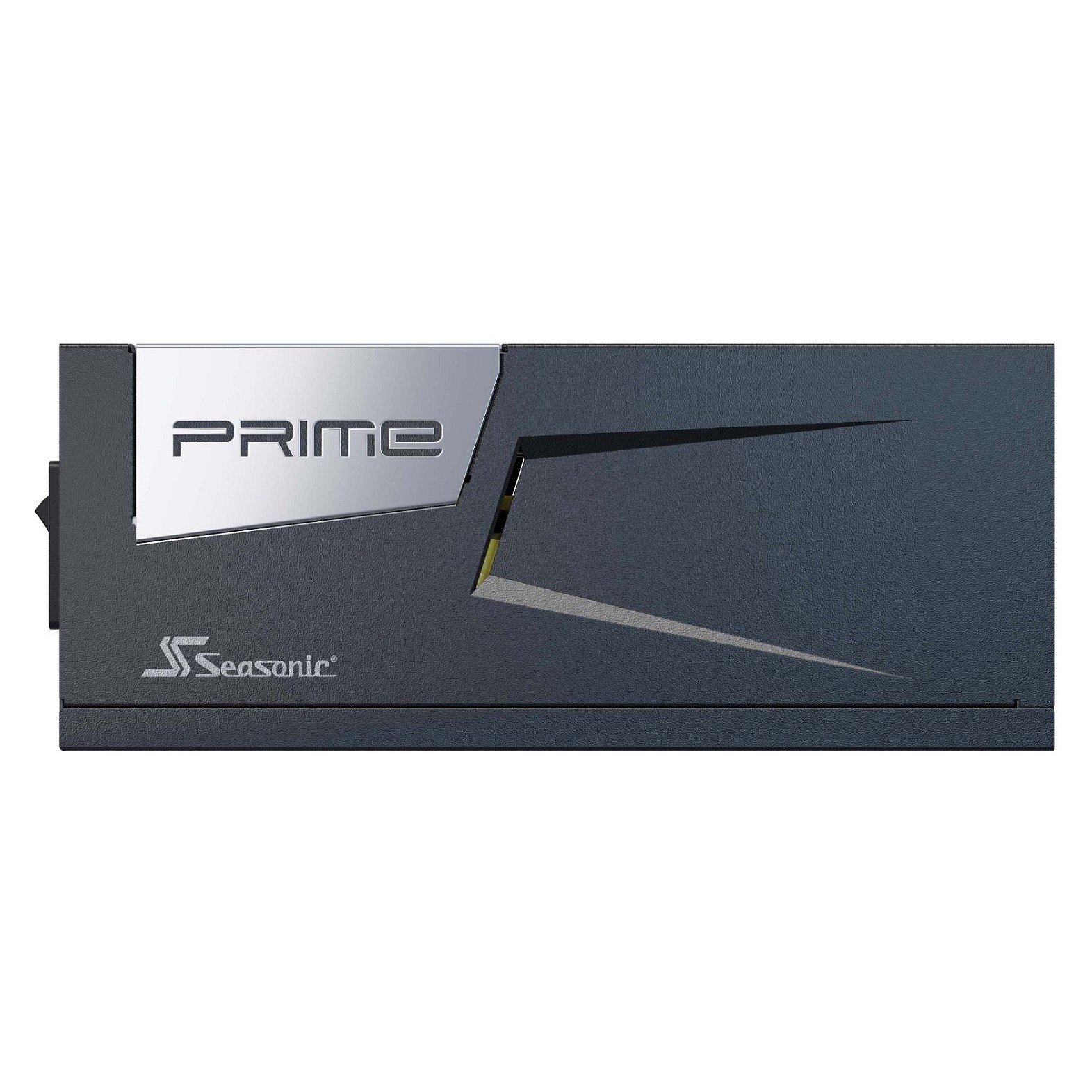

Seasonic PRIME TX-1600 ATX 3.1 80+ Titanium 1600W Fully Modular PSU (Boxed)
Seasonic PRIME TX-1600 is a 1600W ATX 3.1 PSU with 80+ Titanium efficiency. Fully modular, supports PCIe 5.1 with 2x 12V-2x6 (600W) connectors. Single +12V rail (133.3A), FDB fan, 12-year warranty for high-end PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1500 - 1999 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Titanium |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 6x 8/6 pins |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Seasonic PRIME TX-1600 is a premium 1600W power supply unit designed for high-performance PCs, workstations, and gaming rigs demanding extreme power delivery. Compliant with ATX 3.1 and PCIe 5.1 standards, it features a single powerful +12V rail delivering up to 133.3A / 1600W, ideal for next-gen GPUs and multi-GPU setups. Achieving 80 PLUS Titanium and Cybenetics Titanium efficiency (up to 94.8%), it ensures minimal energy waste and low heat output.

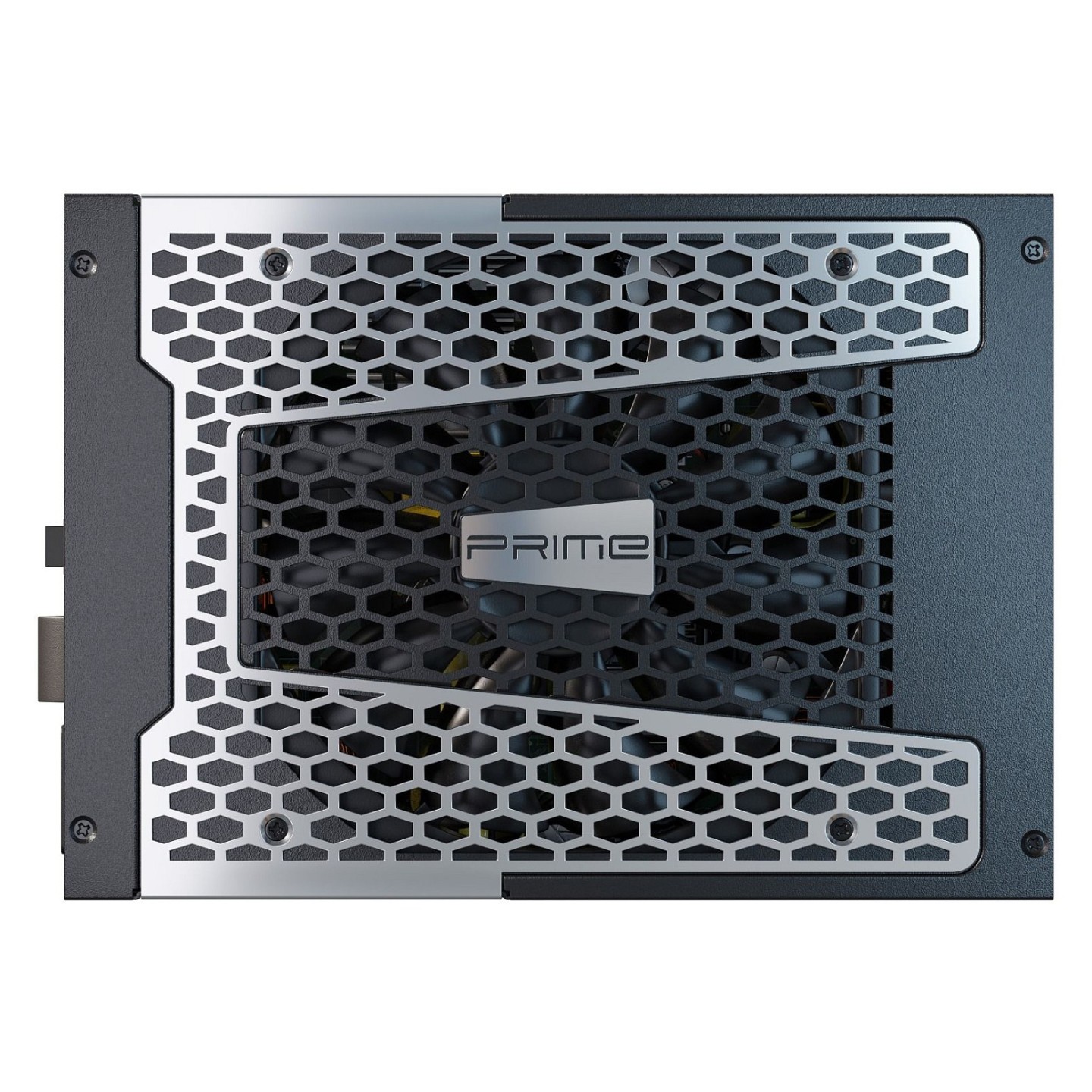

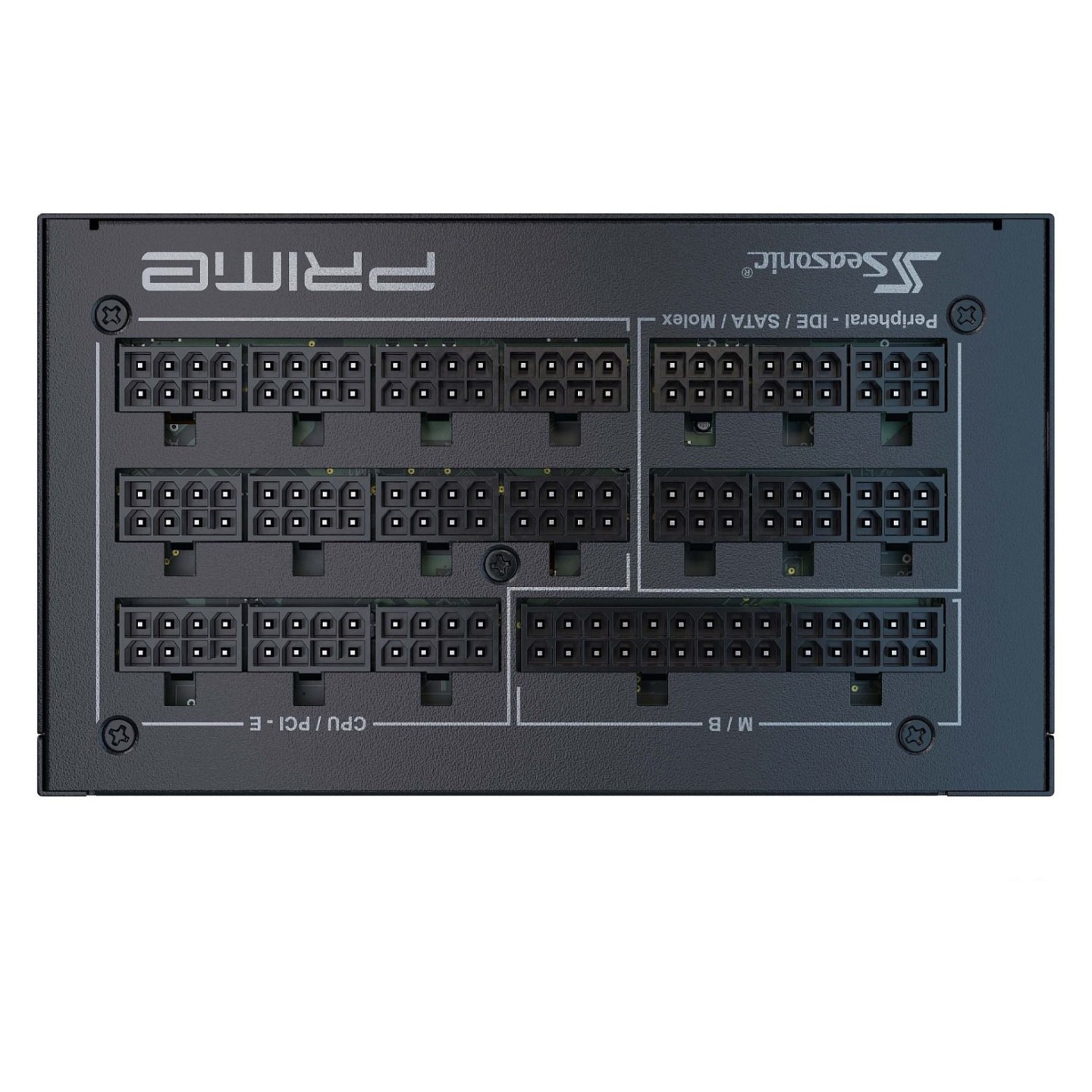

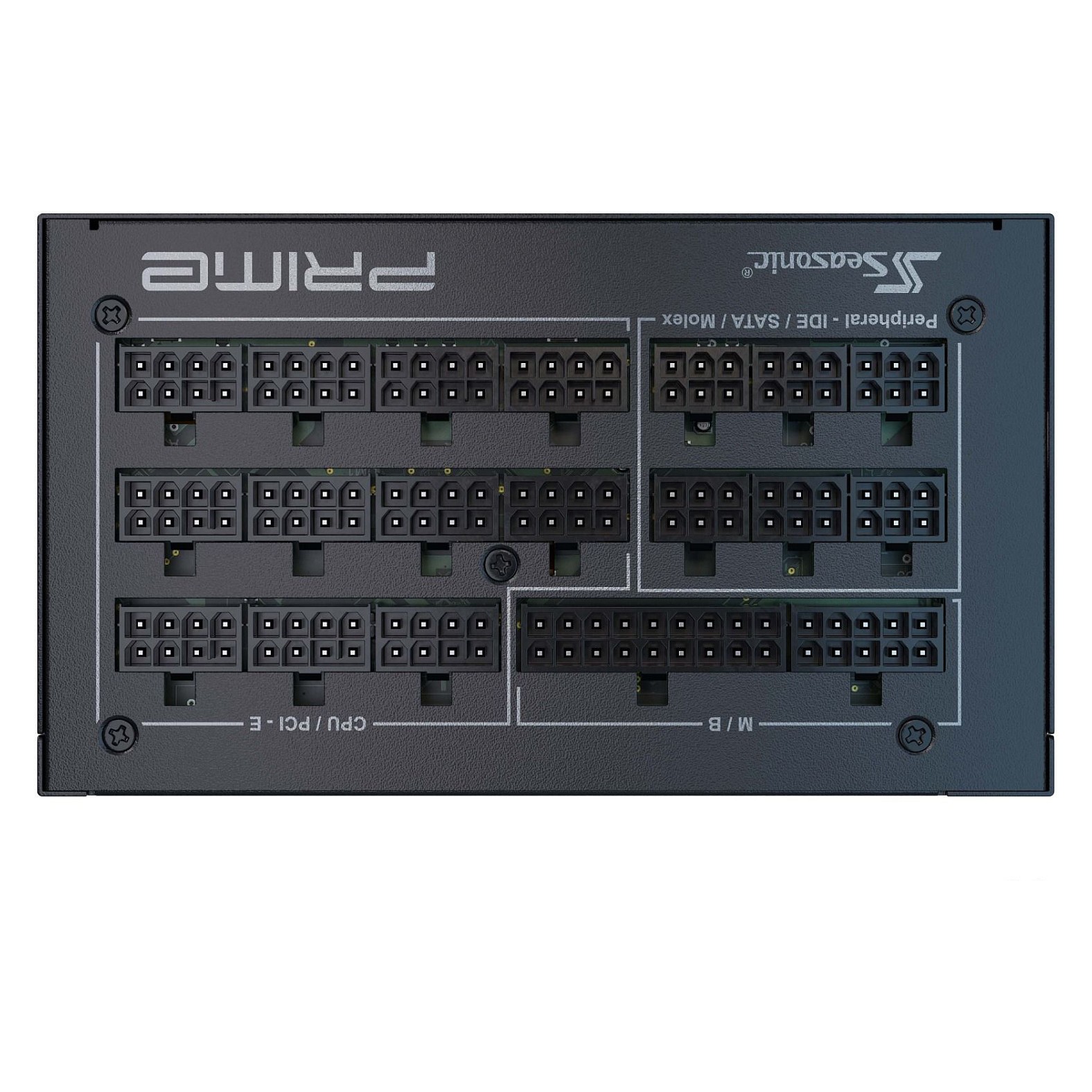

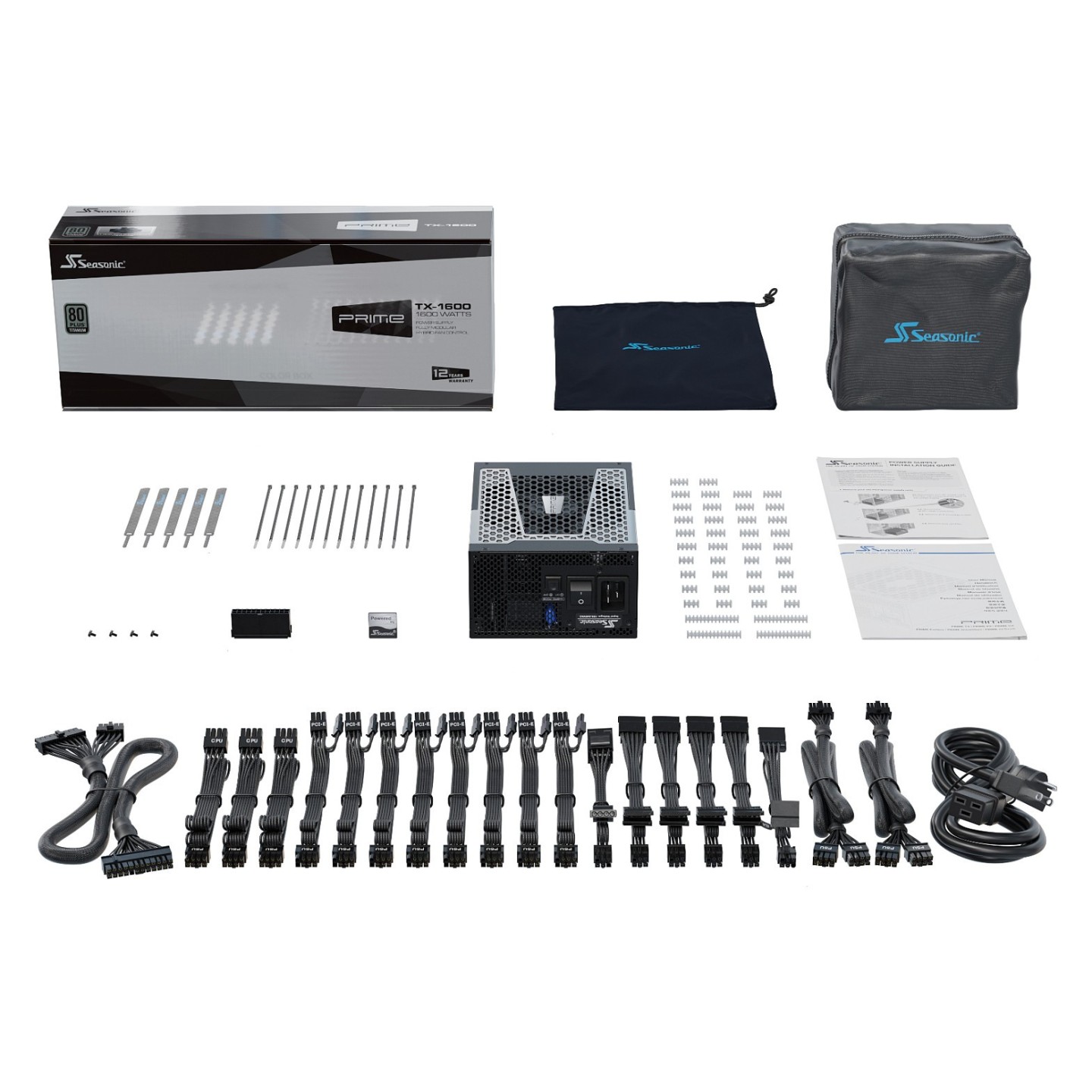

Fully modular design with flat, sleeved cables allows for clean builds and optimal airflow. Key connectors include 2x 12V-2x6 (600W) for modern GPUs, multiple 6+2 pin PCIe, 2x 4+4 pin EPS12V for CPUs, 10x SATA, and 3x Molex. Equipped with a 135mm FDB fan featuring hybrid control for near-silent operation even under heavy loads (up to 50°C). Built with 105°C Japanese capacitors and full protections (OCP/OVP/OPP/OTP/SCP/UVP).
- ✅ 1600W peak power, 80+ Titanium certified
- ✅ ATX 3.1 / PCIe 5.1 ready with 2x 12V-2x6
- ✅ Fully modular, 210mm length
- ✅ 12-year warranty, MTBF 150,000 hours
- ✅ Excellent ripple suppression and voltage stability
| Total Power | 1600 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50 - 60 Hz |
| Input Current | 15 - 10 A |
| Combined Power (+3.3V) | 125 W |
| Combined Power (+5V) | 125 W |
| Combined Power (+12V) | 1600 W |
| Combined Power (-12V) | 6 W |
| Combined Power (+5Vsb) | 15 W |
| Max Output Current (+3.3V) | 25 A |
| Max Output Current (+5V) | 25 A |
| Max Output Current (+12V) | 133.3 A |
| Max Output Current (-12V) | 0.5 A |
| Max Output Current (+5Vsb) | 3 A |
| Motherboard Connector | 20+4 pin ATX |
| Motherboard Cable Length | 61 cm |
| SATA Power Connectors | 10 |
| Molex 4-pin Connectors | 3 |
| PCIe Connectors | 2x 12V-2x6 (600W), 6x 6+2 pin |
| EPS/ATX12V Connectors | 2x 4+4 pin |
| Cable Type | Fully modular |
| 80 Plus Certification | 80 PLUS Titanium |
| Form Factor | ATX |
| Color | Black |
| Cooling | Active, 135 mm FDB fan |
| Fan Control | Hybrid / Fanless / Silent / Cooling |
| MTBF | 150000 h |
| Operating Temperature | 0 - 50 °C |
| Protections | OCP, OVP, OPP, OTP, SCP, UVP |
| Dimensions (W x D x H) | 150 x 210 x 86 mm |
| Warranty | 12 years |
