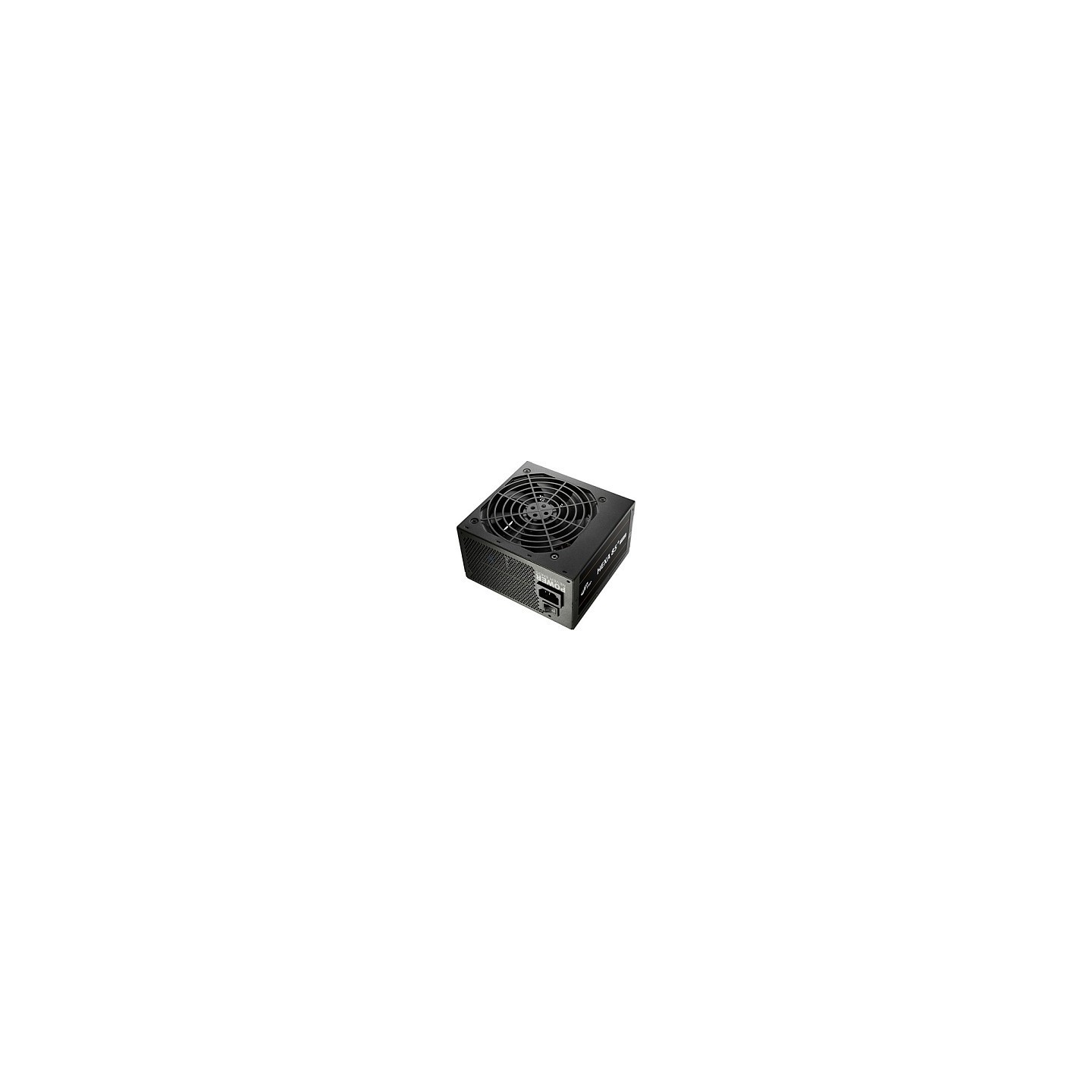

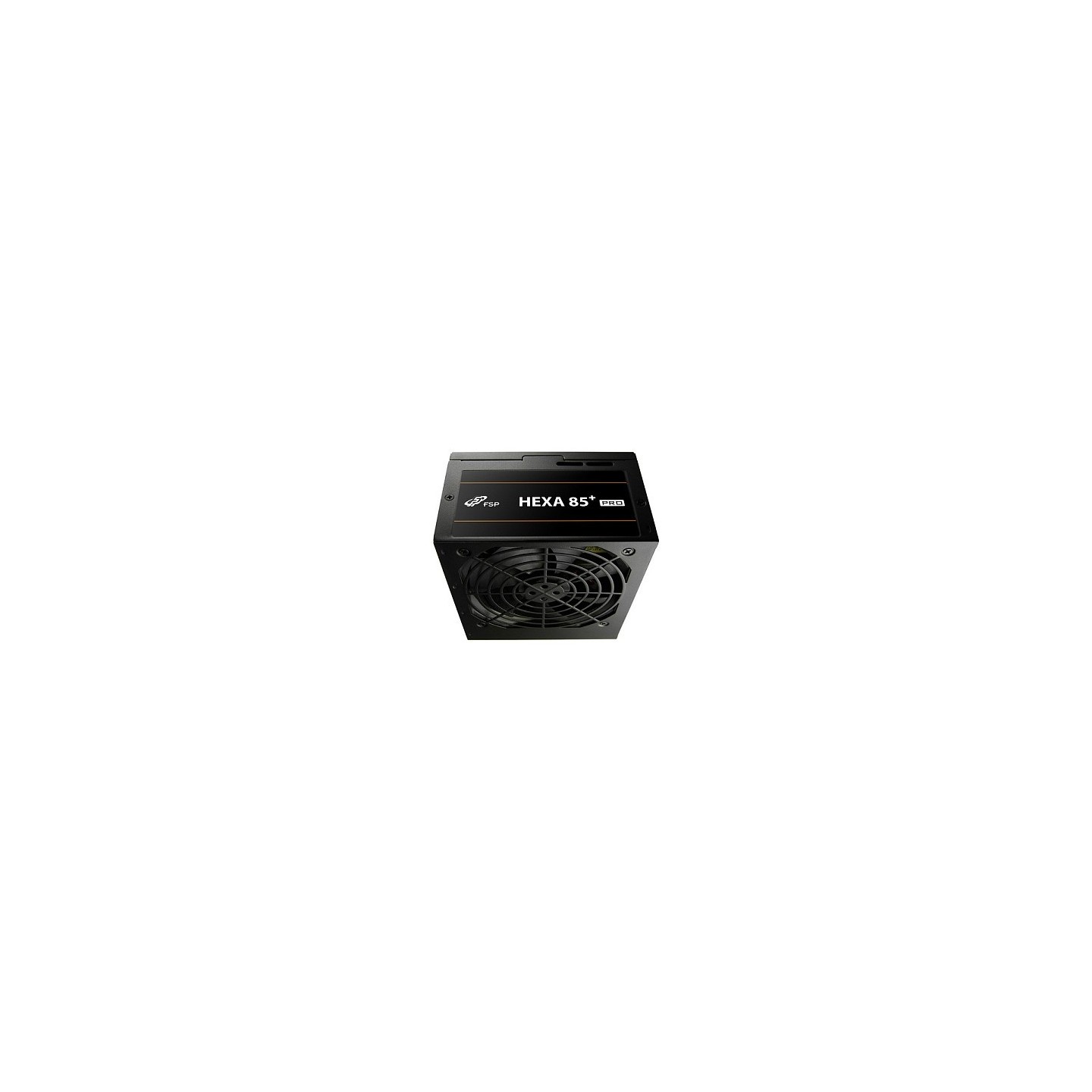

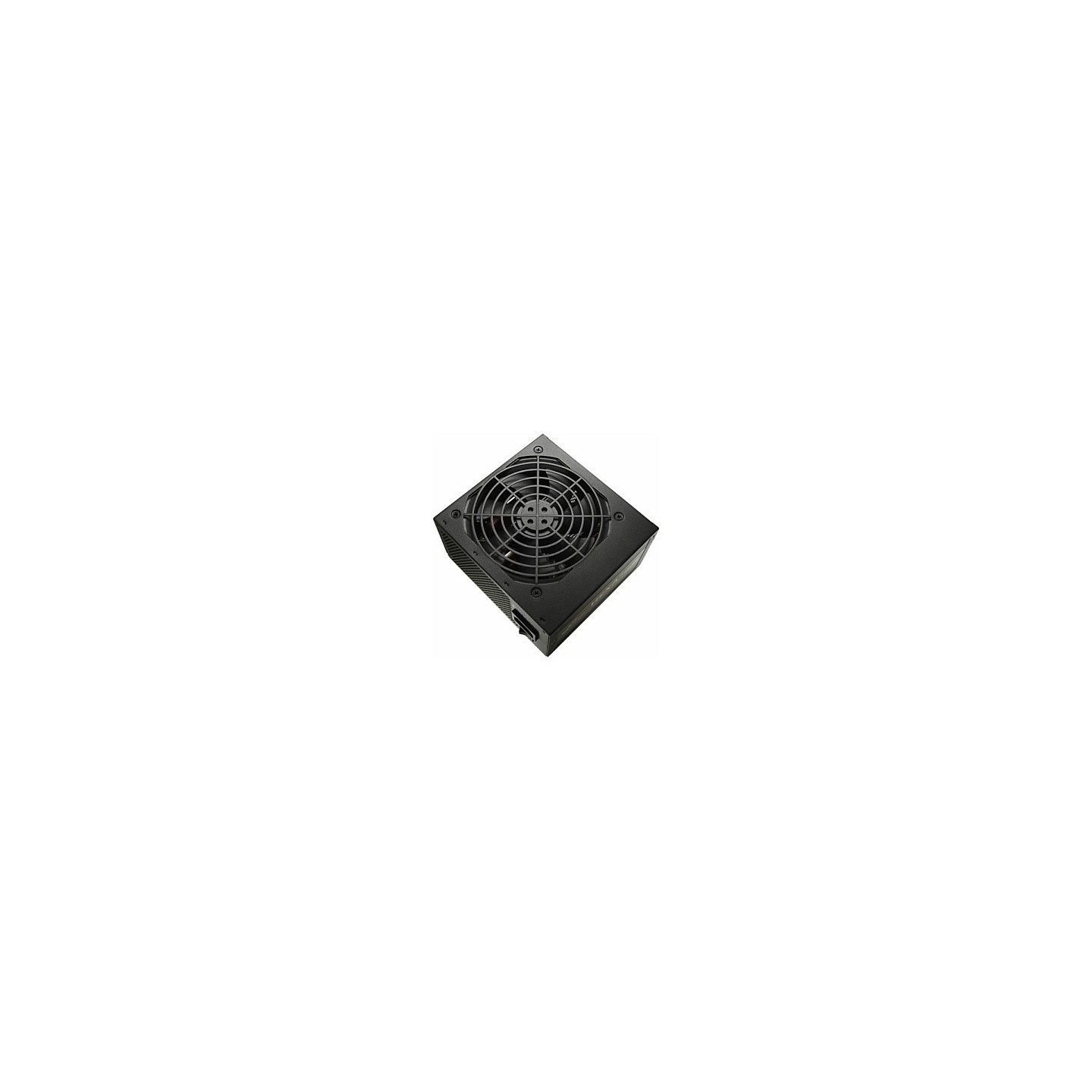

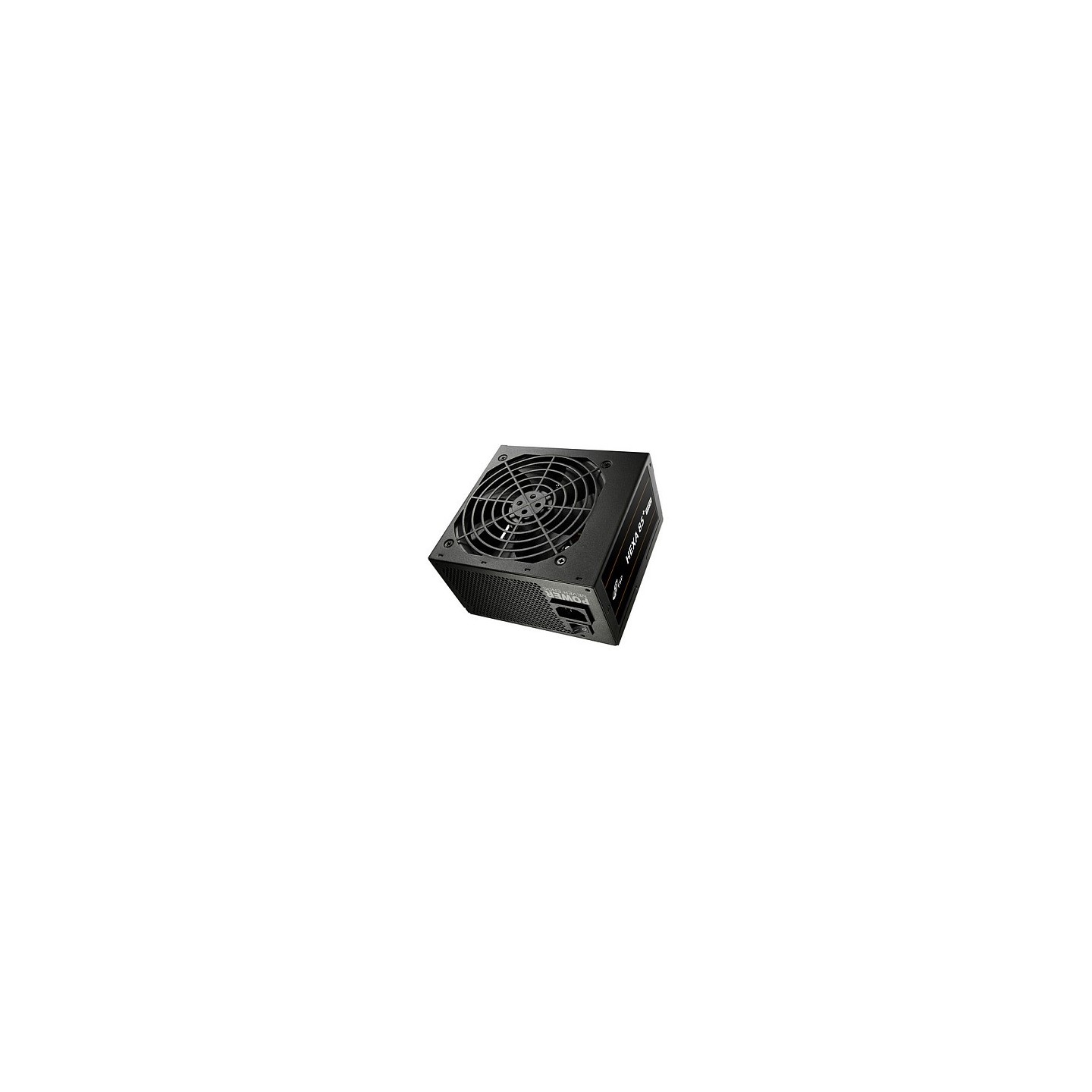

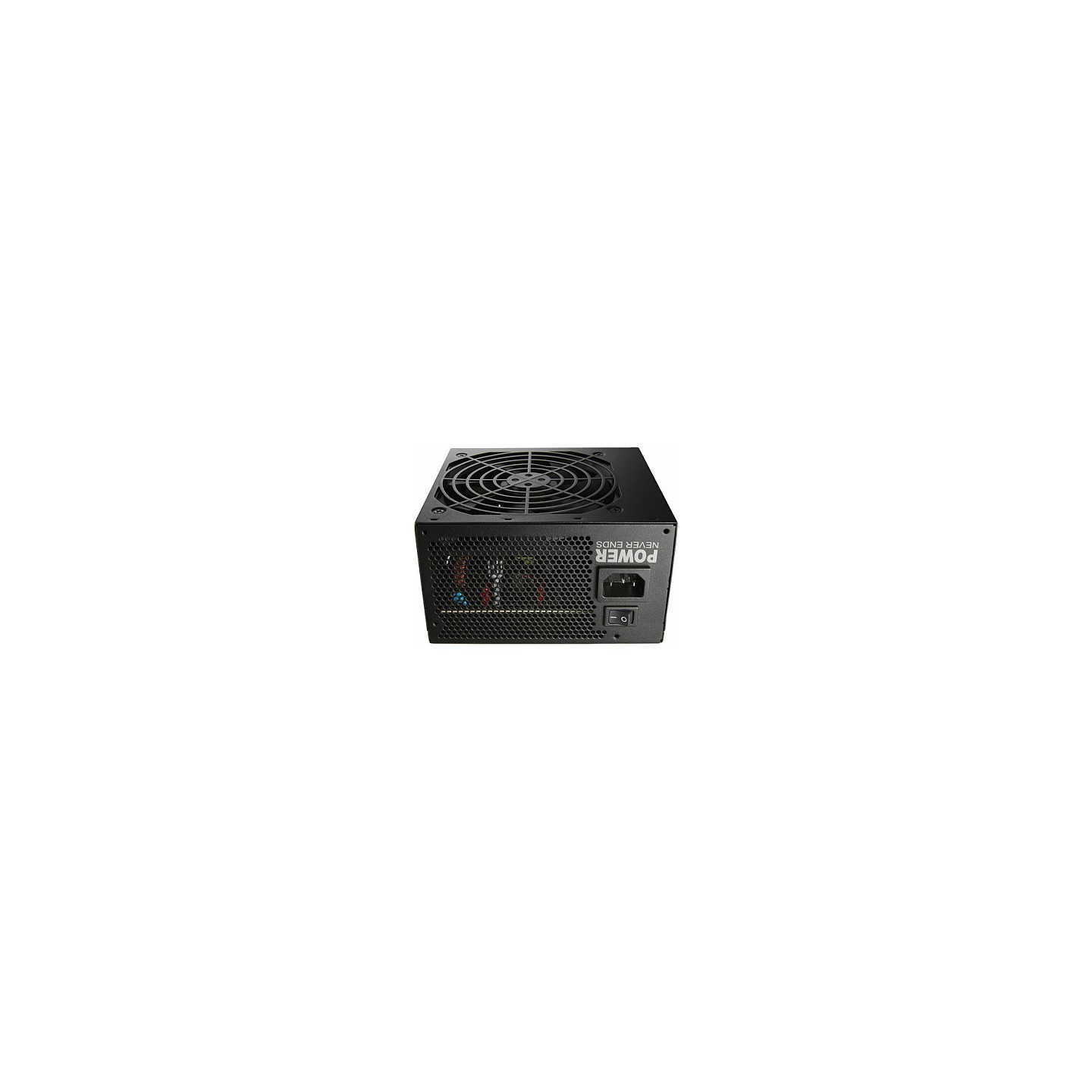

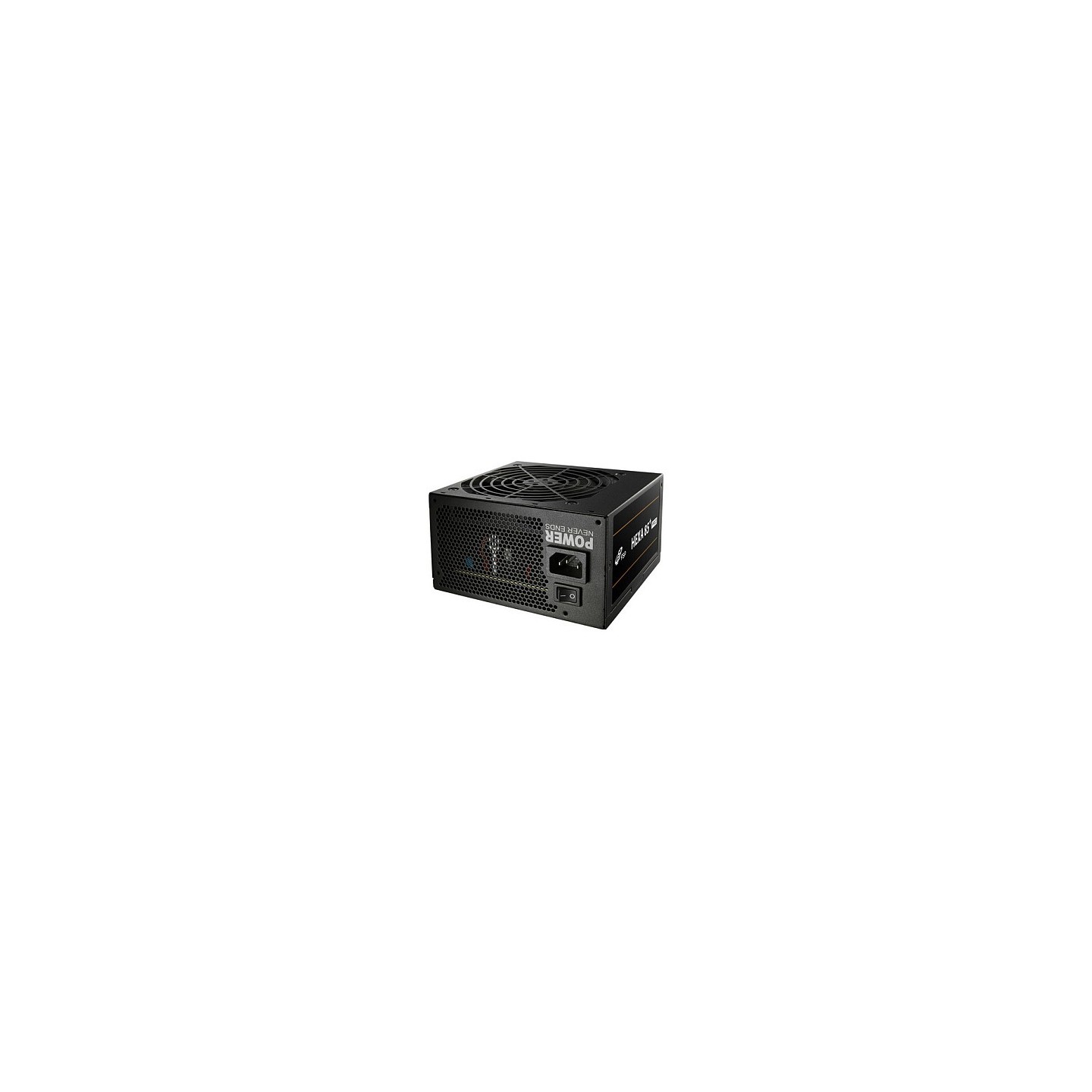

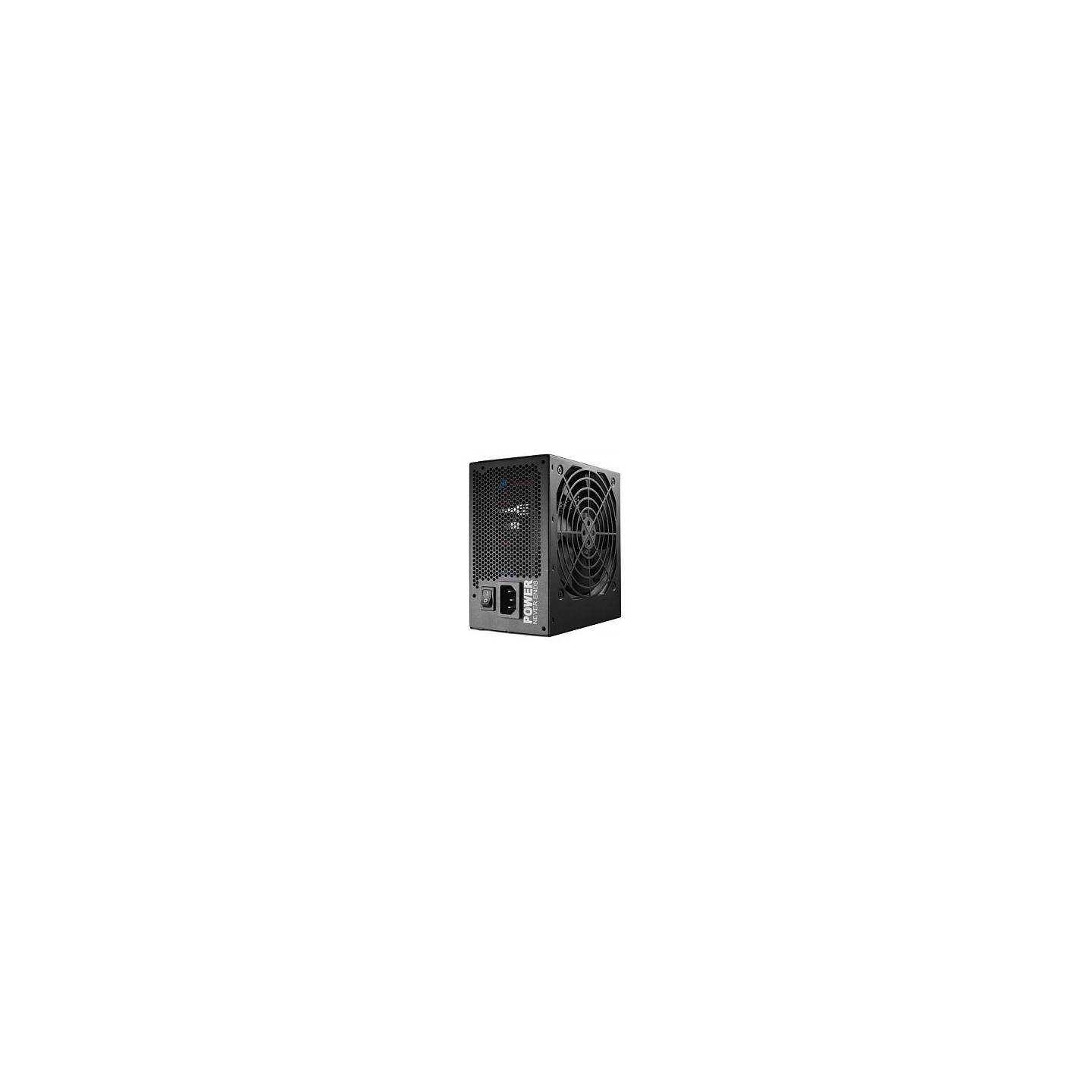

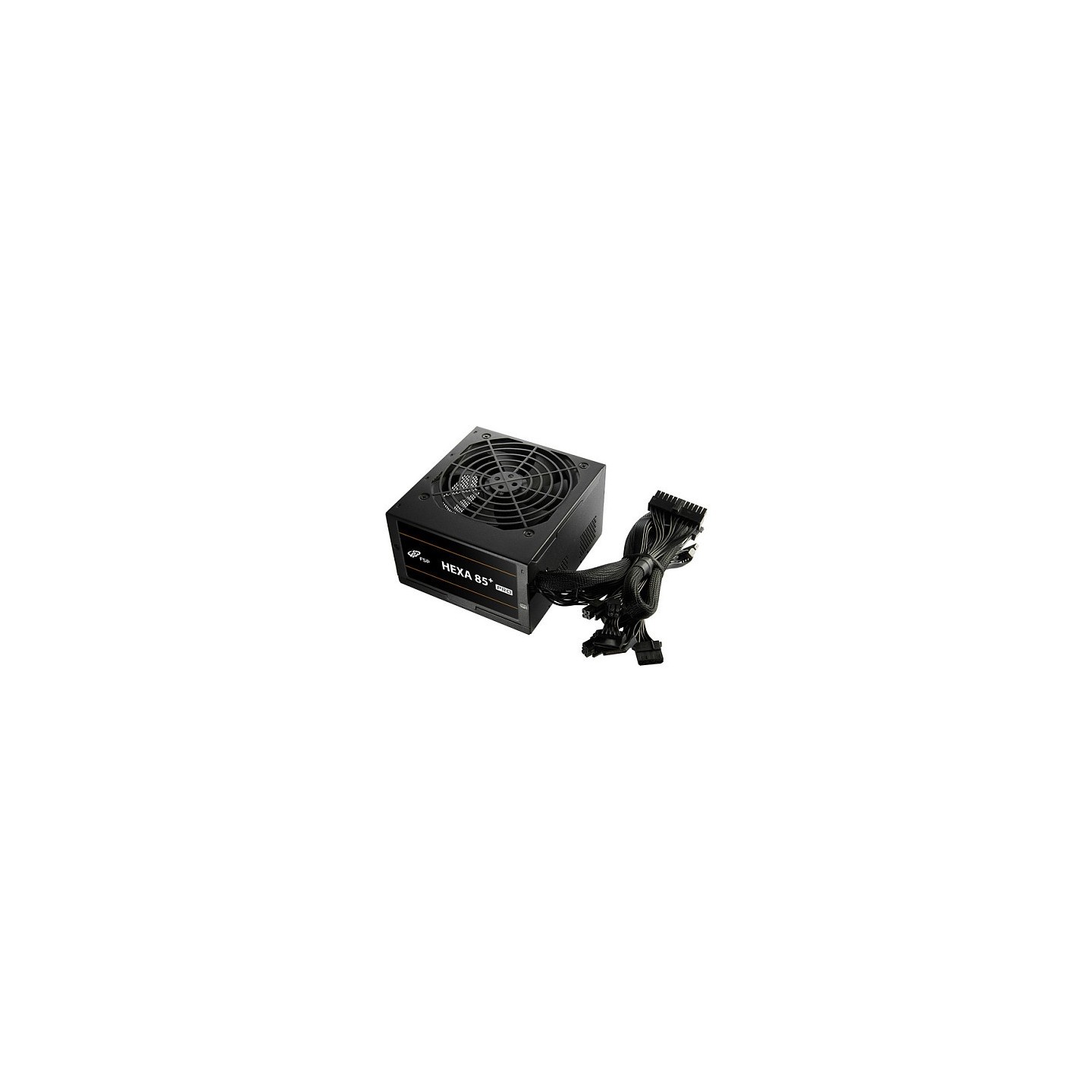

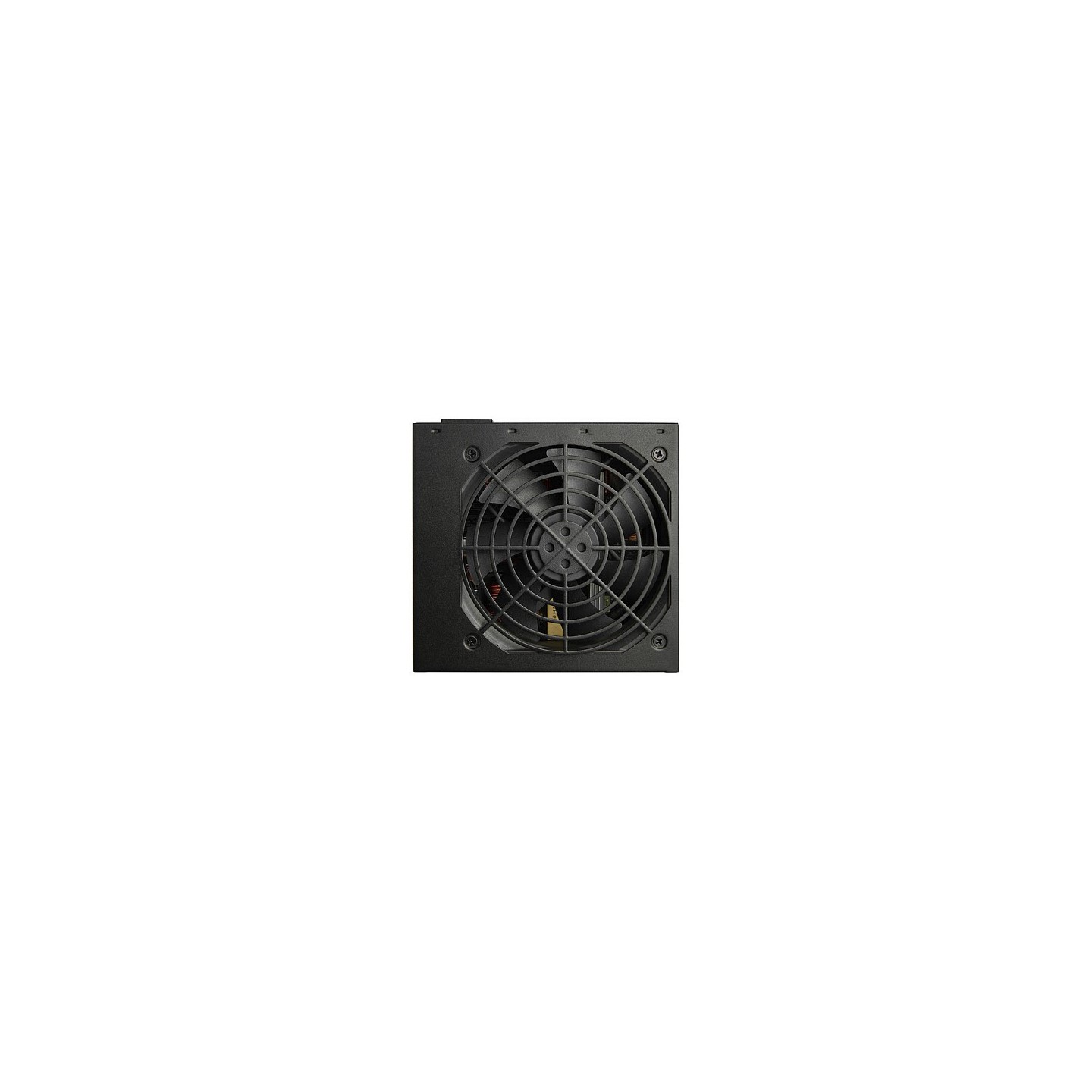

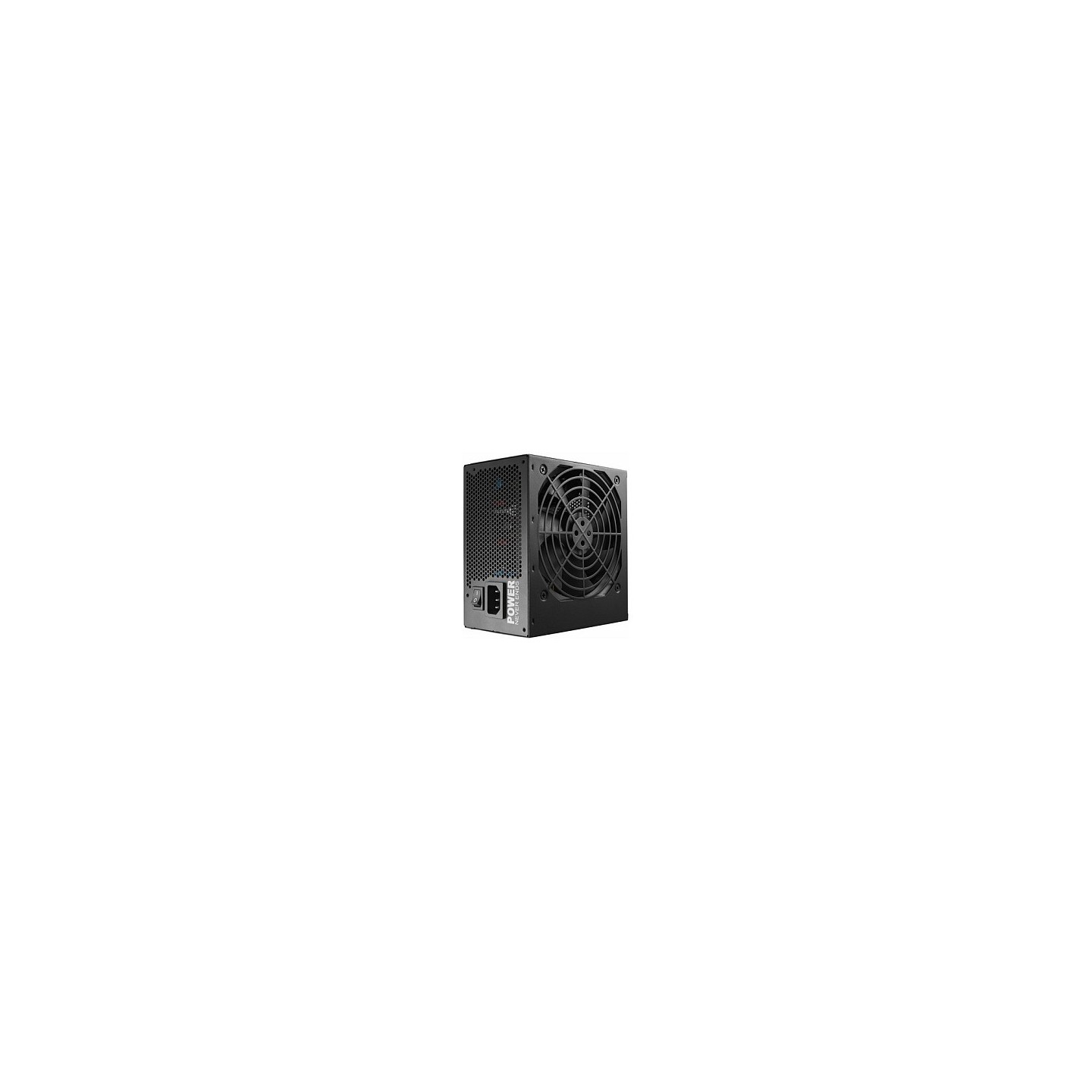

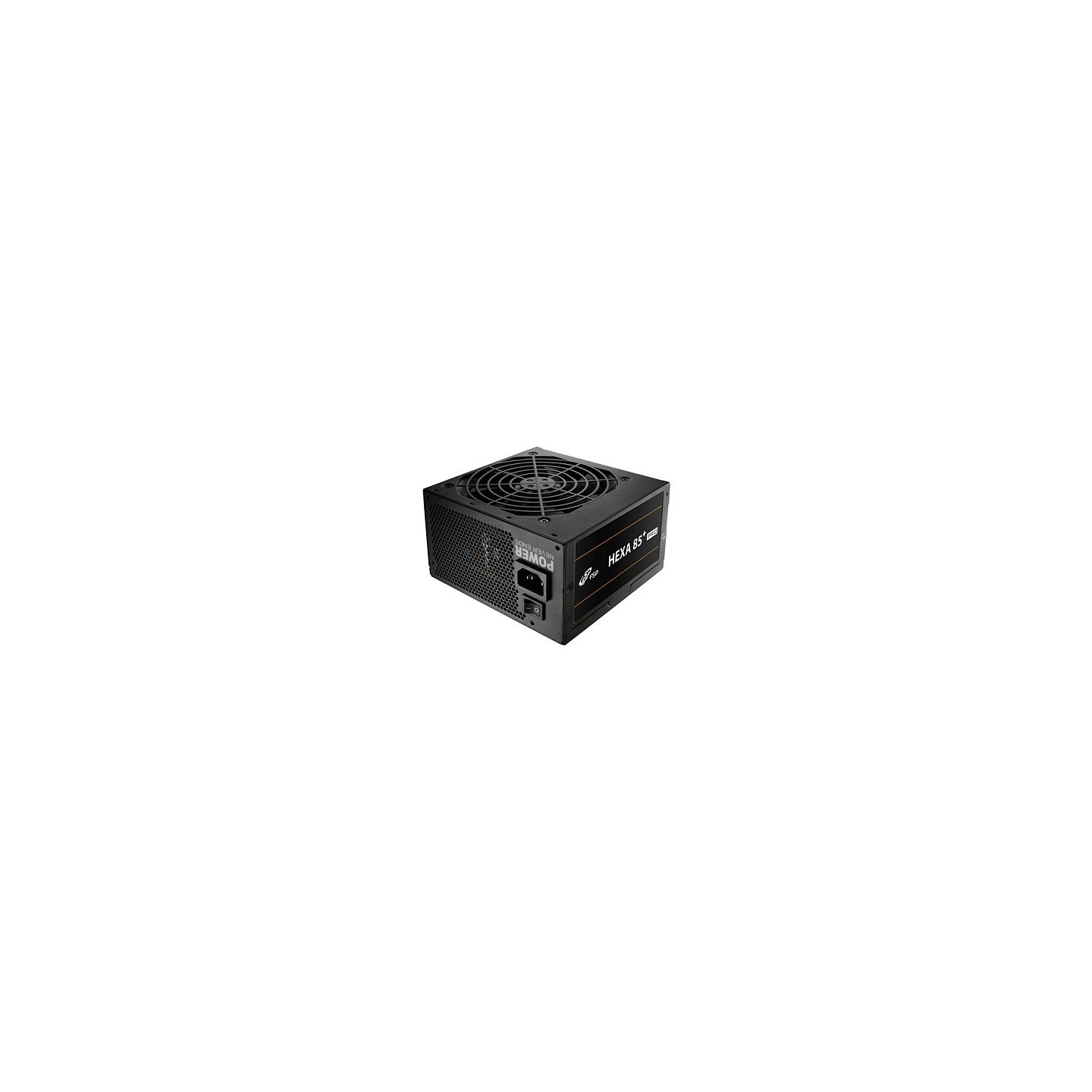

FSP HEXA 85+ PRO 650W 80+ Bronze ATX PSU - PPA6505301 (Boxed)
FSP HEXA 85+ PRO 650W is an 80 PLUS Bronze certified ATX PSU with 650W output, active PFC, DC-DC design, Japanese capacitors, and 120mm silent fan. Features 2x PCIe 6+2pin, dual EPS, full protections (OCP/OVP/OPP/SCP). Non-modular black cables. Dimensions: 150x140x86mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The FSP HEXA 85+ PRO 650W is a reliable 80 PLUS Bronze certified ATX power supply unit designed for PC and server builds. Delivering a total of 650W with a single +12V rail (54.16A max), it ensures stable power for modern components including high-end GPUs and CPUs. Featuring active PFC (≥0.9), DC to DC module design for +5V/+3.3V rails, and Japanese electrolytic capacitors for longevity and low ripple noise.

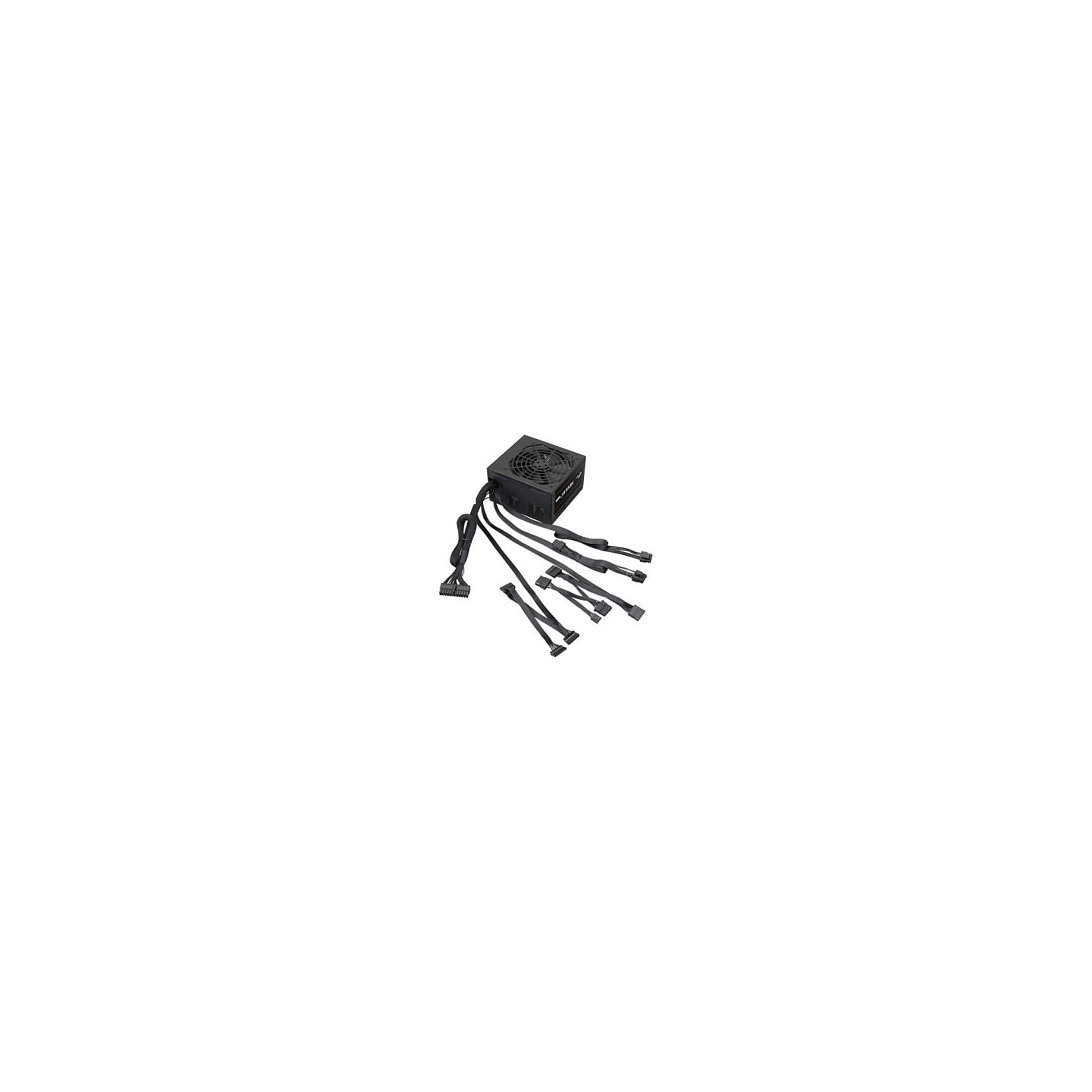

Equipped with a quiet 120mm sleeve bearing fan for active cooling, flat black ribbon cables for easy management, and comprehensive protections: OCP, OVP, OPP, SCP. Supports dual CPU power connectors (EPS 4+4pin) ideal for high-end motherboards. Connectors include 20+4pin ATX, 2x PCIe 6+2pin, 5x SATA, 2x Molex 4pin, 1x Floppy. Non-modular design with 5-year warranty.
- √ 80 PLUS Bronze efficiency ≥85% at typical load
- √ Hold-up time >17ms at 80% load
- √ ATX 2.5 & EPS 2.92 compliant
- √ All-black cables and housing
- √ Universal input 100-240V 9-4A 50-60Hz
| Total Power | 650 W |
| AC Input Voltage | 100-240 V |
| AC Input Frequency | 50-60 Hz |
| Input Current | 9-4 A |
| PFC | Active PFC |
| Combined Power (+3.3V) | 100 W |
| Combined Power (+5V) | 100 W |
| Combined Power (+12V) | 650 W |
| Combined Power (-12V) | 3.6 W |
| Combined Power (+5Vsb) | 12.5 W |
| Max Output Current (+3.3V) | 20 A |
| Max Output Current (+5V) | 20 A |
| Max Output Current (+12V) | 54.16 A |
| Max Output Current (-12V) | 0.3 A |
| Max Output Current (+5Vsb) | 2.5 A |
| Hold-up Time | 17 ms |
| Efficiency | ≥85% at typical load |
| Protections | OCP/OVP/OPP/SCP |
| Motherboard Connector | 20+4 pin ATX |
| Number of SATA Connectors | 5 |
| Number of Molex 4pin | 2 |
| Number of PCIe 6+2pin | 2 |
| EPS/CPU Connectors | Dual 4+4pin (EPS12V) |
| Floppy Connector | 1 |
| Cable Type | Non-modular |
| 80 PLUS Certification | 80 PLUS Bronze |
| Form Factor | ATX |
| ATX Version | 2.5 |
| EPS Version | 2.92 |
| Color | Black |
| Cooling | Active, 120mm sleeve fan |
| Dimensions (LxWxH) | 150 x 140 x 86 mm |
| Weight (unit) | 1.45 kg |
| Warranty | 5 Years |
| Capacitors | Japanese electrolytic |
| Design Features | +12V single-rail, DC to DC modules |
